Multimedia Applications Processors - Arm11™ Core, Vector Graphics Hardware Accelerator
The i.MX356 provides all of the functionality required in today’s automotive market. With an Arm11™ core running at 532 MHz the i.MX356 integrates an OpenVG™ 1.1 vector graphics hardware accelerator. The OpenVG was integrated to deliver smooth textural visuals required in today’s automotive infotainment systems. The processor features an advanced Image Processing Unit (IPU) with updated resizing capabilities to handle wide-VGA and increased the interface to 24-bit for higher color display capabilities. To reduce BOM cost flexible connectivity options were integrated, such as 2-CAN modules, Media Local Bus (MLB), Enhanced Serial Audio Interface (ESAI), Ethernet, and two USB ports with integrated PHYs. The i.MX356 can connect too many different peripherals like Wi-Fi via SDIO or USB, Bluetooth via UART or SSI/I2S and external storage via CE-ATA or PATA. Support for lower cost memories like 3.3V SDRAM, DDR2, and multi-level cell NAND were integrated.
The i.MX356 is supported by companion NXP® power management ICs (PMIC), MC13892 and MMPF0100.
i.MX356 Multimedia Applications Processor Product Image
製品詳細

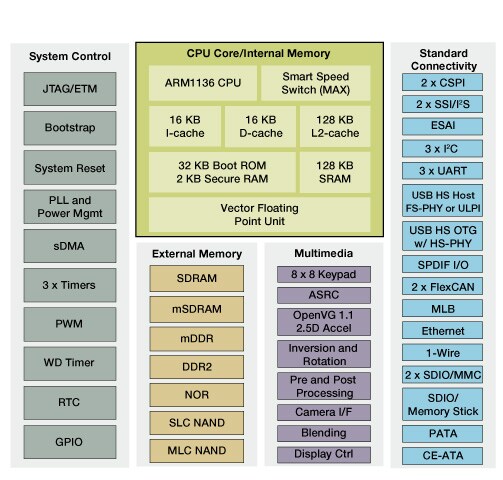

ブロック図
Features
- Arm1136JF-S™
- 532 MHz maximum speed
- 128 KB Integrated SRAM
- 16 KB I/D L1 Cache, 128 KB L2 cache
- MLB
- ESAI
- OpenVG 1.1 vector graphics hardware accelerator
- Image Processing Unit (IPU)
- LCD Controller
- 10/100 Ethernet
- MAC 2 x FlexCan modules
- HS OTG + PHY, HS Host + PHY
- 3 x UART, 2 x CSPI, 3 I2C, 2 SSI/I2S
- P-ATA/CE-ATA
- Optimized for up to 24-bit-per-pixel WVGA
- CMOS/CCD sensor interface
- Vector Floating Point Unit
- External memory interface: mSDRAM/SDRAM, mDDR/DDR2, NOR, SLC/MLC NAND
- 3.3V general purpose I/O
- This product is included in NXP®.s product longevity program, with assured supply for a minimum of 15 years after launch
