Multimedia Applications Processors - Connectivity, Arm11™ Core
NXP’s Arm11™-based i.MX353 multimedia applications processors is targeted for consumer and industrial applications. To reduce the BOM costs it is packed with connectivity options including UARTs, SPIs, Ethernet, two Controller Area, Network (CAN) modules, two USB ports with integrated PHYs, ESAI and three MMC/SD/SDIO ports. The i.MX353 has the ability to connect to external wireless modules via a USB or SDIO port and supports external storage via CE-ATA or PATA. Support for cost-effective memory options like DDR2 and multi-level cell NAND reduce system costs and provide the design engineer great flexibility.
The i.MX353 is supported by companion NXP power management ICs (PMIC), MC13892 and MMPF0100.
i.MX353 Multimedia Applications Processor Product Image
製品詳細

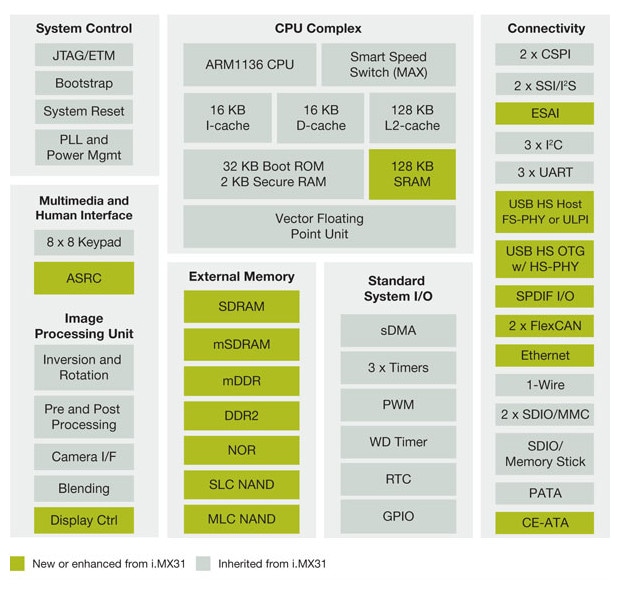

ブロック図
Features
- Arm1136JF-S™
- 532 MHz maximum speed
- 128 KB Integrated SRAM
- 16 KB I/D L1 Cache, 128 KB L2 cache
- Image Processing Unit (IPU)
- LCD Controller
- 10/100 Ethernet
- MAC 2 x FlexCan modules
- HS OTG + PHY, HS Host + PHY
- 3 x UART, 2 x CSPI, 3 I2C, 2 SSI/I2S
- P-ATA/CE-ATA
- Optimized for up to 24-bit-per-pixel WVGA
- CMOS/CCD sensor interface
- Vector Floating Point Unit
- External memory interface: mSDRAM/SDRAM, mDDR/DDR2, NOR, SLC/MLC NAND
- 3.3V general purpose I/O
- This product is included in NXP’s product longevity program, with assured supply for a minimum of 15 years after launch
