Multimedia Applications Processors Based on Arm11™ Core
The i.MX355 processor takes advantage of the Arm11™ core running at 532 MHz with the advantage of an Image Processing Unit. The i.MX355 integrates Enhanced Serial Audio Interface (or ESAI) for multi-channel (5.1) audio, SPDIF I/O for compressed digital audio connectivity and an advanced sample rate converter (ASRC) for mixing digital content with different sampling frequencies. For flexible connectivity options the i.MX355 integrates 2-CAN modules, Media Local Bus (or MLB), Ethernet and the ability to connect to external wireless modules via SDIO or USB ports. To reduce system costs a full-speed PHY on the Host port and high-speed PHY on the On-the-go port were added. Support for lower cost memories like 3.3V SDRAM, DDR2, and multi-level cell NAND were integrated. Also included are storage device connections P-ATA and CE-ATA.
The i.MX355 is supported by companion NXP® power management ICs (PMIC), MC13892 and MMPF0100.
i.MX355 Multimedia Applications Processor Product Image
製品詳細

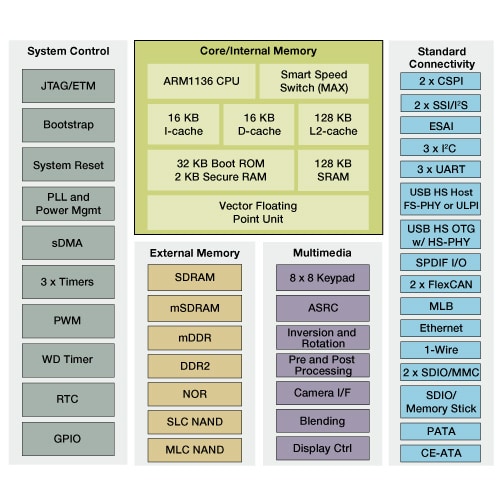

ブロック図
Features
- Arm1136JF-S™
- 532 MHz maximum speed
- 128 KB Integrated SRAM
- 16 KB I/D L1 Cache, 128 KB L2 cache
- MLB
- ESAI
- Image Processing Unit (IPU)
- LCD Controller
- 10/100 Ethernet
- MAC 2 x FlexCan modules
- HS OTG + PHY, HS Host + PHY
- 3 x UART, 2 x CSPI, 3 I2C, 2 SSI/I2S
- P-ATA/CE-ATA
- Optimized for up to 24-bit-per-pixel WVGA
- CMOS/CCD sensor interface
- Vector Floating Point Unit
- External memory interface: mSDRAM/SDRAM, mDDR/DDR2, NOR, SLC/MLC NAND
- 3.3V general purpose I/O
- This product is included in NXP®.s product longevity program, with assured supply for a minimum of 15 years after launch
