Multimedia Applications Processors - Integrated Electronic Paper Display (EPD), High Performance, Arm® Cortex®-A8 Core
The i.MX508 processor is the first system-on-chip (SoC) designed specifically for eReaders that incorporates a high performance 800MHz Arm® Cortex®-A8 processor and an integrated hardware Electronic Paper Display (EPD) Controller certified by E Ink® to drive the latest and next generation Pearl™ panels. The i.MX508 enables reduced system cost, longer battery life and higher performance for faster page flips and a better reading experience.
The i.MX508 is supported by a companion NXP® power management IC, MMPF0100.
製品詳細

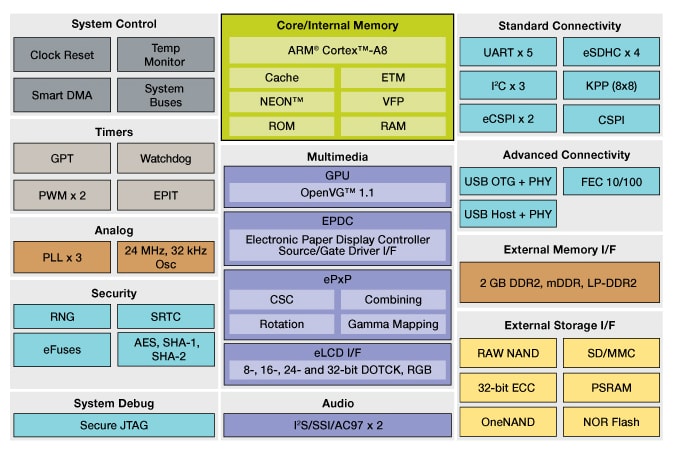

ブロック図
Features
CPU Complex
- Up to 800 MHz Arm® Cortex®-A8
- 32 KB instruction and data caches
- Unified 256 KB L2 cache
- NEON™ SIMD media accelerator
- Vector floating point coprocessor
Multimedia
- OpenVG™ 1.1 hardware accelerator
- 32-bit primary display support up to SXGA+ resolution
- EPD Controller supporting up to 4096 x 4096
- Simultaneous EPD and LCD support
- Enhanced Pixel Processing Pipeline (PxP) supporting CSC, Combine, Rotate, Gamma Mapping
External Memory Interface
- Up to 2 GB LP-DDR2, DDR2 and LP-DDR1(mDDR), 16/32-bit
- SLC/MLC NAND flash, 8/16-bit with 32-bit ECC
Advanced Power Management
- Multiple independent power domains
- State Retention Power Gating (SRPG)
- Dynamic voltage and frequency scaling (DVFS)
Connectivity
- High-Speed USB 2.0 OTG with PHY
- High-Speed USB 2.0 Host with PHY
- 10/100 Ethernet controller
Controllers
- Wide array of serial interfaces, including SDIO, SPI, I2C and UART
- I2S audio interface
Product Longevity
- This product is included in NXP®.s product longevity program, with assured supply for a minimum of 10 years after launch
