14-Channel Configurable PMIC

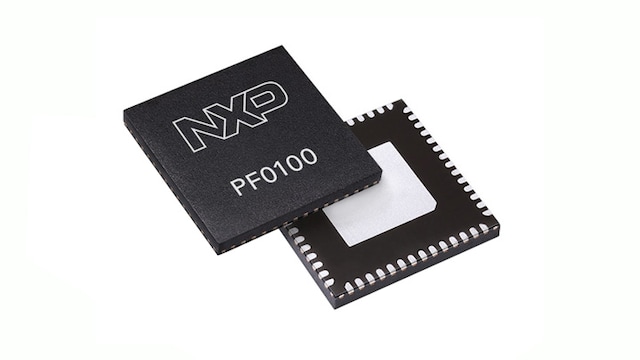

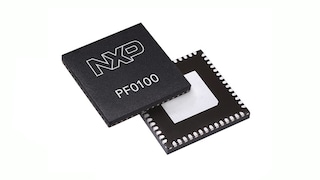

MMPF0100 アクティブ

画像にカーソルを合わせると拡大表示されます。

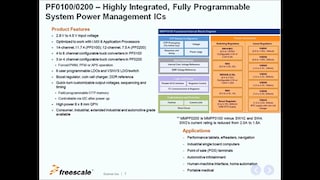

The MMPF0100 is the first of the PF series of our PMICs, featuring:

  • Configurable and programmable architecture supporting outputs with various current ratings to power the core processor, memory and a wide range of peripherals
  • Integration of full system-level power management functions to simplify system design
  • Optimized performance architecture for efficient, advanced functionality for consumer, industrial and automotive applications

The MMPF0100 is suited to all i.MX 6 processors: i.MX 6SoloX, i.MX 6SoloLite, i.MX 6Solo, i.MX 6DualLite, i.MX 6Dual, i.MX 6Quad, i.MX 6DualPlus and i.MX 6QuadPlus. It is built into multiple reference designs in the i.MX 6 family to provide a platform-level solution from that enables faster time to market.

ブロック図

MMPF0100

MMPF0100 Block Diagram
図を取得する PDF

Features

Input Supply

  • Input voltage range to PMIC: 2.8 – 4.5 V

Power Supplies

  • Four to six buck regulators depending on configuration
    • Single/dual phase/parallel options
    • DDR termination tracking mode option
    • DVS option
  • 5 V boost regulator for USB OTG
  • Seven general purpose linear regulators
  • Coin cell charger and RTC supply
  • DDR termination reference voltage
  • Power control logic with processor interface and event detection
  • Programmable output voltage, sequence and timing

Communication

  • I²C interface and input control

Configurability

  • Individually programmable On, Off and Standby modes
  • OTP (one time programmable) memory for device configuration
    • Reconfigurable OTP capability prior to blowing the configuration register fuses
    • End customer programmable
  • Available in two package options
    • E-Type QFN – 8 mm x 8 mm, 56 Ld
    • Wettable Flank QFN – 8 mm x 8 mm, 56 Ld
  • Available in consumer/industrial and automotive AEC-100 Grade 3 qualifications
  • Industry-leading light load efficiency
  • Software support for i.MX6 dynamic voltage scaling

Key Features

  • i.MX53, i.MX6D, i.MX6DL, i.MX6Q, i.MX 6QP, i.MX6S, i.MX6SL, i.MX6SLL and i.MX6SX MCU supported
  • Output current 4.5 A
