Power Management for i.MX50/53 Processors

MC34709 アクティブ

画像にカーソルを合わせると拡大表示されます。

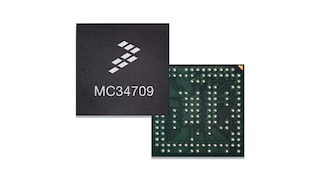

The MC34709 is a power management integrated circuit (PMIC) designed primarily for use with the i.MX 50 and i.MX53 families.

  • Offers a low cost solution targeting embedded applications that do not require a battery charger
  • Can be easily combined with an external charger, allowing flexibility for either single or multi-cell Li-Ion battery configurations
  • Supports both consumer and industrial applications with a single 130-pin 8x8 MAPBGA 0.5 mm pitch package that is easily routable in low cost board designs

ブロック図

MC34709

MC34709 Block Diagram
図を取得する PDF

Features

Power Supplies

  • Six multi-mode buck regulators
    • Two single/dual-phase buck regulators
    • Three single-phase buck regulators
    • Up to six independent outputs
    • PFM/PWM operation mode
    • Dynamic voltage scaling
  • 5 V boost regulator
    • Support for USB physical layer on i.MX processor (USB PHY)
  • Eight LDO regulators
    • Two with selectable internal or external pass devices
    • Four with embedded pass devices
    • One with an external PNP device
    • Voltage reference for DDR memory with internal PMOS device
  • Hardware programmable power-up sequence

10-Bit ADC Core

  • Seven general purpose ADC channels
  • Dedicated channels for monitoring die temperature and coin cell voltage
  • Resistive touchscreen interface

Auxiliary Circuits

  • General purpose I/Os
  • PWM outputs

Clocking and Oscillators

  • Real time clock
  • Time and day counters
  • Time of day alarm
  • 32.768 kHz crystal oscillator
  • Coin cell battery backup and charger

Serial Interface

  • SPI / I²C communication protocol

Key Features

  • I²C interface and input control
  • i.MX35, i.MX37, i.MX50, i.MX51 and i.MX53 MCU supported

もっと見る

購入/パラメータ

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
N true 0 PSPMC34709ja 9 アプリケーション・ノート Application Note t789 4 エラッタ Errata t522 1 カタログ Brochure t518 1 データ・シート Data Sheet t520 1 ホワイト・ペーパ White Paper t530 2 ja 2 1 3.0 English Silicon Errata for MC34709 1351188799223724117174 PSP 261.0 KB None None documents None 1351188799223724117174 /docs/en/errata/MC34709ER.pdf 261026 /docs/en/errata/MC34709ER.pdf MC34709ER N N 2016-10-31 Silicon Errata MC34709 (N88D) - Errata /docs/en/errata/MC34709ER.pdf /docs/en/errata/MC34709ER.pdf Errata N Y 155452329886410597 2022-12-07 pdf N en Nov 27, 2013 Errata t522 エラッタ Errata Y N Silicon Errata MC34709 (N88D) - Errata 2 4.0 English The 34709 is the Power Management Integrated Circuit (PMIC) designed primarily for use with the i.MX50 and i.MX53 families. 1343947944046710064582 PSP 9.6 MB None None documents None 1343947944046710064582 /docs/en/data-sheet/MC34709.pdf 9631582 /docs/en/data-sheet/MC34709.pdf MC34709 N N 2016-10-31 MC34709, Power Management Integrated Circuit (PMIC) for i.MX50/53 Families - Data Sheet /docs/en/data-sheet/MC34709.pdf /docs/en/data-sheet/MC34709.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf N en Nov 27, 2013 Data Sheet t520 データ・シート Data Sheet Y N MC34709, Power Management Integrated Circuit (PMIC) for i.MX50/53 Families - Data Sheet false ja ja アプリケーション・ノート Application Note 4 3 4 English This application note provides guidelines for the handling and assembly of NXP Molded Array Process Ball Grid Array (MAPBGA) packages during printed circuit board (PCB) assembly. 1408133557835745615366 PSP 1.7 MB Registration without Disclaimer None documents Extended 1408133557835745615366 /secured/assets/documents/en/application-note/AN4982.pdf 1653231 /secured/assets/documents/en/application-note/AN4982.pdf AN4982 documents Y N 2016-10-31 AN4982, Assembly guidelines for molded array process ball grid array package - Application Note /webapp/Download?colCode=AN4982&lang_cd=ja /secured/assets/documents/en/application-note/AN4982.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Dec 9, 2020 645036621402383989 Application Note Y N AN4982, Assembly guidelines for molded array process ball grid array package - Application Note 4 2.0 English The present document shows the reader how to supply and interface the i.MX53 with the NXP MC34709 PMIC, as well as showing an example of the system implementation at schematic level. 1357592487145715658770 PSP 1.8 MB Registration without Disclaimer None documents Extended 1357592487145715658770 /secured/assets/documents/en/application-note/AN4604.pdf 1751537 /secured/assets/documents/en/application-note/AN4604.pdf AN4604 documents Y N 2016-10-31 AN4604, Interfacing the MC34709 with the i.MX53 Microprocessor - Application Note /webapp/Download?colCode=AN4604&lang_cd=ja /secured/assets/documents/en/application-note/AN4604.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en May 9, 2013 645036621402383989 Application Note Y N AN4604, Interfacing the MC34709 with the i.MX53 Microprocessor - Application Note 5 1.0 English AN4603: The present document is intended to teach the reader how to supply the power management to the i.MX50x family of processors using either the NXP MC13892 or the MC34709 as the main power management device. 1357341562492725315940 PSP 2.4 MB Registration without Disclaimer None documents Extended 1357341562492725315940 /secured/assets/documents/en/application-note/AN4603.pdf 2414282 /secured/assets/documents/en/application-note/AN4603.pdf AN4603 documents Y N 2016-10-31 AN4603, Power Management Design Guidelines for the i.MX50x Family of Microprocessors - Application Note /webapp/Download?colCode=AN4603&lang_cd=ja /secured/assets/documents/en/application-note/AN4603.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Dec 24, 2012 645036621402383989 Application Note Y N AN4603, Power Management Design Guidelines for the i.MX50x Family of Microprocessors - Application Note 6 1.0 English This document is intended to show an example implementation of an external battery charger solution for the MC34709 power management architecture for i.MX processors. 1352316829796708029732 PSP 300.2 KB Registration without Disclaimer None documents Extended 1352316829796708029732 /secured/assets/documents/en/application-note/AN4619.pdf 300243 /secured/assets/documents/en/application-note/AN4619.pdf AN4619 documents Y N 2016-10-31 AN4619, Interfacing the MC34709 with an External Battery Charger, AN4619 - Application Note /webapp/Download?colCode=AN4619&lang_cd=ja /secured/assets/documents/en/application-note/AN4619.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Nov 19, 2012 645036621402383989 Application Note Y N AN4619, Interfacing the MC34709 with an External Battery Charger, AN4619 - Application Note カタログ Brochure 1 7 6 English Power management integrated circuits are designed to offer optimum integration for a wide range of devices. 1455566973736725260918 PSP 505.9 KB None None documents None 1455566973736725260918 /docs/en/brochure/PMICBRA4.pdf 505864 /docs/en/brochure/PMICBRA4.pdf PMICBRA4 documents N N 2016-10-31 Power Management Integrated Circuits Brochure /docs/en/brochure/PMICBRA4.pdf /docs/en/brochure/PMICBRA4.pdf Brochure N 712453003803778552 2025-02-19 en Sep 6, 2024 712453003803778552 Brochure Y N Power Management Integrated Circuits Brochure 4 Japanese NXPのPMICは、i.MXアプリケーション、プロセッサ、ネットワーキング、その他のプロセッサ向けに、スケーラブルで堅牢な実績のあるプラットフォーム・ソリューションを提供します。 1455566973736725260918ja PSP 505.9 KB None None documents None 1455566973736725260918 /docs/ja/brochure/PMICBRA4.pdf 505864 /docs/ja/brochure/PMICBRA4.pdf PMICBRA4 documents N N 2016-10-31 Power Management Integrated Circuits Brochure /docs/ja/brochure/PMICBRA4.pdf /docs/ja/brochure/PMICBRA4.pdf Brochure N 712453003803778552 2025-02-19 pdf N ja Nov 1, 2023 712453003803778552 Brochure Y N パワー・マネジメント集積回路 (PMIC) – パンフレット ホワイト・ペーパ White Paper 2 8 0 Chinese 软件定义汽车的电源架构由系统基础芯片(SBC)和/或电源管理集成电路(PMIC)进行管理，尽管驾驶员看不见，但电源架构不可或缺。每个组件的电源都构成了复杂的挑战，需要同样复杂的解决方案。 1718053785186698755373zh PSP 212.9 KB Registration without Disclaimer None documents Extended 1718053785186698755373 /secured/assets/documents/zh/white-paper/PMICWPA4.pdf 212885 /secured/assets/documents/zh/white-paper/PMICWPA4.pdf PMICWPA4 documents Y N 2024-06-10 Powering the Ambition of Software-Defined Vehicles White Paper /secured/assets/documents/zh/white-paper/PMICWPA4.pdf https://www.nxp.com.cn/webapp/Download?colCode=PMICWPA4&docLang=zh White Paper N 918633085541740938 2025-02-19 zh Jun 10, 2024 918633085541740938 White Paper Y N 驱动软件定义汽车 0 English While entirely invisible to the driver, the software-defined vehicle’s power architecture, orchestrated through System Basis Chips (SBCs) and/or Power Management Integrated Circuits (PMICs), is fundamental. The power supply for every component poses sophisticated challenges which require equally sophisticated solutions. 1718053785186698755373 PSP 212.9 KB Registration without Disclaimer None documents Extended 1718053785186698755373 /secured/assets/documents/en/white-paper/PMICWPA4.pdf 212885 /secured/assets/documents/en/white-paper/PMICWPA4.pdf PMICWPA4 documents Y N 2024-06-10 Powering the Ambition of Software-Defined Vehicles White Paper /webapp/Download?colCode=PMICWPA4&lang_cd=ja /secured/assets/documents/en/white-paper/PMICWPA4.pdf White Paper N 918633085541740938 2025-02-19 pdf Y en Jun 10, 2024 918633085541740938 White Paper Y N Powering the Ambition of Software-Defined Vehicles White Paper 9 1 English This paper will discuss the hidden cost of discrete power solution implementations and robust and reliable NXP<sup>&#174;</sup>. PMICs which effectively reduce project costs. 1467308939620719455692 PSP 673.4 KB None None documents None 1467308939620719455692 /docs/en/white-paper/PMICWP.pdf 673441 /docs/en/white-paper/PMICWP.pdf PMICWP documents N N 2016-10-31 PMICWP, A Case Against Discretes - White paper /docs/en/white-paper/PMICWP.pdf /docs/en/white-paper/PMICWP.pdf White Paper N 918633085541740938 2022-12-07 pdf N en Oct 3, 2016 918633085541740938 White Paper Y N PMICWP, A Case Against Discretes - White paper false 0 MC34709 downloads ja true 1 Y PSP Y Y アプリケーション・ノート 4 /secured/assets/documents/en/application-note/AN4982.pdf 2016-10-31 1408133557835745615366 PSP 3 Dec 9, 2020 Application Note This application note provides guidelines for the handling and assembly of NXP Molded Array Process Ball Grid Array (MAPBGA) packages during printed circuit board (PCB) assembly. Registration without Disclaimer /secured/assets/documents/en/application-note/AN4982.pdf English documents 1653231 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN4982&lang_cd=ja AN4982, Assembly guidelines for molded array process ball grid array package - Application Note /secured/assets/documents/en/application-note/AN4982.pdf documents 645036621402383989 Application Note N en Extended Y pdf 4 Y N AN4982, Assembly guidelines for molded array process ball grid array package - Application Note 1.7 MB AN4982 N 1408133557835745615366 /secured/assets/documents/en/application-note/AN4604.pdf 2016-10-31 1357592487145715658770 PSP 4 May 9, 2013 Application Note The present document shows the reader how to supply and interface the i.MX53 with the NXP MC34709 PMIC, as well as showing an example of the system implementation at schematic level. Registration without Disclaimer /secured/assets/documents/en/application-note/AN4604.pdf English documents 1751537 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN4604&lang_cd=ja AN4604, Interfacing the MC34709 with the i.MX53 Microprocessor - Application Note /secured/assets/documents/en/application-note/AN4604.pdf documents 645036621402383989 Application Note N en Extended Y pdf 2.0 Y N AN4604, Interfacing the MC34709 with the i.MX53 Microprocessor - Application Note 1.8 MB AN4604 N 1357592487145715658770 /secured/assets/documents/en/application-note/AN4603.pdf 2016-10-31 1357341562492725315940 PSP 5 Dec 24, 2012 Application Note AN4603: The present document is intended to teach the reader how to supply the power management to the i.MX50x family of processors using either the NXP MC13892 or the MC34709 as the main power management device. Registration without Disclaimer /secured/assets/documents/en/application-note/AN4603.pdf English documents 2414282 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN4603&lang_cd=ja AN4603, Power Management Design Guidelines for the i.MX50x Family of Microprocessors - Application Note /secured/assets/documents/en/application-note/AN4603.pdf documents 645036621402383989 Application Note N en Extended Y pdf 1.0 Y N AN4603, Power Management Design Guidelines for the i.MX50x Family of Microprocessors - Application Note 2.4 MB AN4603 N 1357341562492725315940 /secured/assets/documents/en/application-note/AN4619.pdf 2016-10-31 1352316829796708029732 PSP 6 Nov 19, 2012 Application Note This document is intended to show an example implementation of an external battery charger solution for the MC34709 power management architecture for i.MX processors. Registration without Disclaimer /secured/assets/documents/en/application-note/AN4619.pdf English documents 300243 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN4619&lang_cd=ja AN4619, Interfacing the MC34709 with an External Battery Charger, AN4619 - Application Note /secured/assets/documents/en/application-note/AN4619.pdf documents 645036621402383989 Application Note N en Extended Y pdf 1.0 Y N AN4619, Interfacing the MC34709 with an External Battery Charger, AN4619 - Application Note 300.2 KB AN4619 N 1352316829796708029732 エラッタ 1 /docs/en/errata/MC34709ER.pdf 2016-10-31 1351188799223724117174 PSP 1 Nov 27, 2013 Errata エラッタ Silicon Errata for MC34709 None /docs/en/errata/MC34709ER.pdf English 261026 None Errata 2022-12-07 N /docs/en/errata/MC34709ER.pdf Silicon Errata MC34709 (N88D) - Errata /docs/en/errata/MC34709ER.pdf documents 155452329886410597 Errata N Y en None Y t522 pdf 3.0 N N Silicon Errata MC34709 (N88D) - Errata 261.0 KB MC34709ER N 1351188799223724117174 カタログ 1 /docs/ja/brochure/PMICBRA4.pdf 2016-10-31 1455566973736725260918ja PSP 7 Nov 1, 2023 Brochure NXPのPMICは、i.MXアプリケーション、プロセッサ、ネットワーキング、その他のプロセッサ向けに、スケーラブルで堅牢な実績のあるプラットフォーム・ソリューションを提供します。 None /docs/ja/brochure/PMICBRA4.pdf Japanese documents 505864 None 712453003803778552 2025-02-19 N /docs/ja/brochure/PMICBRA4.pdf パワー・マネジメント集積回路 (PMIC) – パンフレット /docs/ja/brochure/PMICBRA4.pdf documents 712453003803778552 Brochure N ja None Y pdf 4 N N Power Management Integrated Circuits Brochure 505.9 KB PMICBRA4 N 1455566973736725260918 データ・シート 1 /docs/en/data-sheet/MC34709.pdf 2016-10-31 1343947944046710064582 PSP 2 Nov 27, 2013 Data Sheet データ・シート The 34709 is the Power Management Integrated Circuit (PMIC) designed primarily for use with the i.MX50 and i.MX53 families. None /docs/en/data-sheet/MC34709.pdf English 9631582 None Data Sheet 2022-12-07 N /docs/en/data-sheet/MC34709.pdf MC34709, Power Management Integrated Circuit (PMIC) for i.MX50/53 Families - Data Sheet /docs/en/data-sheet/MC34709.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 4.0 N N MC34709, Power Management Integrated Circuit (PMIC) for i.MX50/53 Families - Data Sheet 9.6 MB MC34709 N 1343947944046710064582 ホワイト・ペーパ 2 /secured/assets/documents/en/white-paper/PMICWPA4.pdf 2024-06-10 1718053785186698755373 PSP 8 Jun 10, 2024 White Paper While entirely invisible to the driver, the software-defined vehicle’s power architecture, orchestrated through System Basis Chips (SBCs) and/or Power Management Integrated Circuits (PMICs), is fundamental. The power supply for every component poses sophisticated challenges which require equally sophisticated solutions. Registration without Disclaimer /secured/assets/documents/en/white-paper/PMICWPA4.pdf English documents 212885 None 918633085541740938 2025-02-19 Y /webapp/Download?colCode=PMICWPA4&lang_cd=ja Powering the Ambition of Software-Defined Vehicles White Paper /secured/assets/documents/en/white-paper/PMICWPA4.pdf documents 918633085541740938 White Paper N en Extended Y pdf 0 Y N Powering the Ambition of Software-Defined Vehicles White Paper 212.9 KB PMICWPA4 N 1718053785186698755373 /docs/en/white-paper/PMICWP.pdf 2016-10-31 1467308939620719455692 PSP 9 Oct 3, 2016 White Paper This paper will discuss the hidden cost of discrete power solution implementations and robust and reliable NXP<sup>&#174;</sup>. PMICs which effectively reduce project costs. None /docs/en/white-paper/PMICWP.pdf English documents 673441 None 918633085541740938 2022-12-07 N /docs/en/white-paper/PMICWP.pdf PMICWP, A Case Against Discretes - White paper /docs/en/white-paper/PMICWP.pdf documents 918633085541740938 White Paper N en None Y pdf 1 N N PMICWP, A Case Against Discretes - White paper 673.4 KB PMICWP N 1467308939620719455692 true Y Products
