M68DEMO908GB60E
アクティブ -
DEMO BOARD MC9S08GB60.
GB60 Demonstration Kit
The GB60 demonstration kit contains everything a designer needs to develop and evaluate MC9S08GB or GT Family applications. It is available complete with Metrowerks CodeWarrior®™ Development Studio Special Edition for S08 to modify demo code or develop new code. The evaluation board allows for real-time source-level debugging of your code and programming of the device's Flash memory; all with no additional hardware.
To order your M68DEMO908GB60 demonstration board, please contact your local NXP® distributor. For a listing of NXP distributors, please follow the Tech Support link at the top of this page. Alternatively you may purchase the board online by following the shopping cart icon on the right hand side of this page.
製品詳細
Features
Microcontroller

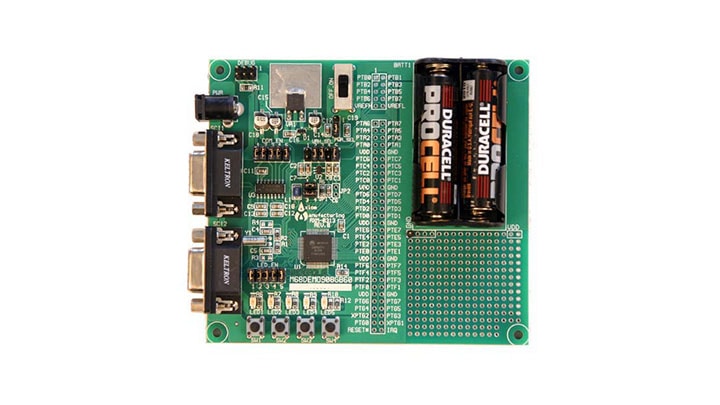

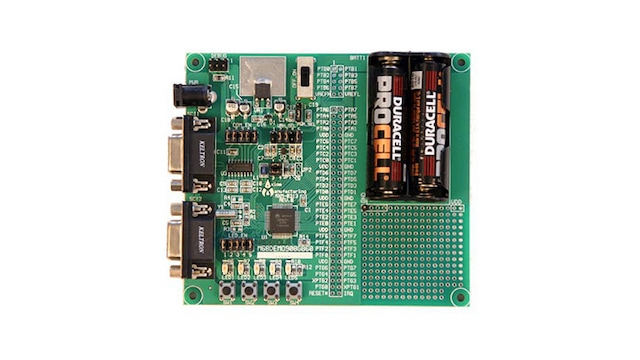

- Evaluation board with a 60K Flash MC9S08GB60 MCU, dual DB9 RS-232 serial ports, switches, LEDs, MCU pin-breakout header, and small prototype area
Power Management
- Powered by two AA batteries (included) or optional external power supply
Tools and OS Support
- Program and debug code using free CodeWarrior Development Studio for S08, Special Edition, through DB9 serial port, and included RS-232 serial cable or optional BDM Multilink
- Modify demo code or develop new code for the GB60 using free CodeWarrior® Development Suite for S08, Special Edition
- Learn the S08 MCU Family quickly with demonstration code including analog-to-digital, timer, PWM, and keyboard interrupt routines
購入オプション
ドキュメント
クイック・リファレンス ドキュメンテーションの種類.
4 ドキュメント
-
ユーザ・ガイド
Getting Started With The M68DEMO908GB60はじめに
-
ユーザ・ガイド
Microsoft Word - M68DEMO908GB60man.docはじめに
-
アプリケーション・ノート
Getting Started with HCS08 and CodeWarrior® Using C
