Kinetis® Power Estimation Tool
The Power Estimation Tool for Kinetis® MCUs lets you estimate and optimize your system's power consumption quickly with a simple graphical interface. This tool helps you design for efficient use of energy - a requirement for Internet of Things applications.

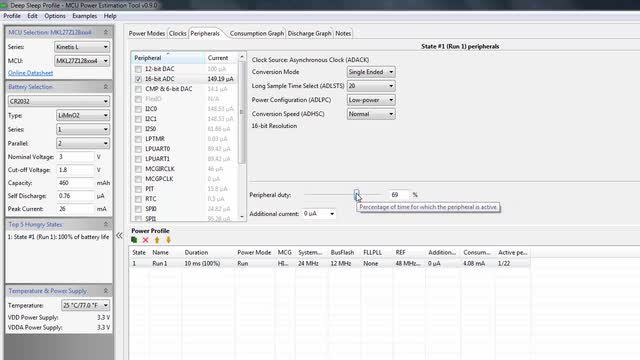

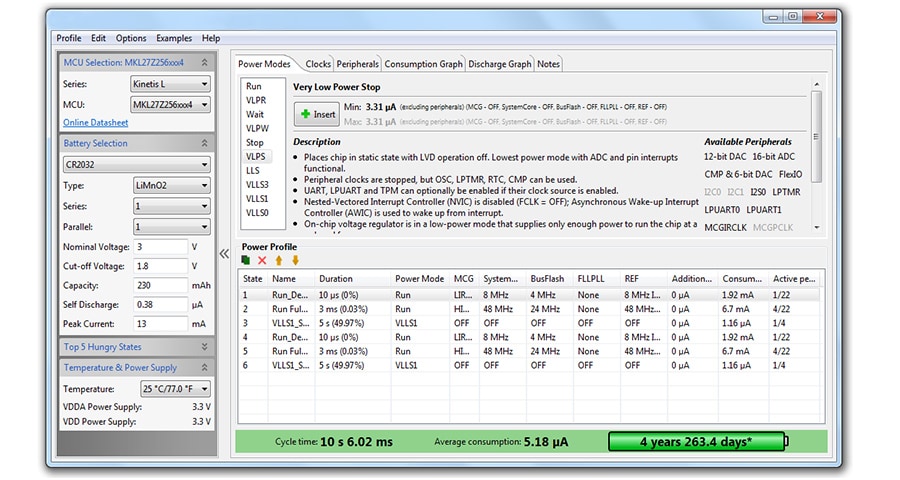

Simply install the tool (download) or use the online tool (MCUXpresso Config Tool) to add details of your system - including the power mode, clock mode, peripheral settings and duration for each system state. It also provides immediate system power estimation results including average current, battery life, and consumption charts.
ソフトウェア詳細
Features
- Estimates your application's power profile by analyzing the configuration details you provide for each state of your system
- Provides immediate energy consumption and battery life estimations

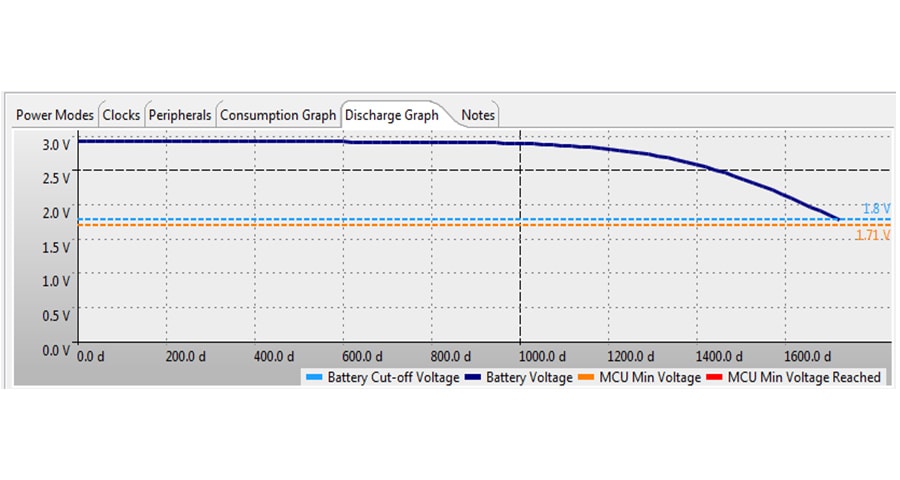

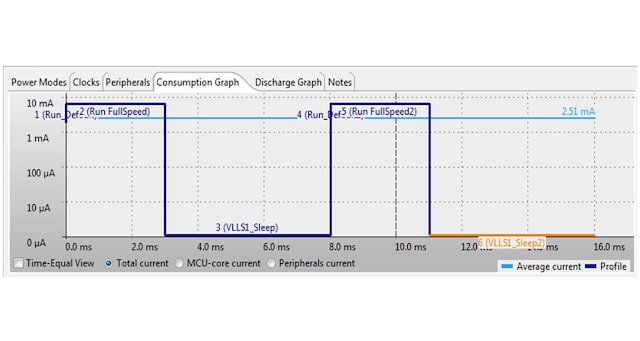

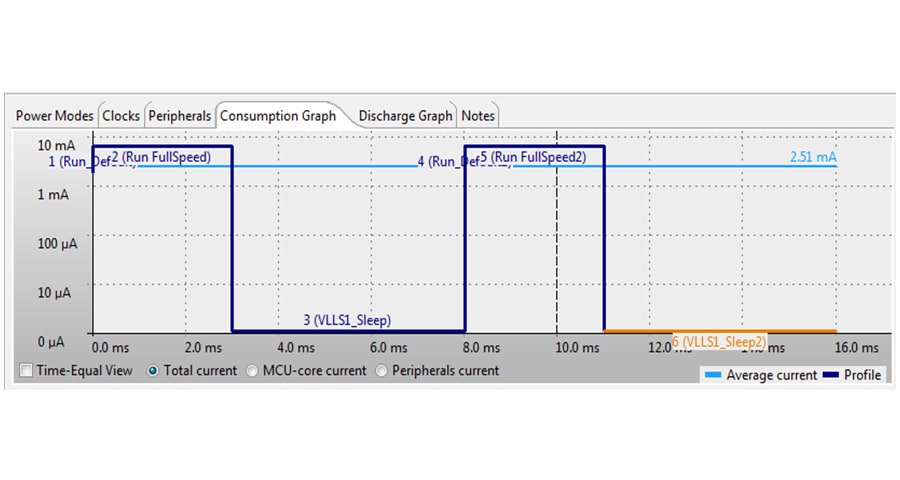

- Generates consumption and battery discharge graphs
- Provides ability to save and load profiles and generate reports
- English and limited Chinese language support
- Backed by real power measurement data
- Quickly evaluate which Kinetis® MCU fits your use-case and power budget
- Accelerates learning curve for advanced power management features
- Ideal tool for developing wearable and other battery-operated applications.
対応製品
- K02_100: Kinetis® K02-100 MHz, Microcontrollers (MCUs) with Optimized Features Based on Arm® Cortex®-M4 Core
- K22_100: Kinetis® K22-100 MHz, Cost Effective, Full-Speed USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
- K22_120: Kinetis® K22-120 MHz, Cost Effective, Full-Speed USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
- KL1x: Kinetis® KL1x-48 MHz, Mainstream Small Ultra-Low Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
- KL2x: Kinetis® KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
- KL3x: Kinetis® KL3x-48 MHz, Segment LCD Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
- KL4x: Kinetis® KL4x-48 MHz, USB, Segment LCD, Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
- KV3x: Kinetis® KV3x-100–120 MHz, Advanced 3ph FOC / Sensorless Motor Control MCUs based on Arm® Cortex®-M4
- K21_120: Kinetis K21-120 MHZ, Full-Speed USB, Anti-Tamper Microcontrollers based on Arm® Cortex®-M4
- K63_120: Kinetis® K63-120 MHz, 256KB SRAM, Anti-Tamper Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
- K24_120: Kinetis® K24-120 MHz, Full-Speed USB, 256KB SRAM Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
- K64_120: Kinetis® K64-120 MHz, 256 KB SRAM Microcontrollers (MCUs) Based on Arm® Cortex®-M4 Core
