NXP® Freedom Development Board for Kinetis® K27 and K28 MCUs

FRDM-K28F アクティブ

画像にカーソルを合わせると拡大表示されます。

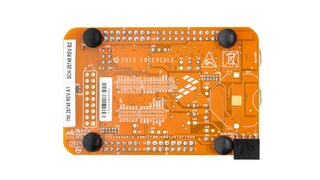

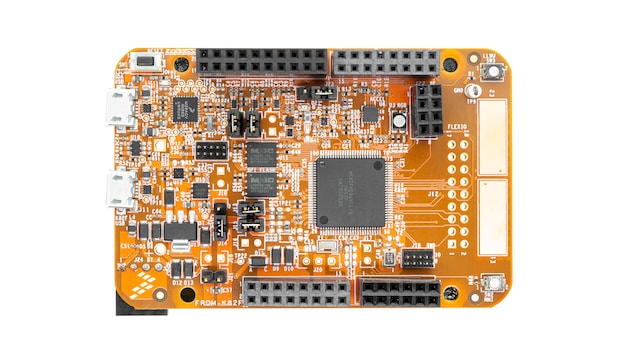

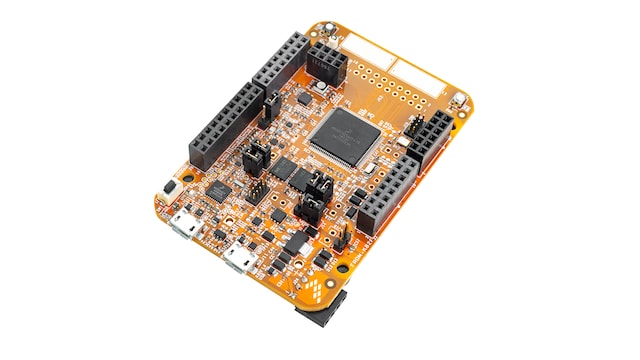

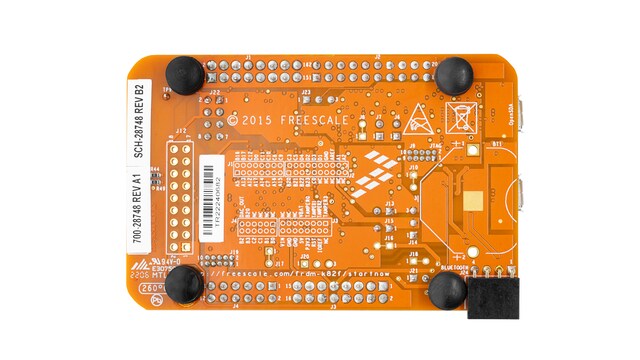

The FRDM-K28F is a low cost development board for Kinetis K27 and K28 high-performance microcontrollers based on Arm® Cortex®-M4

  • Enable rapid prototyping, including a 6-axis digital accelerometer and magnetometer to create full eCompass capabilities, dual role high-speed and full-speed USB interface with Micro-B USB connector, a microSD card slot a tri-colored LED and two user push-buttons for direct interaction, 1x256Mb QuadSPI external flash, Mobile SDRAM, FlexIO-based LCD socket, and light sensor

    *Note: FXOS8700CQ accelerometer is in “End of Life” status

  • Form-factor compatible with the Arduino® Rev3 pin layout
  • Feature Core Voltage Bypass (Available on K28 only)
  • Include NXP open source hardware embedded serial and debug adapter (OpenSDAv2.2) running an open source bootloader, which offers options for serial communication, flash programming, and run-control debugging

The FRDM-K28F is enabled using NXP MCUXpresso Config Tools, MCUXpresso SDK, Power Estimation Tool, and MCUXpresso IDE and a large software partner ecosystem (please check Download tab).

対応製品

プロセッサ＆マイクロコントローラ

K2x / KS2x USB

  • K27_150: Kinetis® K27-150 MHz, 2x USB, 2MB Flash, 1MB SRAM Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K28_150: Kinetis® K28-150 MHz, 2x USB, Core Voltage Bypass, 2MB Flash, 1MB SRAM MCUs based on Arm® Cortex®-M4

Features

Microcontroller

  • Kinetis MK28FN2M0VMI15 / MK28FN2M0AMI15 MCU
    • Arm Cortex-M4 at 150 MHz
    • 1 MB SRAM
    • 2 MB flash
    • HS and FS USB
    • 169 MAPBGA package
  • Kinetis K20 MCU (K20DX128VFM5) based OpenSDA circuit.

Memory

  • One 256 Mbit (32 MB) onboard QuadSPI memory at 1.8 V.
  • One 128 Mbit (16 MB) onboard mobile SDRAM memory at 3.3 V.

Connectivity

  • Dual-role high-speed and full-speed USB interface with the micro-B USB connector via the high-speed switch.
  • FlexIO socket, which enables you to connect an optional TFT Proto 5” CAPACITIVE from MikroElektronika (5” display board with capacitive touch).
  • Easy access to the MCU input/output through Arduino® Rev3 compatible I/O connectors to connect external add-on boards.

Power Management

  • Multiple independent voltage domains: VDD_CORE, VDD, VBAT, and VDDIO_E.
  • Flexible power supply option—OpenSDA v2.2 USB, Kinetis K28 USB, or an external source.

Debug

  • Mass-Storage Device (MSD) flash programming interface. CMSIS-DAP debug interface over a driverless USB HID connection providing run-control debugging and compatibility with the IDE tools. Virtual serial port interface Open source CMSIS-DAP software project
  • RGB LED
  • Two mechanical push-buttons for user input and one for the reset.

購入オプション

FRDM-K28FA-Image

クリックして展開

  • FRDM-K28FA
    アクティブ

  • NXP® Freedom Development Board for Kinetis® K27 and K28 MCUs.

  • $74.41 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
