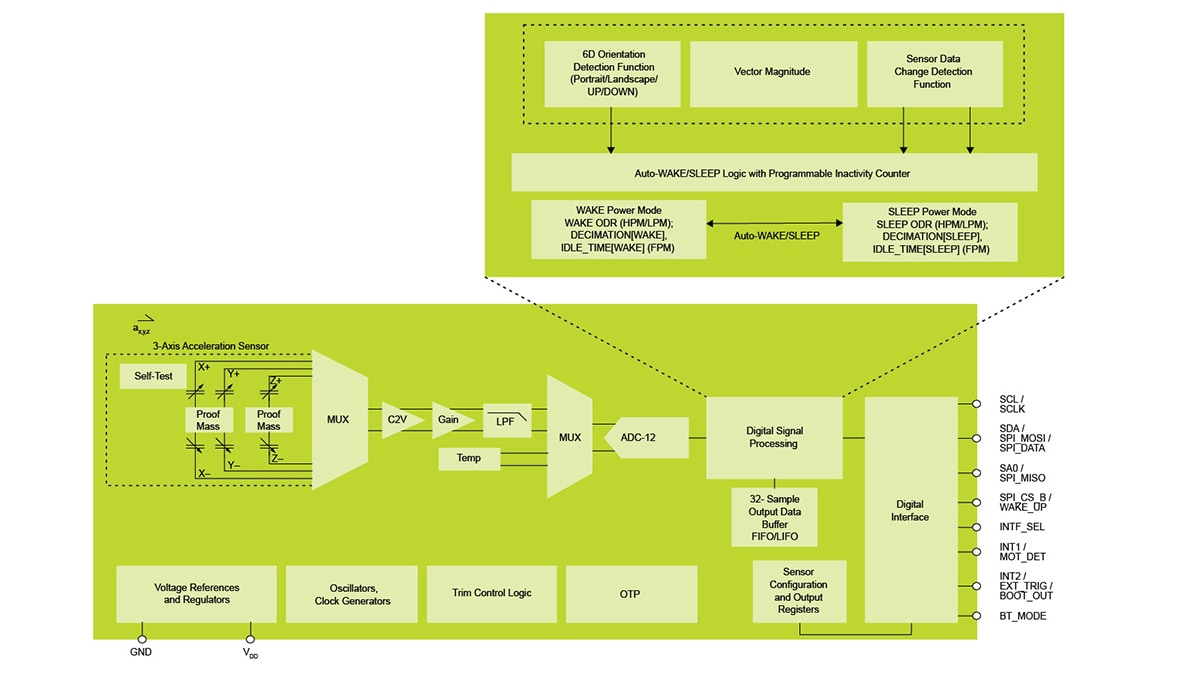

FXLS8974CF is a compact 3-axis MEMS accelerometer designed for use in a wide range of industrial and medical IOT applications that require ultra-low-power wake-up on motion. The part supports both high-performance and low power operating modes, allowing maximum flexibility to meet the resolution and power needs for various unique use cases.

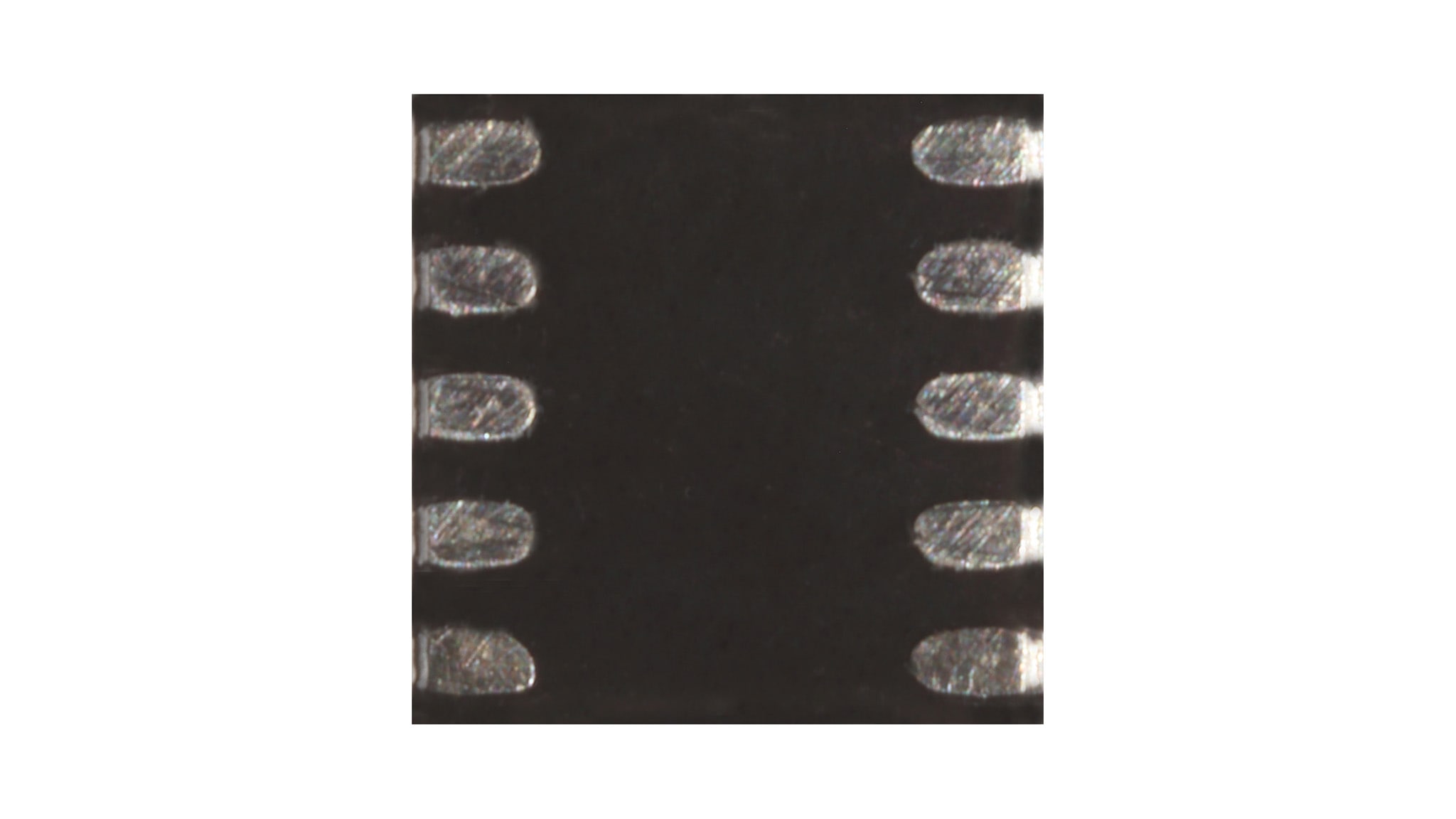

FXLS8974CF is available in a 2 mm x 2 mm x 0.95 mm 10-pin DFN package with 0.4 mm pitch and wettable flanks. The device is qualified to industrial standards over the extended –40 °C to +105 °C temperature range. The combination of sensor performance, system power-saving features, and extended over-temperature-range performance makes FXLS8974CF an ideal accelerometer for motion sensing in the IOT.
Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.
Sensor Development Toolbox is the complete ecosystem for product development with NXP’s motion and pressure sensors targeted toward IoT, Industrial, Medical applications. It encompasses a wide spectrum of sensor evaluation hardware and software tools making our sensors easy to use.
±2g/±4g/±8g/±16g、低消費電力12ビット・デジタル加速度センサ
±2g/±4g/±8g/±16g、低消費電力12ビット・デジタル加速度センサ
MCX N94x/54x オンチップ・アクセラレータ、インテリジェントなペリフェラル、高度なセキュリティを備えた高集積マルチコアMCU
1 結果
マッチしていない 0 NRND
パーツ | 注文 | コンピュータ支援設計 モデル | 状況 | 標準価格 | Ambient Operating Temperature (Min to Max) (℃) | センシング軸 | Product Application | AEC-Q100 compliant | 製品認証 | 電源電圧 [最小] (V) | 電源電圧 [最大] (V) | 電源電圧 [最小 - 最大] (V) | Sensor Range | パッケージタイプ | Package Dimensions (LxWxZ (mm)) | 通信プロトコル | Number of axis |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
アクティブ | 1K @ US$1.05 | -40 to 105 | XYZ | Industrial and medical IoT | Y | Industrial | 1.71 | 3.6 | 1.71 to 3.6 | ±2/4/8/16 g | VSON10 | 2 x 2 x 0.95 | I²C, SPI | 3 |
