MPC8536E Communications Processors

MPC8536E
製造中止

  • MPC8536 device is "Not recommended for new designs", please use the replacement families Power Architecture (T1023, T1040 ,T1042), \n Arm Architecture (LS1023A).

The MPC8536E PowerQUICC® III is designed to deliver gigahertz-class complex application processing performance with advanced feature integration and high-speed connectivity for IP network and advanced media processing applications. It combines a robust e500 processor core, with enhanced peripherals and interconnect technology, to balance processor performance with I/O system throughput. The MPC8536E processor includes advanced energy management features that will enable next-generation embedded Internet media processing applications with energy efficiency levels under the environmental and governmental energy regulatory requirements.

The MPC8536E processor implements sophisticated power-saving modes for managing energy consumption in both dynamic and static power modes. Designers will be able to leverage these modes to efficiently match work accomplished with the correct level of energy consumed.

Access to the errata document for this device requires an NDA. Contact your local NXP® Sales Office or NXP Authorized Distributor.

ブロック図

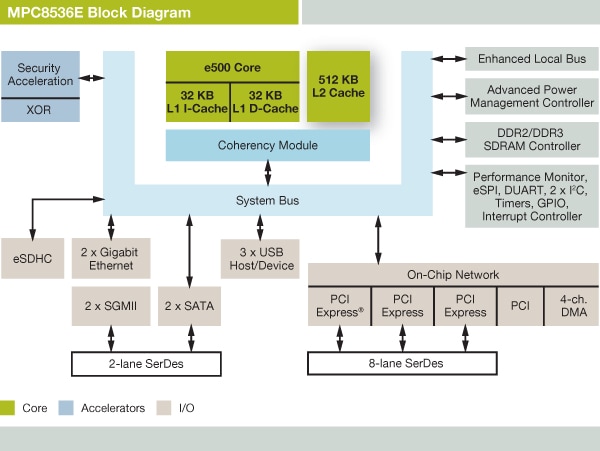

NXP PowerQUIICC MPC8536E Communications Processor Block Diagram

NXP<sup>&#174;</sup> PowerQUIICC MPC8536E Communications Processor Block Diagram

Features

  • e500 core, built on Power Architecture® technology, scaling up to 1.5 GHz
  • 32 KB I/D L1 cache
  • 512 KB L2 cache
  • 64-/32-bit DDR2/DDR3 memory controller up to 667 MHz data rate
  • Integrated security engine
    • DES, 3DES, MD-5, SHA-1/2, AES, RSA, RNG, Kasumi F8/F9 and ARC-4 encryption algorithms
  • High-speed interconnects
    • 3 x PCI Express®
    • PCI
  • Advanced power management controller
  • 4 channel DMA controller
  • 2 x I²C
  • DUART
  • eSPI and enhanced local bus
  • GPIO
  • 2 x GbE with SGMII support
  • 3 x USB
  • 2 x SATA multiplexed with SGMII
  • SD/MMC interfaces
  • IEEE® 1588 support
  • 783-pin FC-PBGA package
  • This product is included in NXP®.s product longevity program, with assured supply for a minimum of 10 years after launch

    • もっと見る
