Low-Power PowerQUICC® II Pro Processor with DDR2, eSDHC, PCI Express, eTSEC, USB, IEEE® 1588

MPC8308 製造中止

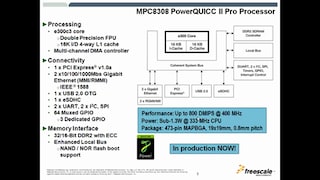

MPC8308 PowerQUICC<sup>&#174;</sup> II Pro Processor - Technical Overview

動画の上をクリックすると再生されます。

The MPC8308 processor is optimized for low-cost and low-power providing a highly integrated PowerQUICC® II Pro processor that addresses requirements of networking applications such as smart grid home energy gateways, data concentrators, wireless LAN access points, wireless femto base stations, consumer printing and industrial applications such as industrial control and factory automation. MPC8308 processor extends the PowerQUICC II Pro family combining higher CPU performance and high-speed peripherals with low power consumption at a very aggressive cost.

For networking applications, the gigabit Ethernet MACs support connectivity to the wired network while the PCI Express® and SDIO interfaces offer connectivity to wireless LAN or 3G and 4G modem devices. The MPC8308 features integrated IEEE® 1588 version 2 time synchronization offering extremely precise clock synchronization for applications such as time-sensitive telecommunications services, industrial network switches, powerline networks and test/measurement devices.

ブロック図

NXP PowerQUIICC MPC8308 Communications Processor Block Diagram

NXP<sup>&#174;</sup> PowerQUIICC MPC8308 Communications Processor Block Diagram
図を取得する PDF

Features

  • e300c3 core built on Power Architecture® technology, up to 400 MHz
  • 16 KB instruction/16 KB data cache
  • DDR2 memory controller, 266 MHz data rate
  • Local bus controller
  • 1 x PCI Express interface
  • 2 x 10/100/1000 MACs, MII, RGMII
  • USB 2.0 host/device
  • eSDHC
  • DUART
  • 2 x I²C
  • Serial peripheral interface
  • IEEE 1588v2 time synchronization
  • < 1.23W at 333 MHz (typical)
  • 473-pin MAPBGA package, 19 mm x 19 mm
  • This product is included in NXP®.s product longevity program, with assured supply for a minimum of 10 years after launch

購入/パラメータ

1-10 の 13 結果

除外 13 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

パッケージタイプ

パッケージ端子数

コア・タイプ

動作周波数[最大](MHz)

対応する外部メモリ

Ambient Operating Temperature (Min to Max) (℃)

MPC8308CVMADDA
データ・シート

生産終了 (EOL)

LFBGA473

473

e300

266

DDR2 SDRAM, SDRAM

-40 to 105

MPC8308CVMAFDA
データ・シート

生産終了 (EOL)

LFBGA473

473

e300

333

—

-40 to 105

MPC8308CVMAGDA
データ・シート

生産終了 (EOL)

LFBGA473

473

e300

400

—

-40 to 105

MPC8308CZQADDA
データ・シート

生産終了 (EOL)

LFBGA473

473

e300

266

—

-40 to 105

MPC8308CZQAFDA
データ・シート

生産終了 (EOL)

LFBGA473

473

e300

333

DDR2 SDRAM, SDRAM

-40 to 105

MPC8308CZQAGDA
データ・シート

生産終了 (EOL)

LFBGA473

473

e300

400

DDR2 SDRAM, SDRAM

-40 to 105

MPC8308VMADDA
データ・シート
—

生産終了 (EOL)

LFBGA473

473

e300

266

DDR2 SDRAM, SDRAM

0 to 105

MPC8308VMAFDA
データ・シート

生産終了 (EOL)

LFBGA473

473

e300

333

—

0 to 105

MPC8308VMAGDA
データ・シート

生産終了 (EOL)

LFBGA473

473

e300

400

DDR2 SDRAM, SDRAM

0 to 105

MPC8308ZQADDA
データ・シート

生産終了 (EOL)

LFBGA473

473

e300

266

DDR2 SDRAM, SDRAM

0 to 105

N true 0 PSPMPC8308ja 14 アプリケーション・ノート Application Note t789 7 エラッタ Errata t522 1 データ・シート Data Sheet t520 1 ファクト・シート Fact Sheet t523 2 ホワイト・ペーパ White Paper t530 1 リファレンス・マニュアル Reference Manual t877 1 製品概要 Product Brief t532 1 ja 4 1 4 English The MPC8308 is a cost-effective, low-power, highly integrated host processor. The MPC8308 extends the PowerQUICC<sup>&#174;</sup> family, adding higher CPU performance, additional functionality, and faster interfaces. 1272949819965707794266 PSP 598.6 KB None None documents None 1272949819965707794266 /docs/en/data-sheet/MPC8308EC.pdf 598564 /docs/en/data-sheet/MPC8308EC.pdf MPC8308EC N N 2010-05-03 MPC8308 PowerQUICC<sup>&#174;</sup> II Pro Processor Hardware Specification /docs/en/data-sheet/MPC8308EC.pdf /docs/en/data-sheet/MPC8308EC.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf N en Dec 9, 2014 Data Sheet t520 データ・シート Data Sheet Y N MPC8308 PowerQUICC<sup>&#174;</sup> II Pro Processor Hardware Specification 2 0 English This document provides an overview of the MPC8308 PowerQUICC<sup>&#174;</sup> II Pro processor features, including a block diagram showing the major functional components. 1257958846961719095157 PSP 536.9 KB None None documents None 1257958846961719095157 /docs/en/product-brief/MPC8308PB.pdf 536850 /docs/en/product-brief/MPC8308PB.pdf MPC8308PB N 2009-11-12 MPC8308 Product Brief /docs/en/product-brief/MPC8308PB.pdf /docs/en/product-brief/MPC8308PB.pdf Product Brief N Y 899114358132306053 2022-12-07 pdf en Nov 11, 2009 Product Brief t532 製品概要 Product Brief Y N MPC8308 Product Brief 3 1 English This reference manual defines the functionality of MPC8308 PowerQUICC<sup>&#174;</sup> II Pro Processor. 1272447558502699404129 PSP 5.2 MB None None documents None 1272447558502699404129 /docs/en/reference-manual/MPC8308RM.pdf 5229355 /docs/en/reference-manual/MPC8308RM.pdf MPC8308RM N N 2010-04-28 MPC8308 PowerQUICC<sup>&#174;</sup> II Pro Processor Reference Manual - Reference Manual /docs/en/reference-manual/MPC8308RM.pdf /docs/en/reference-manual/MPC8308RM.pdf Reference Manual N Y 500633505221135046 2022-12-07 pdf N en Sep 5, 2013 Reference Manual t877 リファレンス・マニュアル Reference Manual Y N MPC8308 PowerQUICC<sup>&#174;</sup> II Pro Processor Reference Manual - Reference Manual 4 1 English The MPC8308 is a cost-effective, low-power, highly integrated PowerQUICC<sup>&#174;</sup> &#174; II Pro processor designed to address the requirements of networking applications such as smart grid home energy gateways, data concentrators, wireless LAN access points, wireless femto base stations and industrial applications. The MPC8308 processor incorporates the e300c3 (603e core compatible) core at 266, 333 and 400 MHz with 1.92 DMIPS/MHz. 1257540597818721504942 PSP 597.2 KB None None documents None 1257540597818721504942 /docs/en/fact-sheet/MPC8308FS.pdf 597220 /docs/en/fact-sheet/MPC8308FS.pdf MPC8308FS N N 2020-02-10 MPC8308 PowerQUICC ® II Pro Processor - Fact Sheet /docs/en/fact-sheet/MPC8308FS.pdf /docs/en/fact-sheet/MPC8308FS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 pdf N en Feb 12, 2020 Fact Sheet t523 ファクト・シート Fact Sheet Y N MPC8308 PowerQUICC ® II Pro Processor - Fact Sheet false ja ja アプリケーション・ノート Application Note 7 5 0 Chinese Reviewing the troubleshoot microcontroller when there is a malfunction module. 1641302649210707506203zh PSP 303.0 KB None None documents None 1641302649210707506203 /docs/zh/application-note/AN13461.pdf 302971 /docs/zh/application-note/AN13461.pdf AN13461 documents N N 2022-01-04 AN13461: NXP Microcontroller Troubleshooting Checklist - Application Note /docs/zh/application-note/AN13461.pdf /docs/zh/application-note/AN13461.pdf Application Note N 645036621402383989 2022-12-07 zh May 9, 2022 645036621402383989 Application Note Y N 恩智浦微控制器故障排除清单 0 English Reviewing the troubleshoot microcontroller when there is a malfunction module. 1641302649210707506203 PSP 303.0 KB None None documents None 1641302649210707506203 /docs/en/application-note/AN13461.pdf 302971 /docs/en/application-note/AN13461.pdf AN13461 documents N N 2022-01-04 AN13461: NXP Microcontroller Troubleshooting Checklist - Application Note /docs/en/application-note/AN13461.pdf /docs/en/application-note/AN13461.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Nov 30, 2021 645036621402383989 Application Note Y N AN13461: NXP Microcontroller Troubleshooting Checklist - Application Note 6 3 English This document is a supplement to the SEC 2/3x reference device driver. 1224778148188710027580 PSP 1.1 MB Registration without Disclaimer None documents Extended 1224778148188710027580 /secured/assets/documents/en/application-note/AN3645.pdf 1147132 /secured/assets/documents/en/application-note/AN3645.pdf AN3645 documents Y N 2016-10-31 SEC 2/3x Descriptor Programmer’s Guide /webapp/Download?colCode=AN3645&lang_cd=ja /secured/assets/documents/en/application-note/AN3645.pdf Application Note N 645036621402383989 2023-06-18 pdf Y en Apr 28, 2017 645036621402383989 Application Note N SEC 2/3x Descriptor Programmer’s Guide 7 2 English AN4028: This application note describes the generally recommended connections for new designs based on the NXP MPC8308 processor. The design checklist may also apply to future bus or footprint-compatible processors. It can also serve as a useful guide to debugging a newly-designed system, by highlighting those areas of a design that merit special attention during initial system startup. 1278648114725711173821 PSP 205.8 KB None None documents None 1278648114725711173821 /docs/en/application-note/AN4028.pdf 205825 /docs/en/application-note/AN4028.pdf AN4028 documents N N 2010-07-08 AN4028, Design Checklist for PowerQUICC<sup>&#174;</sup> II Pro MPC8308 Processor - Application Note /docs/en/application-note/AN4028.pdf /docs/en/application-note/AN4028.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Nov 12, 2014 645036621402383989 Application Note Y N AN4028, Design Checklist for PowerQUICC<sup>&#174;</sup> II Pro MPC8308 Processor - Application Note 8 0 English This application note describes a procedure that allows users to validate the implementation of 1588-specific hardware in their system. 1309961595210675753552 PSP 743.2 KB None None documents None 1309961595210675753552 /docs/en/application-note/AN4326.pdf 743199 /docs/en/application-note/AN4326.pdf AN4326 documents N 2016-10-31 Verification of the IEEE 1588 Interface /docs/en/application-note/AN4326.pdf /docs/en/application-note/AN4326.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jul 6, 2011 645036621402383989 Application Note N Verification of the IEEE 1588 Interface 9 Rev. 0 English This application note describes some reference connection schemes when interfacing the third-party clock driver chip&#8217;s output with the SerDes Reference Clock inputs of PowerQUICC<sup>&#174;</sup> or QorIQ<sup>&#174;</sup> devices. It also summarizes some recommendations for PCI Express and SRIO HSSI measurement. 1305312143395731535528 PSP 577.2 KB Registration without Disclaimer None documents Extended 1305312143395731535528 /secured/assets/documents/en/application-note/AN4311.pdf 577164 /secured/assets/documents/en/application-note/AN4311.pdf AN4311 documents Y N 2016-10-31 SerDes Reference Clock Interfacing and HSSI Measurements Recommendations /webapp/Download?colCode=AN4311&lang_cd=ja /secured/assets/documents/en/application-note/AN4311.pdf Application Note N 645036621402383989 2023-06-18 pdf Y en May 13, 2011 645036621402383989 Application Note Y N SerDes Reference Clock Interfacing and HSSI Measurements Recommendations 10 1 English This application note describes how to use and benefit from DDR memory interleaving. 1251150824863717930878 PSP 717.3 KB Registration without Disclaimer None documents Extended 1251150824863717930878 /secured/assets/documents/en/application-note/AN3939.pdf 717276 /secured/assets/documents/en/application-note/AN3939.pdf AN3939 documents Y N 2016-10-31 DDR Interleaving for PowerQUICC and QorIQ Processors /webapp/Download?colCode=AN3939&lang_cd=ja /secured/assets/documents/en/application-note/AN3939.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Jun 30, 2010 645036621402383989 Application Note Y N DDR Interleaving for PowerQUICC and QorIQ Processors 11 0 English AN4026SW.zip /secured/assets/documents/en/application-note-software/AN4026SW.zip /webapp/Download?colCode=AN4026SW&appType=license&docLang=en A common use of the QUICC Engine block is to establish an HDLC communication path over a TDM interface, such as a T1 or E1 link. This application note describes the various sub-blocks used in the QUICC Engine communications engine for this application, discusses how the sub-blocks interoperate with each other, describes how to initialize them for the HDLC communication path, and provides a software demonstration of HDLC mode via a TDM interface using on-chip loopback. 1260992898773711434436 PSP 718.0 KB None None documents None 1260992898773711434436 /docs/en/application-note/AN4026.pdf 718019 /docs/en/application-note/AN4026.pdf AN4026 documents N 2009-12-17 Communicating via HDLC over a TDM Interface with a QUICC Engine&#8482; UCC /docs/en/application-note/AN4026.pdf /docs/en/application-note/AN4026.pdf Application Note N 645036621402383989 2022-12-07 pdf en Dec 17, 2009 645036621402383989 Application Note N Communicating via HDLC over a TDM Interface with a QUICC Engine&#8482; UCC エラッタ Errata 1 12 5 English MPC8308CE: This document details all known silicon errata for the MPC8308. 1278622697428727914608 PSP 676.4 KB None None documents None 1278622697428727914608 /docs/en/errata/MPC8308CE.pdf 676441 /docs/en/errata/MPC8308CE.pdf MPC8308CE documents N N 2010-07-08 MPC8308CE, MPC8308 Chip Errata - Chip Errata /docs/en/errata/MPC8308CE.pdf /docs/en/errata/MPC8308CE.pdf Errata N 155452329886410597 2022-12-07 pdf N en Sep 22, 2015 155452329886410597 Errata Y N MPC8308CE, MPC8308 Chip Errata - Chip Errata ファクト・シート Fact Sheet 1 13 1 English The MPC8308-RDB reference platform is ideal for hardware and software development for embedded applications. The MPC8308-RDB integrates leading-edge external components: 5 x Gigabit Ethernet ports, 1 x USB 2.0, x1 mini PCI Express &#174; connector and an SD/MMC card interface. The MPC8308-RDB incorporates a pre-installed board support package (BSP) containing a boot loader (u-boot). 1257796438120723429945 PSP 346.9 KB None None documents None 1257796438120723429945 /docs/en/fact-sheet/MPC8308RDBFS.pdf 346903 /docs/en/fact-sheet/MPC8308RDBFS.pdf MPC8308RDBFS documents N N 2020-02-12 MPC8308-RDB Reference Platform - Fact Sheet /docs/en/fact-sheet/MPC8308RDBFS.pdf /docs/en/fact-sheet/MPC8308RDBFS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf N en Feb 12, 2020 736675474163315314 Fact Sheet Y N MPC8308-RDB Reference Platform - Fact Sheet ホワイト・ペーパ White Paper 1 14 0 English This white paper focuses on the usage of the MPC8306/MPC8309 in factory automation/industrial control and other low-end embedded applications. 1282161214921708904648 PSP 979.4 KB None None documents None 1282161214921708904648 /docs/en/white-paper/PQIIPROWP.pdf 979424 /docs/en/white-paper/PQIIPROWP.pdf PQIIPROWP documents N 2010-08-18 PowerQUICC<sup>&#174;</sup> II Pro for Entry-Level Industrial Networking and Control Solutions /docs/en/white-paper/PQIIPROWP.pdf /docs/en/white-paper/PQIIPROWP.pdf White Paper N 918633085541740938 2022-12-07 pdf en Aug 18, 2010 918633085541740938 White Paper Y N PowerQUICC<sup>&#174;</sup> II Pro for Entry-Level Industrial Networking and Control Solutions false 0 MPC8308 downloads ja true 1 Y PSP アプリケーション・ノート 7 /docs/en/application-note/AN13461.pdf 2022-01-04 1641302649210707506203 PSP 5 Nov 30, 2021 Application Note Reviewing the troubleshoot microcontroller when there is a malfunction module. None /docs/en/application-note/AN13461.pdf English documents 302971 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN13461.pdf AN13461: NXP Microcontroller Troubleshooting Checklist - Application Note /docs/en/application-note/AN13461.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN13461: NXP Microcontroller Troubleshooting Checklist - Application Note 303.0 KB AN13461 N 1641302649210707506203 /secured/assets/documents/en/application-note/AN3645.pdf 2016-10-31 1224778148188710027580 PSP 6 Apr 28, 2017 Application Note This document is a supplement to the SEC 2/3x reference device driver. Registration without Disclaimer /secured/assets/documents/en/application-note/AN3645.pdf English documents 1147132 None 645036621402383989 2023-06-18 Y /webapp/Download?colCode=AN3645&lang_cd=ja SEC 2/3x Descriptor Programmer’s Guide /secured/assets/documents/en/application-note/AN3645.pdf documents 645036621402383989 Application Note N en Extended pdf 3 Y N SEC 2/3x Descriptor Programmer’s Guide 1.1 MB AN3645 N 1224778148188710027580 /docs/en/application-note/AN4028.pdf 2010-07-08 1278648114725711173821 PSP 7 Nov 12, 2014 Application Note AN4028: This application note describes the generally recommended connections for new designs based on the NXP MPC8308 processor. The design checklist may also apply to future bus or footprint-compatible processors. It can also serve as a useful guide to debugging a newly-designed system, by highlighting those areas of a design that merit special attention during initial system startup. None /docs/en/application-note/AN4028.pdf English documents 205825 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4028.pdf AN4028, Design Checklist for PowerQUICC<sup>&#174;</sup> II Pro MPC8308 Processor - Application Note /docs/en/application-note/AN4028.pdf documents 645036621402383989 Application Note N en None Y pdf 2 N N AN4028, Design Checklist for PowerQUICC<sup>&#174;</sup> II Pro MPC8308 Processor - Application Note 205.8 KB AN4028 N 1278648114725711173821 /docs/en/application-note/AN4326.pdf 2016-10-31 1309961595210675753552 PSP 8 Jul 6, 2011 Application Note This application note describes a procedure that allows users to validate the implementation of 1588-specific hardware in their system. None /docs/en/application-note/AN4326.pdf English documents 743199 None 645036621402383989 2022-12-07 /docs/en/application-note/AN4326.pdf Verification of the IEEE 1588 Interface /docs/en/application-note/AN4326.pdf documents 645036621402383989 Application Note N en None pdf 0 N Verification of the IEEE 1588 Interface 743.2 KB AN4326 N 1309961595210675753552 /secured/assets/documents/en/application-note/AN4311.pdf 2016-10-31 1305312143395731535528 PSP 9 May 13, 2011 Application Note This application note describes some reference connection schemes when interfacing the third-party clock driver chip&#8217;s output with the SerDes Reference Clock inputs of PowerQUICC<sup>&#174;</sup> or QorIQ<sup>&#174;</sup> devices. It also summarizes some recommendations for PCI Express and SRIO HSSI measurement. Registration without Disclaimer /secured/assets/documents/en/application-note/AN4311.pdf English documents 577164 None 645036621402383989 2023-06-18 Y /webapp/Download?colCode=AN4311&lang_cd=ja SerDes Reference Clock Interfacing and HSSI Measurements Recommendations /secured/assets/documents/en/application-note/AN4311.pdf documents 645036621402383989 Application Note N en Extended Y pdf Rev. 0 Y N SerDes Reference Clock Interfacing and HSSI Measurements Recommendations 577.2 KB AN4311 N 1305312143395731535528 /secured/assets/documents/en/application-note/AN3939.pdf 2016-10-31 1251150824863717930878 PSP 10 Jun 30, 2010 Application Note This application note describes how to use and benefit from DDR memory interleaving. Registration without Disclaimer /secured/assets/documents/en/application-note/AN3939.pdf English documents 717276 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN3939&lang_cd=ja DDR Interleaving for PowerQUICC and QorIQ Processors /secured/assets/documents/en/application-note/AN3939.pdf documents 645036621402383989 Application Note N en Extended Y pdf 1 Y N DDR Interleaving for PowerQUICC and QorIQ Processors 717.3 KB AN3939 N 1251150824863717930878 /docs/en/application-note/AN4026.pdf 2009-12-17 1260992898773711434436 PSP 11 Dec 17, 2009 Application Note A common use of the QUICC Engine block is to establish an HDLC communication path over a TDM interface, such as a T1 or E1 link. This application note describes the various sub-blocks used in the QUICC Engine communications engine for this application, discusses how the sub-blocks interoperate with each other, describes how to initialize them for the HDLC communication path, and provides a software demonstration of HDLC mode via a TDM interface using on-chip loopback. None /docs/en/application-note/AN4026.pdf English documents 718019 None 645036621402383989 2022-12-07 /docs/en/application-note/AN4026.pdf Communicating via HDLC over a TDM Interface with a QUICC Engine&#8482; UCC /docs/en/application-note/AN4026.pdf documents 645036621402383989 Application Note N en None pdf 0 N Communicating via HDLC over a TDM Interface with a QUICC Engine&#8482; UCC 718.0 KB AN4026 N 1260992898773711434436 エラッタ 1 /docs/en/errata/MPC8308CE.pdf 2010-07-08 1278622697428727914608 PSP 12 Sep 22, 2015 Errata MPC8308CE: This document details all known silicon errata for the MPC8308. None /docs/en/errata/MPC8308CE.pdf English documents 676441 None 155452329886410597 2022-12-07 N /docs/en/errata/MPC8308CE.pdf MPC8308CE, MPC8308 Chip Errata - Chip Errata /docs/en/errata/MPC8308CE.pdf documents 155452329886410597 Errata N en None Y pdf 5 N N MPC8308CE, MPC8308 Chip Errata - Chip Errata 676.4 KB MPC8308CE N 1278622697428727914608 データ・シート 1 /docs/en/data-sheet/MPC8308EC.pdf 2010-05-03 1272949819965707794266 PSP 1 Dec 9, 2014 Data Sheet データ・シート The MPC8308 is a cost-effective, low-power, highly integrated host processor. The MPC8308 extends the PowerQUICC<sup>&#174;</sup> family, adding higher CPU performance, additional functionality, and faster interfaces. None /docs/en/data-sheet/MPC8308EC.pdf English 598564 None Data Sheet 2022-12-07 N /docs/en/data-sheet/MPC8308EC.pdf MPC8308 PowerQUICC<sup>&#174;</sup> II Pro Processor Hardware Specification /docs/en/data-sheet/MPC8308EC.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 4 N N MPC8308 PowerQUICC<sup>&#174;</sup> II Pro Processor Hardware Specification 598.6 KB MPC8308EC N 1272949819965707794266 ファクト・シート 2 /docs/en/fact-sheet/MPC8308RDBFS.pdf 2020-02-12 1257796438120723429945 PSP 13 Feb 12, 2020 Fact Sheet The MPC8308-RDB reference platform is ideal for hardware and software development for embedded applications. The MPC8308-RDB integrates leading-edge external components: 5 x Gigabit Ethernet ports, 1 x USB 2.0, x1 mini PCI Express &#174; connector and an SD/MMC card interface. The MPC8308-RDB incorporates a pre-installed board support package (BSP) containing a boot loader (u-boot). None /docs/en/fact-sheet/MPC8308RDBFS.pdf English documents 346903 None 736675474163315314 2022-12-07 N /docs/en/fact-sheet/MPC8308RDBFS.pdf MPC8308-RDB Reference Platform - Fact Sheet /docs/en/fact-sheet/MPC8308RDBFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 1 N N MPC8308-RDB Reference Platform - Fact Sheet 346.9 KB MPC8308RDBFS N 1257796438120723429945 /docs/en/fact-sheet/MPC8308FS.pdf 2020-02-10 1257540597818721504942 PSP 4 Feb 12, 2020 Fact Sheet ファクト・シート The MPC8308 is a cost-effective, low-power, highly integrated PowerQUICC<sup>&#174;</sup> &#174; II Pro processor designed to address the requirements of networking applications such as smart grid home energy gateways, data concentrators, wireless LAN access points, wireless femto base stations and industrial applications. The MPC8308 processor incorporates the e300c3 (603e core compatible) core at 266, 333 and 400 MHz with 1.92 DMIPS/MHz. None /docs/en/fact-sheet/MPC8308FS.pdf English 597220 None Fact Sheet 2022-12-07 N /docs/en/fact-sheet/MPC8308FS.pdf MPC8308 PowerQUICC ® II Pro Processor - Fact Sheet /docs/en/fact-sheet/MPC8308FS.pdf documents 736675474163315314 Fact Sheet N Y en None Y t523 pdf 1 N N MPC8308 PowerQUICC ® II Pro Processor - Fact Sheet 597.2 KB MPC8308FS N 1257540597818721504942 ホワイト・ペーパ 1 /docs/en/white-paper/PQIIPROWP.pdf 2010-08-18 1282161214921708904648 PSP 14 Aug 18, 2010 White Paper This white paper focuses on the usage of the MPC8306/MPC8309 in factory automation/industrial control and other low-end embedded applications. None /docs/en/white-paper/PQIIPROWP.pdf English documents 979424 None 918633085541740938 2022-12-07 /docs/en/white-paper/PQIIPROWP.pdf PowerQUICC<sup>&#174;</sup> II Pro for Entry-Level Industrial Networking and Control Solutions /docs/en/white-paper/PQIIPROWP.pdf documents 918633085541740938 White Paper N en None Y pdf 0 N PowerQUICC<sup>&#174;</sup> II Pro for Entry-Level Industrial Networking and Control Solutions 979.4 KB PQIIPROWP N 1282161214921708904648 リファレンス・マニュアル 1 /docs/en/reference-manual/MPC8308RM.pdf 2010-04-28 1272447558502699404129 PSP 3 Sep 5, 2013 Reference Manual リファレンス・マニュアル This reference manual defines the functionality of MPC8308 PowerQUICC<sup>&#174;</sup> II Pro Processor. None /docs/en/reference-manual/MPC8308RM.pdf English 5229355 None Reference Manual 2022-12-07 N /docs/en/reference-manual/MPC8308RM.pdf MPC8308 PowerQUICC<sup>&#174;</sup> II Pro Processor Reference Manual - Reference Manual /docs/en/reference-manual/MPC8308RM.pdf documents 500633505221135046 Reference Manual N Y en None Y t877 pdf 1 N N MPC8308 PowerQUICC<sup>&#174;</sup> II Pro Processor Reference Manual - Reference Manual 5.2 MB MPC8308RM N 1272447558502699404129 製品概要 1 /docs/en/product-brief/MPC8308PB.pdf 2009-11-12 1257958846961719095157 PSP 2 Nov 11, 2009 Product Brief 製品概要 This document provides an overview of the MPC8308 PowerQUICC<sup>&#174;</sup> II Pro processor features, including a block diagram showing the major functional components. None /docs/en/product-brief/MPC8308PB.pdf English 536850 None Product Brief 2022-12-07 /docs/en/product-brief/MPC8308PB.pdf MPC8308 Product Brief /docs/en/product-brief/MPC8308PB.pdf documents 899114358132306053 Product Brief N Y en None Y t532 pdf 0 N MPC8308 Product Brief 536.9 KB MPC8308PB N 1257958846961719095157 true Y Products
