Low-Power PowerQUICC® II Pro Processor with DDR2, TDM, PCI, Security, USB, QUICC Engine® with UTOPIA

MPC8323
NRND

The MPC8323 PowerQUICC® II Pro is part of the MPC8323E family of cost-effective network communication processors that meet the requirements of multi-protocol control applications. It provides better CPU performance, additional functionality and faster interfaces than current PowerQUICC II processors while addressing important time to market, price, power consumption and board real estate requirements.

QUICC Engine® Technology
A new single-reduced instruction set computing (RISC) version of the QUICC Engine communications engine forms the heart of the networking capability of the MPC8323. The QUICC Engine block contains several peripheral controllers and a single 32-bit RISC controller. Microcode packages provide support for ATM, network address port translation (NAPT), firewall, IPsec, and advanced quality of service (QoS). Protocol support is provided by the main workhorses of the device—the unified communication controllers (UCCs). Each of the five UCCs can support a variety of communication protocols:

  • Up to three 10/100 Mbps Ethernet
  • Asynchronous transfer mode (ATM) support up to OC-3 speeds
  • Serial ATM
  • Up to 31 multi-physical layer (PHY) ATM
  • High-level data link control (HDLC)
  • Up to four time division multiplexing (TDM)
  • Binary synchronous communications protocol (BISYNC)
  • UCC can also support USB 2.0 (full/low-speed)
もっと見る

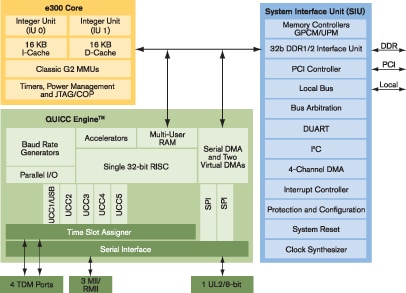

ブロック図

MPC8323 Block Diagram

図を取得する PDF

Features

  • Core: e300c2
  • CPU speed: up to 333 MHz
  • L1 cache: 16 KB I/D
  • Integer units: two
  • QUICC Engine® RISC units: one
  • QUICC Engine frequency: up to 200 MHz
  • Memory controller: 32-bit 266 MHz DDR1/DDR2
  • Local bus: 16-bit up to 66 MHz
  • PCI: 32-bit up to 66 MHz
  • Ethernet: up to 3 - 10/100
  • USB: 2.0 FS/LS
  • Security: sec 2.2 (MPC8323E and MPC8321E only)
  • UART: two
  • I²C: single
  • UTOPIA I/F (8-bit): yes (MPC8323E and MPC8323)
  • TDM I/F: up to four—32 channels with QMC
  • QMC support: up to 64 channels at 64 Kbps
  • Package: 516-PBGA
  • This product is included in NXP®.s product longevity program, with assured supply for a minimum of 10 years after launch
