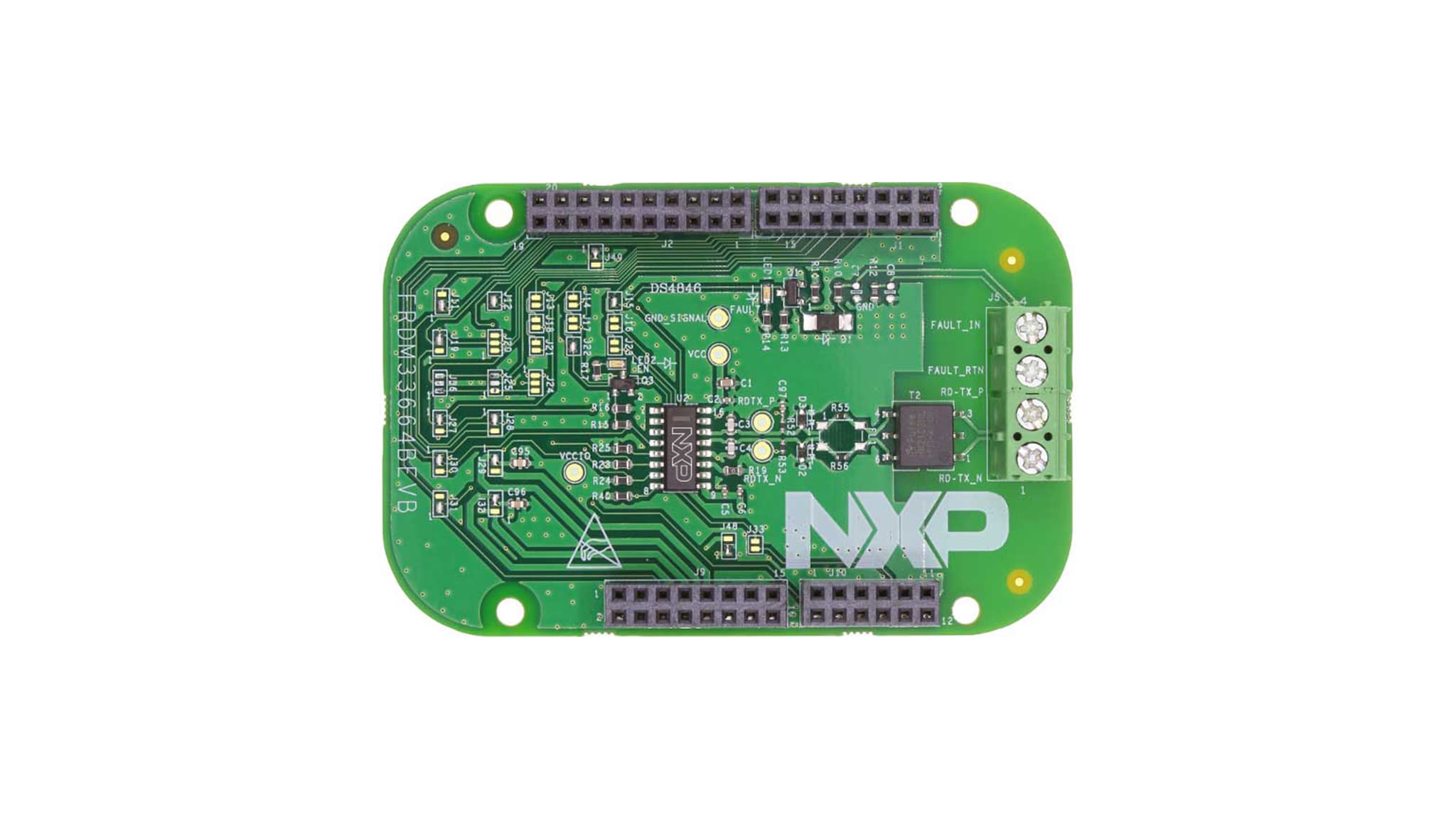

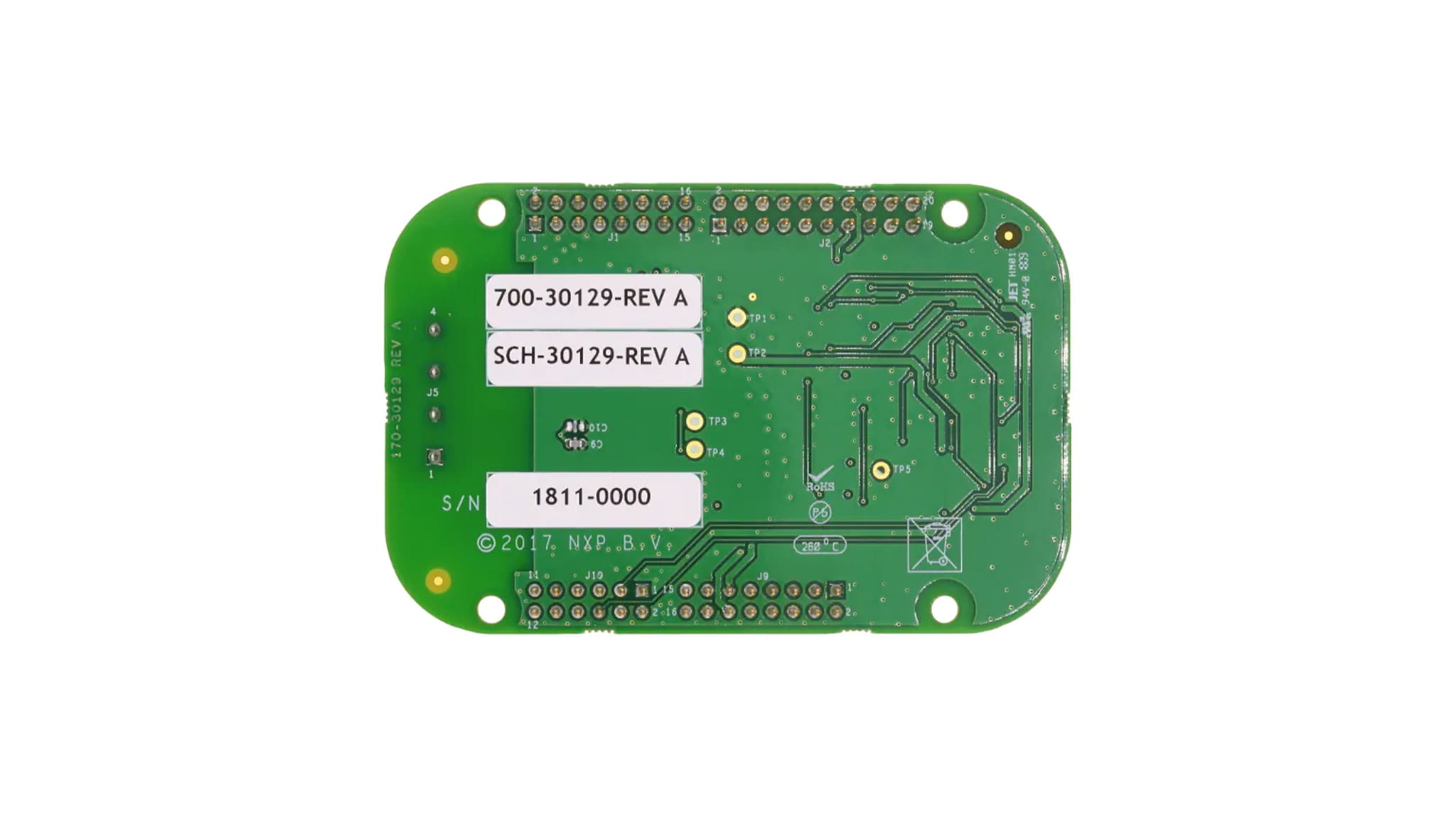

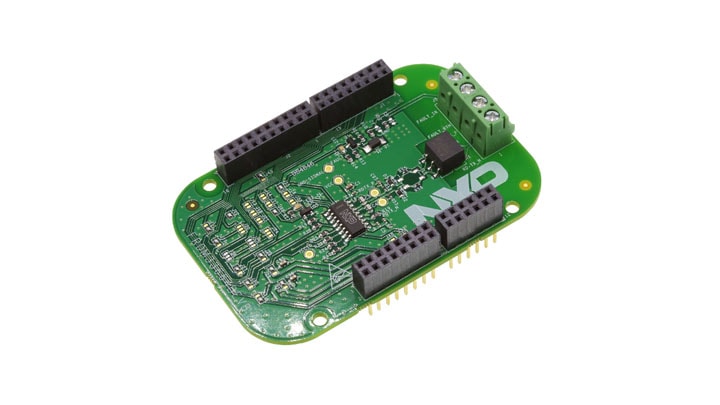

Evaluation Board for MC33664ATL Isolated Network High-Speed Transceiver

FRDM33664BEVB アクティブ

画像にカーソルを合わせると拡大表示されます。

This Evaluation board features the MC33664ATL a transceiver physical layer transformer driver designed to interface a microcontroller to a high speed isolated communication network. MCU SPI data are directly converted to pulse bits and transferred to the bus network.

Follower response messages use the same structure to send pulse bit information to the MC33664ATL which is then converted to an SPI bit stream for MCU.

This EVB works with the MC3377x Battery Cell Controllers. MC3377x are automotive lithium-ion Battery Cell Controller ICs for hybrid (HEV) and electric vehicle (EV) as well as industrial applications, such as energy storage systems (ESS) and uninterruptible power supply (UPS).

対応製品

パワーマネージメント

バッテリー通信用IC

  • MC33664: Isolated Network High-Speed Transceiver

バッテリー・セルコントローラ

  • MC33772B: 6-Channel Li-Ion Battery Cell Controller IC
  • MC33771B: 14-Channel Li-Ion Battery Cell Controller IC

Features

Connectivity

  • 2.0 Mbit/s isolated network communication rate
  • Dual SPI architecture for message confirmation

Power Management

  • Robust conducted and radiated immunity with wake-up
  • 3.3 V and 5.0 V compatible logic thresholds
  • Low sleep mode current with automatic bus wake-up
  • Ultra-low radiated emissions

Support

  • Documentation and Design Files are available on docstore.nxp.com (NDA required)

購入オプション

FRDM33664BEVB-Image

クリックして展開

  • FRDM33664BEVB
    アクティブ

  • Freedom Expansion board,- MC33664,Transformer Physical Layer.

  • The FRDM33664BEVB development kit contents include:
    • Assembled and tested evaluation board/module in an anti-static bag
    • Quick start guide
  • $117.30 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 4
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
