FRDMDUAL33664EVB
アクティブ -
Evaluation Board for MC33664ATL Isolated Network High-Speed Transceiver.
Kit contains
- Assembled and tested evaluation board/module in anti-static bag
- Quick-start guide
- 20 cm TPL bus cable

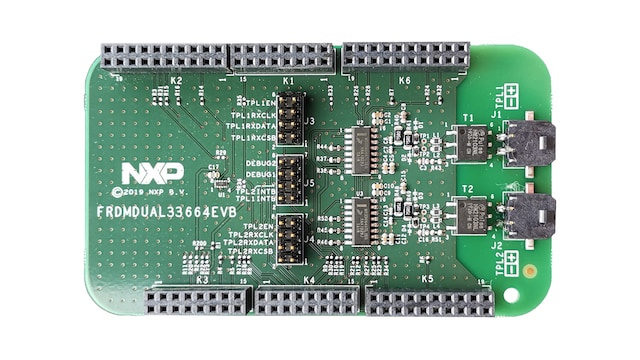

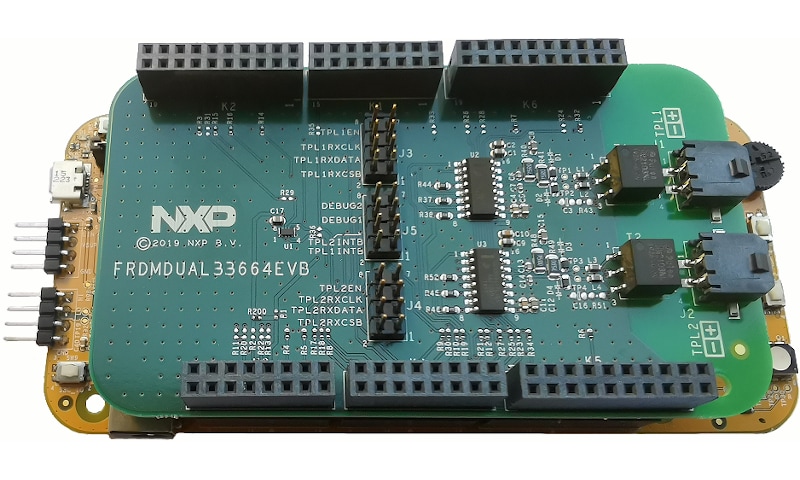

Evaluation Board for MC33664ATL Isolated Network High-Speed Transceiver
This evaluation board features the MC33664ATL, a transceiver physical layer transformer driver designed to interface a microcontroller to a high-speed isolated communication network. MCU SPI data is directly converted to pulse bits and transferred to the bus network.
Slave response messages use the same structure to send pulse bit information to the MC33664ATL, which is then converted to an SPI bit stream for MCU.
This EVB works with the MC3377x battery cell controllers. The MC3377x are automotive lithium-ion battery cell controller ICs for hybrid (HEV) and electric vehicle (EV) as well as industrial applications, such as energy storage systems (ESS) and uninterruptible power supply (UPS).
製品詳細
Features
Connectivity
- Single chain, dual chain or loop-back operation
- 2.0 Mbit/s isolated network communication rate
- Dual SPI architecture for message confirmation
Power Management
- 3.3 V and 5.0 V compatible logic thresholds
- Low sleep mode current with automatic bus wake-up
- Ultra-low radiated emissions
購入オプション
-
BATT-TPLCABLE20
アクティブ -
Electrical transport protocol link (ETPL), two-wire, twisted, 20 cm-long cable.
-
BATT-TPLCABLE50
アクティブ -
Electrical transport protocol link (ETPL), two-wire, twisted, 50 cm-long cable.
設計・リソース
ソフトウェア
クイック・リファレンス ソフトウェア・タイプ.
2 ソフトウェア・ファイル
-
使用例とクイック・スタート・ソフトウェア
Embedded SW: Battery Cell Controller Software Driver for MC33771B/MC33772B
-
ミドルウェア
MC33771C/MC33772C (Battery Cell Controller) Evaluation GUI
注: より快適にご利用いただくために、ソフトウェアのダウンロードはデスクトップで行うことを推奨します。
