S32K3x4-Q257 Full-Featured General Purpose Development Board

S32K3X4EVB-Q257 アーカイブス
  • このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

画像にカーソルを合わせると拡大表示されます。

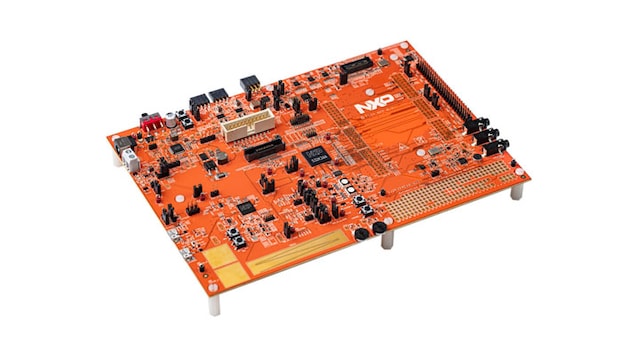

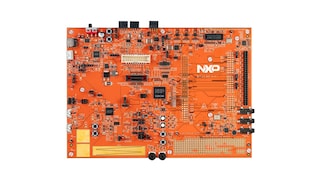

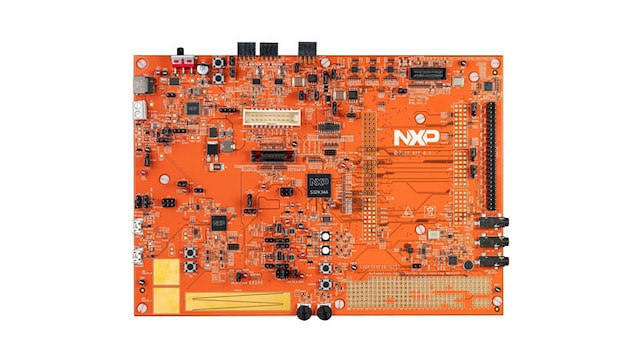

The S32K3X4EVB-Q257 is a full-featured evaluation and development board for general purpose industrial and automotive applications.

Based on the 32-bit Arm® Cortex®-M7 S32K3 MCU in a 257 MPABGA package, the full-featured S32K3X4EVB-Q257 offers dual cores configured in lockstep mode, ASIL D safety hardware, HSE security engine, OTA support, advanced connectivity and low power.

The full-featured S32K3X4EVB-Q257 brings a standard-based form factor compatible with the Arduino® UNO pin layout, providing a broad range of expansion board options for quick application prototyping and demonstration.

Offering the S32K3 EVB in two configurations:

  • S32K3X4EVB-Q257: all components populated
  • S32K3X4EVBQ257ND: Kinetis K26 MCU not populated, require using an external debugger like IAR's I-jet, PEmicro's Multilink and CYCLONE FX or CYCLONE LC, Lauterbach's PowerDebug USB 3 and PowerDebug PRO, SEGGER J-Link, iSYSTEM's BlueBoxes iC5000/iC5700, Keil's ULINK, or Green Hills Probe.
もっと見る

ブロック図

図を選択する。:

S32K3X4EVB-Q257 Block Diagram

S32K3X4EVB-Q257 Block Diagram

S32K3 Family Features

S32K3 Family Overview
図を取得する PDF

対応製品

オーディオ

オーディオ・コンバータ

インターフェース

オートモーティブLINソリューション

  • TJA1021: ISO17987 LIN 2.1/SAE J2602トランシーバ

3.3 V/5 V IO CANトランシーバ

  • TJA1043: High-Speed CAN Transceiver with Standby and Sleep Mode

セキュアCANトランシーバ

  • TJA1153: Secure HS-CAN Transceiver with Sleep Mode

パワーマネージメント

セーフティSBC

  • FS26: 低消費電力セーフティ・システムベーシス・チップ、ASIL Dシステム対応

プロセッサ＆マイクロコントローラ

K2x / KS2x USB

  • K26_180: Kinetis® K26-180 MHz, Dual High-Speed and Full-Speed USBs, 2MB Flash Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

S32K 車載汎用MCU

  • S32K3: S32K3 車載向け汎用マイクロコントローラ

Features

Microcontroller (MCU)

  • 32-bit Arm Cortex-M7 based S32K3x4
  • K26: Kinetis K26-180 MHz as on-board S32K3 debug interface

Safety System Basis Chip (SBC)

  • FS26: Safety System Basis Chip (SBC) with low power fit for ASIL D

Transceivers

  • TJA1153: Secure HS-CAN transceiver
  • TJA1021: LIN 2.1/SAE J2602 transceiver

Audio Converter

Pressure Sensor

  • MMA8452Q: ±2g/±4g/±8g, Low g, 12-bit digital accelerometer
  • Low cost

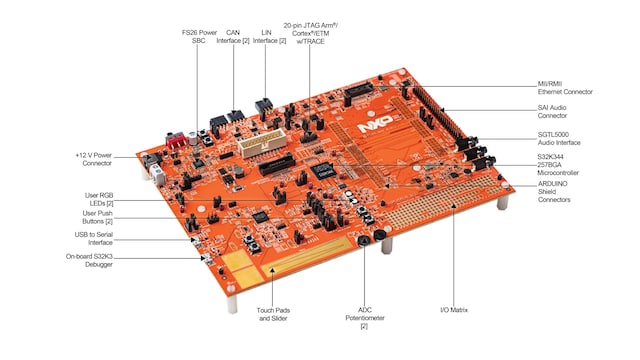

Hardware Features

  • 64 MB QSPI NOR flash
  • USB to serial interface
  • Power supply switch with universal adapter
  • MCU voltage/current measurement
  • 2x user RGB LEDs, 2x user push-buttons
  • 2x ADC rotary potentiometers
  • 2x touch pad electrode and slider touch
  • Microphone

Software Features

  • Free of charge S32 Design Studio IDE (Eclipse, GCC and debugger) and S32 Config Tool (pins, clocks, peripherals, DDR) with third-party compilers and debuggers, also support
  • Free of charge Real-Time Drivers for AUTOSAR® and non-AUTOSAR use, ASIL D compliant
  • Configuration tools for both AUTOSAR and non-AUTOSAR users
  • Free of charge security firmware: SHE+ compliant NXP supplied, designed for ISO 21434
  • S32 Safety Software Framework (SAF): Six fault detection and reaction libraries
  • Free of charge Safety Peripheral Drivers (SPD)
  • Structural Core Self Test (SCST)
  • Free of charge Inter-Platform Communication Framework (IPCF): middleware for multi-core, multi-OS communication in single- and multi- chip systems.
  • Free of charge Model-Based Design Toolbox for MATLAB®: NXP supplied plug-in for Simulink environment.

Programing Debug intefaces

  • On-board S32K3 debug interface
  • 20-Pin Cortex debug + ETM connector
  • 10-Pin Cortex debug connector
  • 38-Pin Arm ETM Mictor connector
  • 20-Pin Arm Standard JTAG connector
  • USB to UART interface for run-time debugging

Power supply

  • GST60A12-P1J: 12 V, 5 A + power cord (type B) + universal AC plug adapter

Compatibility

  • Easy access to the GPIO matrix pins for prototyping
  • Arduino UNO pint-out compatible with expansion “shield” support

Interfaces

  • 2x on-board secure HS-CAN
  • 2x on-board LIN
  • Ethernet interface connector providing a MII and/or RMII connectivity for external Ethernet PHY card (like ADTJA1101-RMII)
  • GPIO matrix pins for prototyping
  • SWD/JTAG debug interface for S32K3 debugger
  • LINE IN, LINE OUT and AUDIO OUT connectors
  • SAI connector for external audio cards
