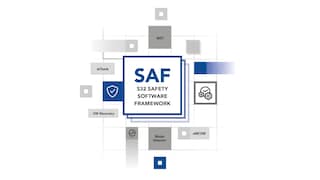

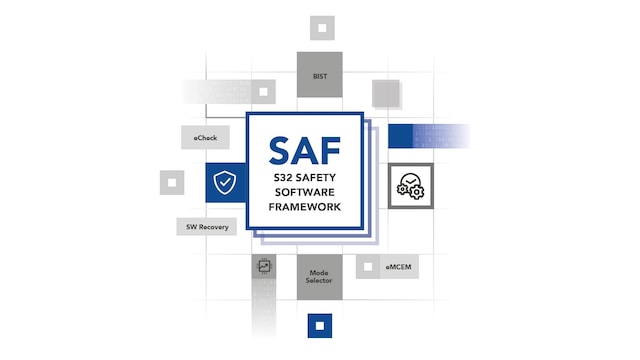

S32セーフティ・ソフトウェア・フレームワーク (SAF) およびセーフティ・ペリフェラル・ドライバ (SPD)

SAF

画像にカーソルを合わせると拡大表示されます。

S32セーフティ・ソフトウェア・フレームワーク (SAF) には、ISO 26262の機能安全規格に準拠したセーフティ・アプリケーションの基盤をお客様が確立するために必要なソフトウェア・コンポーネントが含まれています。セーフティ・ペリフェラル・ドライバ (SPD) は、標準ソフトウェア・バンドルの一部です。

SAFは、S32プロセッサのハードウェア・セーフティ・メカニズムを完全にカバーするソフトウェア・セーフティ・メカニズムを提供します。SAFは特定条件に依存しない安全要素 (SEooC) として開発されており、ASIL Dまでの統合が可能です。SAFは、AUTOSAR™アプリケーションでもAUTOSAR以外のアプリケーションでも使用できます。

セーフティ・パッケージには、SafeAssure NDA Communityで入手可能な、ソフトウェア・コンポーネントのセーフティ分析とセーフティ・マニュアルが含まれています。

図

図を選択する。:

S32セーフティ・ソフトウェア・フレームワーク (SAF) およびセーフティ・ペリフェラル・ドライバ (SPD) のブロック図

Safety Software Framework (SAF) and Safety Peripheral Driver (SPD) Block Diagram

S32セーフティ・ソフトウェア・フレームワークのブロック図

Safety Software Framework Block Diagram
図を取得する PDF

特長

一般

  • ISO 26262機能安全準拠

提供されるSPDソフトウェア・モジュール

  • ロジック BIST (LBIST) とメモリ BIST (MBIST) の両方をカバーする内蔵セルフテスト (BIST) マネージャ
  • 拡張マイクロコントローラ・エラー・マネージャ (eMCEM)

提供されるSAFソフトウェア・モジュール

  • ロジック BIST (LBIST) とメモリ BIST (MBIST) の両方をカバーする内蔵セルフテスト (BIST) マネージャ
  • 拡張マイクロコントローラ・エラー・マネージャ (eMCEM)
  • モード・セレクタ
  • セーフティ・ブート (sBoot)
  • ソフトウェア・リカバリ
  • スクエア・チェック（チェッカー盤をチェック）

SAFの機能

  • 潜在的な故障検出などのハードウェア・セーフティ・メカニズムのチェック
  • BISTの管理と導入による高可用性の実現
  • 通常モードまたは縮退モードでの起動
  • デバイスが安全機能を開始できるように正しく設定されていることを確認
  • 検出された故障の処理と対応
  • ローカルおよびグローバルのリカバリ戦略のサポート

対応製品

  • S32G3: 車載ネットワーキング向けS32G3プロセッサ
  • S32G2: 車載ネットワーキング向けS32G2プロセッサ
  • S32K3: S32K3 車載向け汎用マイクロコントローラ
  • S32R45: S32R45イメージング・レーダー向け高性能プロセッサ
  • S32K39-37-36: 電動化アプリケーション向けS32K39/37/36マイクロコントローラ
