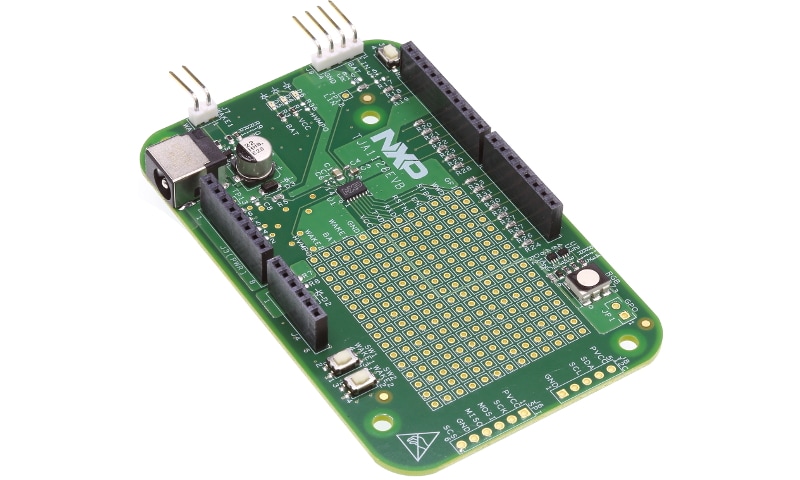

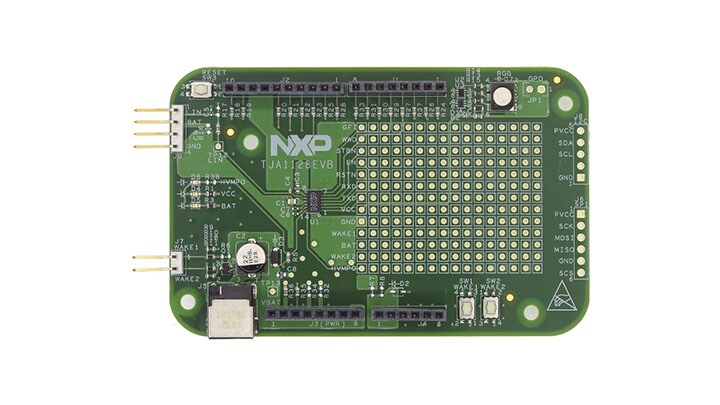

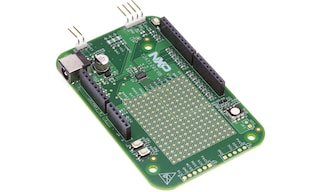

Evaluation Board for TJA1128 LIN Mini System Basis Chip.
- TJA1128EVB
- Connector for power input/output
Evaluation Board for TJA1128 LIN Mini System Basis Chip
The TJA1128EVB is an evaluation board for the TJA1128 LIN mini system basis chip as a hardware plug-in board (shield) with standards-based form factor compatible with Arduino® UNO pin layout, that enables rapid prototyping with a wide range of microcontroller development boards.
For easy LIN follower prototyping, this board features a LIN transceiver, a low-dropout voltage regulator (LDO), a window watchdog and two WAKE inputs. Microcontroller board compatibility to:
- S32K142EVB
- S32K144EVB
- DEVKIT-MPC5748G
- FRDM-KEAZ128
製品詳細
対応製品
インターフェース
オートモーティブLINソリューション
- TJA1128: LINミニ・システムベーシス・チップ
Features
LIN Mini SBC TJA1128G
- Low-dropout voltage regulator (5V)
- Window watchdog and reset input/output
- 2 WAKE inputs
- General-purpose input and high-voltage multipurpose output
Connectivity
- LIN connector
- WAKE connector
- Arduino® UNO footprint-compatible shield
- Easy access to TJA1128G pins
On-Board Application Circuit Options
- Cyclic sampled wake-up on WAKE1 and WAKE2
- Continuous wake-up detection on WAKE1 and WAKE2
- Battery supply voltage monitor
Size
- Small form factor
General Specifications
- Customer application field
Components
- WAKE connector
- WAKE push buttons
- Reset button
- Power LED indicator
- VCC LED indicator
- RGB LED
