8-Bit MCU with Vreg, H-B, EC Glass Driver, LIN Phy

MM908E622 生産終了 (EOL)
  • このページでは、新規設計を推奨しない製品に関する情報を掲載しています。

The NXP MM908E622 is an integrated single-package solution that includes a high-performance HC08 MCU with a SMARTMOS® analog control IC.

  • The HC08 includes flash memory, timer, enhanced serial communications interface, 10 bit ADC, internal SPI, and internal clock generator module
  • The analog control die provides 4 half-bridge and 3 high side outputs with diagnostic functions, an EC glass driver circuit, a Hall effect sensor input, analog inputs, voltage regulator, window watchdog, and LIN physical layer
  • The single-package solution provides optimal application performance adjustments and space saving PCB design
  • Well-suited for the control of automotive high-end mirrors

製品詳細

ブロック図

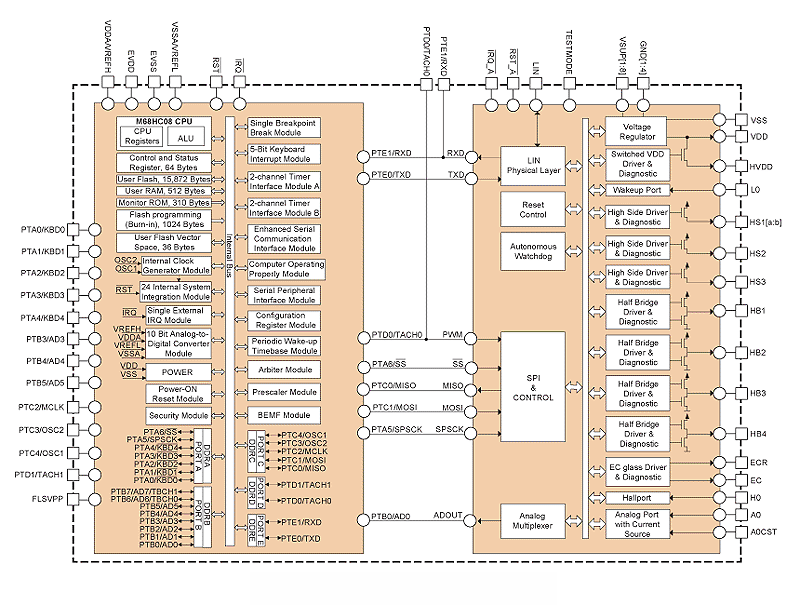

MM908E622 BLOCK DIAGRAM

MM908E622 BLOCK DIAGRAM
図を取得する PDF

Features

Key Features

  • High performance M68HC908EY16 core
  • 16 KB of on-chip flash memory, 512 B of RAM
  • Two 16-bit, two-channel timers
  • LIN physical layer interface
  • Autonomous MCU watchdog / MCU supervision
  • One analog input with switchable current source
  • Four low RDS(ON) half-bridge outputs
  • Three low RDS(ON) high side outputs
  • EC glass driver circuitry
  • Wake-up and 2 or 3-pin Hall effect sensor input
  • 12 microcontroller I/O
  • Load supply voltage 7.5 V (Min), 20 V (Max)

Product Longevity Program
