IAR KickStart™ Kinetis® K60 Tower® System Kit

TWR-K60N512-IAR

画像にカーソルを合わせると拡大表示されます。

Take your embedded design to the next level with the IAR KickStart Kit™ for the Kinetis® K60 family of MCUs. Developed in conjunction with IAR Systems, this kit speeds your time to market with packaged evaluation boards, software development tools, example projects and RTOS BSPs.

The TWR-K60N512-IAR can operate as a standalone evaluation board, and the J-Link Lite for Cortex™-M debug probe will bring you advanced debugging features through Serial Wire Debug (SWD).

対応製品

プロセッサ＆マイクロコントローラ

K6xイーサネット

  • K60_100: Kinetis® K60-100 MHz, Mixed-Signal Integration Microcontrollers based on Arm® Cortex®-M4 Core
  • K60_120: Kinetis® K60/61-120–150 MHz, Mixed-Signal Integration and Anti-Tamper Microcontrollers based on Arm® Cortex®-M4 Core

Features

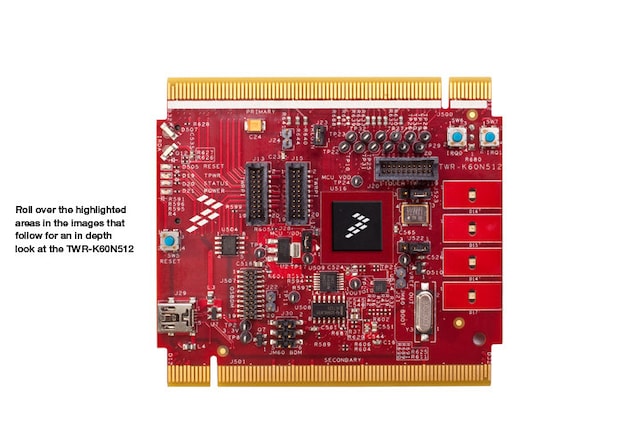

Tower® System Kinetis® K60 MCU module (TWR-K60N512)

  • Kinetis K60N512 device (Cortex®-M4)
  • Capacitive Touch Pads
  • Integrated, open source JTAG)
  • SD Card Slot, MMA7660 3-axis accelerometer
  • Tower Plug-In (TWRPI) Socket for expansion (sensors, etc.)
  • Touch TWRPI Socket adds support for various capacitive touch boards (e.g. keypads, rotary dials, sliders, etc.)
  • Tower connectivity for access to USB, Ethernet, RS232/RS485, CAN, SPI, I²C, Flex bus, etc.
  • Potentiometer, 4 LEDs, 2 pushbuttons, infrared port

IAR J-Link Lite for Cortex-M debug probe

  • SWD/SWO support for Cortex-M0/M1/M3/M4 devices
  • JTAG clock up to 4 MHz
  • Flash download
  • 3.3 V target interface voltage (5 V tolerant)
  • 19-pin adapter cable included
