Kinetis® K22 Tower® System Module

TWR-K22F120M
アクティブ

画像にカーソルを合わせると拡大表示されます。

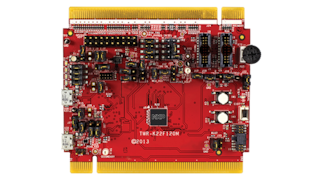

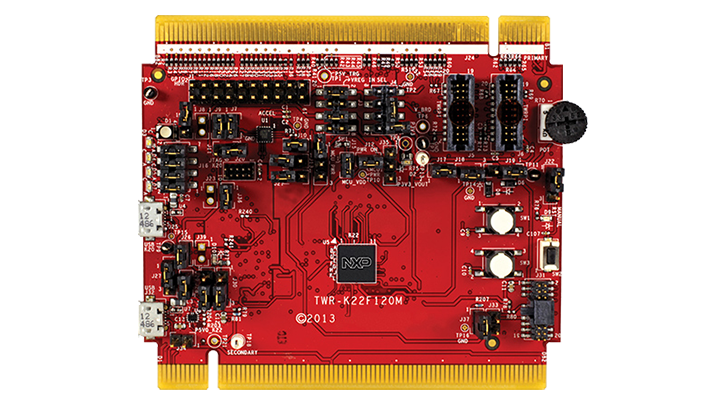

The TWR-K22F120M is a development board for the Kinetis® K22 32-bit Arm® Cortex®-M4 MCUs.

  • It features the Kinetis K22FN512VDC12 low-power MCU with 512 KB Flash, 128 KB SRAM, and USB connectivity with crystal-less operation.
  • The TWR-K22F120M operates as a standalone debug tool and can also be combined and used as part of the modular Tower System development platform.

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

K2x / KS2x USB

  • K22_100: Kinetis® K22-100 MHz, Cost Effective, Full-Speed USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K22_120: Kinetis® K22-120 MHz, Cost Effective, Full-Speed USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

K0x エントリレベル

  • K02_100: Kinetis® K02-100 MHz, Microcontrollers (MCUs) with Optimized Features Based on Arm® Cortex®-M4 Core

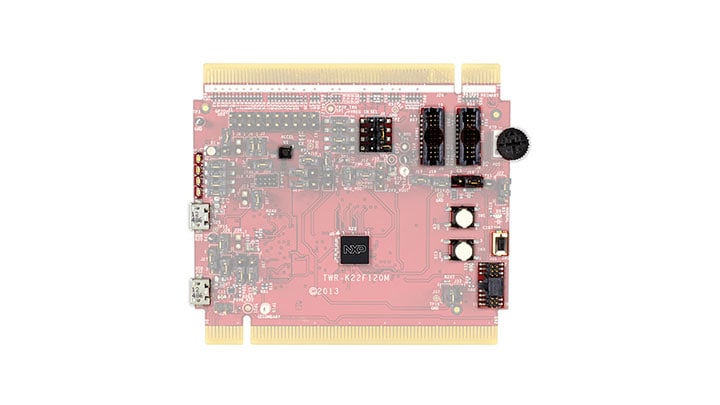

Features

Microcontroller

    K22FN512VDC12 MCU

  • 120 MHz
  • 512 KB Flash
  • 128 KB RAM
  • Low power
  • 121 MAPBGA thin-profile package
  • Tower-compatible microcontroller module

Connectivity

  • Dual-role USB interface with Micro-AB USB connector
  • General-purpose Tower Plug-in (TWRPI) socket

Power Management

  • Independent, battery-operated power supply for Real Time Clock (RTC) module

Debug

  • Onboard debug circuit: K20DX128VFM5 OpenSDA with virtual serial port

Sensors

  • Three-axis combination accelerometer and magnetometer (FXOS8700CQ)

Support

  • Software support and application development are offered through the Kinetis software development kit (SDK), an extensive suite of robust peripheral drivers, stacks, and middleware (replacing Sample Code Packages/examples). Get expert advice and support by joining the Kinetis Software Development Kit Community forum

User Components

  • Four (4) user-controllable LEDs plus RGB LED
  • Two (2) user pushbutton switches for GPIO interrupts
  • One (1) user pushbutton switch for MCU reset
  • Potentiometer

Software and support application development

    null

もっと見る

購入オプション

TWR-K22F120M-Image

クリックして展開

  • TWR-K22F120M
    アクティブ

  • Tower System Development Board for Kinetis K02 and K22 (100-120 MHz, 128-512 KB Flash) MCUs.

    • TWR-K22F120M Tower® System module
    • Quick start guide
    • Supporting cables
    • Battery
  • の数量に対して 1
代理店からの注文
