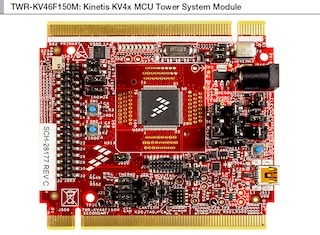

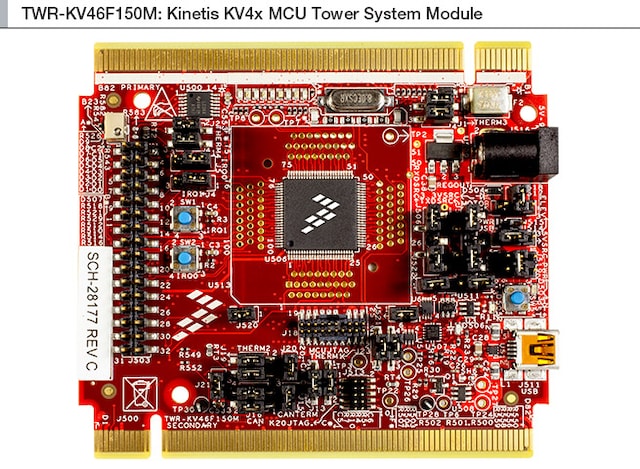

Kinetis KV4x Family Tower System Module

TWR-KV46F150M アクティブ

画像にカーソルを合わせると拡大表示されます。

The TWR-KV46F150M is a development tool for the Kinetis V series KV4x MCU family built on the Arm® Cortex®-M4 processor. The TWR-KV46F150M MCU module is designed to work either in standalone mode or as part of the Tower System, a modular development platform that enables rapid prototyping and tool re-use through reconfigurable hardware.

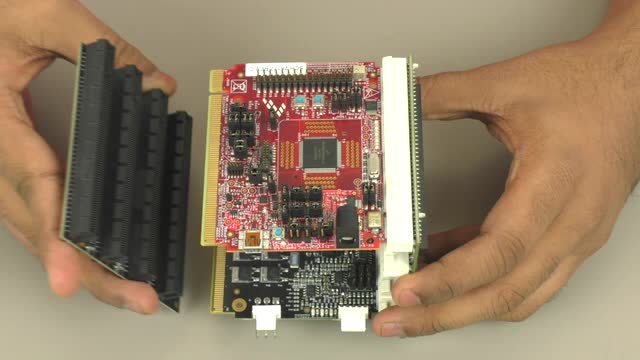

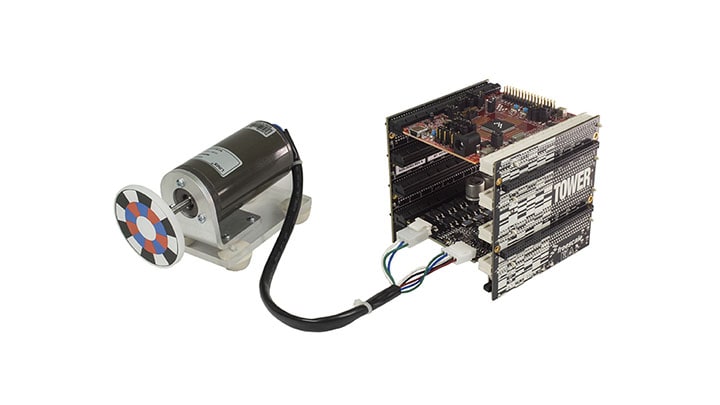

As is standard with all Tower System modules, the TWR-KV46F150M MCU module can be used with a variety of existing peripheral modules, such as TWR-MC-LV3PH for motor control rapid prototyping and TWR-SMPS-LVFB for digital power conversion rapid prototyping. Torque your designs and speed your time to market with TWR-KV46F150M.

対応製品

プロセッサ＆マイクロコントローラ

KVシリーズArm Cortex-M4/M0+/M7

  • KV4x: Kinetis KV4x-168 MHz, High Performance Motor / Power Conversion MCUs based on Arm® Cortex®-M4

Features

Microcontroller

    MKV46F256FLL16 Arm® Cortex®-M4 MCU

  • 168 MHz
  • 256 KB flash
  • Dual 12-bit ADCs up to 4.1 Msps
  • 3x FlexTimers and 1x eFlexPWM with 312ps resolution
  • Up to 30x PWM channels dedicated to motor and power control with 12-bit DAC and high-speed analog comparator
  • 100 LQFP

Connectivity

  • Motor control and auxiliary signal connectors

Debug

  • OpenSDA debug circuit with Mini USB connector and virtual serial port

Sensors

  • Four thermistors

Interface

  • FlexCAN interface

User Components

  • Nine LEDs with connected buffers to PWM channels for dimming
  • Two push buttons for user input or interrupts

購入オプション

TWR-KV46F150M-Image

クリックして展開

  • TWR-KV46F150M
    アクティブ

  • Tower System Development Board for Kinetis KV42, KV44 and KV46 MCUs.

    • TWR-KV46F150M Kinetis KV4x MCU Tower System Module
    • Quick Start Guide
  • $171.35 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
