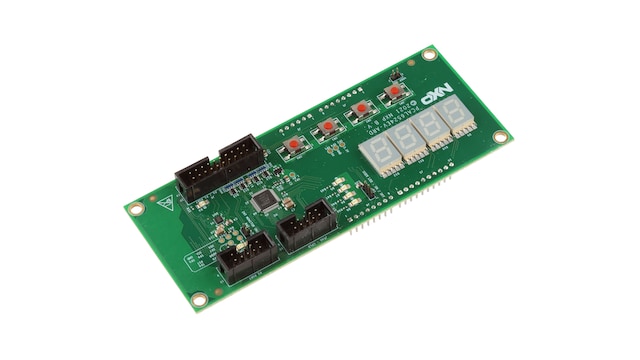

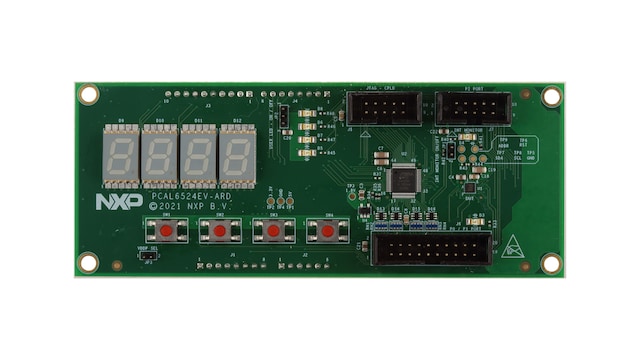

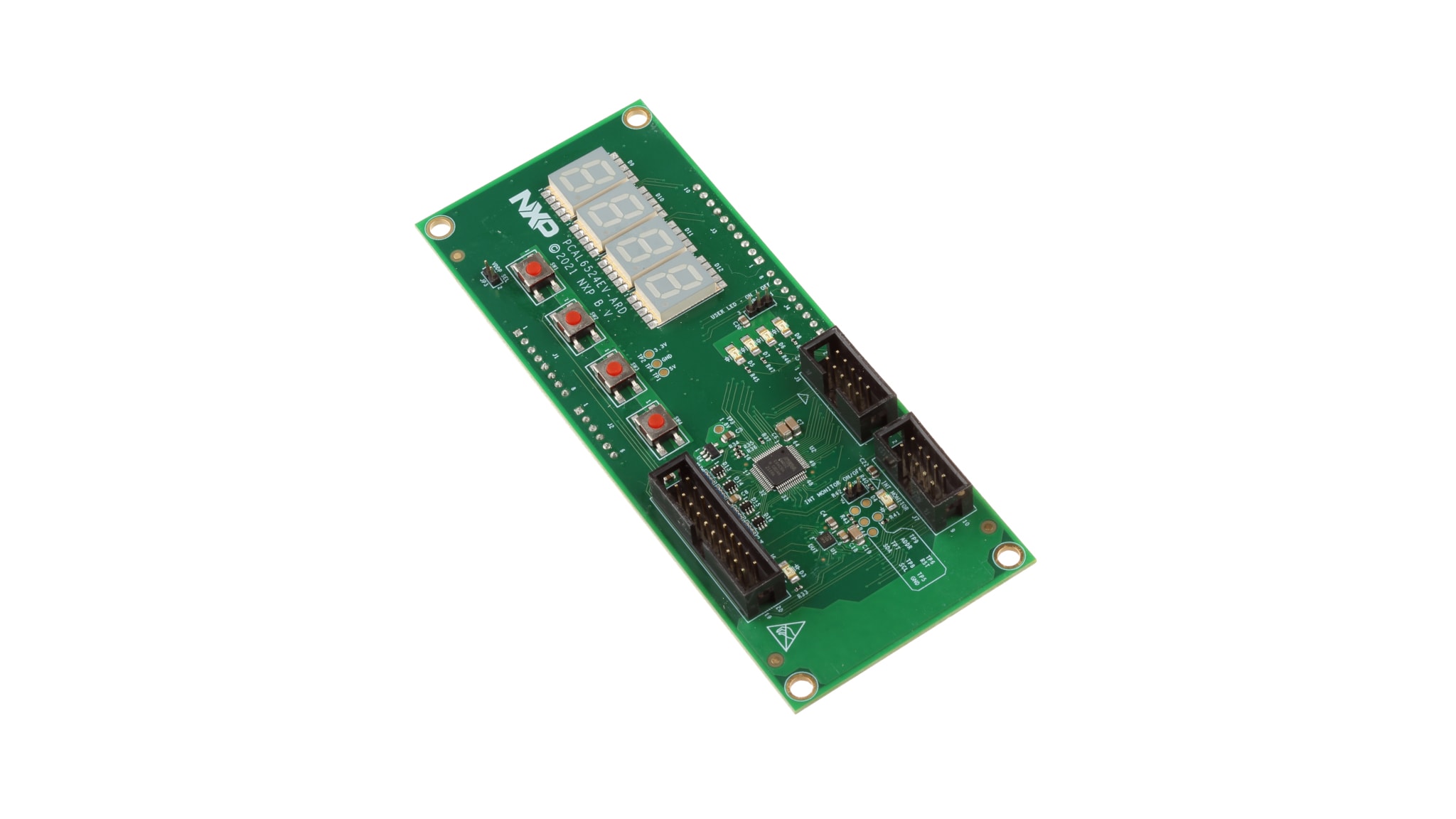

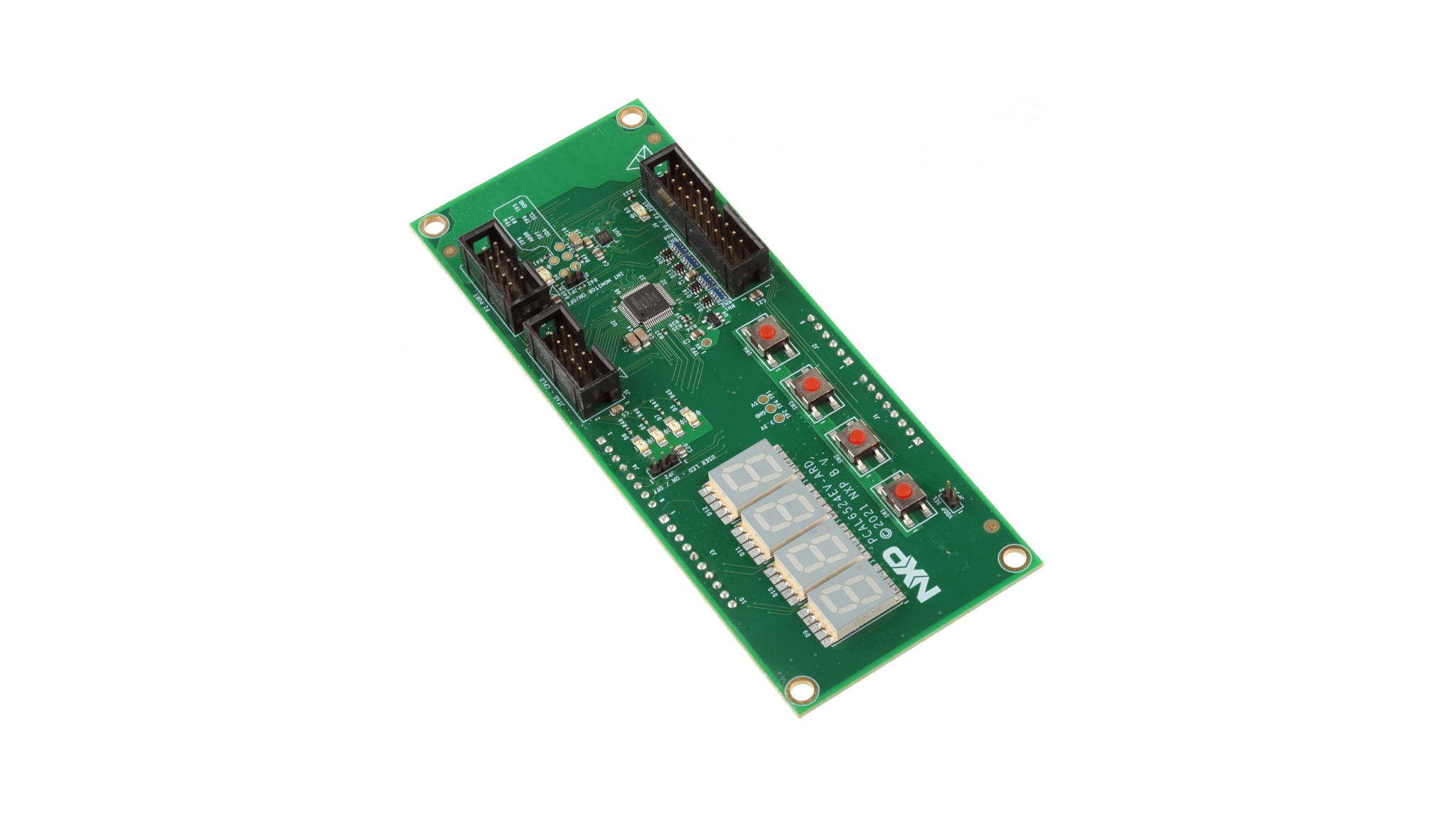

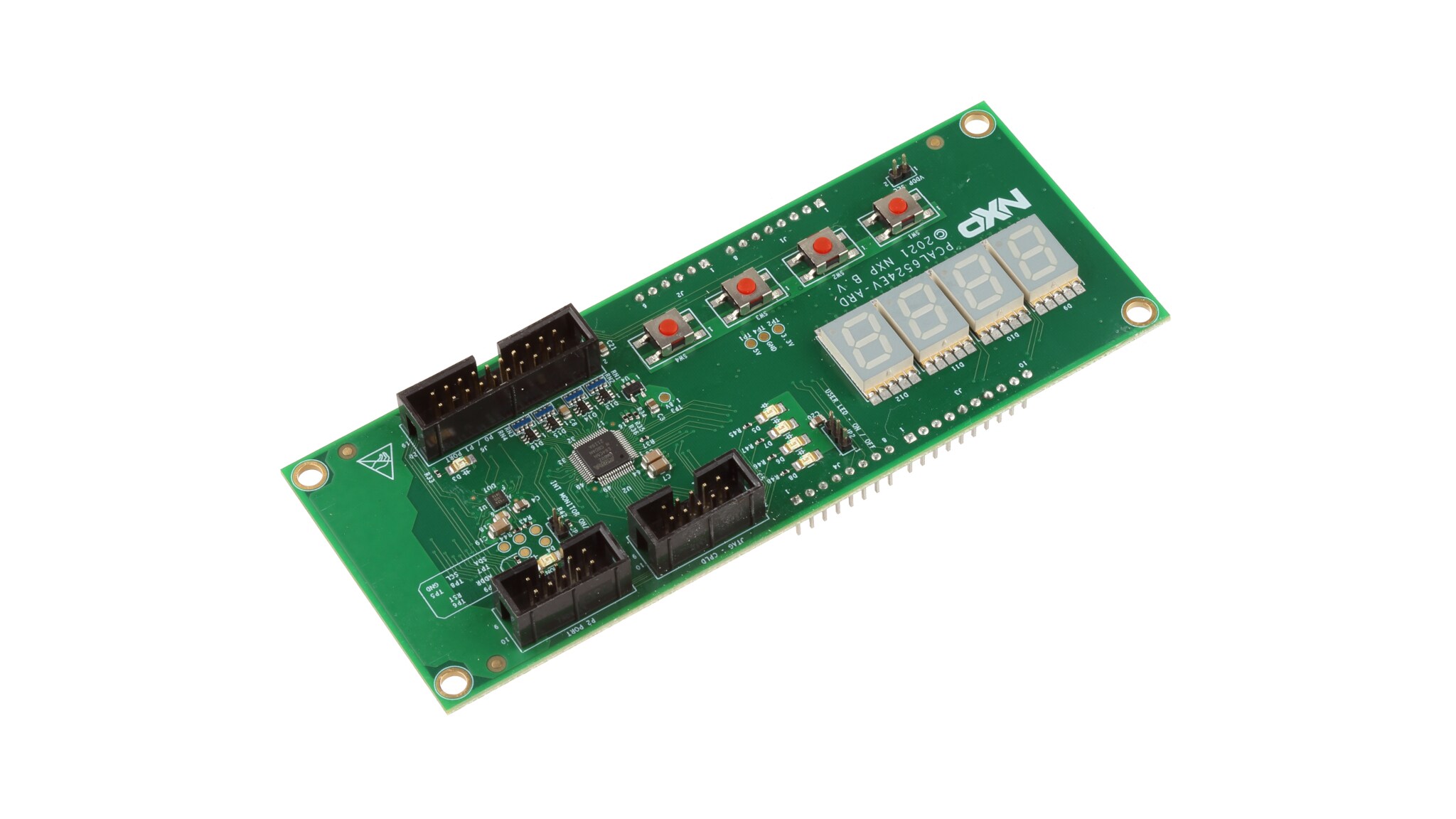

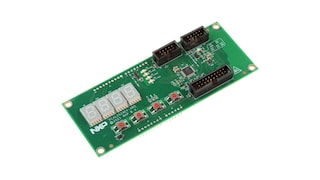

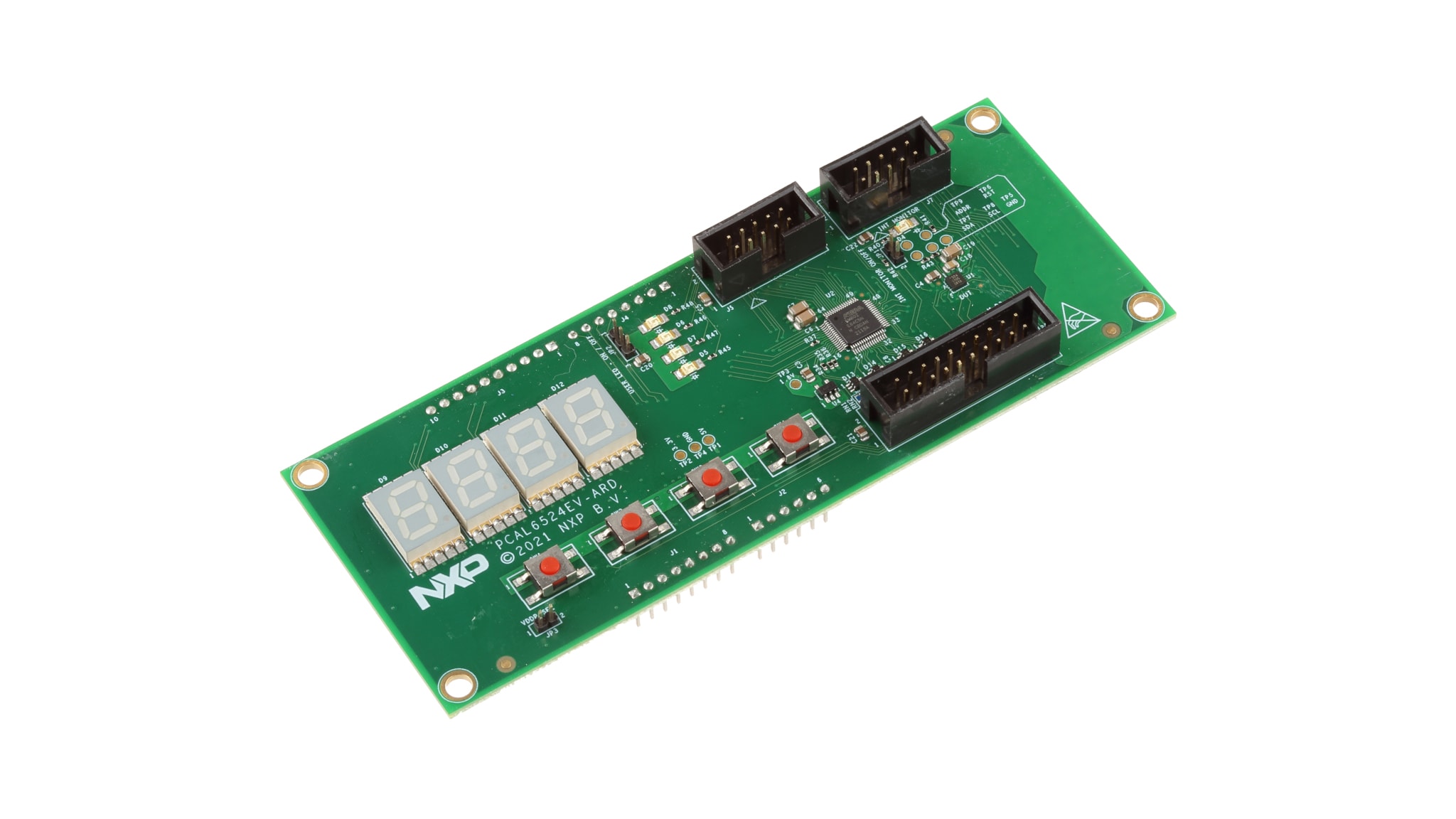

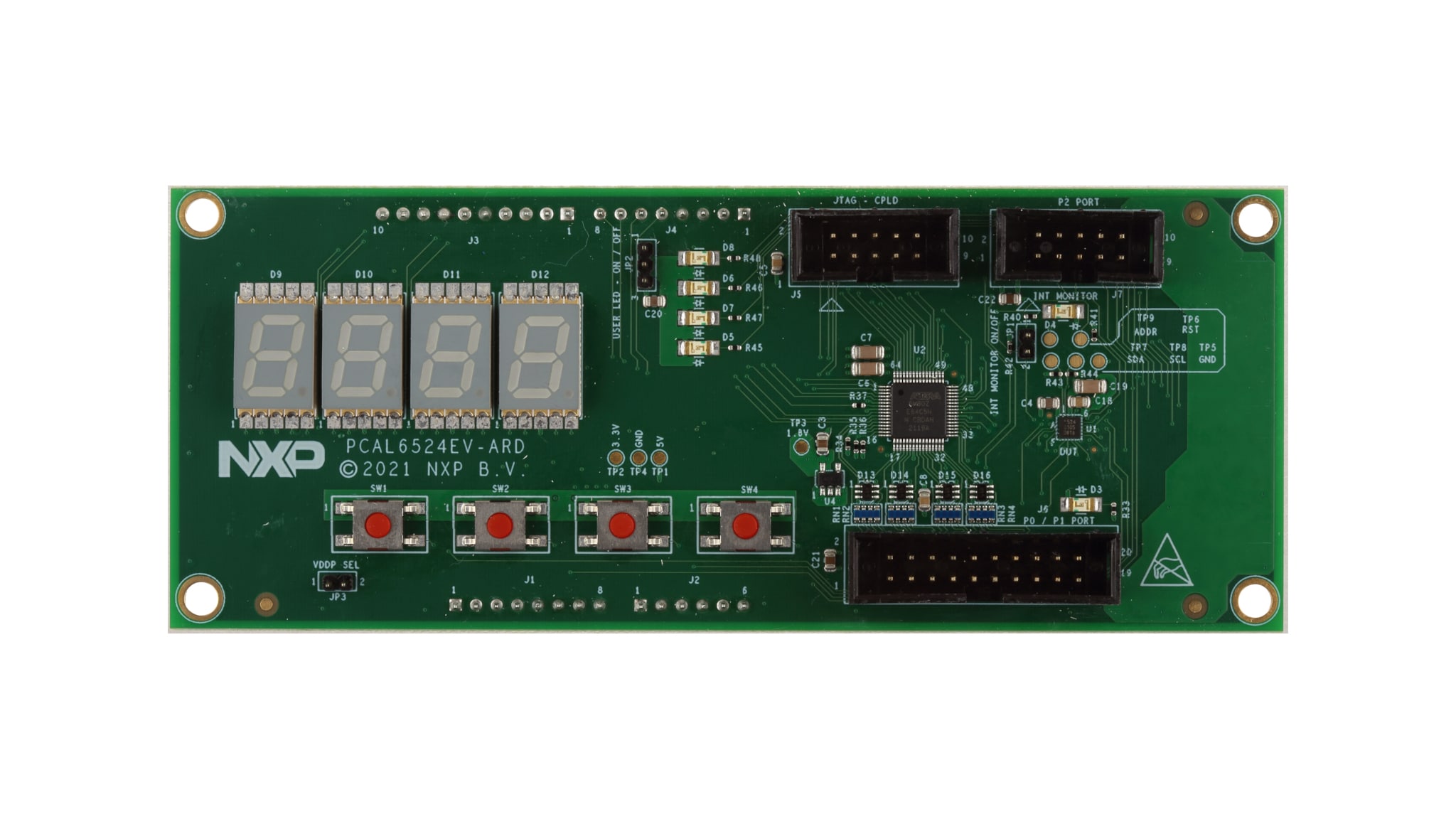

PCAL6524EV 24-Bit GPIO Arduino® Shield

PCAL6524EV-ARD
アクティブ

画像にカーソルを合わせると拡大表示されます。

The PCAL6524 is a 24-bit general purpose I/O expander that provides remote I/O expansion for most microcontroller families via the Fast-mode Plus (Fm+) I²C-bus interface. The ultra low-voltage interface allows for direct connection to a microcontroller operating down to 0.8 V. NXP I/O expanders provide a simple solution when additional I/Os are needed while keeping interconnections to a minimum, for example, in battery-powered mobile applications for interfacing to sensors, push buttons, keypad, etc.

In addition to providing a flexible set of GPIOs, it simplifies interconnection of a processor running at one voltage level down to 0.8 V to I/O devices operating at a different voltage level 1.65 V to 5.5 V.

製品詳細

対応製品

インターフェース

汎用I/O (GPIO)

  • PCAL6524: 超低電圧、レベル変換、24ビットFm+ I²Cバス/SMBus I/Oエキスパンダ

Features

General Function

  • Support 24-bit GPIO
  • Open-drain active LOW interrupt output (INT)
  • Latched outputs with 25 mA drive maximum capability for directly driving LEDs
  • Agile I/O with output drive strength, input latch, pull-up/pull-down enable/selection and interrupt mask features

Power

  • Supply voltage: VDD (p) 1.65 V to 5.5 V, VDD (I²C-bus) 0.8 V to 3.6 V
  • Low standby current (2.0 uA/3.0 uA)

Voltage Translation

  • Allows bidirectional voltage-level translation and GPIO expansion between 0.8 V to 3.6 V SCL/SDA and 1.8 V, 2.5 V, 3.3 V, 5.5 V Port P

Interface

  • 1 MHz Fast-mode Plus I²C-bus
  • RESET pin

Package

  • HUQFN32 and VFBGA36

購入オプション

PCAL6524EV-ARD-Image

クリックして展開

  • PCAL6524EV-ARD
    アクティブ

  • PCAL6524EV 24-Bit GPIO Arduino® Shield .

  • Kit contains:

    • Assembled and tested evaluation board in an antistatic bag
    • Quick start guide
  • $38.89 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 20
    • 配送: 通常 1～2営業日以内に配送
