MicroSys miriac™ EK5744 Funcional Safety Evaluation Kit.

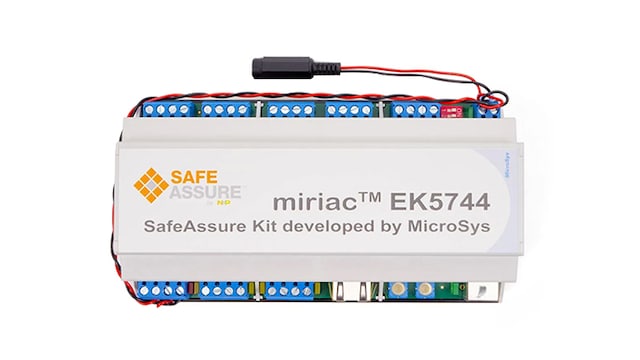

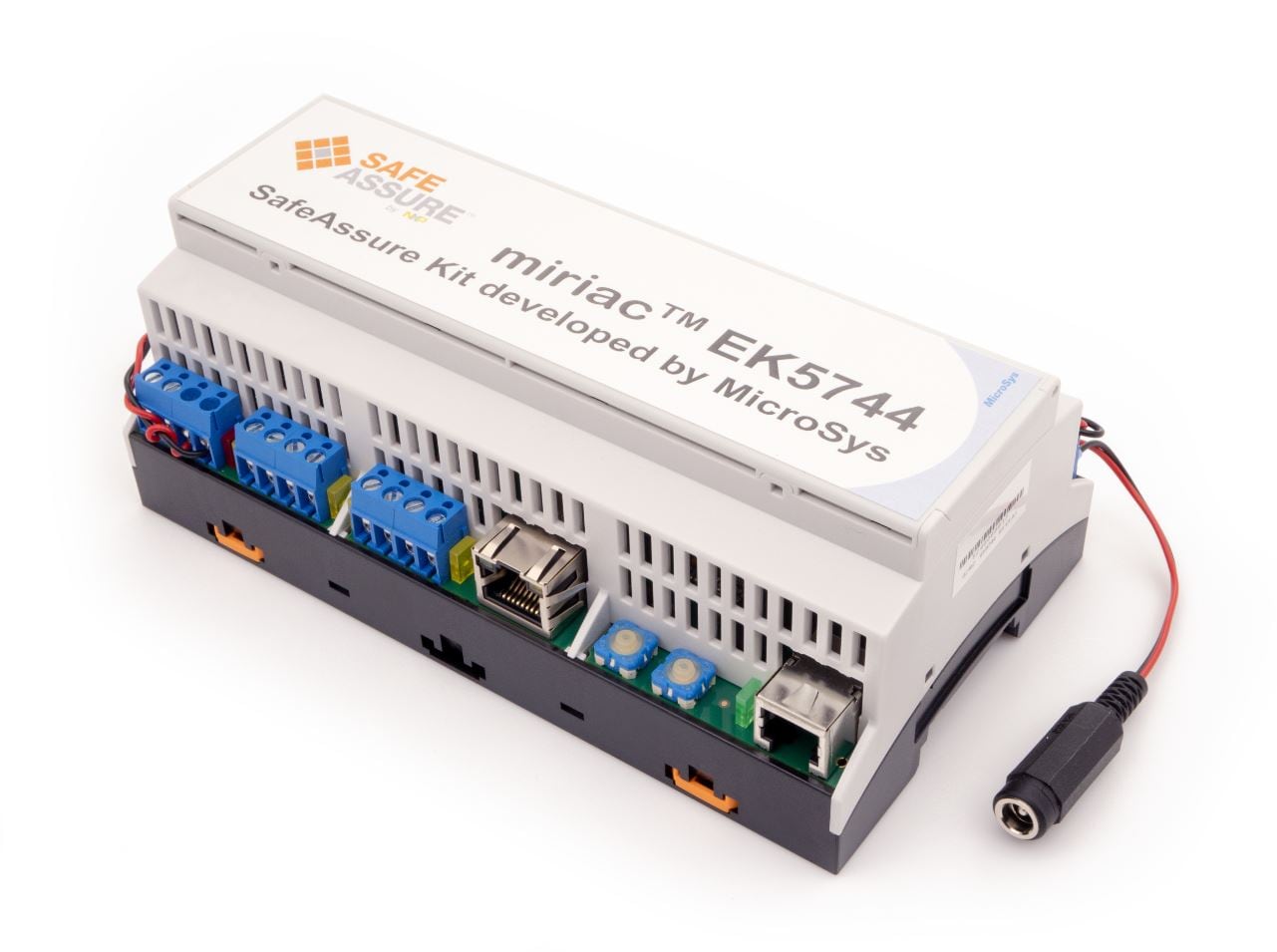

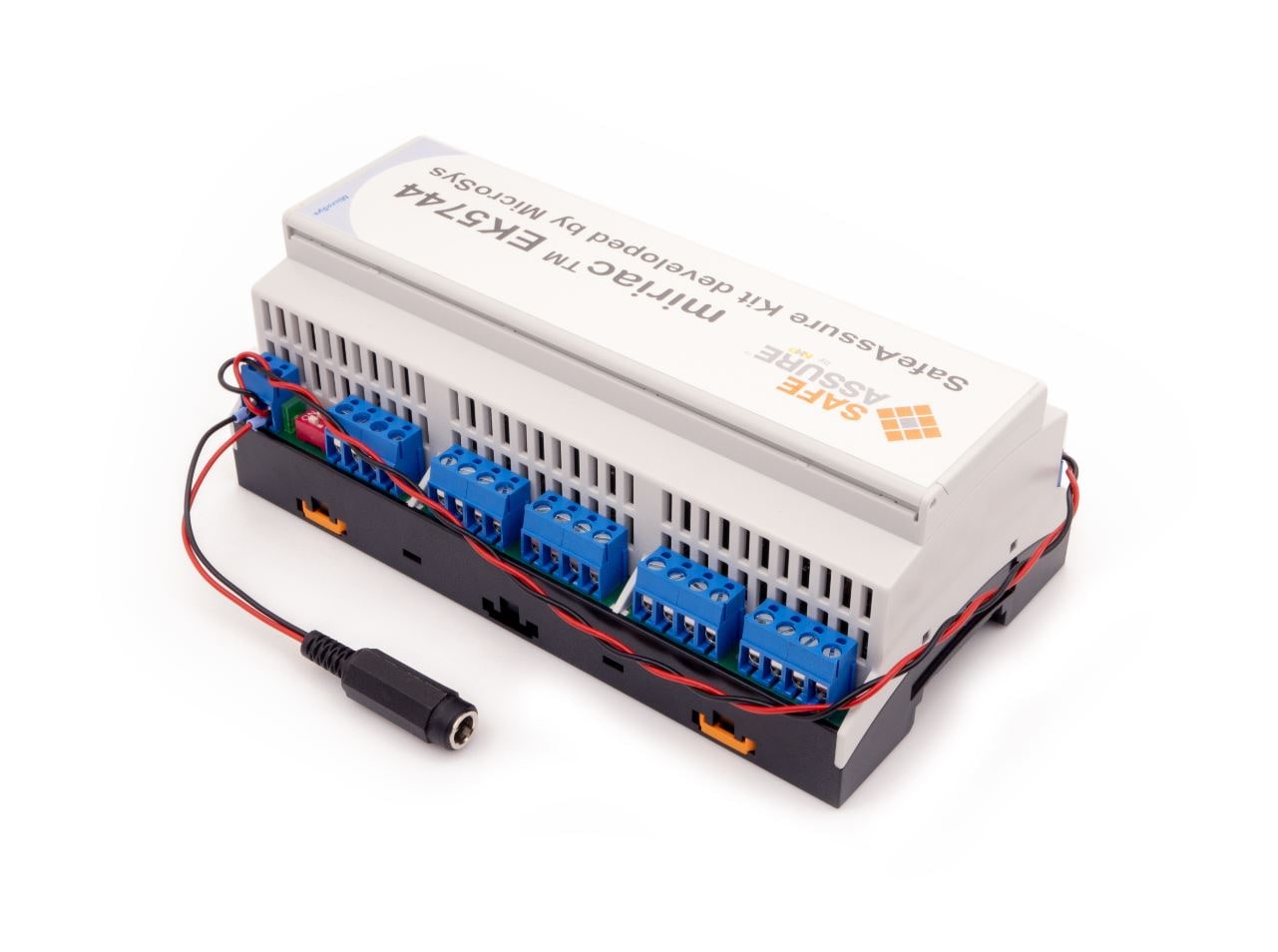

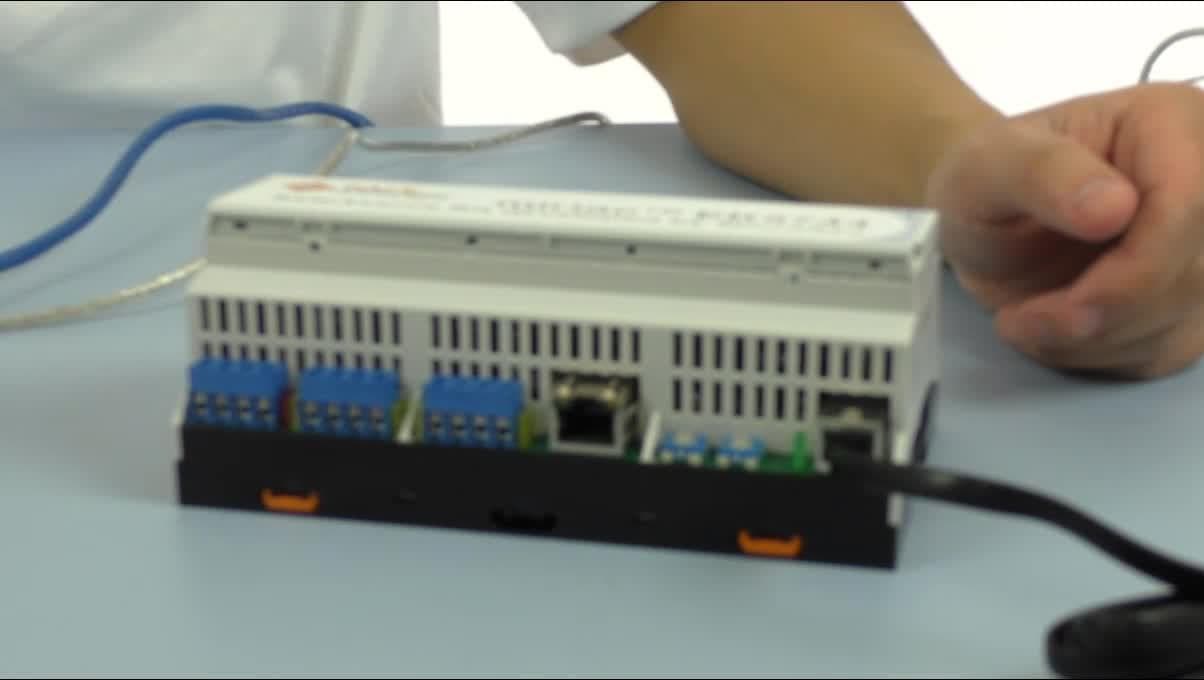

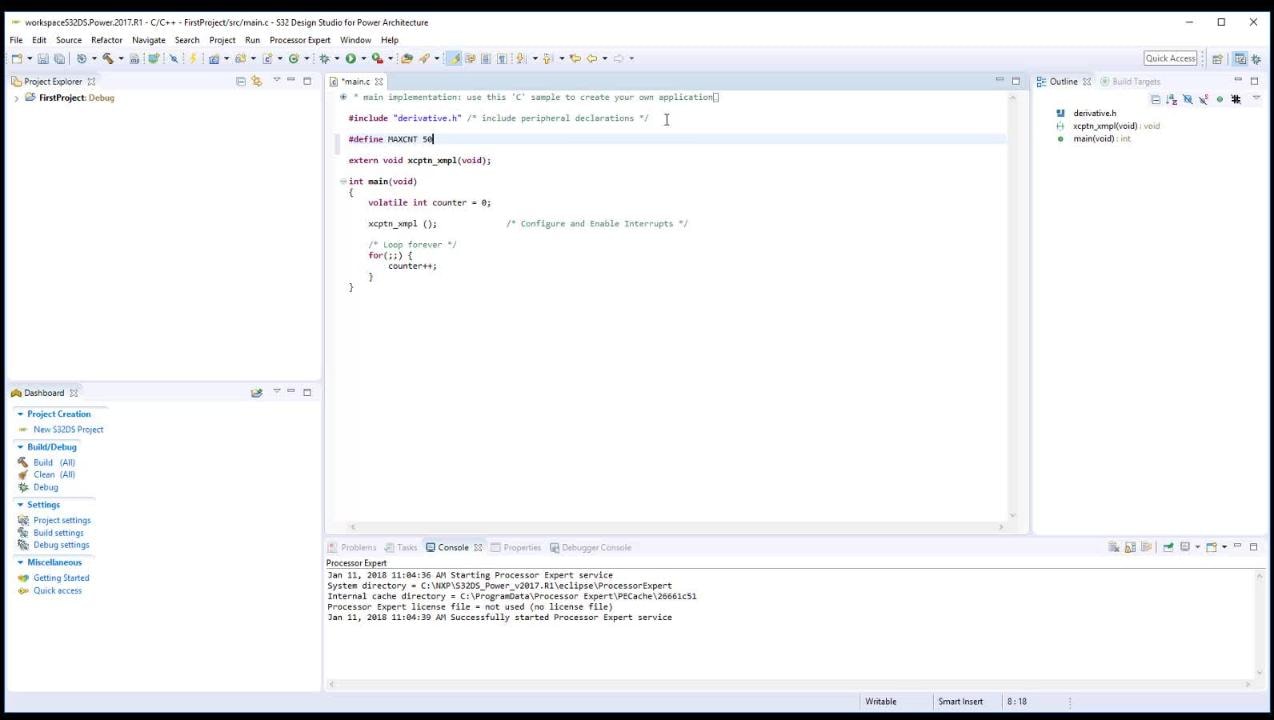

MicroSys miriac™ EK5744 Funcional Safety Evaluation Kit
The miriac™ EK5744 is a Functional Safety Evaluation Kit for evaluation, design and prototyping applications requiring IEC 61508/62061 (SIL1 and SIL2), ISO 13849 categories 1 and 2 and performance levels analog-to-digital or similar standards.
Developed in partnership with MicroSys Electronics and based on the 32-bit Power Architecture® MPC5744P ultra-reliable microcontroller, the miriac™ EK5744 supports NXP's SafeAssure program and provides a solid based for custom functional safety developments. A concept study for use according to IEC 61508/62061 SIL3 and ISO 13849 category 2 for the MPC5744P MCU and MC33907 power SBC are in progress.
製品詳細
Features
Microcontroller
- 32-bit Power Architecture e200z4 based MPC574xP
System Basis Chip (SBC)
- MC33907 Safe System Basis Chip DC/DC up to 800 mA
General Features
- CANopen safety (CiA 304), Safety over EtherCAT, PROFIsafe safety and openSAFETY protocols on request
- I/O supports redundancy
- Customized firmware, PLC on request
- Advanced diagnostics on all I/Os and power inputs
- AUTOSAR®-compatible hardware
Interfaces
- Up to 4 safe analog inputs, upon desired SIL level
- Up to 4 safe digital inputs, upon desired SIL level
- Up to 4 safe digital outputs
- Ethernet
- Basic abstraction layer for bus interfaces
Support Level offerings
| Miriac EK5744 Functional Safety Evaluation Kit | |||||
| Kit features | Entry | Professional (SIL2) | Professional (SIL3) | Professional (AUTO) | |
|---|---|---|---|---|---|
| Purpose | For proven redundancy concept addressing IEC 61508 safety standards | For reaching safety integrity levels (ISO, IEC 61508 SIL2 and ISO 13849 PLd) | For reaching higher SI-levels (IEC 61508 SIL3) | Reaching higher ISO 26262 safety level (ASIL D) | |
| EVB incl. USB cable | |||||
| Design files | |||||
| Full set of design files | |||||
| Full schematics | |||||
| Binary safety library | |||||
| E.G. Safety project | |||||
| Full safety SW | |||||
| User manual | |||||
| Safety manual | |||||
| Quick start guide | |||||
| Safety process doc. | |||||
| Compiler and Debugger | |||||
| SIL2/PLcl | |||||
| SIL3/PL | |||||
| ASILD | |||||
| Price (USD) | $1.8K | $75K | Upon Request | Upon Request | |
| Request | Contact Miriac | ||||
