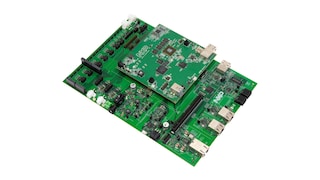

MPC-LS Vehicle Network Processing Evaluation Board

MPC-LS-VNP-EVB
アクティブ

画像にカーソルを合わせると拡大表示されます。

The MPC-LS-VNP-EVB is an evaluation and development board engineered for Vehicle Network Processing applications, ideal to develop advanced gateways for offering new vehicle services, and edge data analytics.

In addition to substantial compute performance, the MPC-LS VNP EVB offers a combination of automotive and enterprise networking technology with a wealth of interfaces (CAN/LIN/FlexRay/Ethernet) for vehicle networks.

Including peripheral devices with PCI Express and USB interfaces that can be leveraged by OEMs, Tier 1s, and software ecosystem partners to shorten time to market.

The MPC-LS VNP Evaluation Board is only available for purchase for approved customers. Each order will be reviewed prior to being fulfilled. We apologize for any experienced inconvenience as a result of this approval process.

ブロック図

MPC-LS Vehicle Network Processing Block Diagram

MPC-LS Vehicle Network Processing Block Diagram
図を取得する PDF

対応製品

プロセッサ＆マイクロコントローラ

Layerscapeプロセッサ

  • LS1043A: Layerscape® 1043A and 1023A Processors

超高信頼性MPC57xx MCU

  • MPC574xB-C-G: Ultra-Reliable MPC574xB/C/G MCUs for Automotive and Industrial Control and Gateway

Features

Microcontroller

  • 32-bit Power Architecture e200z4 based MPC574xB-C-G
  • 64-bit Arm® Cortex®-A53 based QorIQ® LS1043A

  • Module approach for future processor upgrades
  • Platform board for easy access to vehicle network interfaces
  • Enablement software support and demos for bare metal, AUTOSAR®, and Linux

Interfaces

  • Up to 10 Gigabit Ethernet support with packet forwarding engine
  • Multiple 100/1000 Mbit/s Ethernet ports for networking
  • 12 x CAN FD
  • 7 x LIN
  • 2 x FlexRay™
  • PCI Express Gen2 and USB 3.0

購入オプション

MPC-LS-VNP-EVB-Image

クリックして展開

  • MPC-LS-VNP-EVB
    アクティブ

  • MPC-LS Vehicle Network Processing Evaluation Board.

  • $2150.00 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
MPC-LS-VNP-MOD-Image

クリックして展開

  • MPC-LS-VNP-MOD
    アクティブ

  • MPC-LS Processor Module for Vehicle Network Processing.

  • $1000.00 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
