PF7100 Embedded Software Driver
This embedded software solution provides high-level support for PF7100 family of PMICs.
The driver provides an abstraction of the device, enabling easy configuration of its functional blocks such as watchdog, regulators, clocks, safety features etc. The driver also provides complete register map of the device.
Implementation of the PF7100 software driver is generic, making the driver suitable for any microcontroller fitted with I2C module.
Example project for KL25Z microcontroller is a part of the package.
ソフトウェア詳細
Features
PF7100 SW Driver
- I2C communication abstraction.
- Watchdog settings and refresh.
- Regulators and safety features configuration.
- Complete register map.

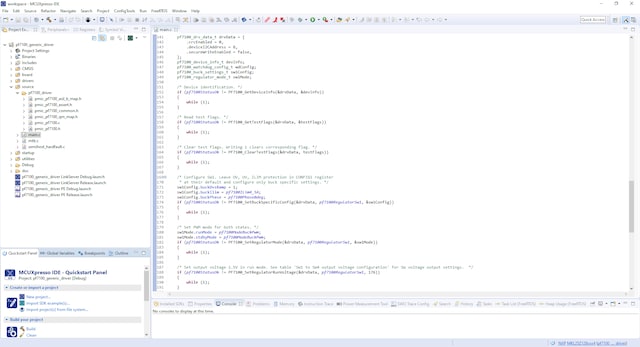

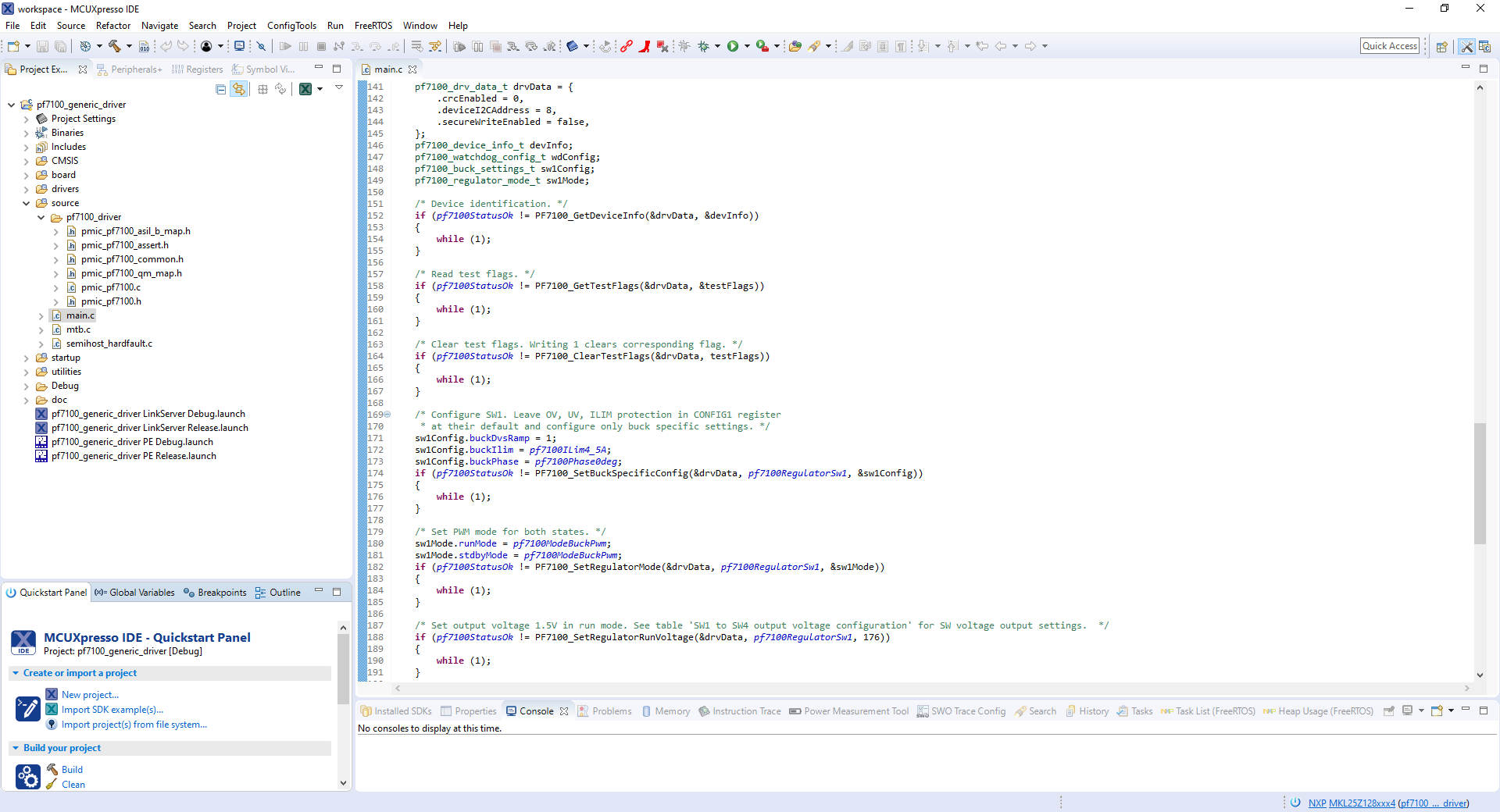

MCUXpresso example project
- Example project for PF7100 and KL25Z evaluation board.
対応製品
- PF7100: 7-Channel Power Management Integrated Circuit for High Performance Applications, Fit for ASIL B Safety Level
システム要件
Software
- MCUXpresso IDE (version 10.2.1 or newer)
- FRDM-KL25Z SDK (version 2.2.0) (can be downloaded via MCUXpresso SDK builder)
Hardware
- FRDM-KL25Z development kit platform

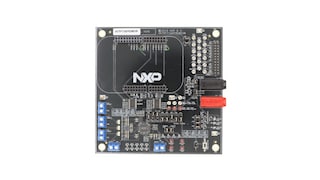

- KITPF7100FRDMEVM board
ダウンロード
クイック・リファレンス ソフトウェア・タイプ.
1 ダウンロード
-
ソフトウェア開発リソース
PF7100 Generic SW Driver with Examples
