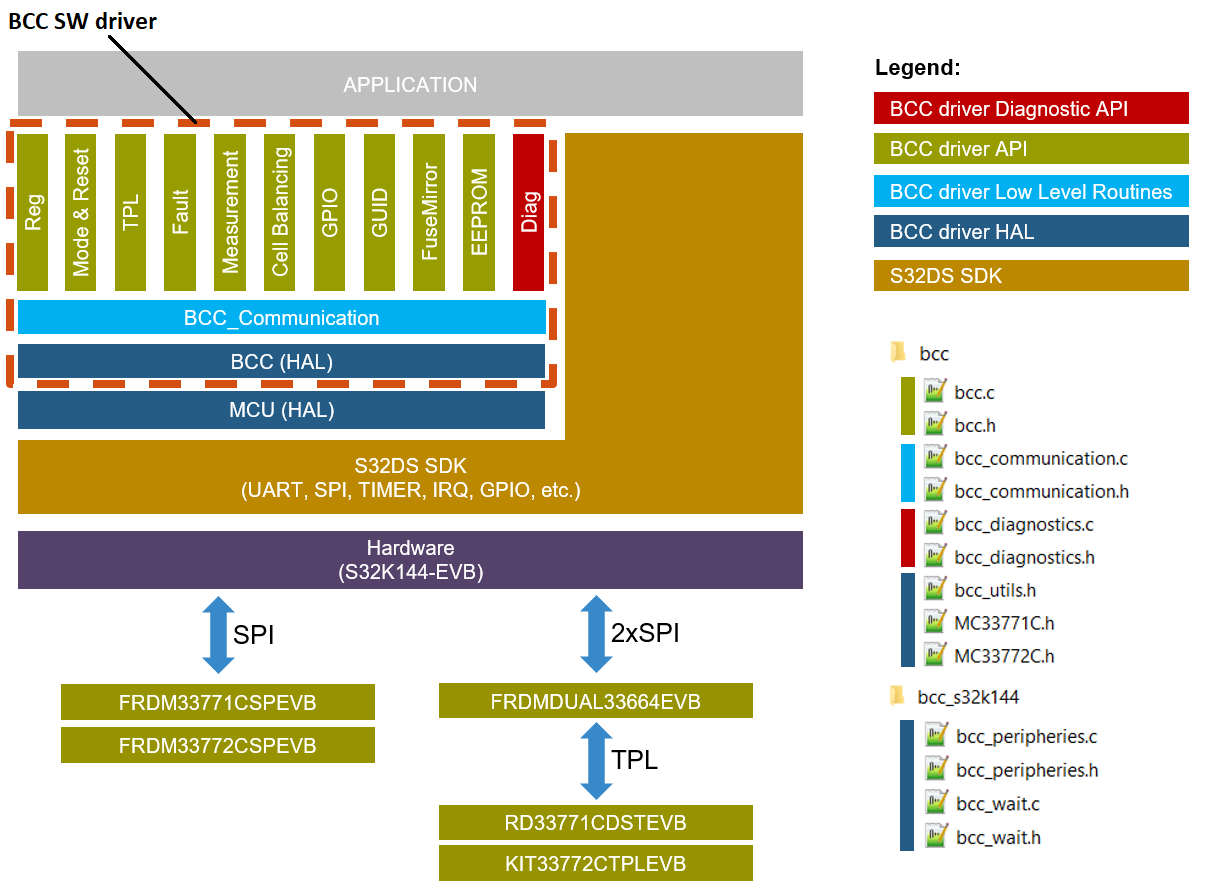

Embedded SW: Battery Cell Controller Software Driver for MC33771C and MC33772C
This embedded software solution provides high-level support for MC33771C and MC33772C .
Included embedded driver provides access to all features of battery cell controllers such as writing/reading registers, configuring daisy chains, handling faults, doing diagnostics and measuring voltage, current and temperature.
Implementation of the BCC software driver is generic, allowing to use any suitable 32-bit microcontroller with SPI modules and enough number of GPIO pins. Example projects for S32K144 microcontroller are part of the package.
There are two packages with BCC SW driver available: full version and lite version. Lite version is available directly from nxp.com web pages (without NDA required) but does not provide an implementation of diagnostic functions.
ソフトウェア詳細
Features
Battery Cell Controller SW Driver
- Serial peripheral interface (SPI) and twisted-pair line (TPL) communication modes
- Measuring voltage, current and temperature
- Handling faults
- Implementing diagnostics
- Cell balancing
- Accessing fuse mirror and (optional) EEPROM
S32 Design Studio for Arm® Example Projects
- Measurement and diagnostics example
- FreeMASTER example
- Dual TPL chain example
- Loop-back TPL example
ダウンロード
クイック・リファレンス ソフトウェア・タイプ.
1 ダウンロード
-
使用例とクイック・スタート・ソフトウェア
BCC SW Driver Package for MC33771C and MC33772C(Lite Version)
