Kinetis K10-50 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

K10_50 アクティブ

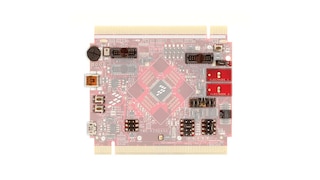

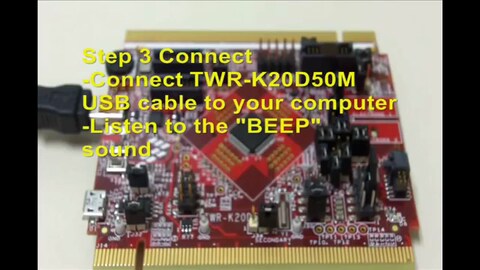

TWR-K20D50M上でのプリロード済みプログラムの実行方法 - ハウツー

動画の上をクリックすると再生されます。

The Kinetis K10 50 MHz family of baseline, low-power MCUs offers high feature integration in a small form factor, making them ideal for space-and cost-constrained applications.

  • Provides a scalable entry point into the mid-performance Kinetis portfolio
  • Includes a rich suite of analog, communication, timing and control peripherals to accommodate a wide range of requirements
  • Enables performance efficient designs
  • Shares the comprehensive enablement and scalability of the Kinetis portfolio

ブロック図

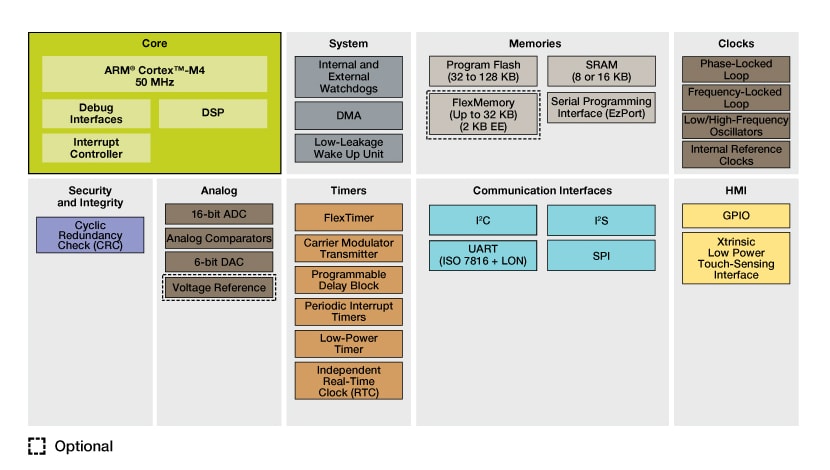

Kinetis K10 Entry Level Baseline MCUs Block Diagram

Kinetis K10 Entry Level Baseline MCUs Block Diagram
図を取得する PDF

Features

Ultra-Low-Power

  • 11 low-power modes with power and clock gating for optimal peripheral activity and recovery times. Stop currents of <190 nA (VLLS0), run currents of <270 uA/MHz, 4 µs wake-up from Stop mode
  • Full memory and analog operation down to 1.71 volts for extended battery life
  • Low-leakage wake-up unit with up to eight internal modules and 16 pins as wake-up sources in low-leakage stop (LLS)/very low-leakage stop (VLLS) modes
  • Low-power timer for continual system operation in reduced power state

Flash, SRAM and FlexMemory

  • 32 KB-128 KB flash. Fast access, high reliability with 4-level security protection
  • Up to 16 KB of SRAM
  • FlexMemory: Up to 2 KB of user-segmentable byte write/erase EEPROM for data tables/system data. EEPROM with over 10M cycles and flash with 70 µsec write time (brownouts without data loss or corruption). No user or system intervention to complete programming and erase functions and full operation down to 1.71 volts. In addition, FlexNVM from 32 KB for extra program code, data or EEPROM backup.

Mixed-Signal Capability

  • High-speed 16-bit ADC with configurable resolution. Single or differential output mode operation for improved noise rejection. 500 ns conversion time achievable with programmable delay block triggering
  • Up to two high-speed comparators providing fast and accurate motor over-current protection by driving PWMs to a safe state
  • Optional analog voltage reference provides an accurate reference to analog blocks and replaces external voltage references to reduce system cost

Performance

  • 50 MHz Arm® Cortex®-M4 core with DSP instruction set, single cycle MAC and single instruction multiple data (SIMD) extensions.
  • Up to 4-channel DMA for peripheral and memory servicing with reduced CPU loading and faster system throughput
  • Cross bar switch enables concurrent multi-leaders bus accesses, increasing bus bandwidth
  • Independent flash banks allow concurrent code execution and firmware updating with no performance degradation or complex coding routines

Timing and Control

  • Up to two FlexTimers with a total of 10 channels. Hardware dead-time insertion and quadrature decoding for motor control
  • Carrier modulator timer for infrared waveform generation in remote control applications
  • Four-channel 32-bit periodic interrupt timer provides time base for RTOS task scheduler or trigger source for ADC conversion and programmable delay block

Human-Machine Interface

  • Hardware touch-sensing interface with up to 16 inputs. Operates in low power modes (minimum current adder when enabled). Hardware implementation avoids software polling method. High sensitivity level allows use of overlay surfaces upto 5 mm thick

Connectivity and Communications

  • Up to three UARTs. One UART supports RS232 with flow control, RS485, ISO7816 and IrDA. All other two UARTS support RS232 with flow control and RS485
  • One inter-IC Sound (I²S) serial interface for audio system interfacing
  • One DSPI and one I²C

Reliability, Safety and Security

  • Memory protection unit provides memory protection for all leaders on the cross bar switch, increasing software reliability
  • Cyclic redundancy check engine validates memory contents and communication data, increasing system reliability
  • Independent-clocked COP guards against clock skew or code runaway for fail-safe applications such as the IEC 60730 safety standard for household appliances
  • External watchdog monitor drives output pin to safe state external components if watchdog event occurs
  • This product is included in NXP’s product longevity program, with assured supply for a minimum of 10 years after launch

もっと見る

購入/パラメータ

1-10 の 30 結果

マッチしていない 0 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

コア・タイプ

動作周波数[最大](MHz)

SRAM (kB)

Flash (kB)

EEPROM (KB)

UART

SPI

I2C

汎用I/O

ADC (16 bit)

16-bit PWM

セキュリティ

電源電圧 [最小] (V)

電源電圧 [最大] (V)

パッケージタイプ

パッケージ端子数

Package Dimensions (LxWxZ (mm))

Package Pitch (mm)

Ambient Operating Temperature (Min to Max) (℃)

MK10DN128VFM5
データ・シート

アクティブ

Arm Cortex-M4

50

16

128

—

3

1

1

24

1

10

CRC

1.71

3.6

HVQFN32

32

5 x 5 x 0.9

0.5

-40 to 105

MK10DN128VFT5
データ・シート

アクティブ

Arm Cortex-M4

50

16

128

—

3

1

1

33

1

10

CRC

1.71

3.6

HVQFN48

48

7 x 7 x 1

0.5

-40 to 105

MK10DN128VLF5
データ・シート

アクティブ

Arm Cortex-M4

50

16

128

—

3

1

1

33

1

10

CRC

1.71

3.6

LQFP48

48

7 x 7 x 1.4

0.5

-40 to 105

MK10DN128VLH5
データ・シート

アクティブ

Arm Cortex-M4

50

16

128

—

3

1

1

44

1

10

CRC

1.71

3.6

LQFP64

64

10 x 10 x 1.4

0.5

-40 to 105

MK10DN128VMP5
データ・シート

アクティブ

Arm Cortex-M4

50

16

128

—

3

1

1

44

1

10

CRC

1.71

3.6

LFBGA64

64

5 x 5 x 1.23

0.5

-40 to 105

MK10DN32VFM5
データ・シート

アクティブ

Arm Cortex-M4

50

8

32

—

3

1

1

24

1

10

CRC

1.71

3.6

HVQFN32

32

5 x 5 x 0.9

0.5

-40 to 105

MK10DN32VFT5
データ・シート

アクティブ

Arm Cortex-M4

50

8

32

—

3

1

1

33

1

10

CRC

1.71

3.6

HVQFN48

48

7 x 7 x 1

0.5

-40 to 105

MK10DN32VLF5
データ・シート

アクティブ

Arm Cortex-M4

50

8

32

—

3

1

1

33

1

10

CRC

1.71

3.6

LQFP48

48

7 x 7 x 1.4

0.5

-40 to 105

MK10DN32VLH5
データ・シート

アクティブ

Arm Cortex-M4

50

8

32

—

3

1

1

44

1

10

CRC

1.71

3.6

LQFP64

64

10 x 10 x 1.4

0.5

-40 to 105

MK10DN32VMP5
データ・シート

アクティブ

Arm Cortex-M4

50

8

32

—

3

1

1

44

1

10

CRC

1.71

3.6

LFBGA64

64

5 x 5 x 1.23

0.5

-40 to 105

N true 0 PSPK10_50ja 75 アプリケーション・ノート Application Note t789 47 アプリケーション・ノート・ソフトウェア Application Note Software t783 9 エラッタ Errata t522 3 カタログ Brochure t518 3 クイック・リファレンス・ガイド Quick Reference Guide t525 1 サポート情報 Supporting Information t531 1 セレクタ・ガイド Selector Guide t528 1 データ・シート Data Sheet t520 3 ファクト・シート Fact Sheet t523 2 リファレンス・マニュアル Reference Manual t877 3 リリース・ノート Release Note t933 1 製品概要 Product Brief t532 1 ja 3 1 9 English Kinetis K2x MCU Family - Fact Sheet 1394497079453740415678 PSP 222.2 KB None None documents None 1394497079453740415678 /docs/en/fact-sheet/KNTSK1XFMLYFS.pdf 222175 /docs/en/fact-sheet/KNTSK1XFMLYFS.pdf KNTSK1XFMLYFS N N 2016-10-31 Kinetis K1x MCU Family - Fact Sheet /docs/en/fact-sheet/KNTSK1XFMLYFS.pdf /docs/en/fact-sheet/KNTSK1XFMLYFS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 pdf N en Mar 10, 2014 Fact Sheet t523 ファクト・シート Fact Sheet Y N Kinetis K1x MCU Family - Fact Sheet 2 1 English Product Selector guide for high-performance Arm Cortex-M4 Kinetis L Series microcontrollers (MCU) 1409343585806685465101 PSP 2.7 MB None None documents None 1409343585806685465101 /docs/en/product-selector-guide/KINETISKMCUSELGD.pdf 2686803 /docs/en/product-selector-guide/KINETISKMCUSELGD.pdf KINETISKMCUSELGD N N 2017-03-27 Selector Guide: High-performance Kinetis K Series MCUs /docs/en/product-selector-guide/KINETISKMCUSELGD.pdf /docs/en/product-selector-guide/KINETISKMCUSELGD.pdf Selector Guide N Y 553557935274807777 2023-06-19 pdf N en May 2, 2018 Selector Guide t528 セレクタ・ガイド Selector Guide Y N Selector Guide: High-performance Kinetis K Series MCUs 3 3 Chinese 1289000062116715449797zh PSP 2.7 MB Registration without Disclaimer None documents Extended 1289000062116715449797 /secured/assets/documents/zh/quick-start-guide/KQRUG.pdf 2744723 /secured/assets/documents/zh/quick-start-guide/KQRUG.pdf KQRUG documents Y N 2016-10-31 KQRUG, Kinetis K Quick Reference User Guide /webapp/Download?colCode=KQRUG&docLang=zh /secured/assets/documents/zh/quick-start-guide/KQRUG.pdf https://www.nxp.com.cn/webapp/Download?colCode=KQRUG&docLang=zh Quick Reference Guide N Y 803735842453594974 2022-12-07 Y zh May 30, 2014 803735842453594974 Quick Reference Guide N Kinetis外设模块演示软件 3 English A collection of code examples, useful tips, and quick reference material created to help you speed the development of your applications. 1289000062116715449797 PSP 2.7 MB Registration without Disclaimer None documents Extended 1289000062116715449797 /secured/assets/documents/en/quick-reference-guide/KQRUG.pdf 2744723 /secured/assets/documents/en/quick-reference-guide/KQRUG.pdf KQRUG Y N 2016-10-31 KQRUG, Kinetis K Quick Reference User Guide /webapp/Download?colCode=KQRUG&docLang=en /secured/assets/documents/en/quick-reference-guide/KQRUG.pdf Quick Reference Guide N Y 803735842453594974 2022-12-07 pdf Y en May 30, 2014 Quick Reference Guide t525 クイック・リファレンス・ガイド Quick Reference Guide Y N KQRUG, Kinetis K Quick Reference User Guide false ja ja データ・シート Data Sheet 3 4 MK10DN128VLH5,MK10DN128VMP5,MK10DN32VLH5,MK10DN32VMP5,MK10DN64VLH5,MK10DN64VMP5,MK10DX128VLH5,MK10DX128VMP5,MK10DX32VLH5,MK10DX32VMP5,MK10DX64VLH5,MK10DX64VMP5 5 English Kinetis K10 Data Sheet: 50MHz high-performance Arm<sup>®</sup> Cortex<sup>®</sup>-M4 microcontroller(MCU) with mixed-signal integration, up to 160KB Flash / 16KB SRAM (64 pin) 1329258561305711626735 PSP 1.0 MB None None documents None 1329258561305711626735 /docs/en/data-sheet/K10P64M50SF0.pdf 1006432 /docs/en/data-sheet/K10P64M50SF0.pdf K10P64M50SF0 documents N N 2016-10-31 Kinetis K10: 50MHz Cortex-M4 up to 128KB Flash (64 pin) /docs/en/data-sheet/K10P64M50SF0.pdf /docs/en/data-sheet/K10P64M50SF0.pdf Data Sheet N 980000996212993340 2023-10-27 pdf N en Oct 27, 2023 980000996212993340 Data Sheet Y N Kinetis K10: 50MHz Cortex-M4 up to 128KB Flash (64 pin) 5 MK10DN128VFM5,MK10DN32VFM5,MK10DN64VFM5,MK10DX128VFM5,MK10DX32VFM5,MK10DX64VFM5 4 English Kinetis K10 Data Sheet: 50MHz high-performance Arm<sup>®</sup> Cortex<sup>®</sup>-M4 microcontroller(MCU) with mixed-signal integration, up to 160KB Flash / 16KB SRAM (32 pin) 1329258554100724935644 PSP 2.1 MB None None documents None 1329258554100724935644 /docs/en/data-sheet/K10P32M50SF0.pdf 2068284 /docs/en/data-sheet/K10P32M50SF0.pdf K10P32M50SF0 documents N N 2016-10-31 Kinetis K10: 50MHz Cortex-M4 up to 128KB Flash (32 pin) /docs/en/data-sheet/K10P32M50SF0.pdf /docs/en/data-sheet/K10P32M50SF0.pdf Data Sheet N 980000996212993340 2022-12-07 pdf N en May 4, 2012 980000996212993340 Data Sheet Y N Kinetis K10: 50MHz Cortex-M4 up to 128KB Flash (32 pin) 6 MK10DN128VFT5,MK10DN128VLF5,MK10DN32VFT5,MK10DN32VLF5,MK10DN64VFT5,MK10DN64VLF5,MK10DX128VLF5,MK10DX32VFT5,MK10DX32VLF5,MK10DX64VFT5,MK10DX64VLF5 4 English Kinetis K10 Data Sheet: 50MHz high-performance Arm<sup>®</sup> Cortex<sup>®</sup>-M4 microcontroller(MCU) with mixed-signal integration, up to 160KB Flash / 16KB SRAM (48 pin) 1329258557717724339851 PSP 2.1 MB None None documents None 1329258557717724339851 /docs/en/data-sheet/K10P48M50SF0.pdf 2098282 /docs/en/data-sheet/K10P48M50SF0.pdf K10P48M50SF0 documents N N 2016-10-31 Kinetis K10: 50MHz Cortex-M4 up to 128KB Flash (48 pin) /docs/en/data-sheet/K10P48M50SF0.pdf /docs/en/data-sheet/K10P48M50SF0.pdf Data Sheet N 980000996212993340 2022-12-07 pdf N en May 4, 2012 980000996212993340 Data Sheet Y N Kinetis K10: 50MHz Cortex-M4 up to 128KB Flash (48 pin) リファレンス・マニュアル Reference Manual 3 7 MK10DN128VFT5,MK10DN128VLF5,MK10DN32VFT5,MK10DN32VLF5,MK10DN64VFT5,MK10DN64VLF5,MK10DX128VLF5,MK10DX32VFT5,MK10DX32VLF5,MK10DX64VFT5,MK10DX64VLF5 2 English Kinetis K10 Reference Manual: 50MHz high-performance Arm<sup>®</sup> Cortex<sup>®</sup>-M4 microcontroller(MCU), mixed-signal integration, up to 160KB Flash / 16KB SRAM (48 pin) 1329321607118707240354 PSP 13.5 MB Registration without Disclaimer None documents Extended 1329321607118707240354 /secured/assets/documents/en/reference-manual/K10P48M50SF0RM.pdf 13525435 /secured/assets/documents/en/reference-manual/K10P48M50SF0RM.pdf K10P48M50SF0RM documents Y N 2016-10-31 Kinetis K10: 50MHz Cortex-M4 up to 128KB Flash (48 pin) /webapp/Download?colCode=K10P48M50SF0RM&lang_cd=ja /secured/assets/documents/en/reference-manual/K10P48M50SF0RM.pdf Reference Manual N 500633505221135046 2023-06-18 pdf Y en Feb 15, 2012 500633505221135046 Reference Manual Y N Kinetis K10: 50MHz Cortex-M4 up to 128KB Flash (48 pin) 8 MK10DN128VFM5,MK10DN32VFM5,MK10DN64VFM5,MK10DX128VFM5,MK10DX32VFM5,MK10DX64VFM5 2 English Kinetis K10 Reference Manual: 50MHz high-performance Arm<sup>®</sup> Cortex<sup>®</sup>-M4 microcontroller(MCU), mixed-signal integration, up to 160KB Flash / 16KB SRAM (32 pin) 1329321037814723401452 PSP 13.3 MB Registration without Disclaimer None documents Extended 1329321037814723401452 /secured/assets/documents/en/reference-manual/K10P32M50SF0RM.pdf 13302277 /secured/assets/documents/en/reference-manual/K10P32M50SF0RM.pdf K10P32M50SF0RM documents Y N 2016-10-31 Kinetis K10: 50MHz Cortex-M4 up to 128KB Flash (32 pin) /webapp/Download?colCode=K10P32M50SF0RM&lang_cd=ja /secured/assets/documents/en/reference-manual/K10P32M50SF0RM.pdf Reference Manual N 500633505221135046 2023-06-18 pdf Y en Feb 14, 2012 500633505221135046 Reference Manual Y N Kinetis K10: 50MHz Cortex-M4 up to 128KB Flash (32 pin) 9 MK10DN128VLH5,MK10DN128VMP5,MK10DN32VLH5,MK10DN32VMP5,MK10DN64VLH5,MK10DN64VMP5,MK10DX128VLH5,MK10DX128VMP5,MK10DX32VLH5,MK10DX32VMP5,MK10DX64VLH5,MK10DX64VMP5 2 English Kinetis K10 Reference Manual: 50MHz high-performance Arm<sup>®</sup> Cortex<sup>®</sup>-M4 microcontroller(MCU), mixed-signal integration, up to 160KB Flash / 16KB SRAM (64 pin) 1329256590256693458166 PSP 13.6 MB Registration without Disclaimer None documents Extended 1329256590256693458166 /secured/assets/documents/en/reference-manual/K10P64M50SF0RM.pdf 13558864 /secured/assets/documents/en/reference-manual/K10P64M50SF0RM.pdf K10P64M50SF0RM documents Y N 2016-10-31 Kinetis K10: 50MHz Cortex-M4 up to 128KB Flash (64 pin) /webapp/Download?colCode=K10P64M50SF0RM&lang_cd=ja /secured/assets/documents/en/reference-manual/K10P64M50SF0RM.pdf Reference Manual N 500633505221135046 2023-06-18 pdf Y en Feb 14, 2012 500633505221135046 Reference Manual Y N Kinetis K10: 50MHz Cortex-M4 up to 128KB Flash (64 pin) アプリケーション・ノート Application Note 47 10 4 Chinese 1321891486848724496514zh PSP 642.7 KB None None documents None 1321891486848724496514 /docs/zh/application-note/AN4255.pdf 642673 /docs/zh/application-note/AN4255.pdf AN4255 documents N N 2016-10-31 FFT-Based Algorithm for Metering Applications - Application Note /docs/zh/application-note/AN4255.pdf /docs/zh/application-note/AN4255.pdf Application Note N 645036621402383989 2022-12-07 zh 645036621402383989 Application Note N 面向计量应用的基于FFT的算法 - 应用笔记 4 English This application note describes how to use Fast Fourier Transform (FFT) in metering applications, especially for power and energy computing in power meters 1321891486848724496514 PSP 642.7 KB None None documents None 1321891486848724496514 /docs/en/application-note/AN4255.pdf 642673 /docs/en/application-note/AN4255.pdf AN4255 documents N N 2016-10-31 FFT-Based Algorithm for Metering Applications - Application Note /docs/en/application-note/AN4255.pdf /docs/en/application-note/AN4255.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jul 26, 2015 645036621402383989 Application Note Y N FFT-Based Algorithm for Metering Applications - Application Note 11 0 English The application note introduces multiple features of the FlexTimer Module (FTM) and provides corresponding code for each feature, along with a waveform or a snapshot of the oscilloscope. While FTM is used in both the Kinetis and VFxxx families, this application note focuses on Kinetis only. 1435048432010714192779 PSP 1.6 MB None None documents None 1435048432010714192779 /docs/en/application-note/AN5142.pdf 1602831 /docs/en/application-note/AN5142.pdf AN5142 documents N N 2016-10-31 Features of the FlexTimer Module /docs/en/application-note/AN5142.pdf /docs/en/application-note/AN5142.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jun 22, 2015 645036621402383989 Application Note Y N Features of the FlexTimer Module 12 2 Chinese 1337608212782710408414zh PSP 1.9 MB None None documents None 1337608212782710408414 /docs/zh/application-note/AN4503.pdf 1913621 /docs/zh/application-note/AN4503.pdf AN4503 documents N N 2016-10-31 Power Management for Kinetis and ColdFire+ MCUs /docs/zh/application-note/AN4503.pdf /docs/zh/application-note/AN4503.pdf Application Note N 645036621402383989 2022-12-07 zh Apr 6, 2015 645036621402383989 Application Note Y N Kinetis和ColdFire+ MCU功耗管理 2 English This Application Note describes how to use low-power modes on Kinetis and ColdFire MCUs and optimize overall power budget for your application 1337608212782710408414 PSP 1.9 MB None None documents None 1337608212782710408414 /docs/en/application-note/AN4503.pdf 1913621 /docs/en/application-note/AN4503.pdf AN4503 documents N N 2016-10-31 Power Management for Kinetis and ColdFire+ MCUs /docs/en/application-note/AN4503.pdf /docs/en/application-note/AN4503.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Apr 6, 2015 645036621402383989 Application Note Y N Power Management for Kinetis and ColdFire+ MCUs 13 0 Chinese 1299508142617720482344zh PSP 948.8 KB None None documents None 1299508142617720482344 /docs/zh/application-note/AN4282.pdf 948797 /docs/zh/application-note/AN4282.pdf AN4282 documents N N 2016-10-31 Using Kinetis FlexMemory as enhanced EEPROM /docs/zh/application-note/AN4282.pdf /docs/zh/application-note/AN4282.pdf Application Note N 645036621402383989 2022-12-07 zh 645036621402383989 Application Note N 将Kinetis FlexMemory作为增强型EEPROM使用 2 English Guidelines to use Kinetis FlexMemory as enhanced EEPROM (EEE) to replace external EEPROMs: Advantages, configuration and endurance calculations of EEE 1299508142617720482344 PSP 948.8 KB None None documents None 1299508142617720482344 /docs/en/application-note/AN4282.pdf 948797 /docs/en/application-note/AN4282.pdf AN4282 documents N N 2016-10-31 Using Kinetis FlexMemory as enhanced EEPROM /docs/en/application-note/AN4282.pdf /docs/en/application-note/AN4282.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Mar 4, 2015 645036621402383989 Application Note Y N Using Kinetis FlexMemory as enhanced EEPROM 14 0 Chinese 1421692388724726069550zh PSP 1.8 MB None None documents None 1421692388724726069550 /docs/zh/application-note/AN5052.pdf 1829258 /docs/zh/application-note/AN5052.pdf AN5052 documents N N 2016-10-31 Low-Power Rotation Sensing with L-C Sensors and Kinetis L MCUs /docs/zh/application-note/AN5052.pdf /docs/zh/application-note/AN5052.pdf Application Note N 645036621402383989 2022-12-07 zh 645036621402383989 Application Note N 通过L-C传感器和Kinetis L MCU实现低功耗旋转感测 0 English This application note shows how to build a low-power encoder based on LC sensors. The goal is to build a very low power/low rotation speed design which may be used in the paddle wheel flow meters to measure paddle wheel rotation. 1421692388724726069550 PSP 1.8 MB None None documents None 1421692388724726069550 /docs/en/application-note/AN5052.pdf 1829258 /docs/en/application-note/AN5052.pdf AN5052 documents N N 2016-10-31 Low-Power Rotation Sensing with L-C Sensors and Kinetis L MCUs /docs/en/application-note/AN5052.pdf /docs/en/application-note/AN5052.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jan 19, 2015 645036621402383989 Application Note Y N Low-Power Rotation Sensing with L-C Sensors and Kinetis L MCUs 15 0 Chinese 1421693737480711922352zh PSP 768.6 KB None None documents None 1421693737480711922352 /docs/zh/application-note/AN5047.pdf 768620 /docs/zh/application-note/AN5047.pdf AN5047 documents N N 2016-10-31 Low-Power Rotation Sensing with Magneto Resistive Sensors and Kinetis L MCUs /docs/zh/application-note/AN5047.pdf /docs/zh/application-note/AN5047.pdf Application Note N 645036621402383989 2022-12-07 zh 645036621402383989 Application Note N 通过磁阻传感器和Kinetis L MCU实现低功耗旋转感测 0 English This application note shows how to build a low-power encoder based on the magneto resistive sensors. The goal is to build a very low-power/low-rotation speed design which may be used in the paddle wheel flow meters to measure paddle wheel rotation. 1421693737480711922352 PSP 768.6 KB None None documents None 1421693737480711922352 /docs/en/application-note/AN5047.pdf 768620 /docs/en/application-note/AN5047.pdf AN5047 documents N N 2016-10-31 Low-Power Rotation Sensing with Magneto Resistive Sensors and Kinetis L MCUs /docs/en/application-note/AN5047.pdf /docs/en/application-note/AN5047.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jan 19, 2015 645036621402383989 Application Note Y N Low-Power Rotation Sensing with Magneto Resistive Sensors and Kinetis L MCUs 16 0 Chinese 1400029954869730557645zh PSP 3.0 MB None None documents None 1400029954869730557645 /docs/zh/application-note/AN4935.pdf 2974188 /docs/zh/application-note/AN4935.pdf AN4935 documents N N 2016-10-31 PMSM Sensorless FOC for a Fan Using the Kinetis KV10 /docs/zh/application-note/AN4935.pdf /docs/zh/application-note/AN4935.pdf Application Note N 645036621402383989 2022-12-07 zh 645036621402383989 Application Note N 利用Kinetis KV10实现适用于风扇的PMSM无传感器磁场定向控制 (FOC) 1 English AN4935: This application note describes the algorithms to brake the moving rotor and detect the initial rotor position, the software modifications, the MCU peripherals used in the application, the hardware set-up, and the results of the measurement. 1400029954869730557645 PSP 3.0 MB None None documents None 1400029954869730557645 /docs/en/application-note/AN4935.pdf 2974188 /docs/en/application-note/AN4935.pdf AN4935 documents N N 2016-10-31 PMSM Sensorless FOC for a Fan Using the Kinetis KV10 /docs/en/application-note/AN4935.pdf /docs/en/application-note/AN4935.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Sep 24, 2014 645036621402383989 Application Note Y N PMSM Sensorless FOC for a Fan Using the Kinetis KV10 17 0.1 Chinese 1358831646016684997770zh PSP 2.7 MB None None documents None 1358831646016684997770 /docs/zh/application-note/AN4649.pdf 2670377 /docs/zh/application-note/AN4649.pdf AN4649 documents N N 2016-10-31 Power supply options for Tower development plaftorm /docs/zh/application-note/AN4649.pdf /docs/zh/application-note/AN4649.pdf Application Note N 645036621402383989 2022-12-07 zh Sep 23, 2014 645036621402383989 Application Note Y N 面向塔式开发平台的电源选项 0.1 English This Application Note describes the power supply options of the Tower<sup>&#174;</sup> System development platform. 1358831646016684997770 PSP 2.7 MB None None documents None 1358831646016684997770 /docs/en/application-note/AN4649.pdf 2670377 /docs/en/application-note/AN4649.pdf AN4649 documents N N 2016-10-31 Power supply options for Tower development plaftorm /docs/en/application-note/AN4649.pdf /docs/en/application-note/AN4649.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Sep 23, 2014 645036621402383989 Application Note Y N Power supply options for Tower development plaftorm 18 1 Chinese 1369082818800708116669zh PSP 319.8 KB None None documents None 1369082818800708116669 /docs/zh/application-note/AN4745.pdf 319794 /docs/zh/application-note/AN4745.pdf AN4745 documents N N 2013-05-20 Optimizing performance on Kinetis K-series MCUs /docs/zh/application-note/AN4745.pdf /docs/zh/application-note/AN4745.pdf Application Note N 645036621402383989 2022-12-07 zh 645036621402383989 Application Note N 优化Kinetis K系列MCU的性能 1 English This Application Note describes the key architectural and system module features that can be tuned to optimize system performances for Kinetis K MCUs 1369082818800708116669 PSP 319.8 KB None None documents None 1369082818800708116669 /docs/en/application-note/AN4745.pdf 319794 /docs/en/application-note/AN4745.pdf AN4745 documents N N 2013-05-20 Optimizing performance on Kinetis K-series MCUs /docs/en/application-note/AN4745.pdf /docs/en/application-note/AN4745.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jun 11, 2014 645036621402383989 Application Note N Optimizing performance on Kinetis K-series MCUs 19 1 Chinese 1387233612515728930344zh PSP 215.3 KB None None documents None 1387233612515728930344 /docs/zh/application-note/AN4835.pdf 215271 /docs/zh/application-note/AN4835.pdf AN4835 documents N N 2016-10-31 Production Flash programming best practices for Kinetis K and L MCUs /docs/zh/application-note/AN4835.pdf /docs/zh/application-note/AN4835.pdf Application Note N 645036621402383989 2022-12-07 zh 645036621402383989 Application Note N Kinetis K和L系列MCU的生产用Flash编程最佳做法 1 English This Application Note describes recommended steps for production flash programming on Kinetis K-series and L-series devices 1387233612515728930344 PSP 215.3 KB None None documents None 1387233612515728930344 /docs/en/application-note/AN4835.pdf 215271 /docs/en/application-note/AN4835.pdf AN4835 documents N N 2016-10-31 Production Flash programming best practices for Kinetis K and L MCUs /docs/en/application-note/AN4835.pdf /docs/en/application-note/AN4835.pdf Application Note N 645036621402383989 2022-12-07 pdf N en May 2, 2014 645036621402383989 Application Note Y N Production Flash programming best practices for Kinetis K and L MCUs 20 1 Chinese 1324360456649707977773zh PSP 862.1 KB None None documents None 1324360456649707977773 /docs/zh/application-note/AN4373.pdf 862139 /docs/zh/application-note/AN4373.pdf AN4373 documents N N 2016-10-31 Cookbook for SAR ADC measurements /docs/zh/application-note/AN4373.pdf /docs/zh/application-note/AN4373.pdf Application Note N 645036621402383989 2022-12-07 zh 645036621402383989 Application Note N SAR ADC测量操作手册 1 English This Application Note provides guidelines on how to design external RC components and achieve optimal performance of SAR ADC integrated in Kinetis MCUs 1324360456649707977773 PSP 862.1 KB None None documents None 1324360456649707977773 /docs/en/application-note/AN4373.pdf 862139 /docs/en/application-note/AN4373.pdf AN4373 documents N N 2016-10-31 Cookbook for SAR ADC measurements /docs/en/application-note/AN4373.pdf /docs/en/application-note/AN4373.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Apr 17, 2014 645036621402383989 Application Note Y N Cookbook for SAR ADC measurements 21 0 English This Application Note describes the set-up of the Programmable Delay Block, routing of signal onto a GPIO pin and sequence error handling on Kinetis MCU 1387400204339744551899 PSP 478.1 KB None None documents None 1387400204339744551899 /docs/en/application-note/AN4822.pdf 478055 /docs/en/application-note/AN4822.pdf AN4822 documents N N 2013-12-18 Tips using PDB in motor control applications on Kinetis /docs/en/application-note/AN4822.pdf /docs/en/application-note/AN4822.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Dec 18, 2013 645036621402383989 Application Note N Tips using PDB in motor control applications on Kinetis 22 0 English This Application Note describes one way to perform the non-blocking communication on the I2C bus and provides c-code example for an I2C controller 1382425896639685691413 PSP 671.4 KB None None documents None 1382425896639685691413 /docs/en/application-note/AN4803.pdf 671393 /docs/en/application-note/AN4803.pdf AN4803 documents N N 2016-10-31 I2C non-blocking communication /docs/en/application-note/AN4803.pdf /docs/en/application-note/AN4803.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Oct 21, 2013 645036621402383989 Application Note Y N I2C non-blocking communication 23 13 Chinese Q1032360305278zh PSP 1.8 MB None None documents None Q1032360305278 /docs/zh/application-note/AN2295.pdf 1772501 /docs/zh/application-note/AN2295.pdf AN2295 documents N N 2016-10-31 AN2295: Developer's Serial Bootloader – Application Note /docs/zh/application-note/AN2295.pdf /docs/zh/application-note/AN2295.pdf Application Note N 645036621402383989 2022-12-07 zh 645036621402383989 Application Note N 开发人员的串行引导加载程序 13 English Describing microcontrollers' alternative reprogramming tools for embedded software developers to update existing firmware on most microcontrollers in-circuit. Q1032360305278 PSP 1.8 MB None None documents None Q1032360305278 /docs/en/application-note/AN2295.pdf 1772501 /docs/en/application-note/AN2295.pdf AN2295 documents N N 2016-10-31 AN2295: Developer's Serial Bootloader – Application Note /docs/en/application-note/AN2295.pdf /docs/en/application-note/AN2295.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Oct 8, 2013 645036621402383989 Application Note Y N AN2295: Developer's Serial Bootloader – Application Note 24 0 English This Application Note describes how to use the water tolerance feature in the Touch-Sensing Software (TSS) library 1378870841271716695092 PSP 387.0 KB None None documents None 1378870841271716695092 /docs/en/application-note/AN4781.pdf 386968 /docs/en/application-note/AN4781.pdf AN4781 documents N N 2016-10-31 Deep-dive: Water Tolerance Feature in Touch-Sensing Software Library /docs/en/application-note/AN4781.pdf /docs/en/application-note/AN4781.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Sep 10, 2013 645036621402383989 Application Note Y N Deep-dive: Water Tolerance Feature in Touch-Sensing Software Library 25 0 English AN4800SW.zip /secured/assets/documents/en/application-note-software/AN4800SW.zip /webapp/Download?colCode=AN4800SW&docLang=en This Application Note introduces and provides guidelines on how to use the I2S (Integrated Interchip SoundBus) module on Kinetis microcontrollers (MCUs) 1378101015982727538513 PSP 265.8 KB None None documents None 1378101015982727538513 /docs/en/application-note/AN4800.pdf 265839 /docs/en/application-note/AN4800.pdf AN4800 documents N N 2013-09-01 An I2S application on Kinetis /docs/en/application-note/AN4800.pdf /docs/en/application-note/AN4800.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Sep 1, 2013 645036621402383989 Application Note N An I2S application on Kinetis 26 0 English This Application Note describes the implementation of the Serial Peripheral Interface (SPI) module as follower on MQX RTOS 3.8 1377833879983706615826 PSP 245.7 KB None None documents None 1377833879983706615826 /docs/en/application-note/AN4791.pdf 245725 /docs/en/application-note/AN4791.pdf AN4791 documents N N 2016-10-31 Using DSPI as Follower on MQX RTOS (v3.8) /docs/en/application-note/AN4791.pdf /docs/en/application-note/AN4791.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Aug 29, 2013 645036621402383989 Application Note Y N Using DSPI as Follower on MQX RTOS (v3.8) 27 0 English This Application Note discusses the process and techniques for integrating a single Processor Expert<sup>&#174;</sup> driver into a baremetal project 1376543968933733627082 PSP 2.2 MB None None documents None 1376543968933733627082 /docs/en/application-note/AN4769.pdf 2160294 /docs/en/application-note/AN4769.pdf AN4769 documents N N 2016-10-31 Integrating a Processor Expert driver (LDD) into a non-PEx project /docs/en/application-note/AN4769.pdf /docs/en/application-note/AN4769.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Aug 14, 2013 645036621402383989 Application Note N Integrating a Processor Expert driver (LDD) into a non-PEx project 28 0 English Explaining how to add the FreeMASTER serial driver software to the embedded application and configure it. The FreeMASTER serial driver is a piece of code that enables an embedded application to communicate with the FreeMASTER PC application. 1370013855832696188368 PSP 2.2 MB Registration without Disclaimer None documents Extended 1370013855832696188368 /secured/assets/documents/en/application-note/AN4752.pdf 2220944 /secured/assets/documents/en/application-note/AN4752.pdf AN4752 documents Y N 2016-10-31 AN4752: FreeMASTER Usage, Serial Driver Implementation – Application Note /webapp/Download?colCode=AN4752&lang_cd=ja /secured/assets/documents/en/application-note/AN4752.pdf Application Note N 645036621402383989 2024-07-15 pdf Y en May 31, 2013 645036621402383989 Application Note Y N AN4752: FreeMASTER Usage, Serial Driver Implementation – Application Note 29 0 English AN4627SW.zip /docs/en/application-note-software/AN4627SW.zip /docs/en/application-note-software/AN4627SW.zip This Application Note explains how to connect a Kinetis microcontroller (MCU) to CMOS Sensor through GPIO to receive image data in memory 1369937931578708068844 PSP 457.0 KB None None documents None 1369937931578708068844 /docs/en/application-note/AN4627.pdf 456996 /docs/en/application-note/AN4627.pdf AN4627 documents N N 2013-05-30 Connecting Kinetis MCU with CMOS sensor interface through GPIO /docs/en/application-note/AN4627.pdf /docs/en/application-note/AN4627.pdf Application Note N 645036621402383989 2022-12-07 pdf N en May 30, 2013 645036621402383989 Application Note N Connecting Kinetis MCU with CMOS sensor interface through GPIO 30 0 English Presenting the use of the Rational ClearCase version control system in CodeWarrior 10.3. It lists the files needed to maintain the project and describes how to install, set up, use, and uninstall the ClearCase plugin in CodeWarrior 10.3. The ClearCase plugin enables you to check files in and out directly from within CodeWarrior, making the work more effective. 1369937932059742568603 PSP 477.3 KB None None documents None 1369937932059742568603 /docs/en/application-note/AN4753.pdf 477314 /docs/en/application-note/AN4753.pdf AN4753 documents N N 2016-10-31 AN4753: Rational ClearCase Use in CodeWarrior 10.3 – Application Note /docs/en/application-note/AN4753.pdf /docs/en/application-note/AN4753.pdf Application Note N 645036621402383989 2024-07-15 pdf N en May 30, 2013 645036621402383989 Application Note Y N AN4753: Rational ClearCase Use in CodeWarrior 10.3 – Application Note 31 0 English This Application Note describes the measurement of electrical parameters needed for vector control (FOC) of a permanent magnet synchronous motor (PMSM) 1361507943689697586368 PSP 2.4 MB Registration without Disclaimer None documents Extended 1361507943689697586368 /secured/assets/documents/en/application-note/AN4680.pdf 2359146 /secured/assets/documents/en/application-note/AN4680.pdf AN4680 documents Y N 2016-10-31 PMSM electrical parameters measurement /webapp/Download?colCode=AN4680&lang_cd=ja /secured/assets/documents/en/application-note/AN4680.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Apr 23, 2013 645036621402383989 Application Note Y N PMSM electrical parameters measurement 32 0 English This Application Note discusses important considerations and guidelines for implementing in-software flash programming on Kinetis and ColdFire+ MCUs 1366267658721722833617 PSP 260.0 KB None None documents None 1366267658721722833617 /docs/en/application-note/AN4695.pdf 260008 /docs/en/application-note/AN4695.pdf AN4695 documents N N 2016-10-31 Implementing in-software flash programming on Kinetis MCUs /docs/en/application-note/AN4695.pdf /docs/en/application-note/AN4695.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Apr 17, 2013 645036621402383989 Application Note N Implementing in-software flash programming on Kinetis MCUs 33 0 Chinese 1357617564063698160940zh PSP 526.4 KB None None documents None 1357617564063698160940 /docs/zh/application-note/AN4652.pdf 526357 /docs/zh/application-note/AN4652.pdf AN4652 documents N N 2016-10-31 I2C driver based on interrupt and blocking mechanism for MQX /docs/zh/application-note/AN4652.pdf /docs/zh/application-note/AN4652.pdf Application Note N 645036621402383989 2022-12-07 zh 645036621402383989 Application Note N 基于中断和阻塞机制的MQX I2C驱动程序 0 English This Application Note implements an I2C driver based on interrupt and blocking mechanism for MQX RTOS 1357617564063698160940 PSP 526.4 KB None None documents None 1357617564063698160940 /docs/en/application-note/AN4652.pdf 526357 /docs/en/application-note/AN4652.pdf AN4652 documents N N 2016-10-31 I2C driver based on interrupt and blocking mechanism for MQX /docs/en/application-note/AN4652.pdf /docs/en/application-note/AN4652.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Mar 20, 2013 645036621402383989 Application Note N I2C driver based on interrupt and blocking mechanism for MQX 34 0 English AN4626SW.zip /docs/en/application-note-software/AN4626SW.zip /docs/en/application-note-software/AN4626SW.zip This Application Note describes how to create a new Board Support Package (BSP) for MQX (RTOS) in KEIL for porting purposes 1351759369680726335859 PSP 1.6 MB None None documents None 1351759369680726335859 /docs/en/application-note/AN4626.pdf 1595410 /docs/en/application-note/AN4626.pdf AN4626 documents N N 2012-11-01 MQX Board Support Package (BSP) - Porting Guide on KEIL /docs/en/application-note/AN4626.pdf /docs/en/application-note/AN4626.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Oct 31, 2012 645036621402383989 Application Note Y N MQX Board Support Package (BSP) - Porting Guide on KEIL 35 0 English This Application Note describes how to tune the BLDC Sensorless motor control application reference design software. 1350026938462720409991 PSP 1.4 MB None None documents None 1350026938462720409991 /docs/en/application-note/AN4597.pdf 1396833 /docs/en/application-note/AN4597.pdf AN4597 documents N N 2016-10-31 BLDC Sensorless Algorithm Tuning /docs/en/application-note/AN4597.pdf /docs/en/application-note/AN4597.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Oct 11, 2012 645036621402383989 Application Note Y N BLDC Sensorless Algorithm Tuning 36 0 Chinese 1326692510014709164899zh PSP 866.8 KB Registration without Disclaimer None documents Extended 1326692510014709164899 /secured/assets/documents/zh/application-note/AN4419.pdf 866801 /secured/assets/documents/zh/application-note/AN4419.pdf AN4419 documents Y N 2016-10-31 Using Kinetis DMA and GPIO to emulate timer functionality /secured/assets/documents/zh/application-note/AN4419.pdf https://www.nxp.com.cn/webapp/Download?colCode=AN4419&docLang=zh Application Note N 645036621402383989 2022-12-07 zh May 10, 2022 645036621402383989 Application Note Y N 使用Kinetis DMA和通用IO仿真定时器功能 0 English AN4419SW.zip /secured/assets/documents/en/application-note-software/AN4419SW.zip /webapp/Download?colCode=AN4419SW&docLang=en This Application Note explains how to generate a PWM or clock by using the PIT, DMA and GPIO on Kinetis MCUs 1326692510014709164899 PSP 866.8 KB Registration without Disclaimer None documents Extended 1326692510014709164899 /secured/assets/documents/en/application-note/AN4419.pdf 866801 /secured/assets/documents/en/application-note/AN4419.pdf AN4419 documents Y N 2016-10-31 Using Kinetis DMA and GPIO to emulate timer functionality /webapp/Download?colCode=AN4419&lang_cd=ja /secured/assets/documents/en/application-note/AN4419.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Sep 27, 2012 645036621402383989 Application Note Y N Using Kinetis DMA and GPIO to emulate timer functionality 37 0 Chinese 1348090724428736916112zh PSP 234.0 KB None None documents None 1348090724428736916112 /docs/zh/application-note/AN4590.pdf 233981 /docs/zh/application-note/AN4590.pdf AN4590 documents N N 2012-09-19 Using DMA to emulate ADC flexible scan mode on Kinetis K /docs/zh/application-note/AN4590.pdf /docs/zh/application-note/AN4590.pdf Application Note N 645036621402383989 2022-12-07 zh 645036621402383989 Application Note N 在Kinetis K系列上使用DMA模拟ADC灵活扫描模式 0 English AN4590SW.zip /docs/en/application-note-software/AN4590SW.zip /docs/en/application-note-software/AN4590SW.zip This Application Note describes how to combine the ADC and DMA into a flexible periphery supplying a resultant data stream into SRAM from any ADC input 1348090724428736916112 PSP 234.0 KB None None documents None 1348090724428736916112 /docs/en/application-note/AN4590.pdf 233981 /docs/en/application-note/AN4590.pdf AN4590 documents N N 2012-09-19 Using DMA to emulate ADC flexible scan mode on Kinetis K /docs/en/application-note/AN4590.pdf /docs/en/application-note/AN4590.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Sep 19, 2012 645036621402383989 Application Note N Using DMA to emulate ADC flexible scan mode on Kinetis K 38 0 English This Application Note focuses on the introduction and description of the Embedded Software and Motor Control Libraries 1349298868720722973654 PSP 246.8 KB Registration without Disclaimer None documents Extended 1349298868720722973654 /secured/assets/documents/en/application-note/AN4611.pdf 246845 /secured/assets/documents/en/application-note/AN4611.pdf AN4611 documents Y N 2016-10-31 Freescale Embedded Software and Motor Control libraries /webapp/Download?colCode=AN4611&lang_cd=ja /secured/assets/documents/en/application-note/AN4611.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Sep 14, 2012 645036621402383989 Application Note Y N Freescale Embedded Software and Motor Control libraries 39 0 Chinese 1347269479506723415174zh PSP 459.4 KB None None documents None 1347269479506723415174 /docs/zh/application-note/AN4568.pdf 459439 /docs/zh/application-note/AN4568.pdf AN4568 documents N N 2012-09-10 Understanding the 16-bit ADC PGA in Kinetis K Series /docs/zh/application-note/AN4568.pdf /docs/zh/application-note/AN4568.pdf Application Note N 645036621402383989 2022-12-07 zh 645036621402383989 Application Note N 关于Kinetis K系列16位ADC PGA的分析 0 English This Application Note describes technical observations and transfer functions of the 16-bit ADC and ADC-PGA measurement chains for Kinetis K MCUs 1347269479506723415174 PSP 459.4 KB None None documents None 1347269479506723415174 /docs/en/application-note/AN4568.pdf 459439 /docs/en/application-note/AN4568.pdf AN4568 documents N N 2012-09-10 Understanding the 16-bit ADC PGA in Kinetis K Series /docs/en/application-note/AN4568.pdf /docs/en/application-note/AN4568.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Sep 9, 2012 645036621402383989 Application Note N Understanding the 16-bit ADC PGA in Kinetis K Series 40 0 English This Application Note covers FlexTimer (FTM) synchronization, Legacy and Enhanced PWM Synchronization modes on Kinetis microcontrollers (MCU) 1343818496569727521419 PSP 1.3 MB None None documents None 1343818496569727521419 /docs/en/application-note/AN4560.pdf 1313075 /docs/en/application-note/AN4560.pdf AN4560 documents N N 2012-08-02 PWM synchronization using Kinetis Flextimers /docs/en/application-note/AN4560.pdf /docs/en/application-note/AN4560.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Aug 2, 2012 645036621402383989 Application Note N PWM synchronization using Kinetis Flextimers 41 0 Chinese 1339743454721723086813zh PSP 1.2 MB None None documents None 1339743454721723086813 /docs/zh/application-note/AN4533.pdf 1247035 /docs/zh/application-note/AN4533.pdf AN4533 documents N N 2016-10-31 Robust over-the-air firmware update using program flash memory swap /docs/zh/application-note/AN4533.pdf /docs/zh/application-note/AN4533.pdf Application Note N 645036621402383989 2023-06-06 zh 645036621402383989 Application Note N 利用Kinetis微控制器的闪存交换功能实现稳健的在线固件更新 0 English AN4533SW.zip /secured/assets/documents/en/application-note-software/AN4533SW.zip /webapp/Download?colCode=AN4533SW&docLang=en This Application Note describes how to take advantage of program flash memory swap feature and over-the-air communications on Kinetis microcontrollers(MCU) 1339743454721723086813 PSP 1.2 MB None None documents None 1339743454721723086813 /docs/en/application-note/AN4533.pdf 1247035 /docs/en/application-note/AN4533.pdf AN4533 documents N N 2016-10-31 Robust over-the-air firmware update using program flash memory swap /docs/en/application-note/AN4533.pdf /docs/en/application-note/AN4533.pdf Application Note N 645036621402383989 2023-06-06 pdf N en Jun 17, 2012 645036621402383989 Application Note Y N Robust over-the-air firmware update using program flash memory swap 42 1 Chinese This Application Note covers the system security and flash protection features on Kinetis microcontrollers (MCU) to protect code from unauthorized access 1339475288133683777942zh PSP 236.6 KB None None documents 1339475288133683777942 /docs/zh/application-note/AN4507.pdf 236578 /docs/zh/application-note/AN4507.pdf AN4507 documents N N 2016-10-31 Using Kinetis Security and Flash Protection Features /docs/zh/application-note/AN4507.pdf /docs/zh/application-note/AN4507.pdf Application Note N 645036621402383989 2023-10-09 zh Jun 17, 2012 645036621402383989 Application Note Y N 使用Kinetis的安全和闪存保护功能 1 English This Application Note covers the system security and flash protection features on Kinetis microcontrollers (MCU) to protect code from unauthorized access 1339475288133683777942 PSP 236.6 KB None None documents 1339475288133683777942 /docs/en/application-note/AN4507.pdf 236578 /docs/en/application-note/AN4507.pdf AN4507 documents N N 2016-10-31 Using Kinetis Security and Flash Protection Features /docs/en/application-note/AN4507.pdf /docs/en/application-note/AN4507.pdf Application Note N 645036621402383989 2023-10-09 pdf N en Jun 17, 2012 645036621402383989 Application Note Y N Using Kinetis Security and Flash Protection Features 43 0 Chinese 1336540395405719588884zh PSP 427.4 KB None None documents None 1336540395405719588884 /docs/zh/application-note/AN4520.pdf 427412 /docs/zh/application-note/AN4520.pdf AN4520 documents N N 2012-05-08 I2S (Inter-IC Sound Bus) application on Kinetis MCUs /docs/zh/application-note/AN4520.pdf /docs/zh/application-note/AN4520.pdf Application Note N 645036621402383989 2022-12-07 zh 645036621402383989 Application Note N Kinetis MCU上的I2S (片间音频总线)应用 0 English This Application Note is a quick start guide on how to use the I2S module as inter-IC sound bus on Kinetis microcontrollers (MCU) 1336540395405719588884 PSP 427.4 KB None None documents None 1336540395405719588884 /docs/en/application-note/AN4520.pdf 427412 /docs/en/application-note/AN4520.pdf AN4520 documents N N 2012-05-08 I2S (Inter-IC Sound Bus) application on Kinetis MCUs /docs/en/application-note/AN4520.pdf /docs/en/application-note/AN4520.pdf Application Note N 645036621402383989 2022-12-07 pdf N en May 8, 2012 645036621402383989 Application Note N I2S (Inter-IC Sound Bus) application on Kinetis MCUs 44 0 English This Application Note discusses about the CMSIS DSP library combined with MQX RTOS for Kinetis K, L, M, E, V Arm<sup>&#174;</sup> Cortex-M microcontrollers (MCU) 1332364626794705650010 PSP 691.7 KB None None documents None 1332364626794705650010 /docs/en/application-note/AN4489.pdf 691738 /docs/en/application-note/AN4489.pdf AN4489 documents N N 2016-10-31 Using CMSIS-DSP Algorithms with MQX and Kinetis<sup>&#174;</sup> MCUs /docs/en/application-note/AN4489.pdf /docs/en/application-note/AN4489.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Mar 20, 2012 645036621402383989 Application Note Y N Using CMSIS-DSP Algorithms with MQX and Kinetis<sup>&#174;</sup> MCUs 45 0 English AN4369SW.zip /docs/en/application-note-software/AN4369SW.zip /docs/en/application-note-software/AN4369SW.zip This Application Note describes the basic methods of implementing audio outputs using DMA and PWM, DAC or I2S Audio bus on Kinetis microcontrollers (MCU) 1329929029146706383837 PSP 521.1 KB None None documents None 1329929029146706383837 /docs/en/application-note/AN4369.pdf 521122 /docs/en/application-note/AN4369.pdf AN4369 documents N N 2012-02-22 Audio Output for Kinetis MCUs using DMA/PWM, DAC or I2S /docs/en/application-note/AN4369.pdf /docs/en/application-note/AN4369.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Feb 13, 2012 645036621402383989 Application Note N Audio Output for Kinetis MCUs using DMA/PWM, DAC or I2S 46 0 Chinese 1328107625109708260767zh PSP 303.6 KB None None documents None 1328107625109708260767 /docs/zh/application-note/AN4447.pdf 303630 /docs/zh/application-note/AN4447.pdf AN4447 documents N N 2016-10-31 Low-Power management with MQX RTOS on Kinetis MCUs /docs/zh/application-note/AN4447.pdf /docs/zh/application-note/AN4447.pdf Application Note N 645036621402383989 2022-12-07 zh Jan 30, 2012 645036621402383989 Application Note Y N 采用MQX RTOS实现Kinetis<sup>®</sup> MCU的低功耗管理 0 English This application describes how to use MQX (RTOS) Low-Power Management (LPM) driver on Kinetis microcontrollers (MCU) 1328107625109708260767 PSP 303.6 KB None None documents None 1328107625109708260767 /docs/en/application-note/AN4447.pdf 303630 /docs/en/application-note/AN4447.pdf AN4447 documents N N 2016-10-31 Low-Power management with MQX RTOS on Kinetis MCUs /docs/en/application-note/AN4447.pdf /docs/en/application-note/AN4447.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jan 30, 2012 645036621402383989 Application Note Y N Low-Power management with MQX RTOS on Kinetis MCUs 47 0 Chinese 1326899406187705806071zh PSP 1.7 MB None None documents None 1326899406187705806071 /docs/zh/application-note/AN4452.pdf 1718385 /docs/zh/application-note/AN4452.pdf AN4452 documents N N 2016-10-31 Display eGUI using TWR-LCD board /docs/zh/application-note/AN4452.pdf /docs/zh/application-note/AN4452.pdf Application Note N 645036621402383989 2022-12-07 zh 645036621402383989 Application Note N 采用TWR-LCD电路板显示eGUI 0 English This Application Note describes how to use Tower<sup>&#174;</sup> TWR-LCD board to display eGUI or other graphic user interfaces such as microWindows with Kinetis MCUs 1326899406187705806071 PSP 1.7 MB None None documents None 1326899406187705806071 /docs/en/application-note/AN4452.pdf 1718385 /docs/en/application-note/AN4452.pdf AN4452 documents N N 2016-10-31 Display eGUI using TWR-LCD board /docs/en/application-note/AN4452.pdf /docs/en/application-note/AN4452.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jan 17, 2012 645036621402383989 Application Note Y N Display eGUI using TWR-LCD board 48 0 English This Application Note describes how to configure the FlexTimer module to decode the quadrature encoder signals for position and speed measurement 1323095853492730733083 PSP 382.6 KB None None documents None 1323095853492730733083 /docs/en/application-note/AN4381.pdf 382594 /docs/en/application-note/AN4381.pdf AN4381 documents N N 2016-10-31 Configuring the FlexTimer for position and speed measurement /docs/en/application-note/AN4381.pdf /docs/en/application-note/AN4381.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Dec 5, 2011 645036621402383989 Application Note Y N Configuring the FlexTimer for position and speed measurement 49 0 English AN4406SW.zip /docs/en/application-note-software/AN4406SW.zip /docs/en/application-note-software/AN4406SW.zip This Application Note explains the use of Kinetis KwikStik development tool as a memory programmer (EzProg) for Kinetis MCUs, ColdFire+ and ColdFire v2 1325133003186706059692 PSP 2.5 MB None None documents None 1325133003186706059692 /docs/en/application-note/AN4406.pdf 2504491 /docs/en/application-note/AN4406.pdf AN4406 documents N N 2011-12-28 Kinetis<sup>&#174;</sup> KwikStik-based EzPort programmer /docs/en/application-note/AN4406.pdf /docs/en/application-note/AN4406.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Dec 1, 2011 645036621402383989 Application Note Y N Kinetis<sup>&#174;</sup> KwikStik-based EzPort programmer 50 0 English This Application Note describes the synchronization between the FlexTimer (FTM) and ADC of Kinetis K40 microcontroller (MCU) targeting motor control 1322044226768699391469 PSP 792.7 KB None None documents None 1322044226768699391469 /docs/en/application-note/AN4410.pdf 792680 /docs/en/application-note/AN4410.pdf AN4410 documents N N 2016-10-31 FlexTimer and ADC synchronization for Field-Oriented-Control /docs/en/application-note/AN4410.pdf /docs/en/application-note/AN4410.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Nov 22, 2011 645036621402383989 Application Note Y N FlexTimer and ADC synchronization for Field-Oriented-Control 51 0 English This Application Note presents an example of how to design and build a custom peripheral with the Tower<sup>&#174;</sup> MCU development board to implement your prototype 1321050910490712270304 PSP 390.5 KB None None documents None 1321050910490712270304 /docs/en/application-note/AN4390.pdf 390476 /docs/en/application-note/AN4390.pdf AN4390 documents N N 2016-10-31 Prototyping with Tower System MCU development board /docs/en/application-note/AN4390.pdf /docs/en/application-note/AN4390.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Nov 11, 2011 645036621402383989 Application Note Y N Prototyping with Tower System MCU development board 52 0 Chinese 1320164180799708587232zh PSP 796.7 KB None None documents None 1320164180799708587232 /docs/zh/application-note/AN4376.pdf 796739 /docs/zh/application-note/AN4376.pdf AN4376 documents N N 2016-10-31 BLDC motor control w/ Hall Effect sensor - Kinetis MCUs /docs/zh/application-note/AN4376.pdf /docs/zh/application-note/AN4376.pdf Application Note N 645036621402383989 2022-12-07 zh 645036621402383989 Application Note N 带霍尔效应传感器的BLDC电机控制 - Kinetis MCU 0 English This application demonstrates a speed closed-loop BLDC drive control using Hall effect positional sensors, MQX RTOS and Kinetis microcontrollers (MCU) 1320164180799708587232 PSP 796.7 KB None None documents None 1320164180799708587232 /docs/en/application-note/AN4376.pdf 796739 /docs/en/application-note/AN4376.pdf AN4376 documents N N 2016-10-31 BLDC motor control w/ Hall Effect sensor - Kinetis MCUs /docs/en/application-note/AN4376.pdf /docs/en/application-note/AN4376.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Oct 31, 2011 645036621402383989 Application Note Y N BLDC motor control w/ Hall Effect sensor - Kinetis MCUs 53 0 Chinese 1313007977258712806632zh PSP 2.1 MB None None documents None 1313007977258712806632 /docs/zh/application-note/AN4342.pdf 2123856 /docs/zh/application-note/AN4342.pdf AN4342 documents N N 2011-08-10 Using I2C on Coldfire+ and Kinetis MCUs /docs/zh/application-note/AN4342.pdf /docs/zh/application-note/AN4342.pdf Application Note N 645036621402383989 2022-12-07 zh 645036621402383989 Application Note N 在ColdFire+和Kinetis上使用内部集成电路 0 English AN4342.rar /docs/en/application-note-software/AN4342.rar /docs/en/application-note-software/AN4342.rar This Application Note describes how to use the inter-integrated circuit (I2C) module on Coldfire+ and Kinetis microcontrollers (MCU). 1313007977258712806632 PSP 2.1 MB None None documents None 1313007977258712806632 /docs/en/application-note/AN4342.pdf 2123856 /docs/en/application-note/AN4342.pdf AN4342 documents N N 2011-08-10 Using I2C on Coldfire+ and Kinetis MCUs /docs/en/application-note/AN4342.pdf /docs/en/application-note/AN4342.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Aug 10, 2011 645036621402383989 Application Note N Using I2C on Coldfire+ and Kinetis MCUs 54 1 English AN4314SW.zip /secured/assets/documents/en/application-note-software/AN4314SW.zip /webapp/Download?colCode=AN4314SW&appType=license&docLang=en This Application Note explains how to use USB2SER DLL which allows reading and modification of USB descriptor allocated in nonvolatile memory in C# project 1305764383940725500974 PSP 543.4 KB None None documents None 1305764383940725500974 /docs/en/application-note/AN4314.pdf 543385 /docs/en/application-note/AN4314.pdf AN4314 documents N 2011-05-23 Using USB2SER DLL in C# Projects /docs/en/application-note/AN4314.pdf /docs/en/application-note/AN4314.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jul 20, 2011 645036621402383989 Application Note Y N Using USB2SER DLL in C# Projects 55 4 English AN3863: This document presents a set of guidelines for layout and placement of touch sensing circuits using NXP capacitive touch sensing technology. Touch sensing solutions, like touch panels, touch screens, and capacitive keypads are increasingly becoming a substitute for mechanical buttons or membrane keyboards. They are used in a wide range of applications from consumer products like computers, appliances, and industrial equipment. 1253296539549704444145 PSP 804.9 KB None None documents None 1253296539549704444145 /docs/en/application-note/AN3863.pdf 804915 /docs/en/application-note/AN3863.pdf AN3863 documents N N 2016-10-31 AN3863, Designing Touch Sensing Electrodes - Application Notes /docs/en/application-note/AN3863.pdf /docs/en/application-note/AN3863.pdf Application Note N 645036621402383989 2024-02-13 pdf N en Jul 20, 2011 645036621402383989 Application Note Y N AN3863, Designing Touch Sensing Electrodes - Application Notes 56 0 English This Application Note provides guidelines to write Touch Sensing software with TSI(Touch Sensing input) module on Kinetis and ColdFire microcontroller(MCU) 1310505523701701789319 PSP 341.5 KB None None documents None 1310505523701701789319 /docs/en/application-note/AN4330.pdf 341503 /docs/en/application-note/AN4330.pdf AN4330 documents N N 2016-10-31 Writing Touch Sensing Software Using TSI Module /docs/en/application-note/AN4330.pdf /docs/en/application-note/AN4330.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jul 12, 2011 645036621402383989 Application Note Y N Writing Touch Sensing Software Using TSI Module アプリケーション・ノート・ソフトウェア Application Note Software 9 57 0 English Software for AN5047. 1421794398499718160811 PSP 673.0 KB None None documents None 1421794398499718160811 /docs/en/application-note-software/AN5047SW.zip 672951 /docs/en/application-note-software/AN5047SW.zip AN5047SW documents N N 2016-10-31 Software for AN5047 /docs/en/application-note-software/AN5047SW.zip /docs/en/application-note-software/AN5047SW.zip Application Note Software N 789425793691620447 2022-12-07 zip N en Jan 19, 2015 789425793691620447 Application Note Software Y N Software for AN5047 58 0 English Software for AN5052. 1421770609490697360329 PSP 670.8 KB None None documents None 1421770609490697360329 /docs/en/application-note-software/AN5052SW.zip 670751 /docs/en/application-note-software/AN5052SW.zip AN5052SW documents N N 2016-10-31 Software for AN5052. /docs/en/application-note-software/AN5052SW.zip /docs/en/application-note-software/AN5052SW.zip Application Note Software N 789425793691620447 2022-12-07 zip N en Jan 19, 2015 789425793691620447 Application Note Software Y N Software for AN5052. 59 0 English Software files for Application Note AN4800 that demonstrates a I2S application on Kinetis K60 (2.x silicon) MCUs&#13;&#10;&#13;&#10; 1378100367433716653041 PSP 241.7 KB Registration without Disclaimer None documents Extended 1378100367433716653041 /secured/assets/documents/en/application-note-software/AN4800SW.zip 241679 /secured/assets/documents/en/application-note-software/AN4800SW.zip AN4800SW documents Y N 2016-10-31 Software files for Application Note AN4800 /webapp/Download?colCode=AN4800SW&lang_cd=ja /secured/assets/documents/en/application-note-software/AN4800SW.zip Application Note Software N 789425793691620447 2022-12-07 zip Y en Sep 1, 2013 789425793691620447 Application Note Software Y N Software files for Application Note AN4800 60 0 English Software files for Application Note AN4652 that demonstrates an interrupt-based I2C driver in Controller and Target modes on Kinetis K60 MCU and MQX RTOS&#13;&#10; 1357617449115711227134 PSP 12.2 KB None None documents None 1357617449115711227134 /docs/en/application-note-software/AN4652SW.zip 12174 /docs/en/application-note-software/AN4652SW.zip AN4652SW documents N N 2016-10-31 Software files for Application Note AN4652 /docs/en/application-note-software/AN4652SW.zip /docs/en/application-note-software/AN4652SW.zip Application Note Software N 789425793691620447 2022-12-07 zip N en Jan 7, 2013 789425793691620447 Application Note Software Y N Software files for Application Note AN4652 61 0 English Software files for Application Note AN4419 that can be used as a basis of the configuration of DMA and GPIO to emulate timer functionality on Kinetis MCUs&#13;&#10; 1348812543662714627249 PSP 9.0 MB Registration without Disclaimer None documents Extended 1348812543662714627249 /secured/assets/documents/en/application-note-software/AN4419SW.zip 8974092 /secured/assets/documents/en/application-note-software/AN4419SW.zip AN4419SW documents Y N 2016-10-31 Software files for Application Note AN4419 /webapp/Download?colCode=AN4419SW&lang_cd=ja /secured/assets/documents/en/application-note-software/AN4419SW.zip Application Note Software N 789425793691620447 2022-12-07 zip Y en Sep 27, 2012 789425793691620447 Application Note Software Y N Software files for Application Note AN4419 62 0 English Software for AN4590 1348089549250722337190 PSP 8.4 MB None None documents None 1348089549250722337190 /docs/en/application-note-software/AN4590SW.zip 8405444 /docs/en/application-note-software/AN4590SW.zip AN4590SW documents N N 2012-09-19 Software for AN4590 /docs/en/application-note-software/AN4590SW.zip /docs/en/application-note-software/AN4590SW.zip Application Note Software N 789425793691620447 2022-12-07 zip N en Sep 19, 2012 789425793691620447 Application Note Software D N Software for AN4590 63 0 English Software files for Application Note AN4533 that demonstrates the flash memory swap feature on Kinetis microcontrollers (MCUs)&#13;&#10;&#13;&#10; 1339999092872722352746 PSP 4.9 MB Registration without Disclaimer None documents Extended 1339999092872722352746 /secured/assets/documents/en/application-note-software/AN4533SW.zip 4850347 /secured/assets/documents/en/application-note-software/AN4533SW.zip AN4533SW documents Y N 2016-10-31 Software files for Application Note AN4533 /webapp/Download?colCode=AN4533SW&lang_cd=ja /secured/assets/documents/en/application-note-software/AN4533SW.zip Application Note Software N 789425793691620447 2022-12-07 zip Y en Jun 17, 2012 789425793691620447 Application Note Software Y N Software files for Application Note AN4533 64 0 English 1332785329878740349242 PSP 1.2 MB None None documents None 1332785329878740349242 /docs/en/application-note-software/AN4369SW.zip 1185245 /docs/en/application-note-software/AN4369SW.zip AN4369SW documents N N 2012-03-26 Associated software for AN4369 /docs/en/application-note-software/AN4369SW.zip /docs/en/application-note-software/AN4369SW.zip Application Note Software N 789425793691620447 2022-12-07 zip N en Mar 23, 2012 789425793691620447 Application Note Software D N Associated software for AN4369 65 1 English This Application Note explains the CEA709.1 features present in Kinetis MCUs implemented as part of the universal asynchronous receiver/transmitter (UART). It describes main registers involved in CEA709.1 and presents&#13;&#10;an example with a direct connection to a twisted-pair transceiver (FTT-10A). This application note comes with software showing how to use UART0 registers for sending and receiving CEA709.1 packets limited to a raw communication with other nodes. 1329890043595688944719 PSP 1.2 MB None None documents None 1329890043595688944719 /docs/en/application-note-software/AN4396SW.zip 1184679 /docs/en/application-note-software/AN4396SW.zip AN4396SW documents N N 2012-02-21 Using CEA709.1 features in Kinetis<sup>&#174;</sup> /docs/en/application-note-software/AN4396SW.zip /docs/en/application-note-software/AN4396SW.zip Application Note Software N 789425793691620447 2022-12-07 zip N en Mar 4, 2012 789425793691620447 Application Note Software D N Using CEA709.1 features in Kinetis<sup>&#174;</sup> カタログ Brochure 3 66 6 Chinese 1290099424171710872322zh PSP 4.5 MB None None documents None 1290099424171710872322 /docs/zh/brochure/FREESCALEARM.pdf 4483515 /docs/zh/brochure/FREESCALEARM.pdf NXPARM documents N N 2016-11-09 Embedded Solutions Based on Arm<sup>®</sup> Technology Guide /docs/zh/brochure/FREESCALEARM.pdf /docs/zh/brochure/FREESCALEARM.pdf Brochure N 712453003803778552 2022-12-07 zh 712453003803778552 Brochure N 基于ARM®技术的嵌入式控制解决方案 8 English Our large Arm-powered portfolio includes scalable MCU and MPU families from small ultra-low-power Kinetis MCUs to i.MX and Vybrid multimedia processors with advanced performance and feature integration and QorIQ communications processors that deliver industry-leading power and performance. 1290099424171710872322 PSP 4.5 MB None None documents None 1290099424171710872322 /docs/en/brochure/EMBEDDED-ARM.pdf 4483515 /docs/en/brochure/EMBEDDED-ARM.pdf NXPARM documents N N 2016-11-09 Embedded Solutions Based on Arm<sup>®</sup> Technology Guide /docs/en/brochure/EMBEDDED-ARM.pdf /docs/en/brochure/EMBEDDED-ARM.pdf Brochure N 712453003803778552 2022-12-07 pdf N en Oct 7, 2014 712453003803778552 Brochure Y N Embedded Solutions Based on Arm<sup>®</sup> Technology Guide 67 2 English Brochure focusing on entry-level Kinetis K1x/K2x 50MHz microcontrollers (MCU) for space-constraint and cost-sensitive application. 1319651550384703000529 PSP 2.7 MB None None documents None 1319651550384703000529 /docs/en/brochure/BRKINETISELS.pdf 2656166 /docs/en/brochure/BRKINETISELS.pdf BRKINETISELS documents N N 2011-10-26 Kinetis<sup>&#174;</sup> K1x/K2x (50Mhz) for cost sensitive applications /docs/en/brochure/BRKINETISELS.pdf /docs/en/brochure/BRKINETISELS.pdf Brochure N 712453003803778552 2022-12-07 pdf N en Feb 21, 2013 712453003803778552 Brochure Y N Kinetis<sup>&#174;</sup> K1x/K2x (50Mhz) for cost sensitive applications 68 4 Chinese 1276908964800707969350zh PSP 7.1 MB None None documents None 1276908964800707969350 /docs/zh/brochure/BR8BITBYNDBITS5.pdf 7104777 /docs/zh/brochure/BR8BITBYNDBITS5.pdf BR8BITBYNDBITS5 documents N 2010-06-22 Beyond Bits Issue V /docs/zh/brochure/BR8BITBYNDBITS5.pdf /docs/zh/brochure/BR8BITBYNDBITS5.pdf Brochure N 712453003803778552 2022-12-07 zh 712453003803778552 Brochure N Beyond Bits第5期 6 English 1276908964800707969350 PSP 7.1 MB None None documents None 1276908964800707969350 /docs/en/brochure/BR8BITBYNDBITS5.pdf 7104777 /docs/en/brochure/BR8BITBYNDBITS5.pdf BR8BITBYNDBITS5 documents N 2010-06-22 Beyond Bits Issue V /docs/en/brochure/BR8BITBYNDBITS5.pdf /docs/en/brochure/BR8BITBYNDBITS5.pdf Brochure N 712453003803778552 2022-12-07 pdf en Nov 1, 2010 712453003803778552 Brochure Y N Beyond Bits Issue V エラッタ Errata 3 69 15 JAN 2014 English 1390344024173702376866 PSP 181.0 KB None documents None 1390344024173702376866 /docs/en/errata/KINETIS_50MHZ_4N86B.pdf 181017 /docs/en/errata/KINETIS_50MHZ_4N86B.pdf KINETIS_50MHZ_4N86B documents N N 2014-01-21 Errata Mask 4N86B for Kinetis K10DNxxxx5, K10DXxxx5, K20DNxxxx5 and K20DXxxxx5 MCUs /docs/en/errata/KINETIS_50MHZ_4N86B.pdf /docs/en/errata/KINETIS_50MHZ_4N86B.pdf Errata N 155452329886410597 2022-12-07 pdf N en Jan 21, 2014 155452329886410597 Errata N Errata Mask 4N86B for Kinetis K10DNxxxx5, K10DXxxx5, K20DNxxxx5 and K20DXxxxx5 MCUs 70 15 OCT 2013 English Mask Set Errata for Mask 1N86B - Kinetis<sup>&#174;</sup> MCUs 1329273049363744246805 PSP 186.3 KB None None documents None 1329273049363744246805 /docs/en/errata/KINETIS50MHZ_1N86B.pdf 186318 /docs/en/errata/KINETIS50MHZ_1N86B.pdf KINETIS50MHZ_1N86B documents N N 2016-10-31 Errata Mask 1N86B for Kinetis<sup>®</sup> MCUs /docs/en/errata/KINETIS50MHZ_1N86B.pdf /docs/en/errata/KINETIS50MHZ_1N86B.pdf Errata N 155452329886410597 2022-12-07 pdf N en Oct 15, 2013 155452329886410597 Errata Y N Errata Mask 1N86B for Kinetis<sup>®</sup> MCUs 71 08 AUG 2013 English Errata Mask 3N86B for Kinetis K10DNxxxx5, K10DXxxx5, K20DNxxxx5 and K20DXxxxx5 MCUs 1376695930068721029629 PSP 134.3 KB None None documents None 1376695930068721029629 /docs/en/errata/KINETIS50MHZ_3N86B.pdf 134327 /docs/en/errata/KINETIS50MHZ_3N86B.pdf KINETIS50MHZ_3N86B documents N N 2016-10-31 Errata Mask 3N86B for Kinetis K10DNxxxx5, K10DXxxx5, K20DNxxxx5 and K20DXxxxx5 MCUs /docs/en/errata/KINETIS50MHZ_3N86B.pdf /docs/en/errata/KINETIS50MHZ_3N86B.pdf Errata N 155452329886410597 2022-12-07 pdf N en Aug 16, 2013 155452329886410597 Errata Y N Errata Mask 3N86B for Kinetis K10DNxxxx5, K10DXxxx5, K20DNxxxx5 and K20DXxxxx5 MCUs ファクト・シート Fact Sheet 1 72 7 Chinese 1276915766848722416768zh PSP 363.0 KB None None documents None 1276915766848722416768 /docs/zh/fact-sheet/KNTSK10FMLYFS.pdf 362972 /docs/zh/fact-sheet/KNTSK10FMLYFS.pdf KNTSK10FMLYFS documents N N 2016-10-31 Kinetis<sup>®</sup> K1x: Baseline Cortex-M4(F) MCUs /docs/zh/fact-sheet/KNTSK10FMLYFS.pdf /docs/zh/fact-sheet/KNTSK10FMLYFS.pdf Fact Sheet N 736675474163315314 2022-12-07 zh 736675474163315314 Fact Sheet N Kinetis K1x：Cortex-M4(F)基准MCU 4 English Kinetis K1x Fact Sheet: Baseline high-performance Arm<sup>®</sup> Cortex<sup>®</sup>-M4(F) microcontroller (MCU) family with mixed-signal and advanced security integration 1276915766848722416768 PSP 363.0 KB None None documents None 1276915766848722416768 /docs/en/fact-sheet/KNTSK10FMLYFS.pdf 362972 /docs/en/fact-sheet/KNTSK10FMLYFS.pdf KNTSK10FMLYFS documents N N 2016-10-31 Kinetis<sup>®</sup> K1x: Baseline Cortex-M4(F) MCUs /docs/en/fact-sheet/KNTSK10FMLYFS.pdf /docs/en/fact-sheet/KNTSK10FMLYFS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf N en Feb 14, 2020 736675474163315314 Fact Sheet Y N Kinetis<sup>®</sup> K1x: Baseline Cortex-M4(F) MCUs 製品概要 Product Brief 1 73 11 English Kinetis K1x Product Brief: Baseline high-performance Arm Cortex-M4(F) microcontroller (MCU) family with mixed-signal and advanced security integration 1276895908203705978488 PSP 1.7 MB None None documents None 1276895908203705978488 /docs/en/product-brief/K10PB.pdf 1691827 /docs/en/product-brief/K10PB.pdf K10PB documents N N 2016-10-31 Kinetis K1x: Baseline Cortex-M4(F) MCUs /docs/en/product-brief/K10PB.pdf /docs/en/product-brief/K10PB.pdf Product Brief N 899114358132306053 2022-12-07 pdf N en Aug 1, 2012 899114358132306053 Product Brief Y N Kinetis K1x: Baseline Cortex-M4(F) MCUs リリース・ノート Release Note 1 74 5.2 English Release Notes document related to Processor Expert<sup>&#174;</sup> (PEx) 5.2&#13;&#10; 1315843389511720901966 PSP 24.2 KB None None documents None 1315843389511720901966 /docs/en/release-note/PE_5.2_RN.txt 24202 /docs/en/release-note/PE_5.2_RN.txt PE_5.2_RN documents N N 2016-10-31 Processor Expert 5.2 Release Notes /docs/en/release-note/PE_5.2_RN.txt /docs/en/release-note/PE_5.2_RN.txt Release Note N 487216834315582133 2022-12-07 txt N en Sep 12, 2011 487216834315582133 Release Note Y N Processor Expert 5.2 Release Notes サポート情報 Supporting Information 1 75 2.5 English This Release Notes document describes the Touch Sensing Software (TSS) beta installer for Kinetis microcontrollers (MCU) 1289259213459699899388 PSP 232.4 KB None None documents None 1289259213459699899388 /docs/en/supporting-information/TSS_RELEASE_NOTES.pdf 232384 /docs/en/supporting-information/TSS_RELEASE_NOTES.pdf TSS_RELEASE_NOTES documents N N 2010-11-08 Touch Sensing Software 2.5 Beta Release notes /docs/en/supporting-information/TSS_RELEASE_NOTES.pdf /docs/en/supporting-information/TSS_RELEASE_NOTES.pdf Supporting Information N 371282830530968666 2023-06-18 pdf N en Nov 8, 2010 371282830530968666 Supporting Information Y N Touch Sensing Software 2.5 Beta Release notes true 0 K10_50 downloads ja true 1 Y PSP Y Y アプリケーション・ノート 47 /docs/en/application-note/AN4255.pdf 2016-10-31 1321891486848724496514 PSP 10 Jul 26, 2015 Application Note This application note describes how to use Fast Fourier Transform (FFT) in metering applications, especially for power and energy computing in power meters None /docs/en/application-note/AN4255.pdf English documents 642673 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4255.pdf FFT-Based Algorithm for Metering Applications - Application Note /docs/en/application-note/AN4255.pdf documents 645036621402383989 Application Note N en None Y pdf 4 N N FFT-Based Algorithm for Metering Applications - Application Note 642.7 KB AN4255 N 1321891486848724496514 /docs/en/application-note/AN5142.pdf 2016-10-31 1435048432010714192779 PSP 11 Jun 22, 2015 Application Note The application note introduces multiple features of the FlexTimer Module (FTM) and provides corresponding code for each feature, along with a waveform or a snapshot of the oscilloscope. While FTM is used in both the Kinetis and VFxxx families, this application note focuses on Kinetis only. None /docs/en/application-note/AN5142.pdf English documents 1602831 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN5142.pdf Features of the FlexTimer Module /docs/en/application-note/AN5142.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Features of the FlexTimer Module 1.6 MB AN5142 N 1435048432010714192779 /docs/en/application-note/AN4503.pdf 2016-10-31 1337608212782710408414 PSP 12 Apr 6, 2015 Application Note This Application Note describes how to use low-power modes on Kinetis and ColdFire MCUs and optimize overall power budget for your application None /docs/en/application-note/AN4503.pdf English documents 1913621 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4503.pdf Power Management for Kinetis and ColdFire+ MCUs /docs/en/application-note/AN4503.pdf documents 645036621402383989 Application Note N en None Y pdf 2 N N Power Management for Kinetis and ColdFire+ MCUs 1.9 MB AN4503 N 1337608212782710408414 /docs/en/application-note/AN4282.pdf 2016-10-31 1299508142617720482344 PSP 13 Mar 4, 2015 Application Note Guidelines to use Kinetis FlexMemory as enhanced EEPROM (EEE) to replace external EEPROMs: Advantages, configuration and endurance calculations of EEE None /docs/en/application-note/AN4282.pdf English documents 948797 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4282.pdf Using Kinetis FlexMemory as enhanced EEPROM /docs/en/application-note/AN4282.pdf documents 645036621402383989 Application Note N en None Y pdf 2 N N Using Kinetis FlexMemory as enhanced EEPROM 948.8 KB AN4282 N 1299508142617720482344 /docs/en/application-note/AN5052.pdf 2016-10-31 1421692388724726069550 PSP 14 Jan 19, 2015 Application Note This application note shows how to build a low-power encoder based on LC sensors. The goal is to build a very low power/low rotation speed design which may be used in the paddle wheel flow meters to measure paddle wheel rotation. None /docs/en/application-note/AN5052.pdf English documents 1829258 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN5052.pdf Low-Power Rotation Sensing with L-C Sensors and Kinetis L MCUs /docs/en/application-note/AN5052.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Low-Power Rotation Sensing with L-C Sensors and Kinetis L MCUs 1.8 MB AN5052 N 1421692388724726069550 /docs/en/application-note/AN5047.pdf 2016-10-31 1421693737480711922352 PSP 15 Jan 19, 2015 Application Note This application note shows how to build a low-power encoder based on the magneto resistive sensors. The goal is to build a very low-power/low-rotation speed design which may be used in the paddle wheel flow meters to measure paddle wheel rotation. None /docs/en/application-note/AN5047.pdf English documents 768620 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN5047.pdf Low-Power Rotation Sensing with Magneto Resistive Sensors and Kinetis L MCUs /docs/en/application-note/AN5047.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Low-Power Rotation Sensing with Magneto Resistive Sensors and Kinetis L MCUs 768.6 KB AN5047 N 1421693737480711922352 /docs/en/application-note/AN4935.pdf 2016-10-31 1400029954869730557645 PSP 16 Sep 24, 2014 Application Note AN4935: This application note describes the algorithms to brake the moving rotor and detect the initial rotor position, the software modifications, the MCU peripherals used in the application, the hardware set-up, and the results of the measurement. None /docs/en/application-note/AN4935.pdf English documents 2974188 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4935.pdf PMSM Sensorless FOC for a Fan Using the Kinetis KV10 /docs/en/application-note/AN4935.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N PMSM Sensorless FOC for a Fan Using the Kinetis KV10 3.0 MB AN4935 N 1400029954869730557645 /docs/en/application-note/AN4649.pdf 2016-10-31 1358831646016684997770 PSP 17 Sep 23, 2014 Application Note This Application Note describes the power supply options of the Tower<sup>&#174;</sup> System development platform. None /docs/en/application-note/AN4649.pdf English documents 2670377 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4649.pdf Power supply options for Tower development plaftorm /docs/en/application-note/AN4649.pdf documents 645036621402383989 Application Note N en None Y pdf 0.1 N N Power supply options for Tower development plaftorm 2.7 MB AN4649 N 1358831646016684997770 /docs/en/application-note/AN4745.pdf 2013-05-20 1369082818800708116669 PSP 18 Jun 11, 2014 Application Note This Application Note describes the key architectural and system module features that can be tuned to optimize system performances for Kinetis K MCUs None /docs/en/application-note/AN4745.pdf English documents 319794 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4745.pdf Optimizing performance on Kinetis K-series MCUs /docs/en/application-note/AN4745.pdf documents 645036621402383989 Application Note N en None pdf 1 N N Optimizing performance on Kinetis K-series MCUs 319.8 KB AN4745 N 1369082818800708116669 /docs/en/application-note/AN4835.pdf 2016-10-31 1387233612515728930344 PSP 19 May 2, 2014 Application Note This Application Note describes recommended steps for production flash programming on Kinetis K-series and L-series devices None /docs/en/application-note/AN4835.pdf English documents 215271 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4835.pdf Production Flash programming best practices for Kinetis K and L MCUs /docs/en/application-note/AN4835.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N Production Flash programming best practices for Kinetis K and L MCUs 215.3 KB AN4835 N 1387233612515728930344 /docs/en/application-note/AN4373.pdf 2016-10-31 1324360456649707977773 PSP 20 Apr 17, 2014 Application Note This Application Note provides guidelines on how to design external RC components and achieve optimal performance of SAR ADC integrated in Kinetis MCUs None /docs/en/application-note/AN4373.pdf English documents 862139 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4373.pdf Cookbook for SAR ADC measurements /docs/en/application-note/AN4373.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N Cookbook for SAR ADC measurements 862.1 KB AN4373 N 1324360456649707977773 /docs/en/application-note/AN4822.pdf 2013-12-18 1387400204339744551899 PSP 21 Dec 18, 2013 Application Note This Application Note describes the set-up of the Programmable Delay Block, routing of signal onto a GPIO pin and sequence error handling on Kinetis MCU None /docs/en/application-note/AN4822.pdf English documents 478055 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4822.pdf Tips using PDB in motor control applications on Kinetis /docs/en/application-note/AN4822.pdf documents 645036621402383989 Application Note N en None pdf 0 N N Tips using PDB in motor control applications on Kinetis 478.1 KB AN4822 N 1387400204339744551899 /docs/en/application-note/AN4803.pdf 2016-10-31 1382425896639685691413 PSP 22 Oct 21, 2013 Application Note This Application Note describes one way to perform the non-blocking communication on the I2C bus and provides c-code example for an I2C controller None /docs/en/application-note/AN4803.pdf English documents 671393 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4803.pdf I2C non-blocking communication /docs/en/application-note/AN4803.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N I2C non-blocking communication 671.4 KB AN4803 N 1382425896639685691413 /docs/en/application-note/AN2295.pdf 2016-10-31 Q1032360305278 PSP 23 Oct 8, 2013 Application Note Describing microcontrollers' alternative reprogramming tools for embedded software developers to update existing firmware on most microcontrollers in-circuit. None /docs/en/application-note/AN2295.pdf English documents 1772501 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN2295.pdf AN2295: Developer's Serial Bootloader – Application Note /docs/en/application-note/AN2295.pdf documents 645036621402383989 Application Note N en None Y pdf 13 N N AN2295: Developer's Serial Bootloader – Application Note 1.8 MB AN2295 N Q1032360305278 /docs/en/application-note/AN4781.pdf 2016-10-31 1378870841271716695092 PSP 24 Sep 10, 2013 Application Note This Application Note describes how to use the water tolerance feature in the Touch-Sensing Software (TSS) library None /docs/en/application-note/AN4781.pdf English documents 386968 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4781.pdf Deep-dive: Water Tolerance Feature in Touch-Sensing Software Library /docs/en/application-note/AN4781.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Deep-dive: Water Tolerance Feature in Touch-Sensing Software Library 387.0 KB AN4781 N 1378870841271716695092 /docs/en/application-note/AN4800.pdf 2013-09-01 1378101015982727538513 PSP 25 Sep 1, 2013 Application Note This Application Note introduces and provides guidelines on how to use the I2S (Integrated Interchip SoundBus) module on Kinetis microcontrollers (MCUs) None /docs/en/application-note/AN4800.pdf English documents 265839 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4800.pdf An I2S application on Kinetis /docs/en/application-note/AN4800.pdf documents 645036621402383989 Application Note N en None pdf 0 N N An I2S application on Kinetis 265.8 KB AN4800 N 1378101015982727538513 /docs/en/application-note/AN4791.pdf 2016-10-31 1377833879983706615826 PSP 26 Aug 29, 2013 Application Note This Application Note describes the implementation of the Serial Peripheral Interface (SPI) module as follower on MQX RTOS 3.8 None /docs/en/application-note/AN4791.pdf English documents 245725 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4791.pdf Using DSPI as Follower on MQX RTOS (v3.8) /docs/en/application-note/AN4791.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Using DSPI as Follower on MQX RTOS (v3.8) 245.7 KB AN4791 N 1377833879983706615826 /docs/en/application-note/AN4769.pdf 2016-10-31 1376543968933733627082 PSP 27 Aug 14, 2013 Application Note This Application Note discusses the process and techniques for integrating a single Processor Expert<sup>&#174;</sup> driver into a baremetal project None /docs/en/application-note/AN4769.pdf English documents 2160294 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4769.pdf Integrating a Processor Expert driver (LDD) into a non-PEx project /docs/en/application-note/AN4769.pdf documents 645036621402383989 Application Note N en None pdf 0 N N Integrating a Processor Expert driver (LDD) into a non-PEx project 2.2 MB AN4769 N 1376543968933733627082 /secured/assets/documents/en/application-note/AN4752.pdf 2016-10-31 1370013855832696188368 PSP 28 May 31, 2013 Application Note Explaining how to add the FreeMASTER serial driver software to the embedded application and configure it. The FreeMASTER serial driver is a piece of code that enables an embedded application to communicate with the FreeMASTER PC application. Registration without Disclaimer /secured/assets/documents/en/application-note/AN4752.pdf English documents 2220944 None 645036621402383989 2024-07-15 Y /webapp/Download?colCode=AN4752&lang_cd=ja AN4752: FreeMASTER Usage, Serial Driver Implementation – Application Note /secured/assets/documents/en/application-note/AN4752.pdf documents 645036621402383989 Application Note N en Extended Y pdf 0 Y N AN4752: FreeMASTER Usage, Serial Driver Implementation – Application Note 2.2 MB AN4752 N 1370013855832696188368 /docs/en/application-note/AN4627.pdf 2013-05-30 1369937931578708068844 PSP 29 May 30, 2013 Application Note This Application Note explains how to connect a Kinetis microcontroller (MCU) to CMOS Sensor through GPIO to receive image data in memory None /docs/en/application-note/AN4627.pdf English documents 456996 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4627.pdf Connecting Kinetis MCU with CMOS sensor interface through GPIO /docs/en/application-note/AN4627.pdf documents 645036621402383989 Application Note N en None pdf 0 N N Connecting Kinetis MCU with CMOS sensor interface through GPIO 457.0 KB AN4627 N 1369937931578708068844 /docs/en/application-note/AN4753.pdf 2016-10-31 1369937932059742568603 PSP 30 May 30, 2013 Application Note Presenting the use of the Rational ClearCase version control system in CodeWarrior 10.3. It lists the files needed to maintain the project and describes how to install, set up, use, and uninstall the ClearCase plugin in CodeWarrior 10.3. The ClearCase plugin enables you to check files in and out directly from within CodeWarrior, making the work more effective. None /docs/en/application-note/AN4753.pdf English documents 477314 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN4753.pdf AN4753: Rational ClearCase Use in CodeWarrior 10.3 – Application Note /docs/en/application-note/AN4753.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4753: Rational ClearCase Use in CodeWarrior 10.3 – Application Note 477.3 KB AN4753 N 1369937932059742568603 /secured/assets/documents/en/application-note/AN4680.pdf 2016-10-31 1361507943689697586368 PSP 31 Apr 23, 2013 Application Note This Application Note describes the measurement of electrical parameters needed for vector control (FOC) of a permanent magnet synchronous motor (PMSM) Registration without Disclaimer /secured/assets/documents/en/application-note/AN4680.pdf English documents 2359146 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN4680&lang_cd=ja PMSM electrical parameters measurement /secured/assets/documents/en/application-note/AN4680.pdf documents 645036621402383989 Application Note N en Extended Y pdf 0 Y N PMSM electrical parameters measurement 2.4 MB AN4680 N 1361507943689697586368 /docs/en/application-note/AN4695.pdf 2016-10-31 1366267658721722833617 PSP 32 Apr 17, 2013 Application Note This Application Note discusses important considerations and guidelines for implementing in-software flash programming on Kinetis and ColdFire+ MCUs None /docs/en/application-note/AN4695.pdf English documents 260008 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4695.pdf Implementing in-software flash programming on Kinetis MCUs /docs/en/application-note/AN4695.pdf documents 645036621402383989 Application Note N en None pdf 0 N N Implementing in-software flash programming on Kinetis MCUs 260.0 KB AN4695 N 1366267658721722833617 /docs/en/application-note/AN4652.pdf 2016-10-31 1357617564063698160940 PSP 33 Mar 20, 2013 Application Note This Application Note implements an I2C driver based on interrupt and blocking mechanism for MQX RTOS None /docs/en/application-note/AN4652.pdf English documents 526357 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4652.pdf I2C driver based on interrupt and blocking mechanism for MQX /docs/en/application-note/AN4652.pdf documents 645036621402383989 Application Note N en None pdf 0 N N I2C driver based on interrupt and blocking mechanism for MQX 526.4 KB AN4652 N 1357617564063698160940 /docs/en/application-note/AN4626.pdf 2012-11-01 1351759369680726335859 PSP 34 Oct 31, 2012 Application Note This Application Note describes how to create a new Board Support Package (BSP) for MQX (RTOS) in KEIL for porting purposes None /docs/en/application-note/AN4626.pdf English documents 1595410 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4626.pdf MQX Board Support Package (BSP) - Porting Guide on KEIL /docs/en/application-note/AN4626.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N MQX Board Support Package (BSP) - Porting Guide on KEIL 1.6 MB AN4626 N 1351759369680726335859 /docs/en/application-note/AN4597.pdf 2016-10-31 1350026938462720409991 PSP 35 Oct 11, 2012 Application Note This Application Note describes how to tune the BLDC Sensorless motor control application reference design software. None /docs/en/application-note/AN4597.pdf English documents 1396833 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4597.pdf BLDC Sensorless Algorithm Tuning /docs/en/application-note/AN4597.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N BLDC Sensorless Algorithm Tuning 1.4 MB AN4597 N 1350026938462720409991 /secured/assets/documents/en/application-note/AN4419.pdf 2016-10-31 1326692510014709164899 PSP 36 Sep 27, 2012 Application Note This Application Note explains how to generate a PWM or clock by using the PIT, DMA and GPIO on Kinetis MCUs Registration without Disclaimer /secured/assets/documents/en/application-note/AN4419.pdf English documents 866801 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN4419&lang_cd=ja Using Kinetis DMA and GPIO to emulate timer functionality /secured/assets/documents/en/application-note/AN4419.pdf documents 645036621402383989 Application Note N en Extended Y pdf 0 Y N Using Kinetis DMA and GPIO to emulate timer functionality 866.8 KB AN4419 N 1326692510014709164899 /docs/en/application-note/AN4590.pdf 2012-09-19 1348090724428736916112 PSP 37 Sep 19, 2012 Application Note This Application Note describes how to combine the ADC and DMA into a flexible periphery supplying a resultant data stream into SRAM from any ADC input None /docs/en/application-note/AN4590.pdf English documents 233981 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4590.pdf Using DMA to emulate ADC flexible scan mode on Kinetis K /docs/en/application-note/AN4590.pdf documents 645036621402383989 Application Note N en None pdf 0 N N Using DMA to emulate ADC flexible scan mode on Kinetis K 234.0 KB AN4590 N 1348090724428736916112 /secured/assets/documents/en/application-note/AN4611.pdf 2016-10-31 1349298868720722973654 PSP 38 Sep 14, 2012 Application Note This Application Note focuses on the introduction and description of the Embedded Software and Motor Control Libraries Registration without Disclaimer /secured/assets/documents/en/application-note/AN4611.pdf English documents 246845 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN4611&lang_cd=ja Freescale Embedded Software and Motor Control libraries /secured/assets/documents/en/application-note/AN4611.pdf documents 645036621402383989 Application Note N en Extended Y pdf 0 Y N Freescale Embedded Software and Motor Control libraries 246.8 KB AN4611 N 1349298868720722973654 /docs/en/application-note/AN4568.pdf 2012-09-10 1347269479506723415174 PSP 39 Sep 9, 2012 Application Note This Application Note describes technical observations and transfer functions of the 16-bit ADC and ADC-PGA measurement chains for Kinetis K MCUs None /docs/en/application-note/AN4568.pdf English documents 459439 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4568.pdf Understanding the 16-bit ADC PGA in Kinetis K Series /docs/en/application-note/AN4568.pdf documents 645036621402383989 Application Note N en None pdf 0 N N Understanding the 16-bit ADC PGA in Kinetis K Series 459.4 KB AN4568 N 1347269479506723415174 /docs/en/application-note/AN4560.pdf 2012-08-02 1343818496569727521419 PSP 40 Aug 2, 2012 Application Note This Application Note covers FlexTimer (FTM) synchronization, Legacy and Enhanced PWM Synchronization modes on Kinetis microcontrollers (MCU) None /docs/en/application-note/AN4560.pdf English documents 1313075 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4560.pdf PWM synchronization using Kinetis Flextimers /docs/en/application-note/AN4560.pdf documents 645036621402383989 Application Note N en None pdf 0 N N PWM synchronization using Kinetis Flextimers 1.3 MB AN4560 N 1343818496569727521419 /docs/en/application-note/AN4533.pdf 2016-10-31 1339743454721723086813 PSP 41 Jun 17, 2012 Application Note This Application Note describes how to take advantage of program flash memory swap feature and over-the-air communications on Kinetis microcontrollers(MCU) None /docs/en/application-note/AN4533.pdf English documents 1247035 None 645036621402383989 2023-06-06 N /docs/en/application-note/AN4533.pdf Robust over-the-air firmware update using program flash memory swap /docs/en/application-note/AN4533.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Robust over-the-air firmware update using program flash memory swap 1.2 MB AN4533 N 1339743454721723086813 /docs/en/application-note/AN4507.pdf 2016-10-31 1339475288133683777942 PSP 42 Jun 17, 2012 Application Note This Application Note covers the system security and flash protection features on Kinetis microcontrollers (MCU) to protect code from unauthorized access None /docs/en/application-note/AN4507.pdf English documents 236578 None 645036621402383989 2023-10-09 N /docs/en/application-note/AN4507.pdf Using Kinetis Security and Flash Protection Features /docs/en/application-note/AN4507.pdf documents 645036621402383989 Application Note N en Y pdf 1 N N Using Kinetis Security and Flash Protection Features 236.6 KB AN4507 N 1339475288133683777942 /docs/en/application-note/AN4520.pdf 2012-05-08 1336540395405719588884 PSP 43 May 8, 2012 Application Note This Application Note is a quick start guide on how to use the I2S module as inter-IC sound bus on Kinetis microcontrollers (MCU) None /docs/en/application-note/AN4520.pdf English documents 427412 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4520.pdf I2S (Inter-IC Sound Bus) application on Kinetis MCUs /docs/en/application-note/AN4520.pdf documents 645036621402383989 Application Note N en None pdf 0 N N I2S (Inter-IC Sound Bus) application on Kinetis MCUs 427.4 KB AN4520 N 1336540395405719588884 /docs/en/application-note/AN4489.pdf 2016-10-31 1332364626794705650010 PSP 44 Mar 20, 2012 Application Note This Application Note discusses about the CMSIS DSP library combined with MQX RTOS for Kinetis K, L, M, E, V Arm<sup>&#174;</sup> Cortex-M microcontrollers (MCU) None /docs/en/application-note/AN4489.pdf English documents 691738 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4489.pdf Using CMSIS-DSP Algorithms with MQX and Kinetis<sup>&#174;</sup> MCUs /docs/en/application-note/AN4489.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Using CMSIS-DSP Algorithms with MQX and Kinetis<sup>&#174;</sup> MCUs 691.7 KB AN4489 N 1332364626794705650010 /docs/en/application-note/AN4369.pdf 2012-02-22 1329929029146706383837 PSP 45 Feb 13, 2012 Application Note This Application Note describes the basic methods of implementing audio outputs using DMA and PWM, DAC or I2S Audio bus on Kinetis microcontrollers (MCU) None /docs/en/application-note/AN4369.pdf English documents 521122 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4369.pdf Audio Output for Kinetis MCUs using DMA/PWM, DAC or I2S /docs/en/application-note/AN4369.pdf documents 645036621402383989 Application Note N en None pdf 0 N N Audio Output for Kinetis MCUs using DMA/PWM, DAC or I2S 521.1 KB AN4369 N 1329929029146706383837 /docs/en/application-note/AN4447.pdf 2016-10-31 1328107625109708260767 PSP 46 Jan 30, 2012 Application Note This application describes how to use MQX (RTOS) Low-Power Management (LPM) driver on Kinetis microcontrollers (MCU) None /docs/en/application-note/AN4447.pdf English documents 303630 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4447.pdf Low-Power management with MQX RTOS on Kinetis MCUs /docs/en/application-note/AN4447.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Low-Power management with MQX RTOS on Kinetis MCUs 303.6 KB AN4447 N 1328107625109708260767 /docs/en/application-note/AN4452.pdf 2016-10-31 1326899406187705806071 PSP 47 Jan 17, 2012 Application Note This Application Note describes how to use Tower<sup>&#174;</sup> TWR-LCD board to display eGUI or other graphic user interfaces such as microWindows with Kinetis MCUs None /docs/en/application-note/AN4452.pdf English documents 1718385 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4452.pdf Display eGUI using TWR-LCD board /docs/en/application-note/AN4452.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Display eGUI using TWR-LCD board 1.7 MB AN4452 N 1326899406187705806071 /docs/en/application-note/AN4381.pdf 2016-10-31 1323095853492730733083 PSP 48 Dec 5, 2011 Application Note This Application Note describes how to configure the FlexTimer module to decode the quadrature encoder signals for position and speed measurement None /docs/en/application-note/AN4381.pdf English documents 382594 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4381.pdf Configuring the FlexTimer for position and speed measurement /docs/en/application-note/AN4381.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Configuring the FlexTimer for position and speed measurement 382.6 KB AN4381 N 1323095853492730733083 /docs/en/application-note/AN4406.pdf 2011-12-28 1325133003186706059692 PSP 49 Dec 1, 2011 Application Note This Application Note explains the use of Kinetis KwikStik development tool as a memory programmer (EzProg) for Kinetis MCUs, ColdFire+ and ColdFire v2 None /docs/en/application-note/AN4406.pdf English documents 2504491 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4406.pdf Kinetis<sup>&#174;</sup> KwikStik-based EzPort programmer /docs/en/application-note/AN4406.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Kinetis<sup>&#174;</sup> KwikStik-based EzPort programmer 2.5 MB AN4406 N 1325133003186706059692 /docs/en/application-note/AN4410.pdf 2016-10-31 1322044226768699391469 PSP 50 Nov 22, 2011 Application Note This Application Note describes the synchronization between the FlexTimer (FTM) and ADC of Kinetis K40 microcontroller (MCU) targeting motor control None /docs/en/application-note/AN4410.pdf English documents 792680 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4410.pdf FlexTimer and ADC synchronization for Field-Oriented-Control /docs/en/application-note/AN4410.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N FlexTimer and ADC synchronization for Field-Oriented-Control 792.7 KB AN4410 N 1322044226768699391469 /docs/en/application-note/AN4390.pdf 2016-10-31 1321050910490712270304 PSP 51 Nov 11, 2011 Application Note This Application Note presents an example of how to design and build a custom peripheral with the Tower<sup>&#174;</sup> MCU development board to implement your prototype None /docs/en/application-note/AN4390.pdf English documents 390476 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4390.pdf Prototyping with Tower System MCU development board /docs/en/application-note/AN4390.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Prototyping with Tower System MCU development board 390.5 KB AN4390 N 1321050910490712270304 /docs/en/application-note/AN4376.pdf 2016-10-31 1320164180799708587232 PSP 52 Oct 31, 2011 Application Note This application demonstrates a speed closed-loop BLDC drive control using Hall effect positional sensors, MQX RTOS and Kinetis microcontrollers (MCU) None /docs/en/application-note/AN4376.pdf English documents 796739 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4376.pdf BLDC motor control w/ Hall Effect sensor - Kinetis MCUs /docs/en/application-note/AN4376.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N BLDC motor control w/ Hall Effect sensor - Kinetis MCUs 796.7 KB AN4376 N 1320164180799708587232 /docs/en/application-note/AN4342.pdf 2011-08-10 1313007977258712806632 PSP 53 Aug 10, 2011 Application Note This Application Note describes how to use the inter-integrated circuit (I2C) module on Coldfire+ and Kinetis microcontrollers (MCU). None /docs/en/application-note/AN4342.pdf English documents 2123856 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4342.pdf Using I2C on Coldfire+ and Kinetis MCUs /docs/en/application-note/AN4342.pdf documents 645036621402383989 Application Note N en None pdf 0 N N Using I2C on Coldfire+ and Kinetis MCUs 2.1 MB AN4342 N 1313007977258712806632 /docs/en/application-note/AN4314.pdf 2011-05-23 1305764383940725500974 PSP 54 Jul 20, 2011 Application Note This Application Note explains how to use USB2SER DLL which allows reading and modification of USB descriptor allocated in nonvolatile memory in C# project None /docs/en/application-note/AN4314.pdf English documents 543385 None 645036621402383989 2022-12-07 /docs/en/application-note/AN4314.pdf Using USB2SER DLL in C# Projects /docs/en/application-note/AN4314.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N Using USB2SER DLL in C# Projects 543.4 KB AN4314 N 1305764383940725500974 /docs/en/application-note/AN3863.pdf 2016-10-31 1253296539549704444145 PSP 55 Jul 20, 2011 Application Note AN3863: This document presents a set of guidelines for layout and placement of touch sensing circuits using NXP capacitive touch sensing technology. Touch sensing solutions, like touch panels, touch screens, and capacitive keypads are increasingly becoming a substitute for mechanical buttons or membrane keyboards. They are used in a wide range of applications from consumer products like computers, appliances, and industrial equipment. None /docs/en/application-note/AN3863.pdf English documents 804915 None 645036621402383989 2024-02-13 N /docs/en/application-note/AN3863.pdf AN3863, Designing Touch Sensing Electrodes - Application Notes /docs/en/application-note/AN3863.pdf documents 645036621402383989 Application Note N en None Y pdf 4 N N AN3863, Designing Touch Sensing Electrodes - Application Notes 804.9 KB AN3863 N 1253296539549704444145 /docs/en/application-note/AN4330.pdf 2016-10-31 1310505523701701789319 PSP 56 Jul 12, 2011 Application Note This Application Note provides guidelines to write Touch Sensing software with TSI(Touch Sensing input) module on Kinetis and ColdFire microcontroller(MCU) None /docs/en/application-note/AN4330.pdf English documents 341503 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4330.pdf Writing Touch Sensing Software Using TSI Module /docs/en/application-note/AN4330.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Writing Touch Sensing Software Using TSI Module 341.5 KB AN4330 N 1310505523701701789319 アプリケーション・ノート・ソフトウェア 9 /docs/en/application-note-software/AN5047SW.zip 2016-10-31 1421794398499718160811 PSP 57 Jan 19, 2015 Application Note Software Software for AN5047. None /docs/en/application-note-software/AN5047SW.zip English documents 672951 None 789425793691620447 2022-12-07 N /docs/en/application-note-software/AN5047SW.zip Software for AN5047 /docs/en/application-note-software/AN5047SW.zip documents 789425793691620447 Application Note Software N en None Y zip 0 N N Software for AN5047 673.0 KB AN5047SW N 1421794398499718160811 /docs/en/application-note-software/AN5052SW.zip 2016-10-31 1421770609490697360329 PSP 58 Jan 19, 2015 Application Note Software Software for AN5052. None /docs/en/application-note-software/AN5052SW.zip English documents 670751 None 789425793691620447 2022-12-07 N /docs/en/application-note-software/AN5052SW.zip Software for AN5052. /docs/en/application-note-software/AN5052SW.zip documents 789425793691620447 Application Note Software N en None Y zip 0 N N Software for AN5052. 670.8 KB AN5052SW N 1421770609490697360329 /secured/assets/documents/en/application-note-software/AN4800SW.zip 2016-10-31 1378100367433716653041 PSP 59 Sep 1, 2013 Application Note Software Software files for Application Note AN4800 that demonstrates a I2S application on Kinetis K60 (2.x silicon) MCUs&#13;&#10;&#13;&#10; Registration without Disclaimer /secured/assets/documents/en/application-note-software/AN4800SW.zip English documents 241679 None 789425793691620447 2022-12-07 Y /webapp/Download?colCode=AN4800SW&lang_cd=ja Software files for Application Note AN4800 /secured/assets/documents/en/application-note-software/AN4800SW.zip documents 789425793691620447 Application Note Software N en Extended Y zip 0 Y N Software files for Application Note AN4800 241.7 KB AN4800SW N 1378100367433716653041 /docs/en/application-note-software/AN4652SW.zip 2016-10-31 1357617449115711227134 PSP 60 Jan 7, 2013 Application Note Software Software files for Application Note AN4652 that demonstrates an interrupt-based I2C driver in Controller and Target modes on Kinetis K60 MCU and MQX RTOS&#13;&#10; None /docs/en/application-note-software/AN4652SW.zip English documents 12174 None 789425793691620447 2022-12-07 N /docs/en/application-note-software/AN4652SW.zip Software files for Application Note AN4652 /docs/en/application-note-software/AN4652SW.zip documents 789425793691620447 Application Note Software N en None Y zip 0 N N Software files for Application Note AN4652 12.2 KB AN4652SW N 1357617449115711227134 /secured/assets/documents/en/application-note-software/AN4419SW.zip 2016-10-31 1348812543662714627249 PSP 61 Sep 27, 2012 Application Note Software Software files for Application Note AN4419 that can be used as a basis of the configuration of DMA and GPIO to emulate timer functionality on Kinetis MCUs&#13;&#10; Registration without Disclaimer /secured/assets/documents/en/application-note-software/AN4419SW.zip English documents 8974092 None 789425793691620447 2022-12-07 Y /webapp/Download?colCode=AN4419SW&lang_cd=ja Software files for Application Note AN4419 /secured/assets/documents/en/application-note-software/AN4419SW.zip documents 789425793691620447 Application Note Software N en Extended Y zip 0 Y N Software files for Application Note AN4419 9.0 MB AN4419SW N 1348812543662714627249 /docs/en/application-note-software/AN4590SW.zip 2012-09-19 1348089549250722337190 PSP 62 Sep 19, 2012 Application Note Software Software for AN4590 None /docs/en/application-note-software/AN4590SW.zip English documents 8405444 None 789425793691620447 2022-12-07 N /docs/en/application-note-software/AN4590SW.zip Software for AN4590 /docs/en/application-note-software/AN4590SW.zip documents 789425793691620447 Application Note Software N en None D zip 0 N N Software for AN4590 8.4 MB AN4590SW N 1348089549250722337190 /secured/assets/documents/en/application-note-software/AN4533SW.zip 2016-10-31 1339999092872722352746 PSP 63 Jun 17, 2012 Application Note Software Software files for Application Note AN4533 that demonstrates the flash memory swap feature on Kinetis microcontrollers (MCUs)&#13;&#10;&#13;&#10; Registration without Disclaimer /secured/assets/documents/en/application-note-software/AN4533SW.zip English documents 4850347 None 789425793691620447 2022-12-07 Y /webapp/Download?colCode=AN4533SW&lang_cd=ja Software files for Application Note AN4533 /secured/assets/documents/en/application-note-software/AN4533SW.zip documents 789425793691620447 Application Note Software N en Extended Y zip 0 Y N Software files for Application Note AN4533 4.9 MB AN4533SW N 1339999092872722352746 /docs/en/application-note-software/AN4369SW.zip 2012-03-26 1332785329878740349242 PSP 64 Mar 23, 2012 Application Note Software None /docs/en/application-note-software/AN4369SW.zip English documents 1185245 None 789425793691620447 2022-12-07 N /docs/en/application-note-software/AN4369SW.zip Associated software for AN4369 /docs/en/application-note-software/AN4369SW.zip documents 789425793691620447 Application Note Software N en None D zip 0 N N Associated software for AN4369 1.2 MB AN4369SW N 1332785329878740349242 /docs/en/application-note-software/AN4396SW.zip 2012-02-21 1329890043595688944719 PSP 65 Mar 4, 2012 Application Note Software This Application Note explains the CEA709.1 features present in Kinetis MCUs implemented as part of the universal asynchronous receiver/transmitter (UART). It describes main registers involved in CEA709.1 and presents&#13;&#10;an example with a direct connection to a twisted-pair transceiver (FTT-10A). This application note comes with software showing how to use UART0 registers for sending and receiving CEA709.1 packets limited to a raw communication with other nodes. None /docs/en/application-note-software/AN4396SW.zip English documents 1184679 None 789425793691620447 2022-12-07 N /docs/en/application-note-software/AN4396SW.zip Using CEA709.1 features in Kinetis<sup>&#174;</sup> /docs/en/application-note-software/AN4396SW.zip documents 789425793691620447 Application Note Software N en None D zip 1 N N Using CEA709.1 features in Kinetis<sup>&#174;</sup> 1.2 MB AN4396SW N 1329890043595688944719 エラッタ 3 /docs/en/errata/KINETIS_50MHZ_4N86B.pdf 2014-01-21 1390344024173702376866 PSP 69 Jan 21, 2014 Errata None /docs/en/errata/KINETIS_50MHZ_4N86B.pdf English documents 181017 155452329886410597 2022-12-07 N /docs/en/errata/KINETIS_50MHZ_4N86B.pdf Errata Mask 4N86B for Kinetis K10DNxxxx5, K10DXxxx5, K20DNxxxx5 and K20DXxxxx5 MCUs /docs/en/errata/KINETIS_50MHZ_4N86B.pdf documents 155452329886410597 Errata N en None pdf 15 JAN 2014 N N Errata Mask 4N86B for Kinetis K10DNxxxx5, K10DXxxx5, K20DNxxxx5 and K20DXxxxx5 MCUs 181.0 KB KINETIS_50MHZ_4N86B N 1390344024173702376866 /docs/en/errata/KINETIS50MHZ_1N86B.pdf 2016-10-31 1329273049363744246805 PSP 70 Oct 15, 2013 Errata Mask Set Errata for Mask 1N86B - Kinetis<sup>&#174;</sup> MCUs None /docs/en/errata/KINETIS50MHZ_1N86B.pdf English documents 186318 None 155452329886410597 2022-12-07 N /docs/en/errata/KINETIS50MHZ_1N86B.pdf Errata Mask 1N86B for Kinetis<sup>®</sup> MCUs /docs/en/errata/KINETIS50MHZ_1N86B.pdf documents 155452329886410597 Errata N en None Y pdf 15 OCT 2013 N N Errata Mask 1N86B for Kinetis<sup>®</sup> MCUs 186.3 KB KINETIS50MHZ_1N86B N 1329273049363744246805 /docs/en/errata/KINETIS50MHZ_3N86B.pdf 2016-10-31 1376695930068721029629 PSP 71 Aug 16, 2013 Errata Errata Mask 3N86B for Kinetis K10DNxxxx5, K10DXxxx5, K20DNxxxx5 and K20DXxxxx5 MCUs None /docs/en/errata/KINETIS50MHZ_3N86B.pdf English documents 134327 None 155452329886410597 2022-12-07 N /docs/en/errata/KINETIS50MHZ_3N86B.pdf Errata Mask 3N86B for Kinetis K10DNxxxx5, K10DXxxx5, K20DNxxxx5 and K20DXxxxx5 MCUs /docs/en/errata/KINETIS50MHZ_3N86B.pdf documents 155452329886410597 Errata N en None Y pdf 08 AUG 2013 N N Errata Mask 3N86B for Kinetis K10DNxxxx5, K10DXxxx5, K20DNxxxx5 and K20DXxxxx5 MCUs 134.3 KB KINETIS50MHZ_3N86B N 1376695930068721029629 カタログ 3 /docs/en/brochure/EMBEDDED-ARM.pdf 2016-11-09 1290099424171710872322 PSP 66 Oct 7, 2014 Brochure Our large Arm-powered portfolio includes scalable MCU and MPU families from small ultra-low-power Kinetis MCUs to i.MX and Vybrid multimedia processors with advanced performance and feature integration and QorIQ communications processors that deliver industry-leading power and performance. None /docs/en/brochure/EMBEDDED-ARM.pdf English documents 4483515 None 712453003803778552 2022-12-07 N /docs/en/brochure/EMBEDDED-ARM.pdf Embedded Solutions Based on Arm<sup>®</sup> Technology Guide /docs/en/brochure/EMBEDDED-ARM.pdf documents 712453003803778552 Brochure N en None Y pdf 8 N N Embedded Solutions Based on Arm<sup>®</sup> Technology Guide 4.5 MB NXPARM N 1290099424171710872322 /docs/en/brochure/BRKINETISELS.pdf 2011-10-26 1319651550384703000529 PSP 67 Feb 21, 2013 Brochure Brochure focusing on entry-level Kinetis K1x/K2x 50MHz microcontrollers (MCU) for space-constraint and cost-sensitive application. None /docs/en/brochure/BRKINETISELS.pdf English documents 2656166 None 712453003803778552 2022-12-07 N /docs/en/brochure/BRKINETISELS.pdf Kinetis<sup>&#174;</sup> K1x/K2x (50Mhz) for cost sensitive applications /docs/en/brochure/BRKINETISELS.pdf documents 712453003803778552 Brochure N en None Y pdf 2 N N Kinetis<sup>&#174;</sup> K1x/K2x (50Mhz) for cost sensitive applications 2.7 MB BRKINETISELS N 1319651550384703000529 /docs/en/brochure/BR8BITBYNDBITS5.pdf 2010-06-22 1276908964800707969350 PSP 68 Nov 1, 2010 Brochure None /docs/en/brochure/BR8BITBYNDBITS5.pdf English documents 7104777 None 712453003803778552 2022-12-07 /docs/en/brochure/BR8BITBYNDBITS5.pdf Beyond Bits Issue V /docs/en/brochure/BR8BITBYNDBITS5.pdf documents 712453003803778552 Brochure N en None Y pdf 6 N Beyond Bits Issue V 7.1 MB BR8BITBYNDBITS5 N 1276908964800707969350 クイック・リファレンス・ガイド 1 /secured/assets/documents/en/quick-reference-guide/KQRUG.pdf 2016-10-31 1289000062116715449797 PSP 3 May 30, 2014 Quick Reference Guide クイック・リファレンス・ガイド A collection of code examples, useful tips, and quick reference material created to help you speed the development of your applications. Registration without Disclaimer /secured/assets/documents/en/quick-reference-guide/KQRUG.pdf English 2744723 None Quick Reference Guide 2022-12-07 Y /webapp/Download?colCode=KQRUG&docLang=en KQRUG, Kinetis K Quick Reference User Guide /secured/assets/documents/en/quick-reference-guide/KQRUG.pdf documents 803735842453594974 Quick Reference Guide N Y en Extended Y t525 pdf 3 Y N KQRUG, Kinetis K Quick Reference User Guide 2.7 MB KQRUG N 1289000062116715449797 サポート情報 1 /docs/en/supporting-information/TSS_RELEASE_NOTES.pdf 2010-11-08 1289259213459699899388 PSP 75 Nov 8, 2010 Supporting Information This Release Notes document describes the Touch Sensing Software (TSS) beta installer for Kinetis microcontrollers (MCU) None /docs/en/supporting-information/TSS_RELEASE_NOTES.pdf English documents 232384 None 371282830530968666 2023-06-18 N /docs/en/supporting-information/TSS_RELEASE_NOTES.pdf Touch Sensing Software 2.5 Beta Release notes /docs/en/supporting-information/TSS_RELEASE_NOTES.pdf documents 371282830530968666 Supporting Information N en None Y pdf 2.5 N N Touch Sensing Software 2.5 Beta Release notes 232.4 KB TSS_RELEASE_NOTES N 1289259213459699899388 セレクタ・ガイド 1 /docs/en/product-selector-guide/KINETISKMCUSELGD.pdf 2017-03-27 1409343585806685465101 PSP 2 May 2, 2018 Selector Guide セレクタ・ガイド Product Selector guide for high-performance Arm Cortex-M4 Kinetis L Series microcontrollers (MCU) None /docs/en/product-selector-guide/KINETISKMCUSELGD.pdf English 2686803 None Selector Guide 2023-06-19 N /docs/en/product-selector-guide/KINETISKMCUSELGD.pdf Selector Guide: High-performance Kinetis K Series MCUs /docs/en/product-selector-guide/KINETISKMCUSELGD.pdf documents 553557935274807777 Selector Guide N Y en None Y t528 pdf 1 N N Selector Guide: High-performance Kinetis K Series MCUs 2.7 MB KINETISKMCUSELGD N 1409343585806685465101 データ・シート 3 /docs/en/data-sheet/K10P64M50SF0.pdf 2016-10-31 1329258561305711626735 PSP 4 Oct 27, 2023 Data Sheet Kinetis K10 Data Sheet: 50MHz high-performance Arm<sup>®</sup> Cortex<sup>®</sup>-M4 microcontroller(MCU) with mixed-signal integration, up to 160KB Flash / 16KB SRAM (64 pin) None /docs/en/data-sheet/K10P64M50SF0.pdf English documents 1006432 None 980000996212993340 2023-10-27 N /docs/en/data-sheet/K10P64M50SF0.pdf Kinetis K10: 50MHz Cortex-M4 up to 128KB Flash (64 pin) /docs/en/data-sheet/K10P64M50SF0.pdf documents 980000996212993340 Data Sheet N en None Y pdf 5 N N Kinetis K10: 50MHz Cortex-M4 up to 128KB Flash (64 pin) MK10DN128VLH5,MK10DN128VMP5,MK10DN32VLH5,MK10DN32VMP5,MK10DN64VLH5,MK10DN64VMP5,MK10DX128VLH5,MK10DX128VMP5,MK10DX32VLH5,MK10DX32VMP5,MK10DX64VLH5,MK10DX64VMP5 1.0 MB K10P64M50SF0 N 1329258561305711626735 /docs/en/data-sheet/K10P32M50SF0.pdf 2016-10-31 1329258554100724935644 PSP 5 May 4, 2012 Data Sheet Kinetis K10 Data Sheet: 50MHz high-performance Arm<sup>®</sup> Cortex<sup>®</sup>-M4 microcontroller(MCU) with mixed-signal integration, up to 160KB Flash / 16KB SRAM (32 pin) None /docs/en/data-sheet/K10P32M50SF0.pdf English documents 2068284 None 980000996212993340 2022-12-07 N /docs/en/data-sheet/K10P32M50SF0.pdf Kinetis K10: 50MHz Cortex-M4 up to 128KB Flash (32 pin) /docs/en/data-sheet/K10P32M50SF0.pdf documents 980000996212993340 Data Sheet N en None Y pdf 4 N N Kinetis K10: 50MHz Cortex-M4 up to 128KB Flash (32 pin) MK10DN128VFM5,MK10DN32VFM5,MK10DN64VFM5,MK10DX128VFM5,MK10DX32VFM5,MK10DX64VFM5 2.1 MB K10P32M50SF0 N 1329258554100724935644 /docs/en/data-sheet/K10P48M50SF0.pdf 2016-10-31 1329258557717724339851 PSP 6 May 4, 2012 Data Sheet Kinetis K10 Data Sheet: 50MHz high-performance Arm<sup>®</sup> Cortex<sup>®</sup>-M4 microcontroller(MCU) with mixed-signal integration, up to 160KB Flash / 16KB SRAM (48 pin) None /docs/en/data-sheet/K10P48M50SF0.pdf English documents 2098282 None 980000996212993340 2022-12-07 N /docs/en/data-sheet/K10P48M50SF0.pdf Kinetis K10: 50MHz Cortex-M4 up to 128KB Flash (48 pin) /docs/en/data-sheet/K10P48M50SF0.pdf documents 980000996212993340 Data Sheet N en None Y pdf 4 N N Kinetis K10: 50MHz Cortex-M4 up to 128KB Flash (48 pin) MK10DN128VFT5,MK10DN128VLF5,MK10DN32VFT5,MK10DN32VLF5,MK10DN64VFT5,MK10DN64VLF5,MK10DX128VLF5,MK10DX32VFT5,MK10DX32VLF5,MK10DX64VFT5,MK10DX64VLF5 2.1 MB K10P48M50SF0 N 1329258557717724339851 ファクト・シート 2 /docs/en/fact-sheet/KNTSK10FMLYFS.pdf 2016-10-31 1276915766848722416768 PSP 72 Feb 14, 2020 Fact Sheet Kinetis K1x Fact Sheet: Baseline high-performance Arm<sup>®</sup> Cortex<sup>®</sup>-M4(F) microcontroller (MCU) family with mixed-signal and advanced security integration None /docs/en/fact-sheet/KNTSK10FMLYFS.pdf English documents 362972 None 736675474163315314 2022-12-07 N /docs/en/fact-sheet/KNTSK10FMLYFS.pdf Kinetis<sup>®</sup> K1x: Baseline Cortex-M4(F) MCUs /docs/en/fact-sheet/KNTSK10FMLYFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 4 N N Kinetis<sup>®</sup> K1x: Baseline Cortex-M4(F) MCUs 363.0 KB KNTSK10FMLYFS N 1276915766848722416768 /docs/en/fact-sheet/KNTSK1XFMLYFS.pdf 2016-10-31 1394497079453740415678 PSP 1 Mar 10, 2014 Fact Sheet ファクト・シート Kinetis K2x MCU Family - Fact Sheet None /docs/en/fact-sheet/KNTSK1XFMLYFS.pdf English 222175 None Fact Sheet 2022-12-07 N /docs/en/fact-sheet/KNTSK1XFMLYFS.pdf Kinetis K1x MCU Family - Fact Sheet /docs/en/fact-sheet/KNTSK1XFMLYFS.pdf documents 736675474163315314 Fact Sheet N Y en None Y t523 pdf 9 N N Kinetis K1x MCU Family - Fact Sheet 222.2 KB KNTSK1XFMLYFS N 1394497079453740415678 リファレンス・マニュアル 3 /secured/assets/documents/en/reference-manual/K10P48M50SF0RM.pdf 2016-10-31 1329321607118707240354 PSP 7 Feb 15, 2012 Reference Manual Kinetis K10 Reference Manual: 50MHz high-performance Arm<sup>®</sup> Cortex<sup>®</sup>-M4 microcontroller(MCU), mixed-signal integration, up to 160KB Flash / 16KB SRAM (48 pin) Registration without Disclaimer /secured/assets/documents/en/reference-manual/K10P48M50SF0RM.pdf English documents 13525435 None 500633505221135046 2023-06-18 Y /webapp/Download?colCode=K10P48M50SF0RM&lang_cd=ja Kinetis K10: 50MHz Cortex-M4 up to 128KB Flash (48 pin) /secured/assets/documents/en/reference-manual/K10P48M50SF0RM.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 2 Y N Kinetis K10: 50MHz Cortex-M4 up to 128KB Flash (48 pin) MK10DN128VFT5,MK10DN128VLF5,MK10DN32VFT5,MK10DN32VLF5,MK10DN64VFT5,MK10DN64VLF5,MK10DX128VLF5,MK10DX32VFT5,MK10DX32VLF5,MK10DX64VFT5,MK10DX64VLF5 13.5 MB K10P48M50SF0RM N 1329321607118707240354 /secured/assets/documents/en/reference-manual/K10P32M50SF0RM.pdf 2016-10-31 1329321037814723401452 PSP 8 Feb 14, 2012 Reference Manual Kinetis K10 Reference Manual: 50MHz high-performance Arm<sup>®</sup> Cortex<sup>®</sup>-M4 microcontroller(MCU), mixed-signal integration, up to 160KB Flash / 16KB SRAM (32 pin) Registration without Disclaimer /secured/assets/documents/en/reference-manual/K10P32M50SF0RM.pdf English documents 13302277 None 500633505221135046 2023-06-18 Y /webapp/Download?colCode=K10P32M50SF0RM&lang_cd=ja Kinetis K10: 50MHz Cortex-M4 up to 128KB Flash (32 pin) /secured/assets/documents/en/reference-manual/K10P32M50SF0RM.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 2 Y N Kinetis K10: 50MHz Cortex-M4 up to 128KB Flash (32 pin) MK10DN128VFM5,MK10DN32VFM5,MK10DN64VFM5,MK10DX128VFM5,MK10DX32VFM5,MK10DX64VFM5 13.3 MB K10P32M50SF0RM N 1329321037814723401452 /secured/assets/documents/en/reference-manual/K10P64M50SF0RM.pdf 2016-10-31 1329256590256693458166 PSP 9 Feb 14, 2012 Reference Manual Kinetis K10 Reference Manual: 50MHz high-performance Arm<sup>®</sup> Cortex<sup>®</sup>-M4 microcontroller(MCU), mixed-signal integration, up to 160KB Flash / 16KB SRAM (64 pin) Registration without Disclaimer /secured/assets/documents/en/reference-manual/K10P64M50SF0RM.pdf English documents 13558864 None 500633505221135046 2023-06-18 Y /webapp/Download?colCode=K10P64M50SF0RM&lang_cd=ja Kinetis K10: 50MHz Cortex-M4 up to 128KB Flash (64 pin) /secured/assets/documents/en/reference-manual/K10P64M50SF0RM.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 2 Y N Kinetis K10: 50MHz Cortex-M4 up to 128KB Flash (64 pin) MK10DN128VLH5,MK10DN128VMP5,MK10DN32VLH5,MK10DN32VMP5,MK10DN64VLH5,MK10DN64VMP5,MK10DX128VLH5,MK10DX128VMP5,MK10DX32VLH5,MK10DX32VMP5,MK10DX64VLH5,MK10DX64VMP5 13.6 MB K10P64M50SF0RM N 1329256590256693458166 リリース・ノート 1 /docs/en/release-note/PE_5.2_RN.txt 2016-10-31 1315843389511720901966 PSP 74 Sep 12, 2011 Release Note Release Notes document related to Processor Expert<sup>&#174;</sup> (PEx) 5.2&#13;&#10; None /docs/en/release-note/PE_5.2_RN.txt English documents 24202 None 487216834315582133 2022-12-07 N /docs/en/release-note/PE_5.2_RN.txt Processor Expert 5.2 Release Notes /docs/en/release-note/PE_5.2_RN.txt documents 487216834315582133 Release Note N en None Y txt 5.2 N N Processor Expert 5.2 Release Notes 24.2 KB PE_5.2_RN N 1315843389511720901966 製品概要 1 /docs/en/product-brief/K10PB.pdf 2016-10-31 1276895908203705978488 PSP 73 Aug 1, 2012 Product Brief Kinetis K1x Product Brief: Baseline high-performance Arm Cortex-M4(F) microcontroller (MCU) family with mixed-signal and advanced security integration None /docs/en/product-brief/K10PB.pdf English documents 1691827 None 899114358132306053 2022-12-07 N /docs/en/product-brief/K10PB.pdf Kinetis K1x: Baseline Cortex-M4(F) MCUs /docs/en/product-brief/K10PB.pdf documents 899114358132306053 Product Brief N en None Y pdf 11 N N Kinetis K1x: Baseline Cortex-M4(F) MCUs 1.7 MB K10PB N 1276895908203705978488 true Y Products
