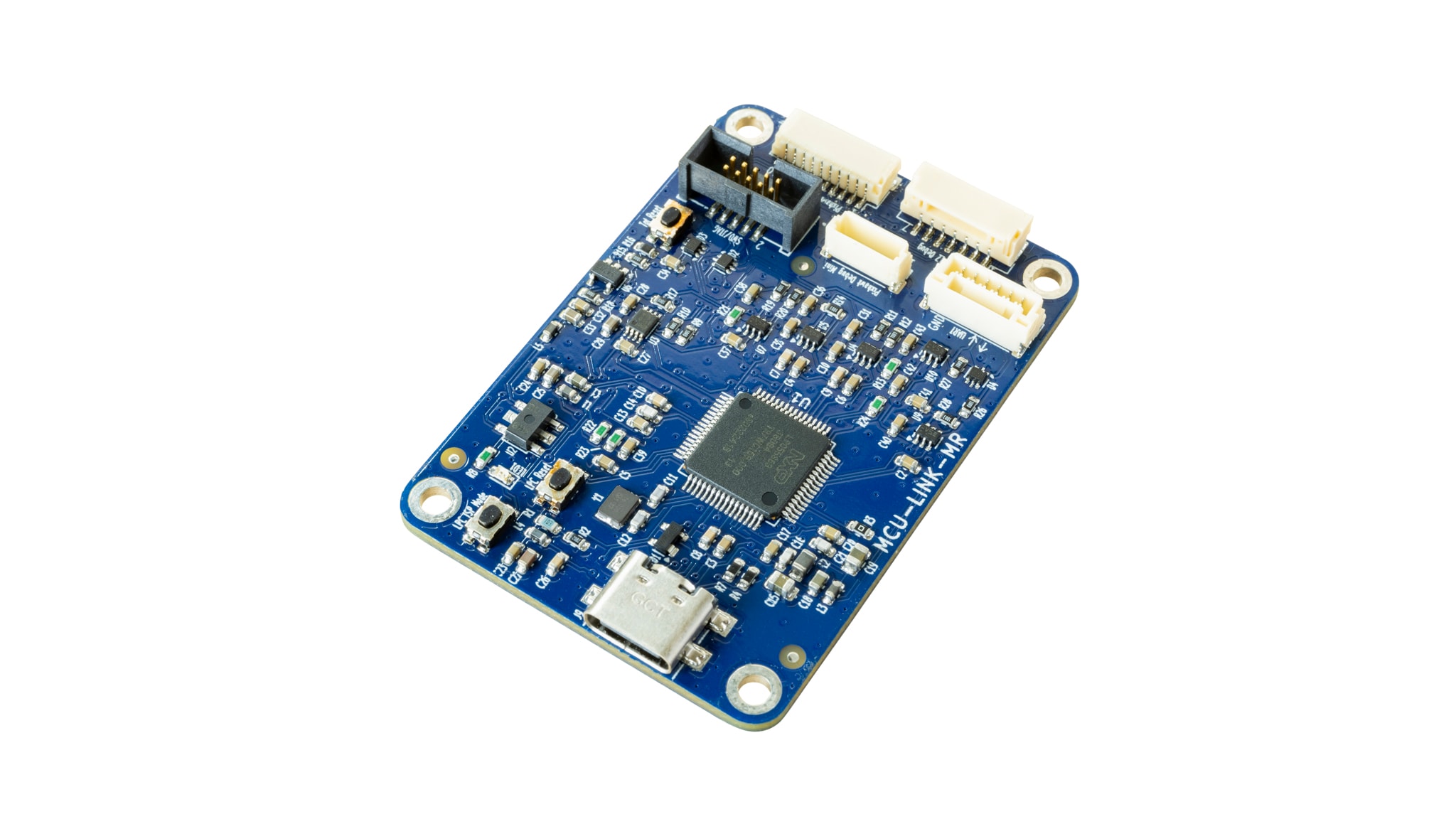

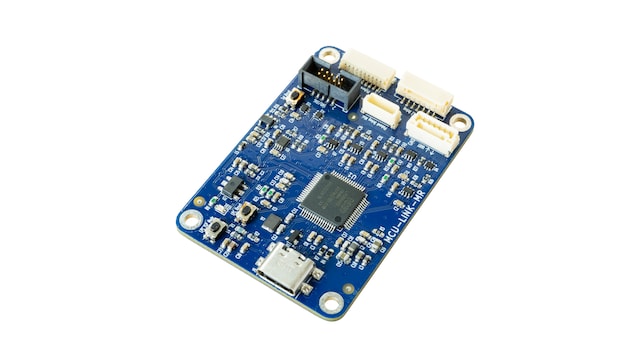

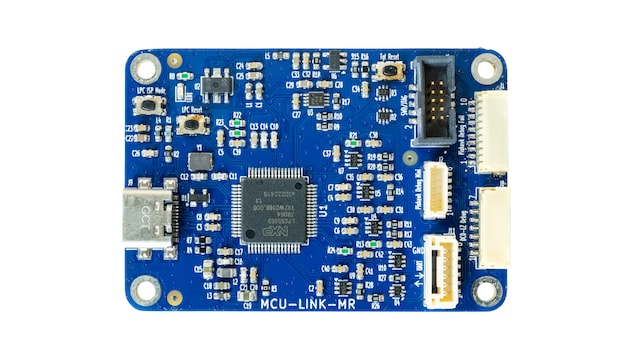

MCU-LINK-MR Debug Probe with USB-C, Serial and Mobile Robotics Interfaces

MCU-LINK-MR アクティブ

画像にカーソルを合わせると拡大表示されます。

Jointly developed with Hochschule Luzern, MCU-LINK-MR is a powerful debug probe that can be used seamlessly with IDEs in the MCUXpresso ecosystem. In addition to the standard JTAG/SWD header, it includes additional Dronecode standard connectors (DroneCode Debug), to make it plug and play with mobile robotics specific boards such as the Pixhawk/PX4 type flight controller.

MCU-LINK-MR is supported by the LinkServer package for firmware updates.
