ワン・ストップ・コネクティビティ32ビット・マイクロコントローラ

MCF5225X アクティブ

MCF5225xファミリは、オンチップUSB、イーサネット、CAN、および暗号化機能を高度に統合したデバイスで構成されており、包括的なMQX™ RTOSソフトウェアも無償で提供されています。このソリューションは、ファクトリ・オートメーション、ビル制御、医療アプリケーションに最適です。

ブロック図

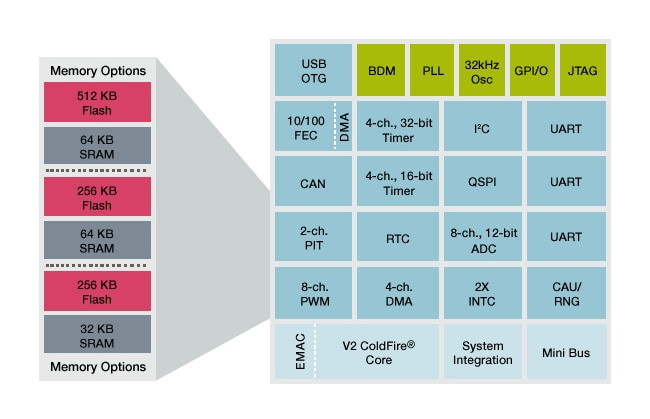

ColdFire MCF5225Xマイクロコントローラのブロック図

ColdFire MCF5225X Microcontroller Block Diagram
図を取得する PDF

特長

  • ColdFire® V2コア（66 MHzと80 MHzのオプション）
  • 無償のMQX™ソフトウェア・ソリューション

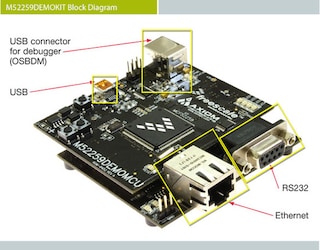

  • コネクティビティ：USB 2.0フルスピード・ホスト/デバイス/On-The-Go (OTG) コントローラ、FlexCANコントローラ、10/100イーサネット・コントローラ
  • 外部Mini FlexBusインターフェース
  • 暗号化アクセラレータ・ユニット
  • 最大512 KBのフラッシュ・メモリ
  • 最大64 KBのSRAM
  • 最大96本の汎用I/O (GPIO)
  • 本製品はNXP®の長期製品供給プログラムの対象であり、発売から最低10年間の供給が保証されています

購入/パラメータ

1-10 の 15 結果

マッチしていない 1 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

パッケージタイプ

パッケージ端子数

標準価格

動作周波数[最大](MHz)

Flash (kB)

RAM (kB)

汎用I/O

電源電圧 [最小] (V)

電源電圧 [最大] (V)

Ambient Operating Temperature (Min to Max) (℃)

MCF52252AF80
データ・シート

アクティブ

LQFP100

100

10K @ US$7.65

80

256

32

56

3

3.6

0 to 70

MCF52252CAF66
データ・シート

アクティブ

LQFP100

100

10K @ US$8.12

66

256

32

56

3

3.6

-40 to 85

MCF52254AF80
データ・シート

アクティブ

LQFP100

100

10K @ US$8.80

80

512

64

56

3

3.6

0 to 70

MCF52254CAF66
データ・シート

アクティブ

LQFP100

100

10K @ US$9.27

66

512

64

56

3

3.6

-40 to 85

MCF52255CAF80
データ・シート

アクティブ

LQFP100

100

10K @ US$10.20 - 10K @ US$11.41

80

512

64

56

3

3.6

-40 to 85

MCF52256AG80
データ・シート

アクティブ

LQFP144

144

10K @ US$8.41

80

256

32

96

3

3.6

0 to 70

MCF52256CAG66
データ・シート

アクティブ

LQFP144

144

10K @ US$8.88

66

256

64

96

3

3.6

-40 to 85

MCF52256CVN66
データ・シート

アクティブ

LBGA144

144

10K @ US$8.88

66

256

64

96

3

3.6

-40 to 85

MCF52258AG80
データ・シート

アクティブ

LQFP144

144

10K @ US$9.63 - 10K @ US$10.78

80

512

64

96

3

3.6

0 to 70

MCF52258CAG66
データ・シート

アクティブ

LQFP144

144

10K @ US$10.10

66

512

64

96

3

3.6

-40 to 85
