USB On-The-Go搭載32ビット・マイクロコントローラ

MCF5221X
製造中止

MCF5221Xファミリは、USB On-The-Go (OTG) および幅広いシリアル・インターフェース機能（最大3つのUART、1つのシリアル・ペリフェラル・インターフェース (SPI)、および2つのI²C）を統合しており、デバイスまたはホストUSBに加え、他のシステムへの容易な接続が要求されるアプリケーションの開発に最適です。

MCF5221Xファミリは、コスト効果に優れた低消費電力のColdFire® V2コア（3.3 VのCPUで最大80 MHz、76 MIPSの性能）をベースにしています。

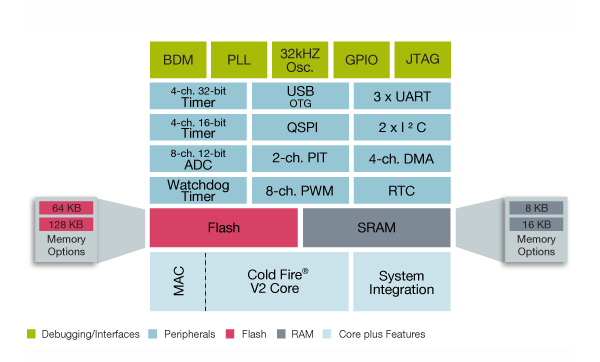

ブロック図

ColdFire MCF5221Xマイクロコントローラのブロック図

ColdFire MCF5221X Microcontroller Block Diagram

特長

  • ColdFire® V2コアは、66～80 MHzで76 MIPS (Dhrystone 2.1) を実現
  • 64 KB、128 KBのフラッシュ
  • 16 KB、8 KBのSRAM
  • 内蔵ペリフェラル：
    • USB OTG
    • 最大3つのUART
    • 2つのI²C
    • 最大3つのシリアル通信インターフェース (SCI)
    • パルス幅変調 (PWM)
    • 最大63の汎用I/O (GPIO)

購入/パラメータ

8 結果

除外 8 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

パッケージタイプ

パッケージ端子数

動作周波数[最大](MHz)

Flash (kB)

RAM (kB)

汎用I/O

電源電圧 [最小] (V)

電源電圧 [最大] (V)

Ambient Operating Temperature (Min to Max) (℃)

MCF52210CAE80
データ・シート

生産終了 (EOL)

LQFP64

64

80

64

16

43

3

3.6

-40 to 85

MCF52210CVM80
データ・シート

生産終了 (EOL)

LBGA81

81

80

64

16

55

3

3.6

-40 to 85

MCF52211CAE66
データ・シート

生産終了 (EOL)

LQFP64

64

66

128

16

43

3

3.6

-40 to 85

MCF52211CAE80
データ・シート
—

生産終了 (EOL)

LQFP64

64

80

128

16

43

3

3.6

-40 to 85

MCF52211CAF80
データ・シート
—

生産終了 (EOL)

LQFP100

100

80

128

16

63

3

3.6

-40 to 85

MCF52212AE50
データ・シート

生産終了 (EOL)

LQFP64

64

50

64

8

43

3

3.6

0 to 70

MCF52212CAE50
データ・シート

生産終了 (EOL)

LQFP64

64

50

64

8

43

3

3.6

-40 to 85

MCF52213AE50
データ・シート
—

生産終了 (EOL)

LQFP64

64

50

128

8

43

3

3.6

0 to 70
