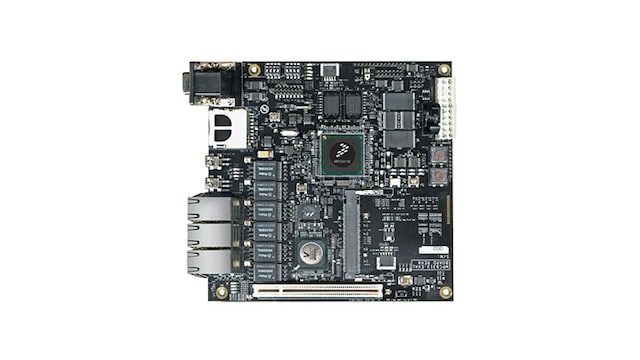

MPC8313E-RDB Reference Platform

MPC8313E-RDB
アクティブ

画像にカーソルを合わせると拡大表示されます。

The NXP® MPC8313E-RDB reference platform is ideal for hardware and software development for cost-optimized networking applications.

  • The cost-effective MPC8313E communications processor family meets the requirements of several small office/home office (SOHO), printing, IP services and industrial control applications
  • It leverages NXP’s highly integrated MPC8313E processor built on Power Architecture® technology and leading-edge external components: a five-port Gigabit Ethernet switch, USB port, one PCI slot, one MiniPCI slot and one SD card memory slot
  • The high level of integration in the MPC8313E helps to lower overall system costs, improve performance and simplify board design

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

PowerQUICC II Pro (MPC83xx)

  • MPC8313E: Low-Power PowerQUICC® II Pro Processor with DDR2, PCI, 1 GB Ethernet, Security, USB

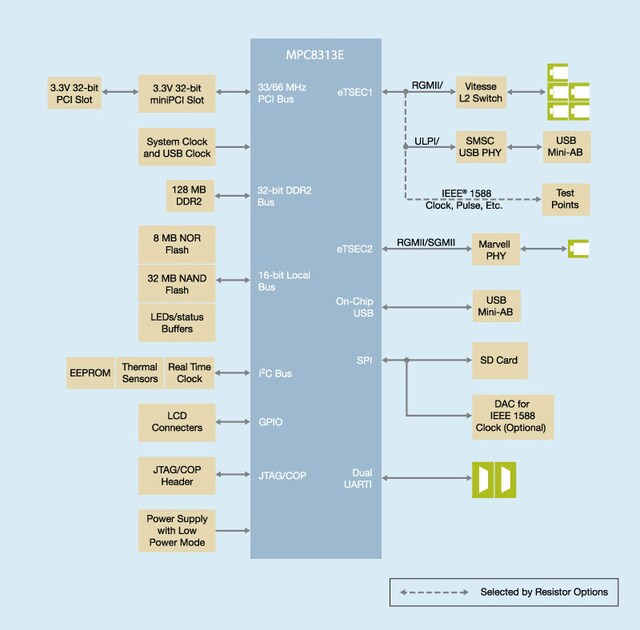

Features

Processor

  • NXP® MPC8313E running at 333/333 MHz (CPU/DDR2)

Memory

  • 128 MB unbuffered DDR2 SDRAM discrete devices
  • 8 MB flash single-chip memory
  • 32 MB NAND flash memory
  • 256 KB M24256 serial EEPROM
  • SD connector to interface with the SD memory card in SPI mode

Connectivity

  • LCD connectors by GPIO
  • ATX power supply connector
  • JTAG/COP for debugging

Interfaces

  • 10/100/1000 Base-T Ethernet ports:
    • eTSEC1, RGMII interface: five 10/100/1000 Base-T RJ-45 interfaces using Vitesse™ VSC7385 L2 switch
    • eTSEC2, selectable RGMII, or SGMII interface: one 10/100/1000 Base-T RJ-45 interface using Mavell™ 88E1111 PHY
  • USB 2.0 port:
    • High-speed host/device USB interface: selectable on-chip PHY or external ULPI PHY interface by SMSC USB3300 USB PHY
  • PCI: 32-bit PCI interface running at up to 66 MHz
    • One 32-bit 3.3 V PCI slot connected to PCI bus
    • One 32-bit 3.3 V Mini PCI slot connected to PCI bus
  • Dual UART ports:
    • DUART interface: supports two UART up to 115200 bps for console display

購入オプション

MPC8313E-RDBC-Image

クリックして展開

  • MPC8313E-RDBC
    アクティブ

  • PowerQUICC II Pro MPC8313E Reference Development Board rev2.2.

  • $343.85 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
