8-bit 5V Full-featured MCU with Rich Analog

S08PB
アクティブ

The S08PB MCUs integrate key features like 12-bit ADC, analog comparator, amplifier, I2C, and flexible timers to simplify design and to help reduce system cost.

The S08P family is simple, yet powerful, and offers EFT/ESD performance. This scalable and pin-compatible MCU family reuses existing S08 core, IP and tools for easy migration from existing 8-bit S08 products. Our 5V 8-bit S08P MCU family gives your designs more durability and reliability in harsh industrial and user interface environments, meeting appliance safety standard IEC60730.

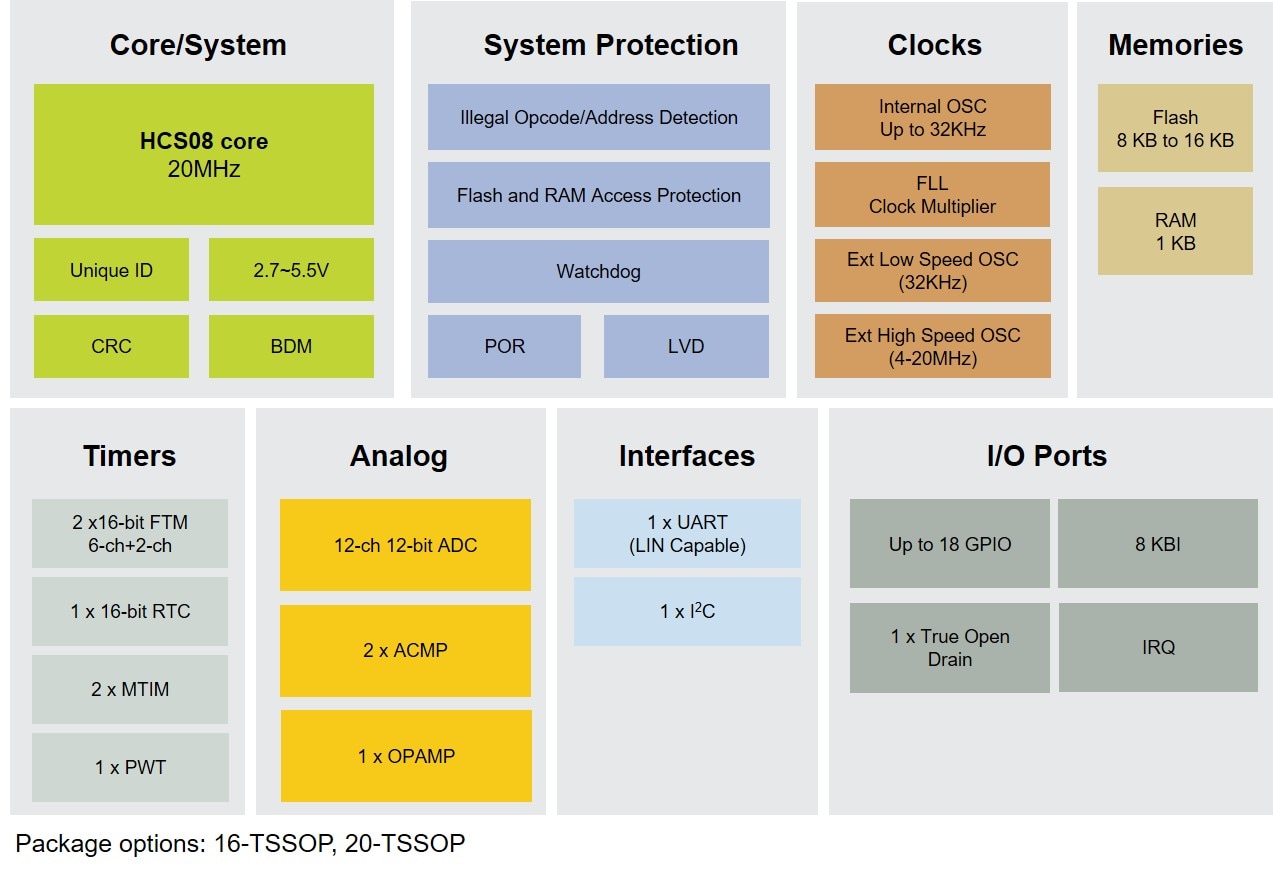

ブロック図

MC9S08PB-BD

MC9S08PB-BD
図を取得する PDF

Features

Memory Combination

  • Provide 16 kB and 8 kB Flash option
  • 1 kB RAM

Robust I/O

  • Up to 18 GPIO with filtering in 20-pin
  • One true open drain pin
  • Up to 8 keyboard interrupt inputs
  • Pin-to-pin compatible with S08P family

12-ch. , 12-bit SAR ADC

  • Linear successive approximation algorithm with up to 12-bit resolution
  • Up to 12-ch. single-ended external analog inputs
  • 12-bit, 10-bit, and 8-bit modes, eight-deep result FIFO
  • Single or continuous conversion (automatic return to idle after single conversion)

Feature-Rich Integration

  • 6-ch. + 2-ch. FlexTimer + 2 x MTIM
  • 16-bit Real-time counter (RTC)
  • 1 x SCI (UART)
  • 1 x I²C
  • 2 x Analog Comparator
  • One analog amplifier (OPAMP) with fixed gain x20
  • Enhanced watchdog and programmable CRC
  • High accuracy internal clock

Working Condition

  • Optional temperature range, including -40~105°C and -40~125°C
  • Support supply range 2.7 to 5.5 V

購入/パラメータ

8 結果

マッチしていない 0 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

パッケージタイプ

パッケージ端子数

標準価格

Flash (kB)

RAM (kB)

コア・タイプ

動作周波数[最大](MHz)

Bus Frequency (typ) (MHz)

I2C

電源電圧 [最小] (V)

電源電圧 [最大] (V)

汎用I/O

Ambient Operating Temperature (Min to Max) (℃)

タイマー機能

追加機能

SCI

MC9S08PB16MTG
データ・シート

アクティブ

TSSOP16

16

10K @ US$0.65

16

1

S08

20

20

1

2.7

5.5

14

-40 to 125

MTIM, RTC, TPM

ACMP, ADC, OPAMP

1

MC9S08PB16MTJ
データ・シート

アクティブ

TSSOP20

20

10K @ US$0.71

16

1

S08

20

20

1

2.7

5.5

18

-40 to 125

MTIM, RTC, TPM

ACMP, ADC, OPAMP

1

MC9S08PB16VTG
データ・シート

アクティブ

TSSOP16

16

10K @ US$0.59

16

1

S08

20

20

1

2.7

5.5

14

-40 to 105

MTIM, RTC, TPM

ACMP, ADC, OPAMP

1

MC9S08PB16VTJ
データ・シート

アクティブ

TSSOP20

20

10K @ US$0.65

16

1

S08

20

20

1

2.7

5.5

18

-40 to 105

MTIM, RTC, TPM

ACMP, ADC, OPAMP

1

MC9S08PB8MTG
データ・シート

アクティブ

TSSOP16

16

10K @ US$0.56

8

1

S08

20

20

1

2.7

5.5

14

-40 to 125

MTIM, RTC, TPM

ACMP, ADC, OPAMP

1

MC9S08PB8MTJ
データ・シート

アクティブ

TSSOP20

20

10K @ US$0.63

8

1

S08

20

20

1

2.7

5.5

18

-40 to 125

MTIM, RTC, TPM

ACMP, ADC, OPAMP

1

MC9S08PB8VTG
データ・シート

アクティブ

TSSOP16

16

10K @ US$0.51

8

1

S08

20

20

1

2.7

5.5

14

-40 to 105

MTIM, RTC, TPM

ACMP, ADC, OPAMP

1

MC9S08PB8VTJ
データ・シート

アクティブ

TSSOP20

20

10K @ US$0.57

8

1

S08

20

20

1

2.7

5.5

18

-40 to 105

MTIM, RTC, TPM

ACMP, ADC, OPAMP

1
