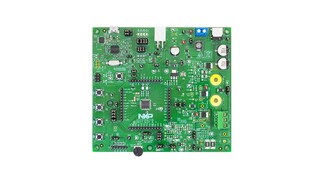

Mixed-Signal MCU for Automotive and Industrial Motor Control Applications

S12ZVMA アクティブ
Simplify Your System Design and Reduce Time to Market with Integrated S12 MagniV<sup>&#174;</sup> Solutions

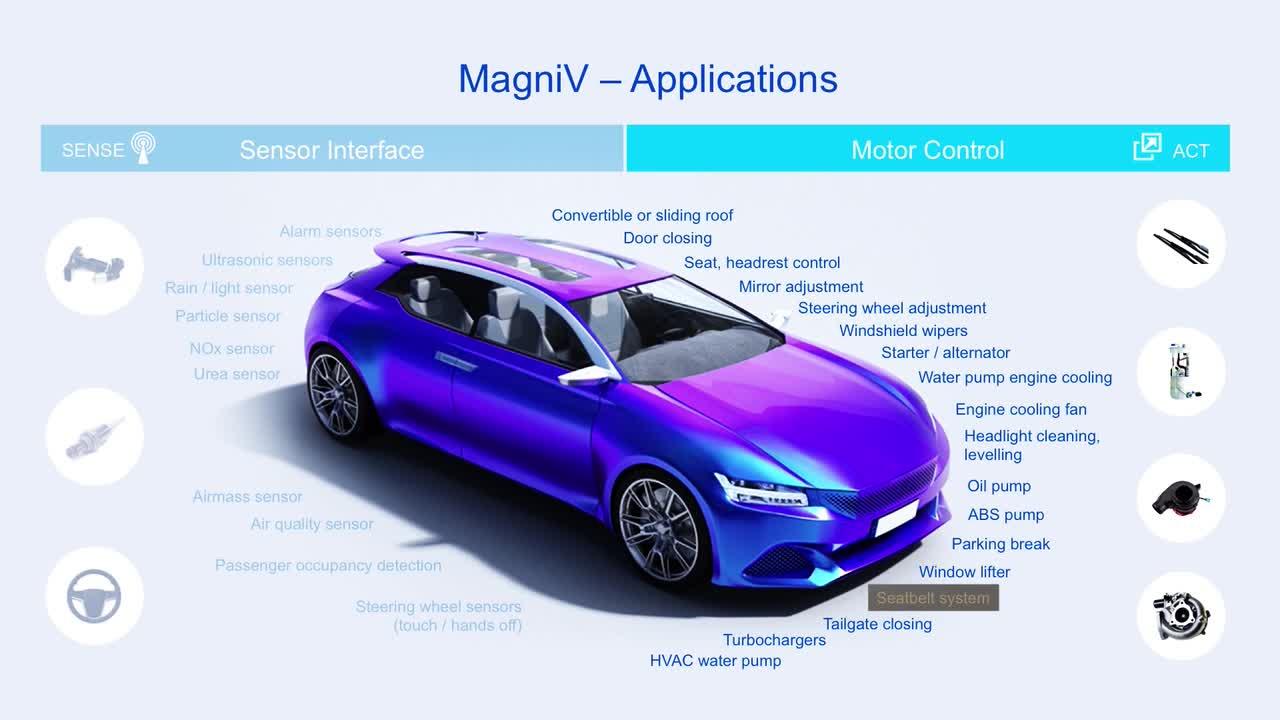

動画の上をクリックすると再生されます。

The S12ZVMA MCU family is a programmable single-chip solution for simple loads needed to be controlled in the car remotely via LIN or PWM command. Integrated LIN-PHY, 12V-Vreg, and half-bridge gate driver allow building extremely compact solutions for DC-motors, solenoids or resistive loads.

ブロック図

図を選択する。:

S12ZVMA

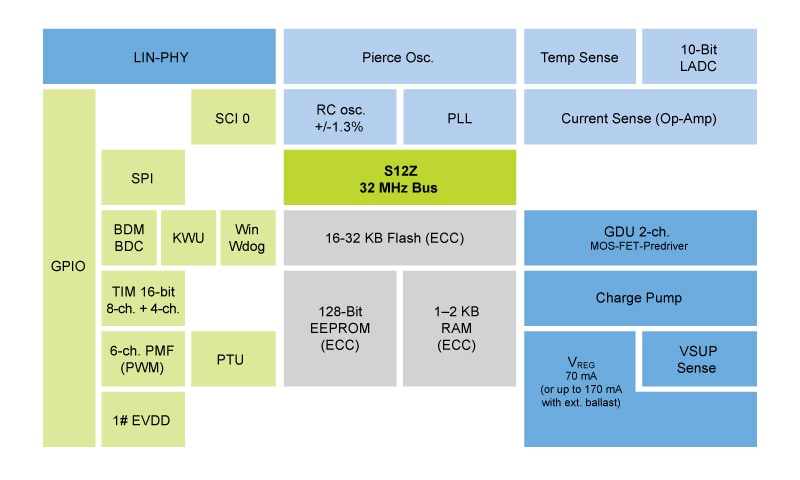

S12ZVMA Block Diagram

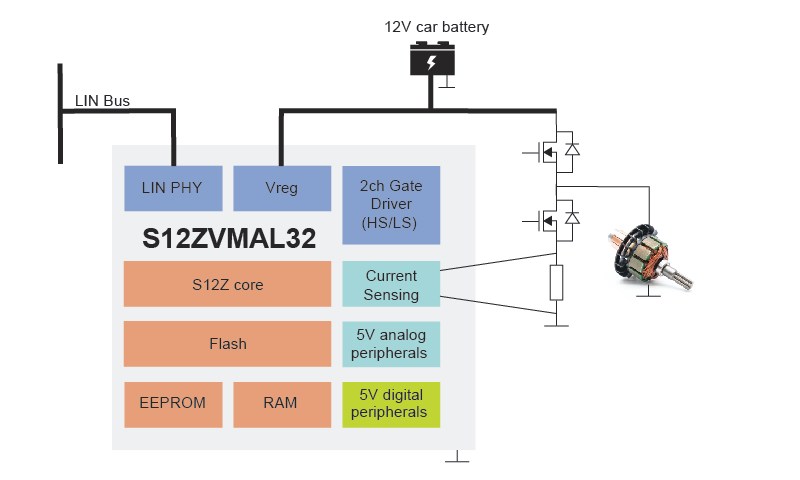

DC Motor Application Using S12ZVMA

DC Motor Application Using S12ZVMA
図を取得する PDF

Features

  • S12Z core at 32 MHz bus speed
  • Up to 32 KB flash
  • 128 B EEPROM
  • Up to 2 KB RAM
  • LIN physical layer
  • 12 V voltage regulator
  • half-bridge MOSFET gate driver (2ch)
  • Op-Amp for current sensing
  • Included in longevity program (15 years minimum)
  • Ultra-Reliable MCUs
