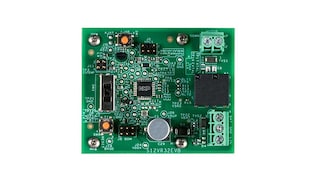

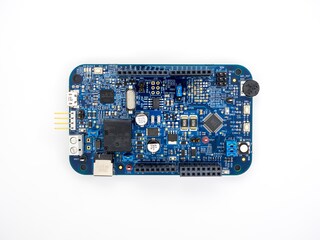

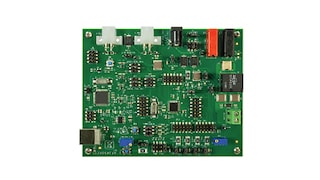

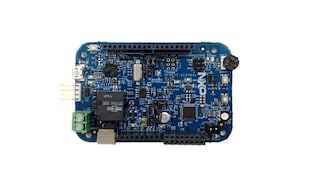

S12VRミックスド・シグナル・マイクロコントローラ（車載/産業用リレー駆動型モータ制御）

S12VR アクティブ
S12 MagniV Microcontrollers for Automotive Applications

動画の上をクリックすると再生されます。

S12VRは、ウィンドウ・リフトやサンルーフなどの産業/車載用アプリケーション向けの、最小かつ効率に優れ、拡張性の高いリレー駆動型DCモータ制御ソリューションを提供します。

S12 16ビットマイクロコントローラとLIN物理インターフェース、ローサイド・ドライバ、ハイサイド・ドライバが統合されています。12 Vスイッチ・インターフェース用の高電圧入力ピン、センサ電源用のEVDDにより、システム、認定、および製造にかかるコストを削減します。

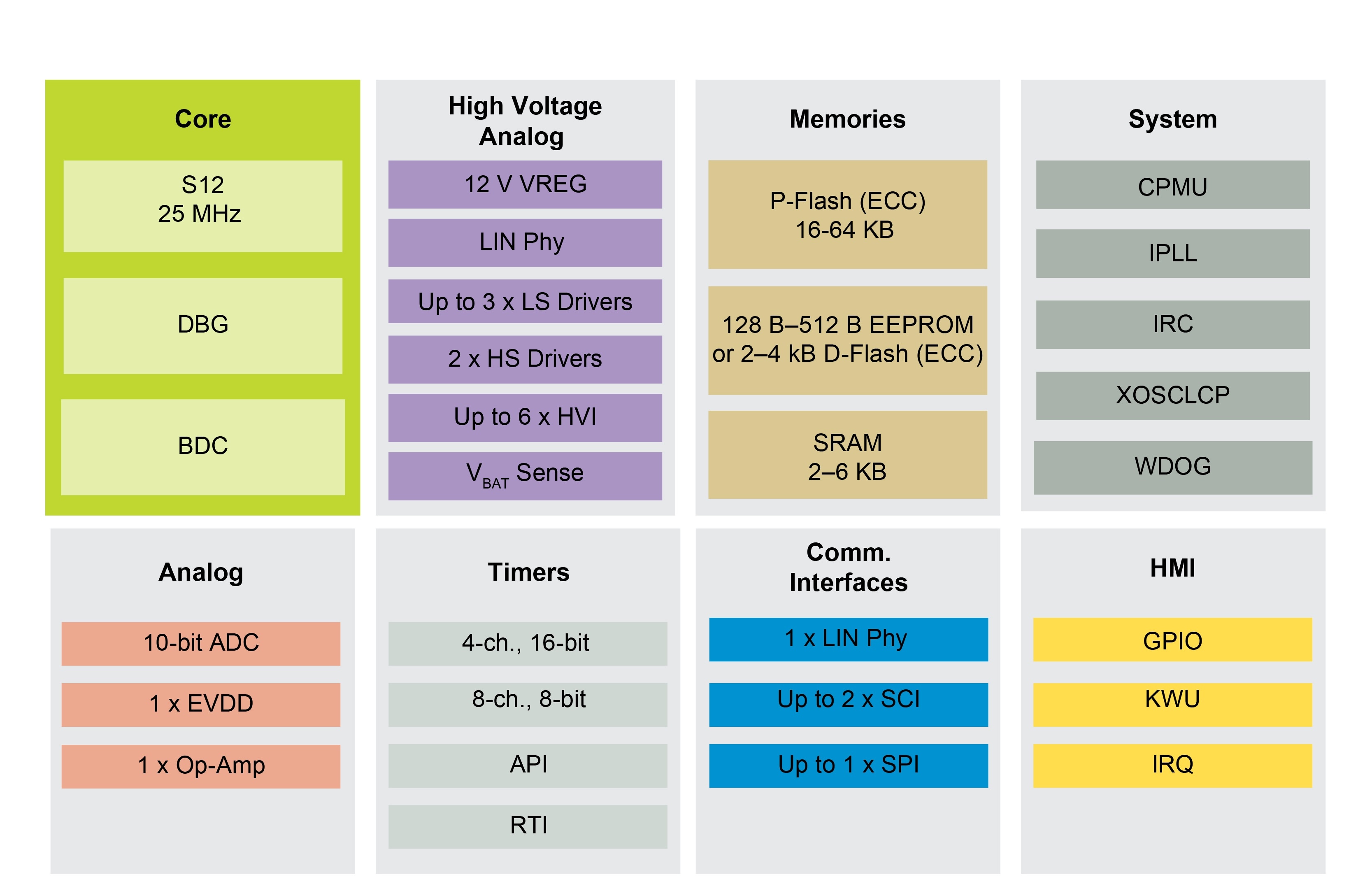

ブロック図

S12VR(P) マイクロコントローラ

S12VR Microcontroller Block Diagram
図を取得する PDF

特長

  • S12（最大25 MHz）16ビットCPU
  • 16～64kBフラッシュ・メモリ（ECC搭載）
  • カー・バッテリーから直接動作する電圧レギュレータ
  • LIN物理層
  • ローサイド・ドライバ（標準、リレー用） x 2
  • ローサイド・ドライバ（S12VRPのみ） x 1
  • ハイサイド・ドライバ x 1～2
  • スイッチ監視用高電圧入力 x 4～6
  • オンチップRC発振器、+/- 1.3%の公差にトリム

購入/パラメータ

1-10 の 20 結果

マッチしていない 1 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

パッケージタイプ

パッケージ端子数

標準価格

コア・タイプ

動作周波数[最大](MHz)

Flash (kB)

RAM (kB)

EEPROM (KB)

その他アナログ

PHY

汎用I/O

Number of LIN Channels

SCI

SPI

S9S12VR16F0CLC

アクティブ

LQFP32

32

1K @ US$1.78

S12

25

16

2

0.13

1-ch. HS Driver

LIN

16

1

1

0

S9S12VR16F0MLC

アクティブ

LQFP32

32

1K @ US$1.95

S12

25

16

2

0.13

1-ch. HS Driver

LIN

16

1

1

0

S9S12VR16F0VLC

アクティブ

LQFP32

32

1K @ US$1.87

S12

25

16

2

0.13

1-ch. HS Driver

LIN

16

1

1

0

S9S12VR32F0CLC

アクティブ

LQFP32

32

1K @ US$1.82

S12

25

32

2

0.13

1-ch. HS Driver

LIN

16

1

1

0

S9S12VR32F0MLC

アクティブ

LQFP32

32

1K @ US$2.00

S12

25

32

2

0.13

1-ch. HS Driver

LIN

16

1

1

0

S9S12VR32F0VLC

アクティブ

LQFP32

32

1K @ US$1.91

S12

25

32

2

0.13

1-ch. HS Driver

LIN

16

1

1

0

S9S12VR48AF0CLC

アクティブ

LQFP32

32

1K @ US$2.68

S12

25

48

2

0.51

2-ch. HS Driver

LIN

12

1

2

1

S9S12VR48AF0CLF

アクティブ

LQFP48

48

1K @ US$2.84

S12

25

48

2

0.51

2-ch. HS Driver

LIN

24

1

2

1

S9S12VR48AF0MLC

アクティブ

LQFP32

32

1K @ US$2.95

S12

25

—

2

0.51

2-ch. HS Driver

LIN

16

1

2

1

S9S12VR48AF0MLF

アクティブ

LQFP48

48

1K @ US$3.26

S12

25

48

2

0.51

2-ch. HS Driver

LIN

24

1

2

1

N true 0 PSPS12VRja 21 アプリケーション・ノート Application Note t789 9 アプリケーション・ノート・ソフトウェア Application Note Software t783 2 エラッタ Errata t522 3 エンジニアリング・ブリテン Technical Notes t521 1 カタログ Brochure t518 1 ファクト・シート Fact Sheet t523 1 リファレンス・マニュアル Reference Manual t877 4 ja 2 1 4.4 English MC9S12VRRM: The MC9S12VR family is an optimized automotive 16-bit microcontroller product line focused on low-cost, high-performance, and low pin-count. This family integrates an S12 microcontroller with a LIN physical interface, a 5V regulator system to supply the microcontroller, and analog blocks to control other elements of the system that operate at vehicle battery level. The MC9S12VR family is targeted at generic automotive applications requiring single node LIN communications. 1449590546190710539665 PSP 3.7 MB Registration without Disclaimer None documents Extended 1449590546190710539665 /secured/assets/documents/en/reference-manual/MC9S12VRRM.pdf 3720856 /secured/assets/documents/en/reference-manual/MC9S12VRRM.pdf MC9S12VRRM Y N 2019-06-20 MC9S12VRRM, MC9S12VR-Family Reference Manual /webapp/Download?colCode=MC9S12VRRM&docLang=en /secured/assets/documents/en/reference-manual/MC9S12VRRM.pdf Reference Manual N Y 500633505221135046 2022-12-07 pdf Y en Jun 4, 2021 Reference Manual t877 リファレンス・マニュアル Reference Manual Y N MC9S12VRRM, MC9S12VR-Family Reference Manual 2 0 Chinese 1348675790636720298681zh PSP 168.9 KB None None documents None 1348675790636720298681 /docs/zh/fact-sheet/S12VRFS.pdf 168913 /docs/zh/fact-sheet/S12VRFS.pdf S12VRFS documents N N 2017-03-24 S12 MagniV S12VR Microcontrollers - One-Pager /docs/zh/fact-sheet/S12VRFS.pdf /docs/zh/fact-sheet/S12VRFS.pdf /docs/zh/fact-sheet/S12VRFS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 N zh 736675474163315314 Fact Sheet N S12 MagniV S12VR微控制器 - 寻呼机 5 English Highly integrated part ideal for space constrained relay driven DC motors on LIN Bus 1348675790636720298681 PSP 168.9 KB None None documents None 1348675790636720298681 /docs/en/fact-sheet/S12VRFS.pdf 168913 /docs/en/fact-sheet/S12VRFS.pdf S12VRFS N N 2017-03-24 S12 MagniV S12VR Microcontrollers - One-Pager /docs/en/fact-sheet/S12VRFS.pdf /docs/en/fact-sheet/S12VRFS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 pdf N en May 17, 2018 Fact Sheet t523 ファクト・シート Fact Sheet Y N S12 MagniV S12VR Microcontrollers - One-Pager false ja ja リファレンス・マニュアル Reference Manual 3 3 1.5 English MC9S12VRP64, The S12VRP-Series is an optimized automotive 16-bit microcontroller product line focused on low-cost, high-performance, and low pin-count. Like other MagniV devices, the S12VRP-Series integrates key components such as a LIN physical interface and a voltage regulator system to supply the microcontroller directly from the vehicle battery. 1526554958437691156343 PSP 5.6 MB Registration without Disclaimer None documents Extended 1526554958437691156343 /secured/assets/documents/en/reference-manual/MC9S12VRP64.pdf 5647404 /secured/assets/documents/en/reference-manual/MC9S12VRP64.pdf MC9S12VRP64 documents Y N 2018-05-17 MC9S12VRP-Series Reference Manual and Datasheet /webapp/Download?colCode=MC9S12VRP64&lang_cd=ja /secured/assets/documents/en/reference-manual/MC9S12VRP64.pdf Reference Manual N 500633505221135046 2024-04-10 pdf Y en Mar 13, 2024 500633505221135046 Reference Manual Y N MC9S12VRP-Series Reference Manual and Datasheet 4 2 English DRM160: This reference manual describes the design of a relay-driven DC motor controller using a Hall sensor for position feedback. 1424850925243728287666 PSP 717.0 KB Registration without Disclaimer None documents Extended 1424850925243728287666 /secured/assets/documents/en/reference-manual/DRM160.pdf 717043 /secured/assets/documents/en/reference-manual/DRM160.pdf DRM160 documents Y N 2018-10-06 DRM160, Window Lift and Relay Based DC Motor Control Reference Design Using the S12VR Microcontrollers /webapp/Download?colCode=DRM160&lang_cd=ja /secured/assets/documents/en/reference-manual/DRM160.pdf Reference Manual N 500633505221135046 2023-06-18 pdf Y en Aug 11, 2015 500633505221135046 Reference Manual Y N DRM160, Window Lift and Relay Based DC Motor Control Reference Design Using the S12VR Microcontrollers 5 4 English S12CPUV2: This manual describes the features and operation of the core (central processing unit, or CPU, and development support functions) used in all HCS12 microcontrollers. For reference, information is provided for the M68HC12. 1057081966191736936200 PSP 3.5 MB Registration without Disclaimer None documents Extended 1057081966191736936200 /secured/assets/documents/en/reference-manual/S12CPUV2.pdf 3485215 /secured/assets/documents/en/reference-manual/S12CPUV2.pdf S12CPUV2 documents Y N 2016-10-31 S12CPUV2 - Reference Manual /webapp/Download?colCode=S12CPUV2&lang_cd=ja /secured/assets/documents/en/reference-manual/S12CPUV2.pdf Reference Manual N 500633505221135046 2022-12-07 pdf Y en Mar 1, 2006 500633505221135046 Reference Manual Y N S12CPUV2 - Reference Manual アプリケーション・ノート Application Note 9 6 8.0 English This application note provides guidelines for the board mounting and handling of NXP semiconductor packages. 1442088340466730481306 PSP 1.4 MB None None documents None 1442088340466730481306 /docs/en/application-note/AN10365.pdf 1359519 /docs/en/application-note/AN10365.pdf AN10365 documents N N 2016-10-08 AN10365, Surface mount reflow soldering - Application note /docs/en/application-note/AN10365.pdf /docs/en/application-note/AN10365.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Oct 1, 2021 645036621402383989 Application Note Y N AN10365, Surface mount reflow soldering - Application note PDF 7 2.0 Chinese 1319753989104702481752zh PSP 7.6 MB Registration without Disclaimer None documents Extended 1319753989104702481752 /secured/assets/documents/zh/application-note/AN4388.pdf 7584935 /secured/assets/documents/zh/application-note/AN4388.pdf AN4388 documents Y N 2016-10-31 AN4388: Quad Flat Package (QFP) – Application Note /secured/assets/documents/zh/application-note/AN4388.pdf https://www.nxp.com.cn/webapp/Download?colCode=AN4388&docLang=zh Application Note N 645036621402383989 2024-01-19 zh May 10, 2022 645036621402383989 Application Note Y N AN4388，四方扁平封装(QFP) - 应用说明 3 English Providing guidelines for the handling and board mounting of NXP's QFP packages. Including recommendations for the design of Printed Circuit Boards (PCB), board mounting, and rework. Also providing generic information of package properties: Moisture Sensitivity Level (MSL) rating, board level reliability, mechanical and thermal resistance data. Because semiconductor components are electrically and mechanically sensitive devices, proper precautions for handling, packing and processing QFP packages are described. 1319753989104702481752 PSP 7.6 MB Registration without Disclaimer None documents Extended 1319753989104702481752 /secured/assets/documents/en/application-note/AN4388.pdf 7584935 /secured/assets/documents/en/application-note/AN4388.pdf AN4388 documents Y N 2016-10-31 AN4388: Quad Flat Package (QFP) – Application Note /webapp/Download?colCode=AN4388&lang_cd=ja /secured/assets/documents/en/application-note/AN4388.pdf Application Note N 645036621402383989 2024-01-19 pdf Y en Aug 31, 2019 645036621402383989 Application Note Y N AN4388: Quad Flat Package (QFP) – Application Note 8 1 English AN5122SW.zip /secured/assets/documents/en/application-note-software/AN5122SW.zip /webapp/Download?colCode=AN5122SW&docLang=en Introducing NXP’s LIN driver and relying on a “hands-on” example to get the LIN driver up and running. Providing some guidelines about using some functionalities like different frame types, configuring followers through LIN and considerations for going to sleep and waking up through LIN. 1429077223404713889665 PSP 2.5 MB None None documents None 1429077223404713889665 /docs/en/application-note/AN5122.pdf 2466657 /docs/en/application-note/AN5122.pdf AN5122 documents N N 2017-03-06 AN5122: Using NXP’s LIN Driver with the MagniV Family – Application Note /docs/en/application-note/AN5122.pdf /docs/en/application-note/AN5122.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Mar 5, 2017 645036621402383989 Application Note Y N AN5122: Using NXP’s LIN Driver with the MagniV Family – Application Note 9 0 English AN5389SW.zip /docs/en/application-note-software/AN5389SW.zip /docs/en/application-note-software/AN5389SW.zip Focusing on implementing a bootloader that receives the new software to program through LIN. Implementing a bootloader has become more frequent with the growth of memory size in automotive MCUs and LIN being one of the most widely used automotive communication protocols. 1487849547729707137629 PSP 423.4 KB None None documents None 1487849547729707137629 /docs/en/application-note/AN5389.pdf 423385 /docs/en/application-note/AN5389.pdf AN5389 documents N N 2017-02-23 AN5389: S12Z MagniV LIN Bootloader – Application Note /docs/en/application-note/AN5389.pdf /docs/en/application-note/AN5389.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Feb 22, 2017 645036621402383989 Application Note Y N AN5389: S12Z MagniV LIN Bootloader – Application Note 10 1 Chinese 1362587632314731771346zh PSP 559.6 KB Registration without Disclaimer None documents Extended 1362587632314731771346 /secured/assets/documents/zh/application-note/AN4643.pdf 559635 /secured/assets/documents/zh/application-note/AN4643.pdf AN4643 documents Y N 2016-10-31 AN4643: S12VR Hardware Design Guidelines – Application Note /secured/assets/documents/zh/application-note/AN4643.pdf https://www.nxp.com.cn/webapp/Download?colCode=AN4643&docLang=zh Application Note N 645036621402383989 2023-06-18 zh Oct 7, 2013 645036621402383989 Application Note Y N AN4643，S12VR硬件设计指南 - 应用说明 3 English Listing the required external components and shows how they should be connected to use the MC9S12VR family of S12 MagniV microcontrollers in any application. 1362587632314731771346 PSP 559.6 KB Registration without Disclaimer None documents Extended 1362587632314731771346 /secured/assets/documents/en/application-note/AN4643.pdf 559635 /secured/assets/documents/en/application-note/AN4643.pdf AN4643 documents Y N 2016-10-31 AN4643: S12VR Hardware Design Guidelines – Application Note /webapp/Download?colCode=AN4643&lang_cd=ja /secured/assets/documents/en/application-note/AN4643.pdf Application Note N 645036621402383989 2023-06-18 pdf Y en Oct 6, 2016 645036621402383989 Application Note Y N AN4643: S12VR Hardware Design Guidelines – Application Note 11 1 English Highlighting the differences between MC9S12VR64 and MC9S12VR32 to facilitate the migration of already developed applications to the new platform MC9S12VR32. 1471861847756708637909 PSP 700.7 KB None None documents None 1471861847756708637909 /docs/en/application-note/AN5091.pdf 700706 /docs/en/application-note/AN5091.pdf AN5091 documents N N 2021-07-21 AN5091: Migrating Applications from MC9S12VR64 to MC9S12VR32 – Application Note /docs/en/application-note/AN5091.pdf /docs/en/application-note/AN5091.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Aug 21, 2016 645036621402383989 Application Note Y N AN5091: Migrating Applications from MC9S12VR64 to MC9S12VR32 – Application Note 12 1 English AN4650: NXP introduced a new revision on the S12VR family with the purpose of enhancing the family's LIN EMC/EMI robustness and providing new functionality to make the device more flexible and even safer. This document explains the differences between the two revisions and provides details on how to order and identify them. 1357762273568703502007 PSP 373.8 KB None None documents None 1357762273568703502007 /docs/en/application-note/AN4650.pdf 373765 /docs/en/application-note/AN4650.pdf AN4650 documents N N 2013-01-09 AN4650, Functional Differences in Mask Sets 2N05E and 0N59H of the MC9S12VR Family - Application Notes /docs/en/application-note/AN4650.pdf /docs/en/application-note/AN4650.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jul 28, 2013 645036621402383989 Application Note Y N AN4650, Functional Differences in Mask Sets 2N05E and 0N59H of the MC9S12VR Family - Application Notes 13 1 English AN4540: The primary objective of this application note is to provide a quick comparison between two MCU families that can be used in relay-driven applications. This comparison should provide enough information for the user to select between the two families of devices: the S12VR MCU family, mask set 0N59H, and the dual-die, single-package MM912_634 family of microcontrollers (MM912F634, MM912G634, and MM912H634). 1341607948674713110635 PSP 192.2 KB None None documents None 1341607948674713110635 /docs/en/application-note/AN4540.pdf 192189 /docs/en/application-note/AN4540.pdf AN4540 documents N N 2012-07-06 AN4540, Quick Comparison Between the MC9S12VR and MM912_634 - Application Notes /docs/en/application-note/AN4540.pdf /docs/en/application-note/AN4540.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Dec 13, 2012 645036621402383989 Application Note Y N AN4540, Quick Comparison Between the MC9S12VR and MM912_634 - Application Notes 14 0 English AN4448SW.zip /secured/assets/documents/en/application-note-software/AN4448SW.zip /webapp/Download?colCode=AN4448SW&docLang=en This document explains how to use the code contained in the lab example package created for NXP<sup>&#174;</sup>.s MC9S12VR microcontroller. 1326224900575729226679 PSP 263.0 KB None None documents None 1326224900575729226679 /docs/en/application-note/AN4448.pdf 262988 /docs/en/application-note/AN4448.pdf AN4448 documents N N 2012-01-10 MC9S12VR Family Demonstration Lab Training /docs/en/application-note/AN4448.pdf /docs/en/application-note/AN4448.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jan 10, 2012 645036621402383989 Application Note Y N MC9S12VR Family Demonstration Lab Training アプリケーション・ノート・ソフトウェア Application Note Software 2 15 1 English AN5122: This document provides an introduction to NXP&#8217;s LIN driver, with &#13;&#10;a "hands-on" example to get the LIN driver up and running.&#13;&#10; 1429076371611705839534 PSP 5.8 MB Registration without Disclaimer None documents Extended 1429076371611705839534 /secured/assets/documents/en/application-note-software/AN5122SW.zip 5821553 /secured/assets/documents/en/application-note-software/AN5122SW.zip AN5122SW documents Y N 2017-03-06 Application note software for AN5122 /webapp/Download?colCode=AN5122SW&lang_cd=ja /secured/assets/documents/en/application-note-software/AN5122SW.zip Application Note Software N 789425793691620447 2024-07-15 zip Y en Mar 5, 2017 789425793691620447 Application Note Software Y N Application note software for AN5122 16 0 English 1333567525332706930596 PSP 1.7 MB Registration without Disclaimer None documents Extended 1333567525332706930596 /secured/assets/documents/en/application-note-software/AN4448SW.zip 1678236 /secured/assets/documents/en/application-note-software/AN4448SW.zip AN4448SW documents Y N 2016-10-31 Associated software for AN4448 /webapp/Download?colCode=AN4448SW&lang_cd=ja /secured/assets/documents/en/application-note-software/AN4448SW.zip Application Note Software N 789425793691620447 2022-12-07 zip Y en Jan 10, 2012 789425793691620447 Application Note Software Y N Associated software for AN4448 カタログ Brochure 1 17 0 English Simplify your system design and reduce time to market with integrated S12 MagniV® solutions 1630535268286723864752 PSP 1.8 MB None None documents None 1630535268286723864752 /docs/en/brochure/MAGNIVFAMBR.pdf 1823754 /docs/en/brochure/MAGNIVFAMBR.pdf MAGNIVFAMBR documents N N 2021-09-01 MagniV mixed-signal microcontrollers – Brochure /docs/en/brochure/MAGNIVFAMBR.pdf /docs/en/brochure/MAGNIVFAMBR.pdf Brochure N 712453003803778552 2025-02-07 en Sep 1, 2021 712453003803778552 Brochure Y N MagniV mixed-signal microcontrollers – Brochure 0 Japanese 統合されたS12 MagniV®ソリューションで、システム設計を簡素化するとともに市場投入までの期間を短縮できます 1630535268286723864752ja PSP 1.8 MB None None documents None 1630535268286723864752 /docs/ja/brochure/MAGNIVFAMBR.pdf 1823754 /docs/ja/brochure/MAGNIVFAMBR.pdf MAGNIVFAMBR documents N N 2021-09-01 MagniV mixed-signal microcontrollers – Brochure /docs/ja/brochure/MAGNIVFAMBR.pdf /docs/ja/brochure/MAGNIVFAMBR.pdf Brochure N 712453003803778552 2025-02-07 pdf N ja Nov 1, 2023 712453003803778552 Brochure Y N MagniV®ミックスド・シグナルMCU_パンフレット エンジニアリング・ブリテン Technical Notes 1 18 1 English EB793: This document, developed in response to customer inquiries, describes Motor Industry Software Reliability Association (MISRA&#8482;) compliance in the C Language header files provided by NXP for the automotive market. 1369851108709706895647 PSP 197.0 KB Registration without Disclaimer None documents Extended 1369851108709706895647 /secured/assets/documents/en/engineering-bulletin/EB793.pdf 197012 /secured/assets/documents/en/engineering-bulletin/EB793.pdf EB793 documents Y N 2016-10-31 MISRA Compliance in Freescale Automotive C Language Header Files - Engineering Bulletin /webapp/Download?colCode=EB793&lang_cd=ja /secured/assets/documents/en/engineering-bulletin/EB793.pdf Technical Notes N 389245547230346745 2024-07-15 pdf Y en May 28, 2013 389245547230346745 Technical Notes Y N MISRA Compliance in Freescale Automotive C Language Header Files - Engineering Bulletin エラッタ Errata 3 19 March 11, 2021 English Mask Set Errata for Mask 0N59H / 0P79C for MC9S12VR64 and MC9S12VR48 MCUs 1443602179202718878191 PSP 145.1 KB None None documents None 1443602179202718878191 /docs/en/errata/MC9S12VR_0N59H.pdf 145094 /docs/en/errata/MC9S12VR_0N59H.pdf MC9S12VR_0N59H documents N N 2021-03-23 MC9S12VR64 and MC9S12VR48 – Errata /docs/en/errata/MC9S12VR_0N59H.pdf /docs/en/errata/MC9S12VR_0N59H.pdf Errata N 155452329886410597 2022-12-07 pdf N en Mar 23, 2021 155452329886410597 Errata Y N MC9S12VR64 and MC9S12VR48 – Errata 20 August 12, 2015 English MC9S12VR_2N05E: This errata presents information about mask 2N05E for MC9S12VR64 and MC9S12VR48. 1443602681343719424196 PSP 95.8 KB None None documents None 1443602681343719424196 /docs/en/errata/MC9S12VR_2N05E.pdf 95813 /docs/en/errata/MC9S12VR_2N05E.pdf MC9S12VR_2N05E documents N N 2015-09-30 MC9S12VR_2N05E, Mask Set Errata for Mask 2N05E /docs/en/errata/MC9S12VR_2N05E.pdf /docs/en/errata/MC9S12VR_2N05E.pdf Errata N 155452329886410597 2022-12-07 pdf N en Sep 29, 2015 155452329886410597 Errata Y N MC9S12VR_2N05E, Mask Set Errata for Mask 2N05E 21 Rev. October 25 English This errata sheet applies to the following devices:&#13;&#10;&#13;&#10;MC9S12VR64, MC9S12VR48 1352202096494711918743 PSP 6.9 KB None None documents None 1352202096494711918743 /docs/en/errata/MSE9S12VR64_2N05E.htm 6945 /docs/en/errata/MSE9S12VR64_2N05E.htm MSE9S12VR64_2N05E documents N N 2012-11-06 MC9S12VR64, Mask 2N05E /docs/en/errata/MSE9S12VR64_2N05E.htm /docs/en/errata/MSE9S12VR64_2N05E.htm Errata N 155452329886410597 2022-12-07 htm N en Nov 5, 2012 155452329886410597 Errata Y N MC9S12VR64, Mask 2N05E false 0 S12VR downloads ja true 1 Y PSP Y Y アプリケーション・ノート 9 /docs/en/application-note/AN10365.pdf 2016-10-08 1442088340466730481306 PSP 6 Oct 1, 2021 Application Note This application note provides guidelines for the board mounting and handling of NXP semiconductor packages. PDF None /docs/en/application-note/AN10365.pdf English documents 1359519 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN10365.pdf AN10365, Surface mount reflow soldering - Application note /docs/en/application-note/AN10365.pdf documents 645036621402383989 Application Note N en None Y pdf 8.0 N N AN10365, Surface mount reflow soldering - Application note 1.4 MB AN10365 N 1442088340466730481306 /secured/assets/documents/en/application-note/AN4388.pdf 2016-10-31 1319753989104702481752 PSP 7 Aug 31, 2019 Application Note Providing guidelines for the handling and board mounting of NXP's QFP packages. Including recommendations for the design of Printed Circuit Boards (PCB), board mounting, and rework. Also providing generic information of package properties: Moisture Sensitivity Level (MSL) rating, board level reliability, mechanical and thermal resistance data. Because semiconductor components are electrically and mechanically sensitive devices, proper precautions for handling, packing and processing QFP packages are described. Registration without Disclaimer /secured/assets/documents/en/application-note/AN4388.pdf English documents 7584935 None 645036621402383989 2024-01-19 Y /webapp/Download?colCode=AN4388&lang_cd=ja AN4388: Quad Flat Package (QFP) – Application Note /secured/assets/documents/en/application-note/AN4388.pdf documents 645036621402383989 Application Note N en Extended Y pdf 3 Y N AN4388: Quad Flat Package (QFP) – Application Note 7.6 MB AN4388 N 1319753989104702481752 /docs/en/application-note/AN5122.pdf 2017-03-06 1429077223404713889665 PSP 8 Mar 5, 2017 Application Note Introducing NXP’s LIN driver and relying on a “hands-on” example to get the LIN driver up and running. Providing some guidelines about using some functionalities like different frame types, configuring followers through LIN and considerations for going to sleep and waking up through LIN. None /docs/en/application-note/AN5122.pdf English documents 2466657 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN5122.pdf AN5122: Using NXP’s LIN Driver with the MagniV Family – Application Note /docs/en/application-note/AN5122.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N AN5122: Using NXP’s LIN Driver with the MagniV Family – Application Note 2.5 MB AN5122 N 1429077223404713889665 /docs/en/application-note/AN5389.pdf 2017-02-23 1487849547729707137629 PSP 9 Feb 22, 2017 Application Note Focusing on implementing a bootloader that receives the new software to program through LIN. Implementing a bootloader has become more frequent with the growth of memory size in automotive MCUs and LIN being one of the most widely used automotive communication protocols. None /docs/en/application-note/AN5389.pdf English documents 423385 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN5389.pdf AN5389: S12Z MagniV LIN Bootloader – Application Note /docs/en/application-note/AN5389.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN5389: S12Z MagniV LIN Bootloader – Application Note 423.4 KB AN5389 N 1487849547729707137629 /secured/assets/documents/en/application-note/AN4643.pdf 2016-10-31 1362587632314731771346 PSP 10 Oct 6, 2016 Application Note Listing the required external components and shows how they should be connected to use the MC9S12VR family of S12 MagniV microcontrollers in any application. Registration without Disclaimer /secured/assets/documents/en/application-note/AN4643.pdf English documents 559635 None 645036621402383989 2023-06-18 Y /webapp/Download?colCode=AN4643&lang_cd=ja AN4643: S12VR Hardware Design Guidelines – Application Note /secured/assets/documents/en/application-note/AN4643.pdf documents 645036621402383989 Application Note N en Extended Y pdf 3 Y N AN4643: S12VR Hardware Design Guidelines – Application Note 559.6 KB AN4643 N 1362587632314731771346 /docs/en/application-note/AN5091.pdf 2021-07-21 1471861847756708637909 PSP 11 Aug 21, 2016 Application Note Highlighting the differences between MC9S12VR64 and MC9S12VR32 to facilitate the migration of already developed applications to the new platform MC9S12VR32. None /docs/en/application-note/AN5091.pdf English documents 700706 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN5091.pdf AN5091: Migrating Applications from MC9S12VR64 to MC9S12VR32 – Application Note /docs/en/application-note/AN5091.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N AN5091: Migrating Applications from MC9S12VR64 to MC9S12VR32 – Application Note 700.7 KB AN5091 N 1471861847756708637909 /docs/en/application-note/AN4650.pdf 2013-01-09 1357762273568703502007 PSP 12 Jul 28, 2013 Application Note AN4650: NXP introduced a new revision on the S12VR family with the purpose of enhancing the family's LIN EMC/EMI robustness and providing new functionality to make the device more flexible and even safer. This document explains the differences between the two revisions and provides details on how to order and identify them. None /docs/en/application-note/AN4650.pdf English documents 373765 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4650.pdf AN4650, Functional Differences in Mask Sets 2N05E and 0N59H of the MC9S12VR Family - Application Notes /docs/en/application-note/AN4650.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N AN4650, Functional Differences in Mask Sets 2N05E and 0N59H of the MC9S12VR Family - Application Notes 373.8 KB AN4650 N 1357762273568703502007 /docs/en/application-note/AN4540.pdf 2012-07-06 1341607948674713110635 PSP 13 Dec 13, 2012 Application Note AN4540: The primary objective of this application note is to provide a quick comparison between two MCU families that can be used in relay-driven applications. This comparison should provide enough information for the user to select between the two families of devices: the S12VR MCU family, mask set 0N59H, and the dual-die, single-package MM912_634 family of microcontrollers (MM912F634, MM912G634, and MM912H634). None /docs/en/application-note/AN4540.pdf English documents 192189 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4540.pdf AN4540, Quick Comparison Between the MC9S12VR and MM912_634 - Application Notes /docs/en/application-note/AN4540.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N AN4540, Quick Comparison Between the MC9S12VR and MM912_634 - Application Notes 192.2 KB AN4540 N 1341607948674713110635 /docs/en/application-note/AN4448.pdf 2012-01-10 1326224900575729226679 PSP 14 Jan 10, 2012 Application Note This document explains how to use the code contained in the lab example package created for NXP<sup>&#174;</sup>.s MC9S12VR microcontroller. None /docs/en/application-note/AN4448.pdf English documents 262988 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4448.pdf MC9S12VR Family Demonstration Lab Training /docs/en/application-note/AN4448.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N MC9S12VR Family Demonstration Lab Training 263.0 KB AN4448 N 1326224900575729226679 アプリケーション・ノート・ソフトウェア 2 /secured/assets/documents/en/application-note-software/AN5122SW.zip 2017-03-06 1429076371611705839534 PSP 15 Mar 5, 2017 Application Note Software AN5122: This document provides an introduction to NXP&#8217;s LIN driver, with &#13;&#10;a "hands-on" example to get the LIN driver up and running.&#13;&#10; Registration without Disclaimer /secured/assets/documents/en/application-note-software/AN5122SW.zip English documents 5821553 None 789425793691620447 2024-07-15 Y /webapp/Download?colCode=AN5122SW&lang_cd=ja Application note software for AN5122 /secured/assets/documents/en/application-note-software/AN5122SW.zip documents 789425793691620447 Application Note Software N en Extended Y zip 1 Y N Application note software for AN5122 5.8 MB AN5122SW N 1429076371611705839534 /secured/assets/documents/en/application-note-software/AN4448SW.zip 2016-10-31 1333567525332706930596 PSP 16 Jan 10, 2012 Application Note Software Registration without Disclaimer /secured/assets/documents/en/application-note-software/AN4448SW.zip English documents 1678236 None 789425793691620447 2022-12-07 Y /webapp/Download?colCode=AN4448SW&lang_cd=ja Associated software for AN4448 /secured/assets/documents/en/application-note-software/AN4448SW.zip documents 789425793691620447 Application Note Software N en Extended Y zip 0 Y N Associated software for AN4448 1.7 MB AN4448SW N 1333567525332706930596 エラッタ 3 /docs/en/errata/MC9S12VR_0N59H.pdf 2021-03-23 1443602179202718878191 PSP 19 Mar 23, 2021 Errata Mask Set Errata for Mask 0N59H / 0P79C for MC9S12VR64 and MC9S12VR48 MCUs None /docs/en/errata/MC9S12VR_0N59H.pdf English documents 145094 None 155452329886410597 2022-12-07 N /docs/en/errata/MC9S12VR_0N59H.pdf MC9S12VR64 and MC9S12VR48 – Errata /docs/en/errata/MC9S12VR_0N59H.pdf documents 155452329886410597 Errata N en None Y pdf March 11, 2021 N N MC9S12VR64 and MC9S12VR48 – Errata 145.1 KB MC9S12VR_0N59H N 1443602179202718878191 /docs/en/errata/MC9S12VR_2N05E.pdf 2015-09-30 1443602681343719424196 PSP 20 Sep 29, 2015 Errata MC9S12VR_2N05E: This errata presents information about mask 2N05E for MC9S12VR64 and MC9S12VR48. None /docs/en/errata/MC9S12VR_2N05E.pdf English documents 95813 None 155452329886410597 2022-12-07 N /docs/en/errata/MC9S12VR_2N05E.pdf MC9S12VR_2N05E, Mask Set Errata for Mask 2N05E /docs/en/errata/MC9S12VR_2N05E.pdf documents 155452329886410597 Errata N en None Y pdf August 12, 2015 N N MC9S12VR_2N05E, Mask Set Errata for Mask 2N05E 95.8 KB MC9S12VR_2N05E N 1443602681343719424196 /docs/en/errata/MSE9S12VR64_2N05E.htm 2012-11-06 1352202096494711918743 PSP 21 Nov 5, 2012 Errata This errata sheet applies to the following devices:&#13;&#10;&#13;&#10;MC9S12VR64, MC9S12VR48 None /docs/en/errata/MSE9S12VR64_2N05E.htm English documents 6945 None 155452329886410597 2022-12-07 N /docs/en/errata/MSE9S12VR64_2N05E.htm MC9S12VR64, Mask 2N05E /docs/en/errata/MSE9S12VR64_2N05E.htm documents 155452329886410597 Errata N en None Y htm Rev. October 25 N N MC9S12VR64, Mask 2N05E 6.9 KB MSE9S12VR64_2N05E N 1352202096494711918743 エンジニアリング・ブリテン 1 /secured/assets/documents/en/engineering-bulletin/EB793.pdf 2016-10-31 1369851108709706895647 PSP 18 May 28, 2013 Technical Notes EB793: This document, developed in response to customer inquiries, describes Motor Industry Software Reliability Association (MISRA&#8482;) compliance in the C Language header files provided by NXP for the automotive market. Registration without Disclaimer /secured/assets/documents/en/engineering-bulletin/EB793.pdf English documents 197012 None 389245547230346745 2024-07-15 Y /webapp/Download?colCode=EB793&lang_cd=ja MISRA Compliance in Freescale Automotive C Language Header Files - Engineering Bulletin /secured/assets/documents/en/engineering-bulletin/EB793.pdf documents 389245547230346745 Technical Notes N en Extended Y pdf 1 Y N MISRA Compliance in Freescale Automotive C Language Header Files - Engineering Bulletin 197.0 KB EB793 N 1369851108709706895647 カタログ 1 /docs/ja/brochure/MAGNIVFAMBR.pdf 2021-09-01 1630535268286723864752ja PSP 17 Nov 1, 2023 Brochure 統合されたS12 MagniV®ソリューションで、システム設計を簡素化するとともに市場投入までの期間を短縮できます None /docs/ja/brochure/MAGNIVFAMBR.pdf Japanese documents 1823754 None 712453003803778552 2025-02-07 N /docs/ja/brochure/MAGNIVFAMBR.pdf MagniV®ミックスド・シグナルMCU_パンフレット /docs/ja/brochure/MAGNIVFAMBR.pdf documents 712453003803778552 Brochure N ja None Y pdf 0 N N MagniV mixed-signal microcontrollers – Brochure 1.8 MB MAGNIVFAMBR N 1630535268286723864752 ファクト・シート 1 /docs/en/fact-sheet/S12VRFS.pdf 2017-03-24 1348675790636720298681 PSP 2 May 17, 2018 Fact Sheet ファクト・シート Highly integrated part ideal for space constrained relay driven DC motors on LIN Bus None /docs/en/fact-sheet/S12VRFS.pdf English 168913 None Fact Sheet 2022-12-07 N /docs/en/fact-sheet/S12VRFS.pdf S12 MagniV S12VR Microcontrollers - One-Pager /docs/en/fact-sheet/S12VRFS.pdf documents 736675474163315314 Fact Sheet N Y en None Y t523 pdf 5 N N S12 MagniV S12VR Microcontrollers - One-Pager 168.9 KB S12VRFS N 1348675790636720298681 リファレンス・マニュアル 4 /secured/assets/documents/en/reference-manual/MC9S12VRP64.pdf 2018-05-17 1526554958437691156343 PSP 3 Mar 13, 2024 Reference Manual MC9S12VRP64, The S12VRP-Series is an optimized automotive 16-bit microcontroller product line focused on low-cost, high-performance, and low pin-count. Like other MagniV devices, the S12VRP-Series integrates key components such as a LIN physical interface and a voltage regulator system to supply the microcontroller directly from the vehicle battery. Registration without Disclaimer /secured/assets/documents/en/reference-manual/MC9S12VRP64.pdf English documents 5647404 None 500633505221135046 2024-04-10 Y /webapp/Download?colCode=MC9S12VRP64&lang_cd=ja MC9S12VRP-Series Reference Manual and Datasheet /secured/assets/documents/en/reference-manual/MC9S12VRP64.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 1.5 Y N MC9S12VRP-Series Reference Manual and Datasheet 5.6 MB MC9S12VRP64 N 1526554958437691156343 /secured/assets/documents/en/reference-manual/DRM160.pdf 2018-10-06 1424850925243728287666 PSP 4 Aug 11, 2015 Reference Manual DRM160: This reference manual describes the design of a relay-driven DC motor controller using a Hall sensor for position feedback. Registration without Disclaimer /secured/assets/documents/en/reference-manual/DRM160.pdf English documents 717043 None 500633505221135046 2023-06-18 Y /webapp/Download?colCode=DRM160&lang_cd=ja DRM160, Window Lift and Relay Based DC Motor Control Reference Design Using the S12VR Microcontrollers /secured/assets/documents/en/reference-manual/DRM160.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 2 Y N DRM160, Window Lift and Relay Based DC Motor Control Reference Design Using the S12VR Microcontrollers 717.0 KB DRM160 N 1424850925243728287666 /secured/assets/documents/en/reference-manual/S12CPUV2.pdf 2016-10-31 1057081966191736936200 PSP 5 Mar 1, 2006 Reference Manual S12CPUV2: This manual describes the features and operation of the core (central processing unit, or CPU, and development support functions) used in all HCS12 microcontrollers. For reference, information is provided for the M68HC12. Registration without Disclaimer /secured/assets/documents/en/reference-manual/S12CPUV2.pdf English documents 3485215 None 500633505221135046 2022-12-07 Y /webapp/Download?colCode=S12CPUV2&lang_cd=ja S12CPUV2 - Reference Manual /secured/assets/documents/en/reference-manual/S12CPUV2.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 4 Y N S12CPUV2 - Reference Manual 3.5 MB S12CPUV2 N 1057081966191736936200 /secured/assets/documents/en/reference-manual/MC9S12VRRM.pdf 2019-06-20 1449590546190710539665 PSP 1 Jun 4, 2021 Reference Manual リファレンス・マニュアル MC9S12VRRM: The MC9S12VR family is an optimized automotive 16-bit microcontroller product line focused on low-cost, high-performance, and low pin-count. This family integrates an S12 microcontroller with a LIN physical interface, a 5V regulator system to supply the microcontroller, and analog blocks to control other elements of the system that operate at vehicle battery level. The MC9S12VR family is targeted at generic automotive applications requiring single node LIN communications. Registration without Disclaimer /secured/assets/documents/en/reference-manual/MC9S12VRRM.pdf English 3720856 None Reference Manual 2022-12-07 Y /webapp/Download?colCode=MC9S12VRRM&docLang=en MC9S12VRRM, MC9S12VR-Family Reference Manual /secured/assets/documents/en/reference-manual/MC9S12VRRM.pdf documents 500633505221135046 Reference Manual N Y en Extended Y t877 pdf 4.4 Y N MC9S12VRRM, MC9S12VR-Family Reference Manual 3.7 MB MC9S12VRRM N 1449590546190710539665 true Y Products
