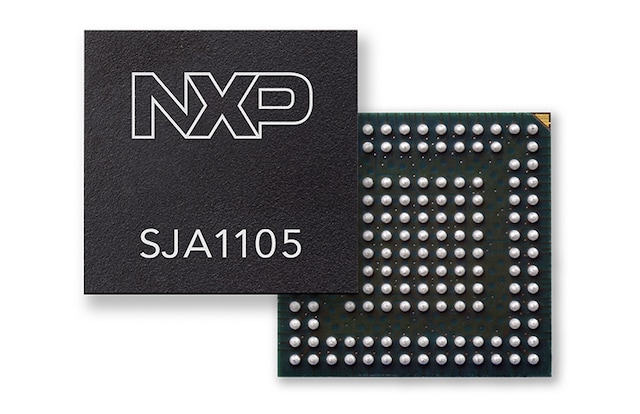

SJA1105PEL/QEL/REL/SEL Series Ethernet Switches

SJA1105PQRS アクティブ

画像にカーソルを合わせると拡大表示されます。

The SJA1105PEL/QEL/REL/SEL Automotive Gigabit Ethernet Switch Family extends the capability of the SJA1105EL/TEL switches with improved security-related features, extended interface options.

  • The new frame listing feature limits the switch data processing to known sources preventing the forwarding of erroneous or malicious data.
  • The updated interfaces offer extended IO voltages options and a new SGMII interface.
  • The switches are compatible with IEEE AVB. The QEL and SEL variants support extended TSN features.
  • NXP-original AUTOSAR® drivers and AVB SW stack, are available for this series.

Features

Frame Header-Based Security Features

  • Black and white listing of frames based on specific frame header values
  • Prevent the forwarding of erroneous or malicious data
  • Support implementation of Firewall applications

Five individually Configurable Ports with Extended IO Options

  • Broad range of data rate to optimize the PCB design
  • SGMII option for EMC friendly gigabit interface
  • Flexibility to connect to 10/100/1000 BASE-T1/TX or optical PHYs

Full Support for Audio/Video Bridging and Time Sync

  • Enable the implementation of a fully synchronized network
  • Support the most AVB /TSN features in automotive world
  • AVB SW available by NXP or third-party SW vendors

購入/パラメータ

4 結果

マッチしていない 0 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

パッケージタイプ

パッケージ端子数

製品カテゴリー

Number of Ports

xMII Interfaces

SGMII­ Interfaces

RGMII Interfaces

AEC-Q100 Temperature Range

TC10 support

Single Supply

Safety Level

AVB/TSN

ESD Robustness

診断機能

NXP Software

SJA1105PEL
データ・シート

アクティブ

LFBGA159

159

Switch

5

5 x MII/RMII - 1.8/2.5/3.3V

—

5 x RGMII - 1.8/2.5/3.3V

grade 2

NA

no

up to ASIL A

802.1AS, 802.1Qav

±2 kV HBM

Double VLAN tag, Frame mirroring & replication, Status counters and watermark

802.1AS, Classic AUTOSAR driver, Linux driver

SJA1105QEL
データ・シート

アクティブ

LFBGA159

159

Switch

5

5 x MII/RMII - 1.8/2.5/3.3V

—

5 x RGMII - 1.8/2.5/3.3V

grade 2

NA

no

up to ASIL A

802.1AS, 802.1Qav, 802.1Qbv

±2 kV HBM

Double VLAN tag, Frame mirroring & replication, Status counters and watermark

802.1AS, Classic AUTOSAR driver, Linux driver

SJA1105REL
データ・シート

アクティブ

LFBGA159

159

Switch

5

4 x MII/RMII - 1.8/2.5/3.3V

1 x 100/1000

4 x RGMII - 1.8/2.5/3.3V

grade 2

NA

no

up to ASIL A

802.1AS, 802.1Qav

±2 kV HBM

Double VLAN tag, Frame mirroring & replication, Status counters and watermark

802.1AS, Classic AUTOSAR driver, Linux driver

SJA1105SEL
データ・シート

アクティブ

LFBGA159

159

Switch

5

4 x MII/RMII - 1.8/2.5/3.3V

1 x 100/1000

4 x RGMII - 1.8/2.5/3.3V

grade 2

NA

no

up to ASIL A

802.1AS, 802.1Qav, 802.1Qbv

±2 kV HBM

Double VLAN tag, Frame mirroring & replication, Status counters and watermark

802.1AS, Classic AUTOSAR driver, Linux driver
