H-Bridge, Motor Driver, 2.7-5.5 V, 0.8 A, 200 kHz

MPC17C724 生産終了 (EOL)
  • このページでは、新規設計を推奨しない製品に関する情報を掲載しています。

画像にカーソルを合わせると拡大表示されます。

The NXP® MPC17C724 is a compact monolithic dual channel H-Bridge power IC, ideal for portable electronic applications containing bipolar stepper motors or brush DC motors such as those used in camera lenses and shutters.

  • Operates efficiently with supply voltages from 2.7 V to 5.5 V and can provide continuous motor drive currents of 0.4 A with low RDS(ON) of 1.0 Ω
  • Easily interfaced to low-cost MCUs via parallel 3.0 V- or 5.0 V-compatible logic
  • Built-in shoot-through current protection circuit and undervoltage detector to avoid malfunction
  • The H-bridge outputs are designed to be independently PWM'ed at up to 200 kHz for speed/torque and current control

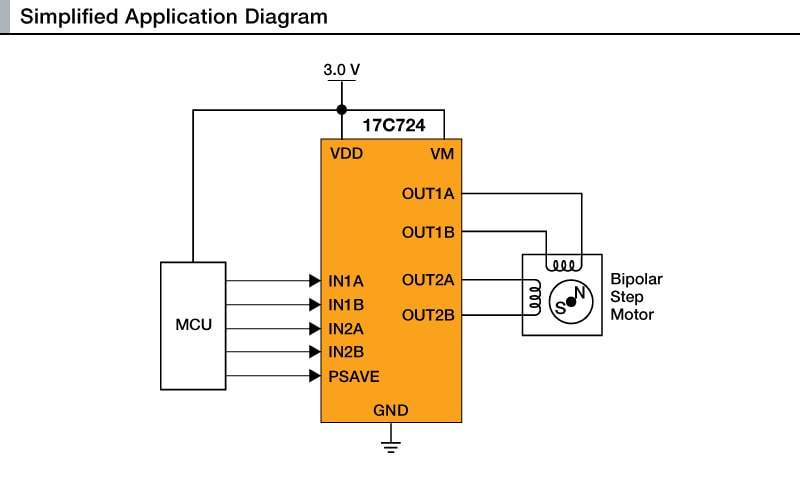

ブロック図

H-Bridge, Brushed DC/Stepper Motor Driver, 2.7-5.5V, 0.8A, 200kHz

図を取得する PDF

Features

General

  • Built-In 2-Channel H-Bridge Driver
  • Provides 4 Driving Modes (Forward, Reverse, Break, High Impedance)
  • Direct Interface to MCU
  • Low ON-Resistance, RDS(ON) = 1.0 Ω (Typical)
  • Dual Channel Parallel Drive, RDS(ON) = 0.5 Ω (Typical)
  • Output Current Driver (IDR) is 400 mA (Continuous)
  • Low Power Consumption
  • Built-In Shoot-Through Current Prevention Circuit
  • Built-In Low-Voltage Shutdown Circuit
  • PWM Control Frequency 200 kHz (Max)
  • Very Compact Size, Comes in 16-Terminal QFN Package (3 x 3 mm Terminal Pitch: 0.5 mm)
  • Parallel interface and input control
  • Ambient operating temperature -20 °C (Min), 85 °C (Max)
  • Load supply voltage 2.7 V (Min), 5.5 V (Max)
