Radar Microcontroller

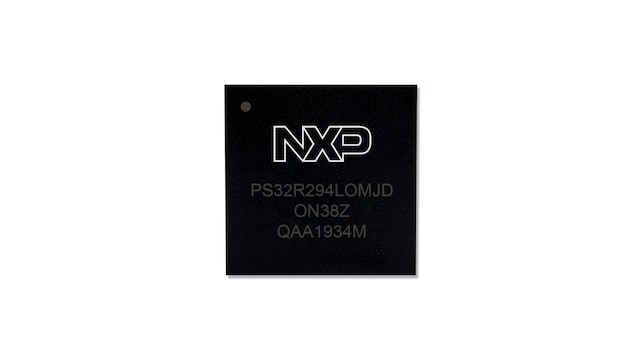

S32R294
アクティブ

画像にカーソルを合わせると拡大表示されます。

The S32R294 MCU enables customers to build scalable, safe and secure, automotive RADAR systems with balanced performance at an attractive power level dedicated to Corner and Front Radar applications.

The S32R294 provides additional family scalability when compared to the previous device, S32R274. It provides up to 5.5 MB SRAM, an additional MIPI CSI-2 interface, along with a doubling of the clock frequency for the cores. This results in a range of parts that covers existing radar application use cases and gives overhead for future application expectations.

ブロック図

図を選択する。:

S32R294 Radar MCU

S32R294 Block Diagram

S32R29x Application

S32R29x Applications Block Diagram
図を取得する PDF

Features

High Performance Safe Compute

  • Dual Power Architecture® e200z7 32-bit CPU up to 500 MHz
  • Dedicated safety processing with Power Architecture® e200z4 cores in lockstep up to 250 MHz

Radar Processing Acceleration

  • SPT 2.8 up to 430 MHz for optimized radar signal processing
  • Cross Timing Engine (CTE) for precise timing generation and triggering

Integrates with NXP Radar MMIC’s

  • Up to 2x MIPI CSI2 for advanced corner and front radar applications with NXP TEF82xx

Memory Capacity for Demanding Radar Applications

  • Up to 5.5 MB SRAM with ECC
  • QuadSPI DDR up to 80 MHz

Enhanced Security for Automotive Applications

  • Cryptographic services engine (CSE3) with secure boot and advanced security algorithms

Designed with Safety in Mind

  • ISO26262 SEooC ASIL B(D)

Connected and Scalable

  • 1 x Gb Ethernet 10/100 Mbit/s
  • 3 x flexCAN with FD
  • 1 x Dual-channel flexRay

Full Grade1 Temperature Range Operation

  • -40 ºC to 150 °C (Tj) AEC-Q100 grade-1

比較表

Part number Core Type Operating Frequency [Max] (MHz) Data SRAM (MB) Code SRAM (MB) MIPI-CSI2 Ports DSPI Channels
FS32R294HBK0MJDT 2 x e200z4 LS, 2 x e200z7, SPT 2.8 250/500/300 3 2 1 3
FS32R294LAK0MJDT 2 x e200z4 LS, 2 x e200z7, SPT 2.8 250/500/430 3 2.5 2 4
FS32R294LBK0MJDT 2 x e200z4 LS, 2 x e200z7, SPT 2.8 250/500/430 3 2.5 1 3
FS32R294JAK0MJDT 2 x e200z4 LS, 2 x e200z7, SPT 2.8 133/266/266 2.5 1.5 1 3
FS32R294JCK0MJDT 2 x e200z4 LS, 2 x e200z7, SPT 2.8 133/266/266 2 2 1 3
FS32R294KAK0MJDT 2 x e200z4 LS, 2 x e200z7, SPT 2.8 120/240/240 2.5 1.5 1 3
FS32R294KCK0MJDT 2 x e200z4 LS, 2 x e200z7, SPT 2.8 120/240/240 2 2 1 3

購入/パラメータ

8 結果

マッチしていない 0 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

標準価格

コア・タイプ

動作周波数[最大](MHz)

Data RAM (MB)

Code RAM (MB)

Sensor Interface

Security Modules

Serial Communication

パッケージタイプ

Package Pitch (mm)

パッケージ端子数

安全保障機能安全

FS32R294HBK0MJDT

アクティブ

10K @ US$14.19 - 10K @ US$14.35

2 x e200z4, 2 x e200z7

250, 300, 500

3

2

MIPI-CSI-2

CSE3

3 x SPI

LFBGA269

0.8

269

ISO 26262

FS32R294JAK0MJDT

アクティブ

10K @ US$13.50 - 10K @ US$13.36

2 x e200z4, 2 x e200z7

133, 266, 266

2.5

1.5

MIPI-CSI-2

CSE3

3 x SPI

LFBGA269

0.8

269

ISO 26262

FS32R294JCK0MJDT
—

アクティブ

—

2 x e200z4, 2 x e200z7

133, 266, 266

2

2

MIPI-CSI-2

CSE3

3 x SPI

LFBGA269

0.8

269

ISO 26262

FS32R294KAK0MJDT

アクティブ

10K @ US$12.19 - 10K @ US$12.34

2 x e200z4, 2 x e200z7

120, 240, 240

2.5

1.5

MIPI-CSI-2

CSE3

3 x SPI

LFBGA269

0.8

269

ISO 26262

FS32R294KCK0MJDT

アクティブ

10K @ US$12.19 - 10K @ US$12.34

2 x e200z4, 2 x e200z7

120, 240, 240

2

2

MIPI-CSI-2

CSE3

3 x SPI

LFBGA269

0.8

269

ISO 26262

FS32R294LAK0MJDT

アクティブ

10K @ US$17.75

2 x e200z4, 2 x e200z7

250, 430, 500

3

2.5

MIPI-CSI-2

CSE3

4 x SPI

LFBGA269

0.8

269

ISO 26262

FS32R294LBK0MJDT

アクティブ

10K @ US$14.80 - 10K @ US$14.95

2 x e200z4, 2 x e200z7

250, 430, 500

3

2.5

MIPI-CSI-2

CSE3

3 x SPI

LFBGA269

0.8

269

ISO 26262

S32R294RRU2

アクティブ

1 @ US$1000.00

—

—

—

—

—

—

—

—

—

—

No
