S32マイクロコントローラ用セーフティ・システム・ベーシス・チップ、ASIL Dに適合

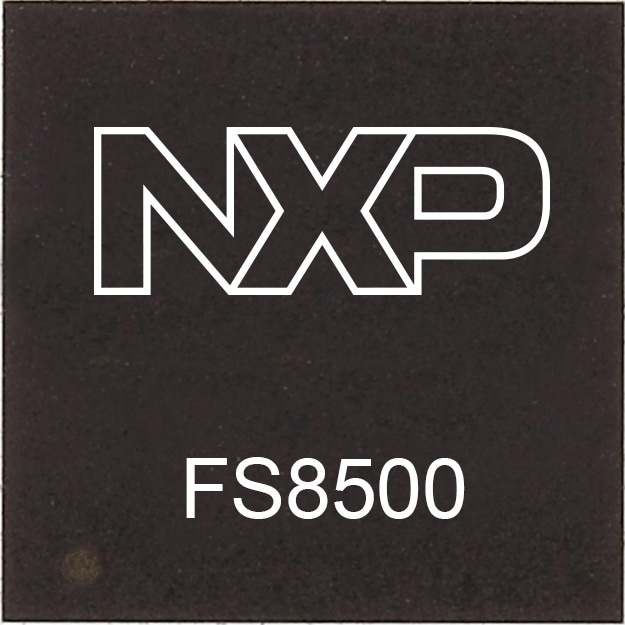

FS85 アクティブ

画像にカーソルを合わせると拡大表示されます。

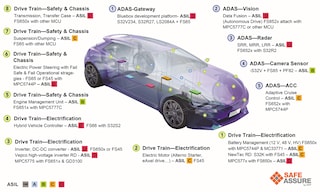

FS85は、機能安全対応の車載用マルチ出力電源集積回路です。ADASおよびドメイン・コントローラ・アプリケーションに重点を置いた、S32マイクロコントローラの主要コンパニオン・チップです。

FS85は、複数のスイッチ・モード・レギュレータとリニア電圧レギュレータを搭載し、フェイルセーフ出力などの強化されたセーフティ機能を備えています。これにより、ASIL Dまでの安全度水準に準拠する安全指向システムの完全な一部となります。

電源とセーフティの拡張性に加え、FS84とFS85はピン間およびソフトウェアの互換性を備えた包括的なデバイス・ファミリの一部です。ISO 26262規格に準拠して開発され、AEC-Q100の要件に従って認定されています。

ブロック図

FS8500、セーフティSBCのブロック図

FS8500, Safety SBC Block diagram
図を取得する PDF

特長

主な特長

  • 自動車およびトラック市場向けの最大60 Vの入力電圧
  • 複数のSMPSとLDOでS32マイクロコントローラなどに電源を供給
  • 非常に低いスリープ電流 (10 µA) でのスタンバイOFFモード
  • 32ビットのSPIおよびIDCインターフェース（CRC付き）
  • 独立したセーフティ・モニタリング・ユニットによりASIL Dに適合

プログラマビリティ

  • ワンタイム・プログラマブル (OTP) メモリによって、電源、シーケンス、および特定の機能をプログラム可能
  • 一般的なMCUでサポートされる標準の事前定義済みOTPについては、データ・シートの「注文情報」の章に記載されています
  • 開発段階でKITFS85SKTEVMボードを利用してカスタムOTPパーツのプログラミングが可能
  • カスタムOTPは生産用としてもご提供可能です。NXPの販売窓口（NXPまたは販売代理店）までお問い合わせください
  • OTP設定ツール用にカスタムOTPフォームをダウンロードできます

スケーラブルな電力とセーフティの概念

品番 降圧1 降圧2 降圧3 Vpre 昇圧 セーフティ・レベル
VR5500 0.8 V～1.8 V
2.5 A
マルチフェーズおよび
SVSオプション		 12 / 24 V HV
降圧 - 10 A		 5 V～5.74 V
1.5 Aピーク		 品質管理 (QM)
FS8400 N/A N/A ASIL Bに適合
FS8500 ASIL Dに適合
FS5502 1.0 V～4.1 V
3.6 Aピーク		 N/A 品質管理 (QM)
FS8410 5 V～5.74 V
1.5 Aピーク		 ASIL Bに適合
FS8510 ASIL Dに適合
FS8420 0.8 V～1.8 V
2.5 A
マルチフェーズおよび
SVSオプション		 N/A ASIL Bに適合
FS8520 ASIL Dに適合
FS8430 1.0 V～3.3 V
2.5 A 		ASIL Bに適合
FS8530 ASIL Dに適合
FS6600 ASIL Dに適合

比較表

品番 説明 OTP ID* 安全グレード パッケージ
MC33FS6600M1 S32V234 EVBに基づく M1レポート、プログラミングおよび設定ファイル ASIL D HVQFN56
MC33FS6600M2 S32V234 GreenBox IIに基づく M2レポート、プログラミングおよび設定ファイル ASIL D HVQFN56
MC33FS8400G5 ADCAM、EYE Q4搭載 G5レポート、プログラミングおよび設定ファイル ASIL B HVQFN56
MC33FS8410G3 レーダー、S32R274 + Dolphin搭載 G3レポート、プログラミングおよび設定ファイル ASIL B HVQFN56
MC33FS8410G6 ゲートウェイ、Calypso MPC5748G搭載 G6レポート、プログラミングおよび設定ファイル ASIL B HVQFN56
MC33FS8415GJ レーダー、S32R294 + Dolphin搭載 GJレポート、プログラミングおよび設定ファイル ASIL B HVQFN56
MC33FS8415GY レーダー、S32R294 + Barracuda搭載 GYレポート、プログラミングおよび設定ファイル ASIL B HVQFN56
MC33FS8430G1 S32V234 EVBに基づく G1レポート、プログラミングおよび設定ファイル ASIL B HVQFN56
MC33FS8430G2 S32V344 EVBに基づく G2レポート、プログラミングおよび設定ファイル ASIL B HVQFN56
MC33FS8430G4 カメラ・アプリケーション、Renesas MCU搭載 G4レポート、プログラミングおよび設定ファイル ASIL B HVQFN56
MC33FS8435GB レーダー、S32R294搭載 GBレポート、プログラミングおよび設定ファイル ASIL B HVQFN56
MC33FS8510A2 ADCU、Aurix搭載 A2レポート、プログラミングおよび設定ファイル ASIL D HVQFN56
MC33FS8510A3 BMS、Aurix搭載 A3レポート、プログラミングおよび設定ファイル ASIL D HVQFN56
MC33FS8510C4 S32R234 EVBに基づく C4レポート、プログラミングおよび設定ファイル ASIL D HVQFN56
MC33FS8510D3 BMS、Aurix搭載 D3レポート、プログラミングおよび設定ファイル ASIL D HVQFN56
MC33FS8530A1 カメラ・アプリケーション、Renesas MCU搭載 A1レポート、プログラミングおよび設定ファイル ASIL D HVQFN56
MC33FS8530A4 S32R45 EVB A4レポート、プログラミングおよび設定ファイル ASIL D HVQFN56
MC33FS5502Y3 レーダー、S32R274搭載 Y3レポート、プログラミングおよび設定ファイル QM HVQFN56
MC33VR5500V1 Mercury無線リファレンス・デザインに基づく V1レポート、プログラミングおよび設定ファイル QM HVQFN56
MFS8406AMBP4 カメラ・アプリケーション、EYE Q4搭載 P4レポート、プログラミングおよび設定ファイル ASIL B HVQFN48
MFS8412AMBP7 レーダー、S32R274 + Dolphin搭載 P7レポート、プログラミングおよび設定ファイル ASIL B HVQFN48
MFS8412AMBP8 レーダー、S32R294 + Dolphin搭載 P8レポート、プログラミングおよび設定ファイル ASIL B HVQFN48
MFS8416AMBP3 レーダー、S32R274 + Dolphin搭載 P3レポート、プログラミングおよび設定ファイル ASIL B HVQFN48
MFS8416AMBP5 ゲートウェイ、Calypso MPC5748G搭載 P5レポート、プログラミングおよび設定ファイル ASIL B HVQFN48
