Evaluation Kit - 33813, One Cylinder Engine Control

KIT33813AEEVBE アクティブ

画像にカーソルを合わせると拡大表示されます。

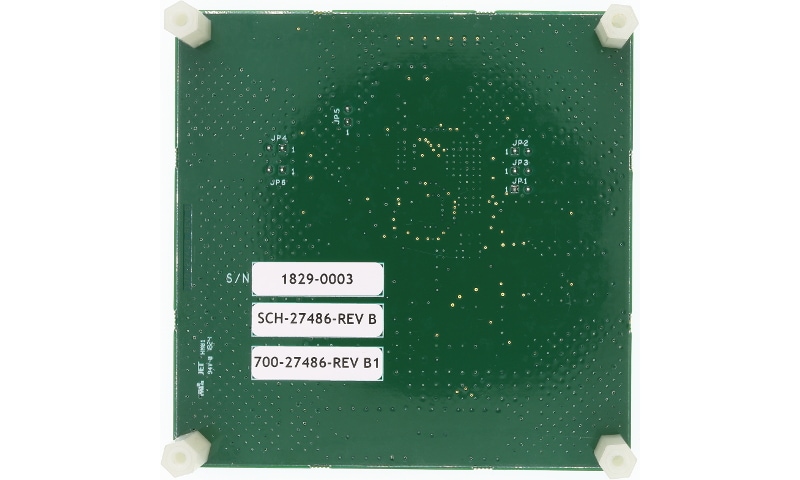

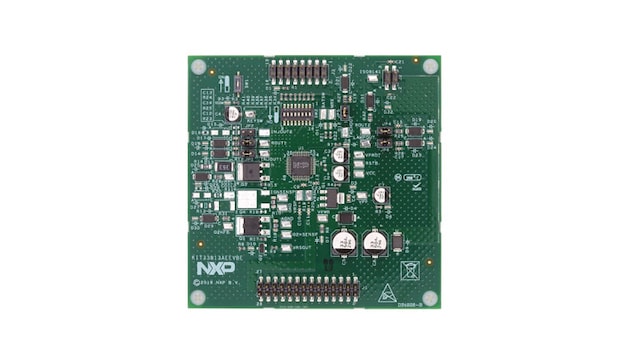

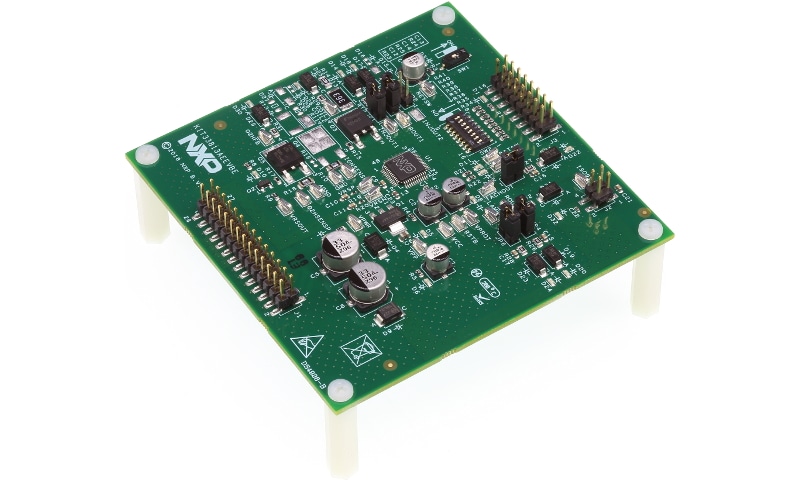

The KIT33813AEEVBE evaluation board (EVB) is an easy-to-use circuit board that allows you to exercise the functions of the NXP® MC33813 one cylinder small engine control IC.

A PC communicates to the EVB through a USB/SPI Dongle (KITUSBSPIDGLEVME) connected to the PC’s USB port. The NXP SPIGen (version 6.0) program provides a user interface to the MC33813 SPI (serial peripheral interface) port and allows you to send commands to the IC and receive status from the IC.

製品詳細

対応製品

パワーマネージメント

パワートレイン＆エンジン制御

  • MC33813: One Cylinder Small Engine Control IC

Features

Key Features

  • MCU reset generator - system integrity monitor (watchdog)

Microcontroller

  • MC33813

Connectivity

  • Interfaces directly to MCU using a 5.0 V SPI and logic I/O

Power Management

  • Operates over a supply voltage range of 4.5 V ≤ VPWR ≤ 36 V
  • Designed to operate over supply voltage range of 4.5 V ≤ VPWR ≤ 36 V
  • Logic stability guaranteed down to 2.5 V
  • VPROT protected sensor supply tracks VCC +5.0 V regulator
  • VPP preregulator provides power for VCC and VPROT regulators
  • Keyswitch logic with provision for power relay and MCU controlled shutdown

Drivers

  • One ignition IGBT or general-purpose gate pre-driver
  • One O2 sensor (HEGO) heater general-purpose gate pre-driver
  • Two fuel injector drivers - typically 1.3 A
  • Two ignition IGBT or general-purpose gate predrivers
  • Relay 1 driver, typically 2.0 A, can be used for fuel pump control
  • Relay 2 driver, typically 1.0 A, can be used as power relay control
  • Lamp driver, typically 1.0 A can also be used to drive an LED

Components

  • Independent fault protection with all faults reported via the SPI
  • ISO 9141 K-Line interface for communicating diagnostic messages

購入オプション

KIT33813AEEVBE-Image

クリックして展開

  • KIT33813AEEVBE
    アクティブ

  • Evaluation Kit - MC33813, One Cylinder Small Engine Control IC.

    • KIT33813AEEVBE Hardware
    • Quick Reference Guide
  • $228.00 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 10
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
