LPCXpresso804 for the LPC804 family of MCUs

OM40001 アクティブ

画像にカーソルを合わせると拡大表示されます。

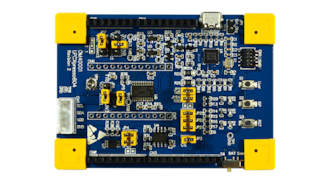

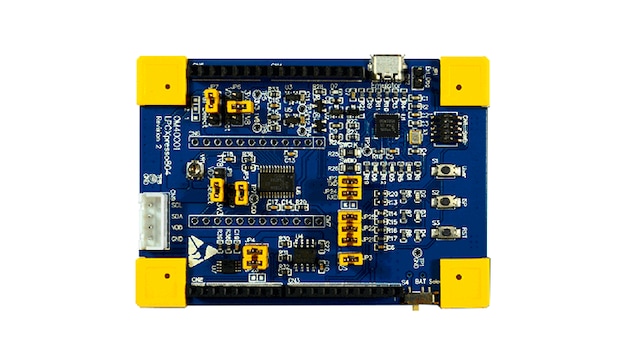

The LPCXpresso804 board enables easy evaluation of the LPC804 MCU, including capacitive touch capabilities and the Programmable Logic Unit (PLU). This three board set is comprised of an LPC804 MCU board (pictured below) with an onboard CMSIS-DAP debug probe, a PLU shield including LEDs, switches and oscillators for quick and easy design prototyping and a five-button capacitive touch shield with LED indicators for each button.

The board is supported by software examples included in the LPC804 Code Bundle package and is also supported by a range of development tools, including the MCUXpresso IDE, IAR EWARM and Keil® MDK.

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

LPC800 Arm Cortex-M0+

  • LPC80X: LPC800：32ビットArm® Cortex®-M0+ベースの低コストMCU

Features

Processor

  • LPC804 Arm® Cortex®-M0+ MCU in a TSSOP24 package running up to 15 MHz

Memory

  • 1 Mb Winbond SPI flash

Debug

  • Onboard CMSIS-DAP (debug probe) with VCOM port, based on LPC11U35 MCU
  • Debug connector to allow debug of target LPC802 MCU using an external probe

Sensors

  • NXP LM75BDP temperature sensor

Support

  • Compatible with MCUXpresso IDE and other popular toolchains (incl. IAR and Keil)
  • Three board set, comprising of an LPCXpresso804 board with PLU and capacitive touch shields

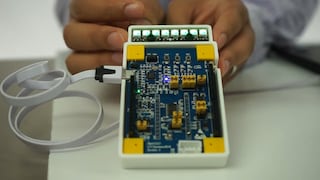

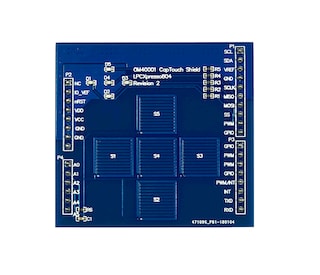

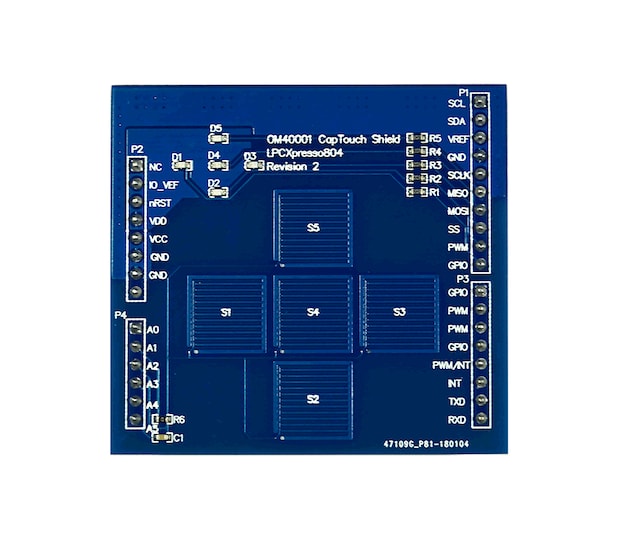

    • Five-button capacitive touch shield, with LED indicator for each button
    • I²C Grove connector for easy connection of sensors, or to the board as an I²C peripheral
  • ISP and User/Wake buttons
  • Three user LEDs
  • Reset button

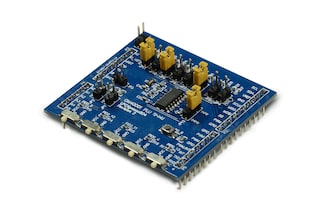

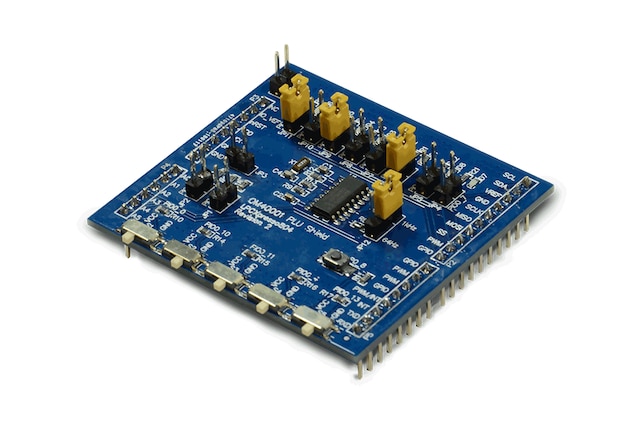

  • PLU shield includes LEDs, switches, and oscillators for quick and easy design prototyping

購入オプション

OM40001-Image

クリックして展開

  • OM40001
    アクティブ

  • LPCXpresso804 for the LPC804 family of MCUs.

    • LPCXpresso804 board
    • PLU Shield, including LEDs
    • Five-button capacitive touch shield with LED indicators for each button
  • $28.75 USD
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
