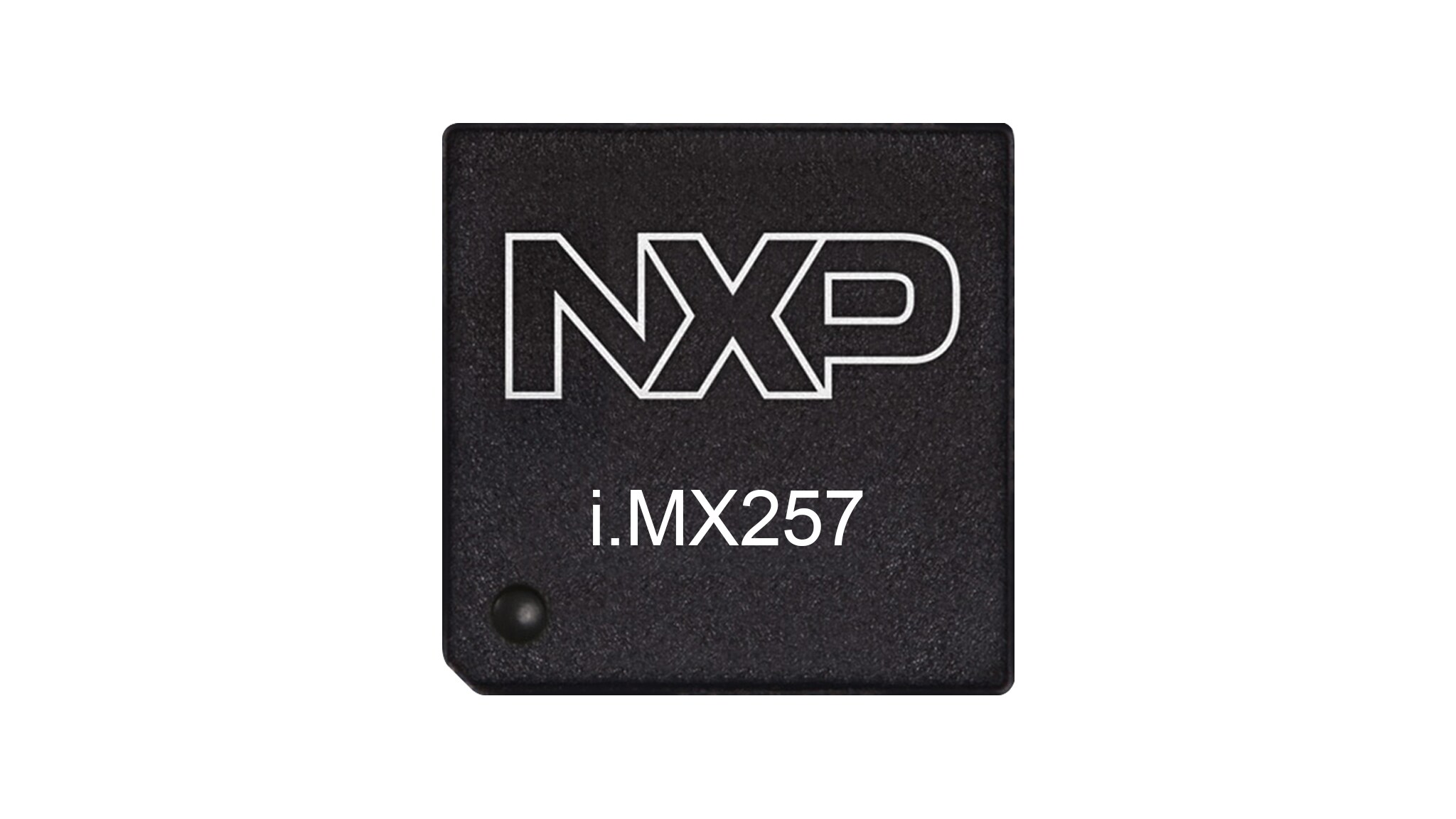

i.MX257 Processors|Data Acquisition

NXP's Arm9™ based i.MX257 applications processor targets consumer and industrial applications that require data acquisition or need greater levels of user interaction.

The i.MX257 integrates all features of the i.MX253 and adds a CMOS sensor interface for data input, and a touchscreen controller that lets the user interact with the device through the display enabling “smart touch”. Extra connectivity features such as Controller Area Network (CAN) and Smartcard provide endless possibilities for building plugged-in or portable, connected devices. With its high level of integration and connectivity options, and low-power technology, the i.MX257 is ideal for building applications including “smart touch” HMI, factory automation, and data acquisition devices.

製品詳細

ブロック図

i.MX257 Multimedia Applications Processor Block Diagram

図を取得する PDF

Features

CPU Complex

Arm926EJ-S™
400 MHz maximum speed
128 KB Integrated SRAM
16 KB I/D L1 Cache

Multimedia

LCD Controller
Resistive Touchscreen Controller
CMOS Sensor Interface

Connectivity

External memory interface: DDR2, mDDR, SDRAM, mSDRAM, NOR, SLC/MLC NAND
10/100 Ethernet MAC
2 x FlexCan Controllers
480Mbps USB 2.0 OTG + PHY
480Mbps USB 2.0 Host + PHY
2 x MMC+/SD/SDIO
5 x UART, 3 x CSPI, 3 x I2C, 2 x SSI/I2S, ESAI
PATA/CE-ATA
2 x Smartcard Interfaces
3 x12-bit ADC
3.3V General Purpose I/O

Technology

0.8mm MAPBGA 400-pin package
-20C to +70C (Consumer)
-40 to +85C(industrial)

Product Longevity

This product is included in NXP^{^®}.s product longevity program, with assured supply for a minimum of 15 years after launch
