Applications Processors - Multimedia, High Performance, Low Power, Connectivity, Arm® Cortex®-A8 Core
The i.MX516 applications processor balances performance, power consumption, connectivity and multimedia capabilities necessary to drive today’s advanced automotive systems. These processors are ideal for applications that require advanced user interfaces, sophisticated video processing, 2D and 3D graphics, multiple connectivity options and a high level of system integration. Building on the success of the i.MX515 in the consumer market, the automotive family of i.MX51 processors will bring the consumer electronics user experience and device connectivity into the vehicles of the future.
The i.MX516 is supported by companion NXP® power management ICs (PMIC), MC13892, MC34704, MC34709 and MMPF0100.
製品詳細

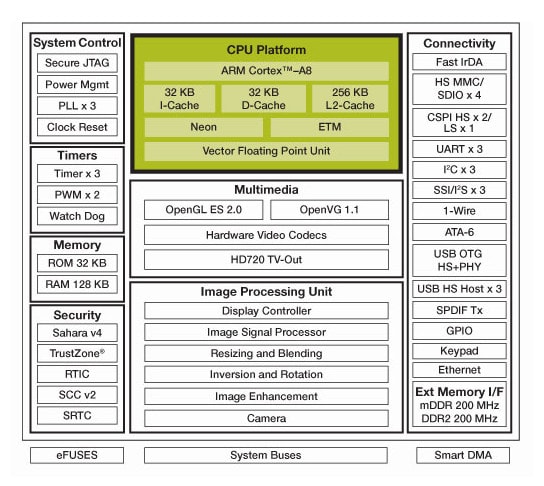

ブロック図
Features
CPU Complex
- 600 MHz Arm® Cortex®-A8 CPU
- 32KB instruction and data caches
- Unified 256KB L2 cache
- NEON SIMD media accelerator
- Vector floating point co-processor
Multimedia
- OpenGL® ES 2.0 and OpenVG™ 1.1 hardware accelerators
- Multi-format HD720p video decoder and D1 video encoder hardware engines
- 24-bit primary display support up to WXGA resolution
- 18-bit secondary display support
- Analog HD720p component TV output
- High quality hardware video de-interlacing
- Image and video resize, inversion and rotation hardware
- Alpha blending and color space conversion
- Video/graphics combining: four planes plus hardware cursor
- Display quality enhancement: color correction, gamut mapping, gamma correction
External Memory Interface
- mDDR and DDR2 SDRAM, 16/32-bit, 200MHz
- SLC/MLC NAND flash, 8/16-bit
General
- Interface Flexibility
- Advanced Power Management
- Increased Security
Product Longevity
- This product is included in NXP’s product longevity program, with assured supply for a minimum of 10 years after launch
