Applications Processors - Advanced HMI, High-Performance, Low-Power, Arm® Cortex®-A8 Core

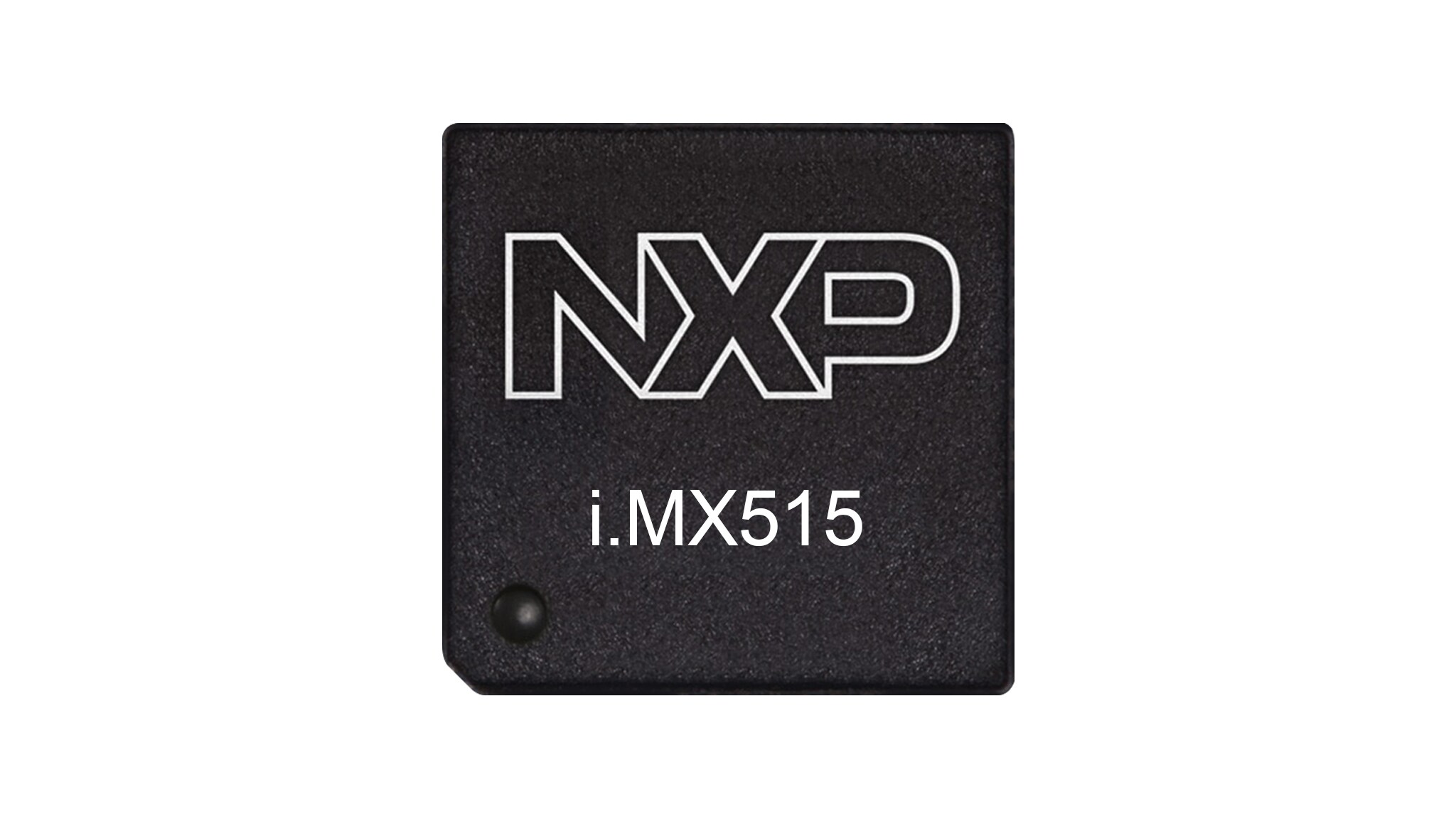

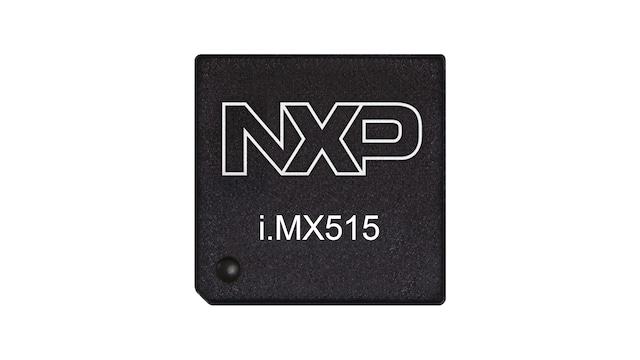

i.MX515
アクティブ

The i.MX515 multimedia applications processor offers high performance processing optimized for the lowest power consumption for smartbooks, netbooks, and many other consumer and industrial applications as well including: portable media players, gaming consoles, secure handheld devices and applications requiring an advanced HMI. It features Our advanced and power-efficient implementation of the Arm® Cortex®-A8 core, which operates at speeds up to 800 MHz. Extended temperature is available for industrial focused devices running at up to 600 MHZ.

The i.MX515 is supported by companion NXP® power management ICs (PMIC), MC13892, MC34704, MC34709 and MMPF0100.

ブロック図

i.MX515 Multimedia Applications Processor Block Diagram

i.MX515 Multimedia Applications Processor Block Diagram
図を取得する PDF

Features

CPU Complex

  • 800 MHz Arm Cortex-A8 CPU
  • 32KB instruction and data caches
  • Unified 256KB L2 cache
  • NEON SIMD media accelerator
  • Vector floating point co-processor

Multimedia

  • OpenGL® ES 2.0 and OpenVG™ 1.1 hardware accelerators
  • Multi-format HD 720p video decoder and D1 video encoder hardware engine
  • 24-bit primary display support up to WXGA resolution
  • 18-bit secondary display support
  • Analog HD720p component TV output
  • High quality hardware video de-interlacing
  • Image and video resize, inversion, and rotation hardware
  • Alpha blending and color space conversion
  • Video/graphics combining: four planes plus hardware cursor
  • Display quality enhancement: color correction, gamut mapping, gamma correction

External Memory Interface

  • mDDR and DDR2 SDRAM, 16/32-bit, 200MHz
  • SLC/MLC NAND flash, 8/16-bit

Security

  • The i.MX51 processor provides additional security features making it the ideal solution for SOHO networking, routers or any other type of product needing secure system boot and tamper detection.

General

  • Interface Flexibility
  • Advanced Power Management
  • Increased Security

Product Longevity
