Multimedia Applications Processors - LCD Controller, OpenVG™, Camera Interface, Arm11™ Core
Our i.MX357 processor integrates an OpenVG™1.1 hardware accelerator to deliver smooth textural visuals. The integration of the LCD controller enables high resolution and high colour display. The Camera Interface (CMOS Sensor Interface) allows for video input acceptance, taking photos, streaming video, etc. To reduce BOM costs, it is packed with connectivity options including UARTs, SPIs, Ethernet, two Controller Area Network (CAN), two USB ports with integrated PHYs, three MMC/SD/SDIO ports, PATA, CE-ATA and the ability to connect to external wireless modules via a USB or SDIO port. Support for cost-effective memory options like DDR2 and multi-level cell NAND reduces system costs and provide the design engineer great flexibility.
The i.MX357 is supported by companion NXP® power management ICs (PMIC), MC13892 and MMPF0100.
i.MX357 Multimedia Applications Processor Product Image
製品詳細

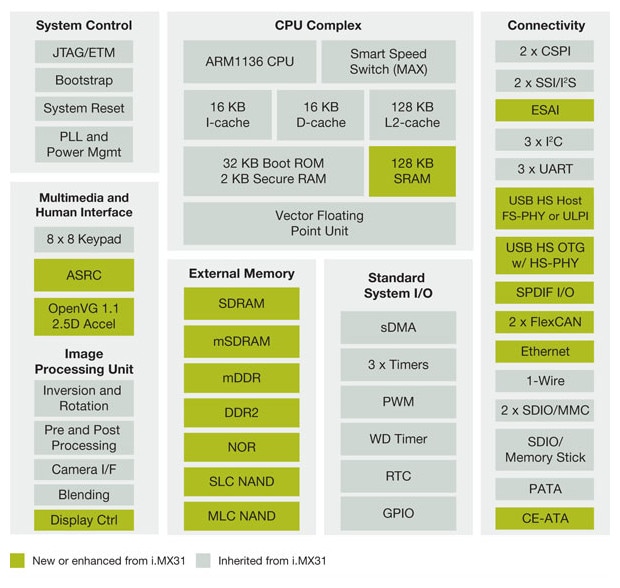

ブロック図
Features
- Arm1136JF-S™
- 532 MHz maximum speed
- 128 KB Integrated SRAM
- 16 KB I/D L1 Cache, 128 KB L2 cache
- OpenVG 1.1 2.5D hardware accelerator
- Image Processing Unit (IPU)
- LCD Controller
- 10/100 Ethernet
- MAC 2 x FlexCan modules
- HS OTG + PHY, HS Host + PHY
- 3 x UART, 2 x CSPI, 3 x I2C, 2 SSI/I2S
- P-ATA/CE-ATA
- Optimized for up to 24-bit-per-pixel WVGA
- CMOS/CCD sensor interface
- Vector Floating Point Uni
- External memory interface: mSDRAM/SDRAM, mDDR/DDR2, NOR, SLC/MLC NAND
- 3.3V general purpose I/O
- This product is included in NXP’s product longevity program, with assured supply for a minimum of 15 years after launch
