i.MX51 Evaluation Kit

MCIMX51EVKJ アクティブ

画像にカーソルを合わせると拡大表示されます。

The cost-effective i.MX51 evaluation kit enables customers to develop, debug and demonstrate the next great product without compromising performance.

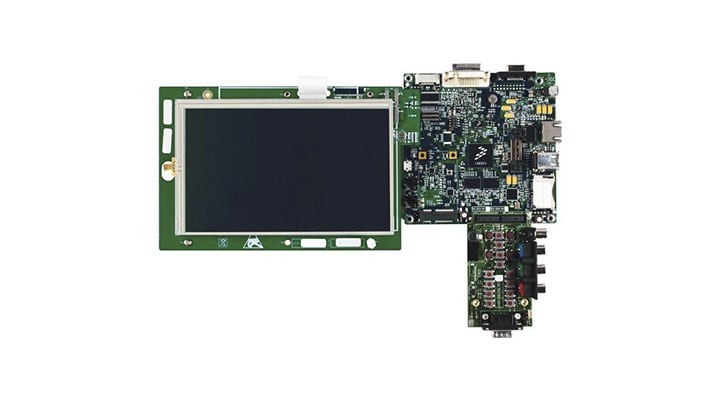

  • The i.MX51 EVK has two add-on modules; an LCD and an expansion board
  • Based on the Arm® Cortex®-A8 core, the i.MX51 EVK delivers performance and long battery life, helping you design products that meet demands for energy efficiency
  • Suitable for developing many different types of user applications
  • The provided Board Support Packages (BSP) for Linux® and Windows® Embedded CE enables rapid prototyping
  • The i.MX51 EVK includes two SD cards; both support a wide range of automotive, consumer, general embedded and industrial applications

製品詳細

対応製品

パワーマネージメント

PMIC

  • MC13892: Power Management IC (PMIC) for i.MX35/51

プロセッサ＆マイクロコントローラ

i.MX成熟プロセッサ

  • i.MX512: Applications Processors - High-Performance, Low-Power, Arm® Cortex®-A8 Core
  • i.MX513: Applications Processors - Low-Power, Hardware-Accelerated Video, High-Performance, Arm® Cortex®-A8 Core
  • i.MX514: Applications Processors - Hardware Accelerated 2D and 3D Graphics, High-Performance, Low-Power, Arm® Cortex®-A8 Core
  • i.MX515: Applications Processors - Advanced HMI, High-Performance, Low-Power, Arm® Cortex®-A8 Core
  • i.MX516: Applications Processors - Multimedia, High Performance, Low Power, Connectivity, Arm® Cortex®-A8 Core

オーディオ

オーディオ・コンバータ

Features

Processor

    i.MX51 Applications Processor (529 BGA)

  • 4 x 128 MB DDR2
  • 4MB SPI NOR
  • PMIC – MC13892
  • NAND and EIM header

Connectivity

  • DVI-I connector
  • 2 SD/MMC card slots
  • USB host x2 / USB OTG x1
  • Ethernet port
  • Mini PCI Express®
  • SATA HDD connector
  • SIM card connector
  • Keyboard connector
  • Speaker connector
  • USB camera connector
  • PS-2 TP connector
  • RGB output through DVI-I connector
  • Expansion header

Debug

  • Debug serial port
  • JTAG

Sensors

  • Ambient light sensor footprint

Display

  • 7” WVGA touchscreen LCD display (add-on module) 2 LVDS connectors

Audio

  • Mic input
  • Stereo headphone output (jack)
  • V2IP headphone

Expansion Port

  • Expansion board (add-on module)

User Components

  • Reset, boot switches
  • Debug LED
  • Power source
  • Power on/off button
  • Power measurement header

もっと見る

購入オプション

MCIMX51EVKJ-Image

クリックして展開

  • MCIMX51EVKJ
    アクティブ

  • Product Development Kit, Hardware, i.MX51, CPU Board, No Display.

  • の数量に対して 1
代理店からの注文
MCIMX51EXP-Image

クリックして展開

  • MCIMX51EXP
    アクティブ

  • Accessory Board, Hardware, i.MX51, Expansion Card.

  • $230.00 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
MCIMX51LCD-Image

クリックして展開

  • MCIMX51LCD
    アクティブ

  • Accesory Board, Hardware, i.MX51, WVGA LCD Display Add-on.

  • $287.50 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
