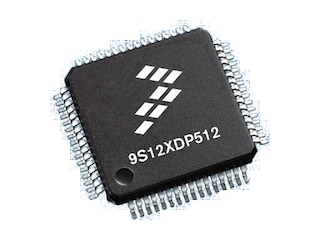

S12XD Automotive and Industrial Microcontrollers (MCUs)
デザイン・ファイル
完全な内訳を受け取ります。 eCad ファイルで製品のフットプリントなどを確認してください。
S12XB Automotive and IndustrialMicrocontrollers (MCUs)
- このページでは、新規設計を推奨しない製品に関する情報を掲載しています。
The MC9S12XB is a general-purpose optimized feature/cost family for applications that require a reduced peripheral relative to the S12XD family.
Targeted for general automotive body applications, the MC9S12XB family is a fully compatible subset of the 9S12XD family.
Relative to the S12XD family, it has some functionality removed and speed reduced in order to deliver a significant cost savings.
Like the S12XD family, the S12XB is designed to retain the cost-effective, low-power consumption, excellent electromagnetic compatibility performance and code-size efficiency advantages associated with all 16-bit MCUs from NXP®.
S12XB Family Members: MC9S12XB256, MC9S12XB128.
製品詳細

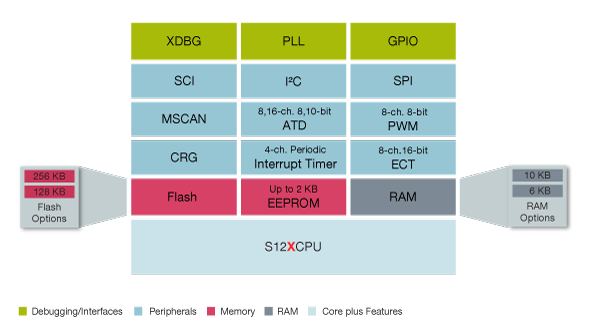

Features
- 16-bit CPU12X
- Upward compatible with MC9S12 instruction set
- Enhanced interrupt module
- XGATE coprocessor
- 128 KB to 256 KB flash EEPROM
- 1 KB to 2 KB EEPROM
- 6 KB to 10 KB RAM
- 8 or 16-channel analog-to-digital converter (ADC), 8 or 10-bit resolution
- 8-channel, 16-bit timer enhanced capture timer
- 8-channel by 8-bit or 4-channel by 16-bit pulse width modulator
- 1 Mbps, CAN 2.0 A, B software compatible
- Two serial communications interface, one serial peripheral interface and two inter-integrated circuit interfaces
