S12XF MCUs|16-Bit Microcontroller

Based on Our S12X architecture, the MC9S12XF family gives you a high-performance, cost-effective distributed control solution for satellite nodes on FlexRay™ networks used in body, chassis and safety applications.

Replacing 32-bit controllers for satellite nodes provides a reduction in overall system cost for FlexRay networks.

The S12XF family features four highly integrated MCUs offering a range of memory configurations and NXP^®.s performance-boosting XGATE coprocessor.

Package options range from 112-pin low-profile quad flat-pack (LQFP) to the 10 mm x 10 mm 64-pin LQFP—the smallest FlexRay controller available.

データ・シート

リファレンス・マニュアル

製品詳細

ブロック図

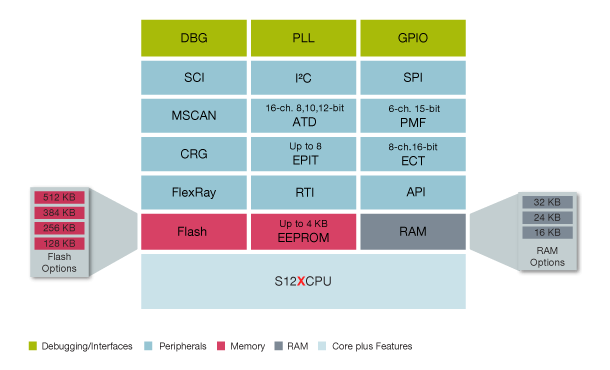

Freescale S12XF Microcontroller Block Diagram

図を取得する PDF

Features

Key Features
- FlexRay Controller
- XGATE co-processor capable for build virtual peripherials and boost the overall performance
- Flexible programmable hardware emulated EEPROM
- System integrity support with the memory protection unit (MPU) and supervisor/user modes
- This product is included in NXP product longevity program, with assured supply for a minimum of 15 years after launch
Other Features
- S12X CPU @ 50 MHz bus speed
- Loop control/full-swing pierce oscillator
- Enhanced interrupt module
- Analog-to-digital Converter ADC 12-bit resolution and 3μs conversion time
- Enhanced capture timer (ECT)
- Periodic interrupt timer (PIT)
- Real-time interrupt (RTI)
- Asynchronous periodic interrupt (API)
- Pulse width modulator (PWM)
- MSCAN module
- Serial peripherial interface (SPI)
- Serial communication interface (SCI)
- Background debug module (BDM) and debugger (xDBG)
- On-chip voltage regulator

購入/パラメータ

パーツ説明を表示	状況	パッケージタイプ	パッケージ端子数	標準価格
MC9S12XF512MLH データ・シート	生産終了 (EOL)	LQFP64	64	1K @ US$17.91
MC9S12XF512MLM データ・シート	生産終了 (EOL)	LQFP112	112	1K @ US$18.20
S9S12XF256J1CLM データ・シート	生産終了 (EOL)	LQFP112	112	—
S9S12XF384J2MLH データ・シート	生産終了 (EOL)	LQFP64	64	—
S9S12XF384J2MLM データ・シート	生産終了 (EOL)	LQFP112	112	—
