FRDM-KW41Z
アクティブ -
Part Description: Freedom Development Boards for Kinetis KW21Z, KW31Z and KW41Z MCUs. 2 boards per order..
- 2 FRDM-KW41Z Freedom Development Boards
- Quick Reference Card
- 2 USB Cables
Freedom Development Kit for Kinetis® KW41Z/31Z/21Z MCUs
Note: K32W061/41 is preferred for any new Zigbee®, Thread and Bluetooth® LE 5.0 design. No new software releases planned

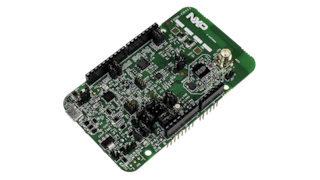

The FRDM-KW41Z is a development kit enabled by the Kinetis® W series KW41Z/31Z/21Z (KW41Z) family built on Arm® Cortex®-M0+ processor with integrated 2.4 GHz transceiver supporting Bluetooth® Smart/Bluetooth®Low Energy (BLE) v4.2, Generic FSK, IEEE® 802.15.4 and Thread.
The FRDM-KW41Z kit contains two Freedom boards that can be used as a development board or a shield to connect to a host processor. The FRDM-KW41Z is form-factor compatible with the Arduino® Rev3 pin layout for more expansion options.

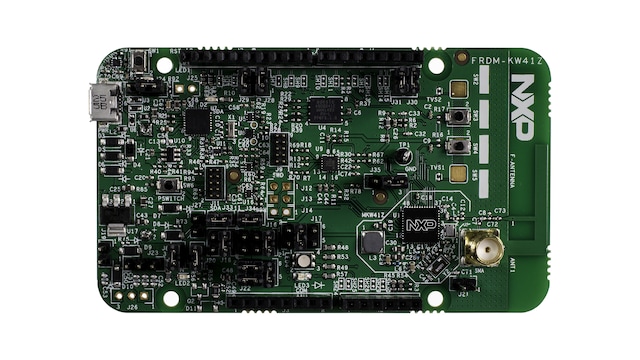

The FRDM-KW41Z highly-sensitive, optimized 2.4 GHz radio features a PCB F-antenna which can be bypassed to test via SMA connection, multiple power supply options, push/capacitive touch buttons, switches, LEDs and integrated sensors.
The FRDM-KW41Z platform is now supported by Arm® Mbed™ OS and Zephyr®OS, both open source embedded operating systems for developing the Internet of Things.
製品詳細
対応製品
ワイヤレス・コネクティビティ
ZigBee
- KW21Z: Kinetis® KW21Z-2.4 GHz 802.15.4 Wireless Radio Microcontroller (MCU) based on Arm® Cortex®-M0+ Core
Multiprotocol MCUs
- KW41Z: Kinetis® KW41Z-2.4 GHz Dual Mode: Bluetooth® Low Energy and 802.15.4 Wireless Radio Microcontroller (MCU) based on Arm® Cortex®-M0+ Core
Bluetooth Low Energy
- KW31Z: Kinetis® KW31Z-2.4 GHz Bluetooth Low Energy Wireless Radio Microcontroller (MCU) based on Arm® Cortex®-M0+ Core
Features
- Can be configured as Host or Shield for connection to Host Processor
Connectivity
- SMA RF Connector
Sensors
- Onboard NXP FXOS8700CQ digital sensor, 3D Accelerometer (±2g/±4g/±8g) + 3D Magnetometer
Debug
- OpenSDA and JTAG debug
Support
- Full KSDK support
- Supported by Zephyr® OS
- Supports all DC-DC configurations (Buck, Boost, Bypass)
- PCB inverted F-type antenna
- RF regulatory certified
- Serial Flash for OTA firmware upgrades
- Arm® Mbed™ enabled
MCUXpresso Software and Tools
