NXP Freedom Platform for K32 L2A MCUs

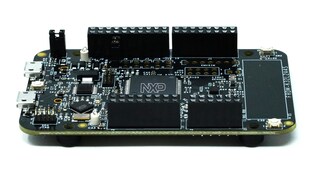

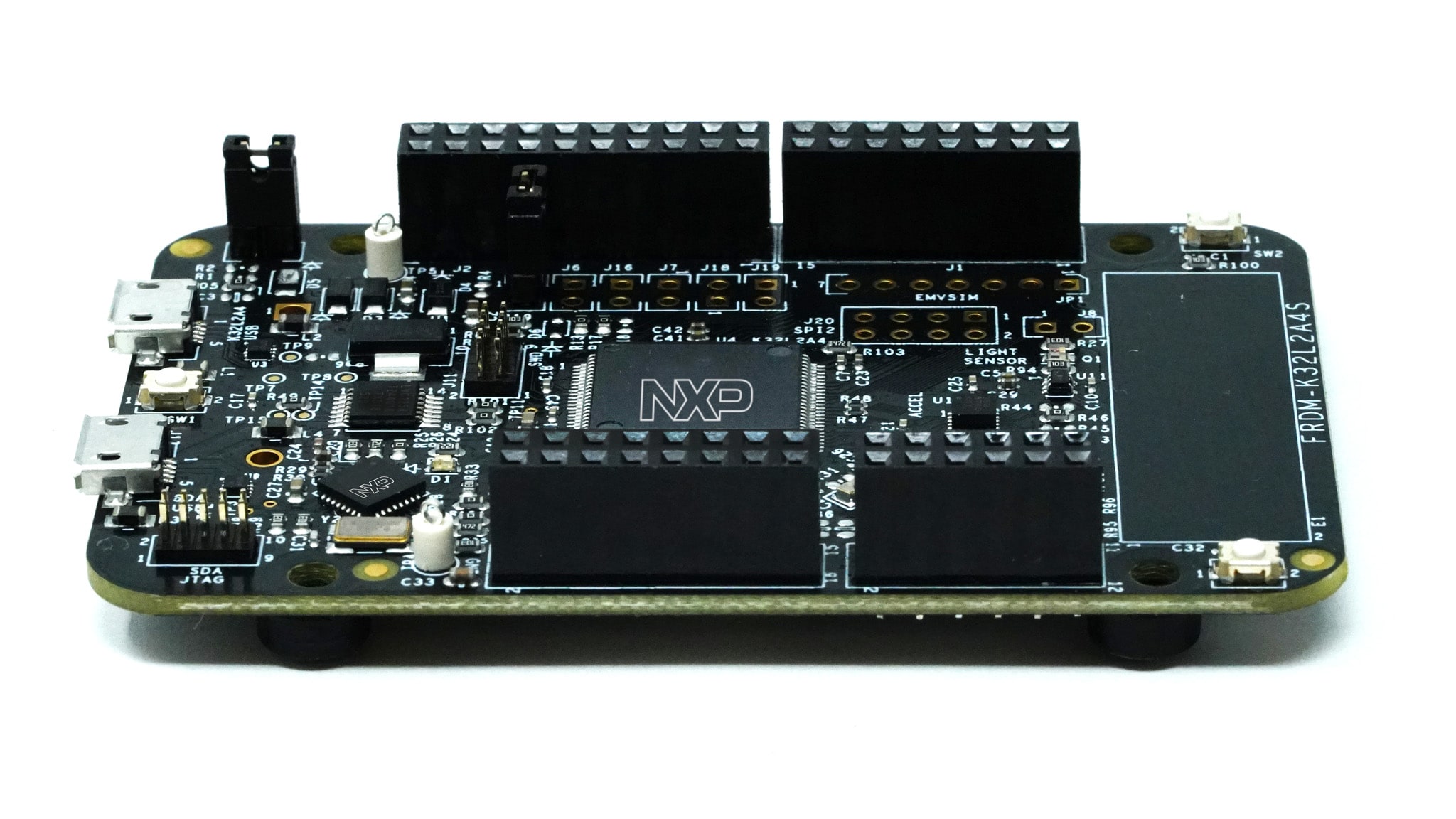

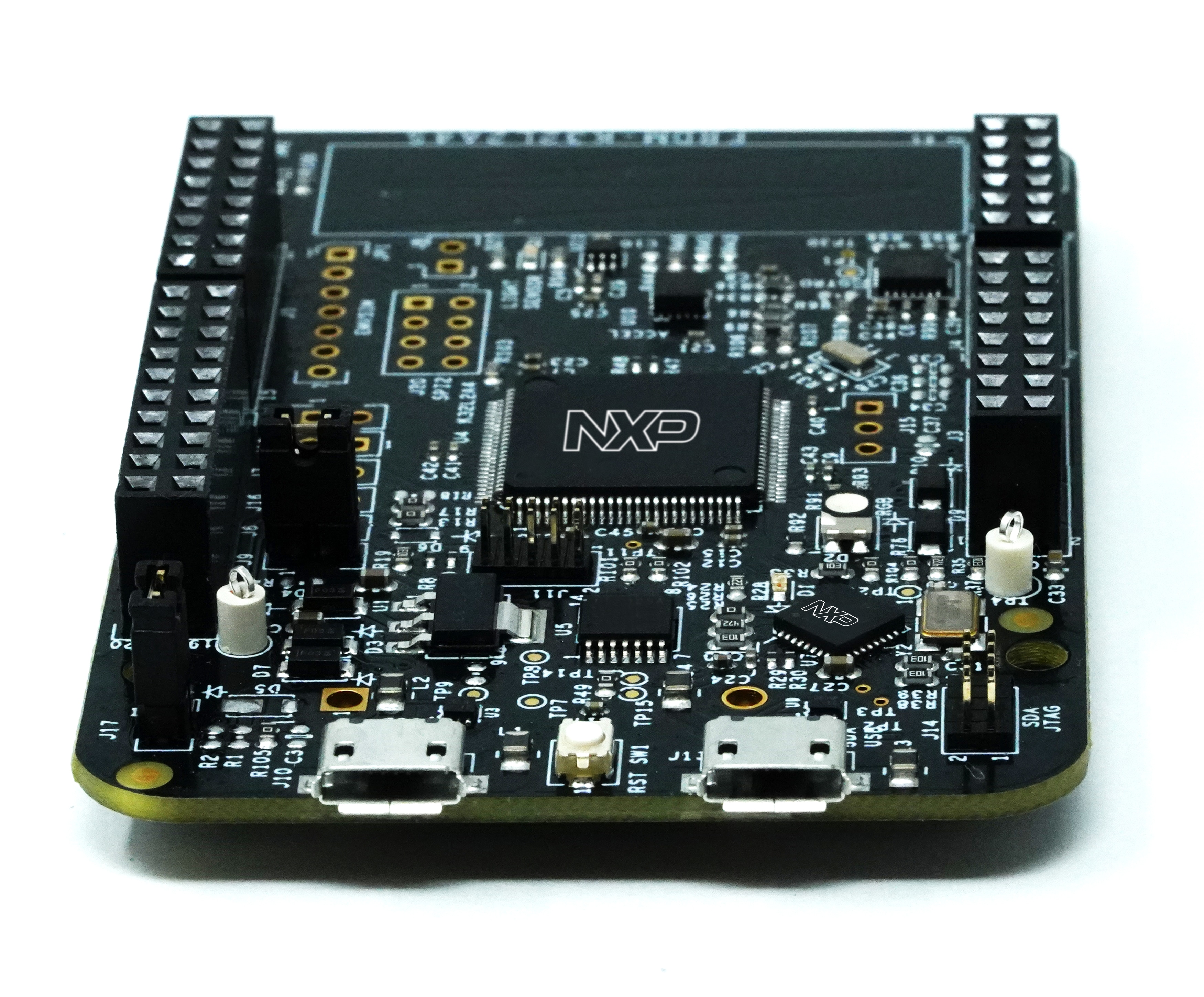

FRDM-K32L2A4S

画像にカーソルを合わせると拡大表示されます。

The FRDM-K32L2A4S Freedom development platform provides an ideal board for evaluation and development of the K32 L2A MCU family based on the Arm® Cortex®-M0+ architecture. This platform includes an onboard debug probe, accelerometer/magnetometer, a full-speed USB and easy access to K32 L2A's MCU I/O.

The FRDM-K32L2A4S board is fully supported by the MCUXpresso suite of tools, which provides device drivers, middleware and examples to allow rapid development, plus configuration and an optional free of charge IDE.

対応製品

プロセッサ＆マイクロコントローラ

K32 Lシリーズ Cortex-M4/M0+

  • K32-L2: Ultra-Low-Power, Highly Integrated MCU

Features

Microcontroller

  • K32L2A41VLL1A MCU running at up to 72 MHz
  • 512 kB Flash Memory
  • 128 kB SRAM Memory

Connectivity

  • Full-speed USB with micro A/B connector for OTG functionally
  • Easy Access to K32 L2A MCU I/O

Debug

  • OpenSDA debug interface
  • P&E Debug interface provides run-control debugging and compatibility with IDE tools

Sensors

  • NXP FSO8700CQ digital sensor, 3D accelerometer (±2g/±4g/±8g) + 3D magnetometer

Power Management

  • Flexible power supply options

Expansion Options

  • Form factor compatible with Arduino® Rev3 pin layout

Software and support application development

    null

購入オプション

FRDM-K32L2A4S-Image

クリックして展開

  • FRDM-K32L2A4S
    アクティブ

  • NXP Freedom Platform for K32 L2A MCUs.

  • Kit Contains:

    • FRDM-K32L2A4S hardware
    • USB cable
  • $34.50 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 7
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
N true 0 TSPFRDM-K32L2A4Sja 4 データ・シート Data Sheet t520 1 ユーザ・ガイド User Guide t792 2 リファレンス・マニュアル Reference Manual t877 1 ja ja 2 1 English This page will help guide you through the process of learning about your FRDM-K32L2A4S board. 1584729733545706036565 Y 1584729733545706036565 GS-FRDM-K32L2A4S GS-FRDM-K32L2A4S /document/guide/getting-started-with-the-frdm-k32l2a4s:GS-FRDM-K32L2A4S HTML 0 2020-03-20 GS-FRDM-K32L2A4S TSP User Guide 132339537837198660 2025-01-07 en Dec 28, 2022 User Guide t792 ユーザ・ガイド User Guide Y Getting Started with the FRDM-K32L2A4S 2 0 English The FRDM-K32L2A4S supports power supply voltage range from 1.71 V to 3.6 V. It features a K32L2A4S, a device running a maximum operating frequency of 96 MHz, up to 512 KB Flash and numerous analog and digital peripherals. 1580978573001737097406 TSP 1.9 MB Registration without Disclaimer None documents Y Extended 1580978573001737097406 /secured/assets/documents/en/user-guide/FRDMK32L2A4SUG.pdf 1880902 /secured/assets/documents/en/user-guide/FRDMK32L2A4SUG.pdf FRDMK32L2A4SUG Y N 2020-02-06 FRDM-KL32L2A4S User’s Guide /webapp/Download?colCode=FRDMK32L2A4SUG&docLang=en /secured/assets/documents/en/user-guide/FRDMK32L2A4SUG.pdf User Guide N 132339537837198660 2022-12-07 pdf Y en Feb 6, 2020 User Guide t792 ユーザ・ガイド User Guide Y N FRDM-KL32L2A4S User’s Guide false ja データ・シート Data Sheet 1 3 K32L2A31VLH1A,K32L2A31VLL1A,K32L2A41VLH1A,K32L2A41VLL1A 3 English 72 MHz Cortex-M0+ based Microcontroller Supports ultra-low-power Arm based microcontroller with crystalless USB feature, large flash and RAM, evolutionary low-power peripherals and security features. This is an ideal solution forSen sor Hub applications, Smart Energy, Internet of Things, and Edge and Concentrator. 1579839429614689693569 TSP 1.2 MB None None documents None 1579839429614689693569 /docs/en/data-sheet/K32L2Ax.pdf 1161926 /docs/en/data-sheet/K32L2Ax.pdf K32L2Ax documents N N 2020-01-23 K32 L2A Microcontroller with 512 KB Flash and 128 KB SRAM /docs/en/data-sheet/K32L2Ax.pdf /docs/en/data-sheet/K32L2Ax.pdf Data Sheet N 980000996212993340 2023-08-24 pdf N en Jun 25, 2021 980000996212993340 Data Sheet Y N K32 L2A Microcontroller with 512 KB Flash and 128 KB SRAM リファレンス・マニュアル Reference Manual 1 4 K32L2A31VLH1A,K32L2A31VLL1A,K32L2A41VLH1A,K32L2A41VLL1A 2 English The K32 L2A is based on the Arm® Cortex®-M0+ processor. This device provides up to 96 MHz (HSRUN mode) CPU performance. It supports ultra low power, up to 512 KB Flash with 128 KB SRAM and integrates functions such as USB with crystal-less recovery. 1579841753829721356655 TSP 12.2 MB Registration without Disclaimer None documents Extended 1579841753829721356655 /secured/assets/documents/en/reference-manual/K32L2AxRM.pdf 12168704 /secured/assets/documents/en/reference-manual/K32L2AxRM.pdf K32L2AxRM documents Y N 2020-01-23 K32 L2A Reference Manual /webapp/Download?colCode=K32L2AxRM&lang_cd=ja /secured/assets/documents/en/reference-manual/K32L2AxRM.pdf Reference Manual N 500633505221135046 2023-06-18 pdf Y en Jan 23, 2020 500633505221135046 Reference Manual Y N K32 L2A Reference Manual true 0 FRDM-K32L2A4S downloads ja true 0 Y TSP データ・シート 1 /docs/en/data-sheet/K32L2Ax.pdf 2020-01-23 1579839429614689693569 TSP 3 Jun 25, 2021 Data Sheet 72 MHz Cortex-M0+ based Microcontroller Supports ultra-low-power Arm based microcontroller with crystalless USB feature, large flash and RAM, evolutionary low-power peripherals and security features. This is an ideal solution forSen sor Hub applications, Smart Energy, Internet of Things, and Edge and Concentrator. None /docs/en/data-sheet/K32L2Ax.pdf English documents 1161926 None 980000996212993340 2023-08-24 N /docs/en/data-sheet/K32L2Ax.pdf K32 L2A Microcontroller with 512 KB Flash and 128 KB SRAM /docs/en/data-sheet/K32L2Ax.pdf documents 980000996212993340 Data Sheet N en None Y pdf 3 N N K32 L2A Microcontroller with 512 KB Flash and 128 KB SRAM K32L2A31VLH1A,K32L2A31VLL1A,K32L2A41VLH1A,K32L2A41VLL1A 1.2 MB K32L2Ax N 1579839429614689693569 ユーザ・ガイド 2 2020-03-20 1584729733545706036565 1 Dec 28, 2022 User Guide ユーザ・ガイド This page will help guide you through the process of learning about your FRDM-K32L2A4S board. Y GS-FRDM-K32L2A4S English 0 User Guide 2025-01-07 /document/guide/getting-started-with-the-frdm-k32l2a4s:GS-FRDM-K32L2A4S Getting Started with the FRDM-K32L2A4S GS-FRDM-K32L2A4S TSP 132339537837198660 User Guide en Y t792 HTML GS-FRDM-K32L2A4S 1584729733545706036565 2020-02-06 /secured/assets/documents/en/user-guide/FRDMK32L2A4SUG.pdf 1580978573001737097406 TSP 2 Feb 6, 2020 User Guide ユーザ・ガイド The FRDM-K32L2A4S supports power supply voltage range from 1.71 V to 3.6 V. It features a K32L2A4S, a device running a maximum operating frequency of 96 MHz, up to 512 KB Flash and numerous analog and digital peripherals. Y Registration without Disclaimer /secured/assets/documents/en/user-guide/FRDMK32L2A4SUG.pdf English 1880902 None User Guide 2022-12-07 /webapp/Download?colCode=FRDMK32L2A4SUG&docLang=en FRDM-KL32L2A4S User’s Guide Y /secured/assets/documents/en/user-guide/FRDMK32L2A4SUG.pdf documents 132339537837198660 User Guide N en Extended Y t792 pdf 0 Y N FRDM-KL32L2A4S User’s Guide 1.9 MB FRDMK32L2A4SUG N 1580978573001737097406 リファレンス・マニュアル 1 /secured/assets/documents/en/reference-manual/K32L2AxRM.pdf 2020-01-23 1579841753829721356655 TSP 4 Jan 23, 2020 Reference Manual The K32 L2A is based on the Arm® Cortex®-M0+ processor. This device provides up to 96 MHz (HSRUN mode) CPU performance. It supports ultra low power, up to 512 KB Flash with 128 KB SRAM and integrates functions such as USB with crystal-less recovery. Registration without Disclaimer /secured/assets/documents/en/reference-manual/K32L2AxRM.pdf English documents 12168704 None 500633505221135046 2023-06-18 Y /webapp/Download?colCode=K32L2AxRM&lang_cd=ja K32 L2A Reference Manual /secured/assets/documents/en/reference-manual/K32L2AxRM.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 2 Y N K32 L2A Reference Manual K32L2A31VLH1A,K32L2A31VLL1A,K32L2A41VLH1A,K32L2A41VLL1A 12.2 MB K32L2AxRM N 1579841753829721356655 true Y Tools
